How to Test a Battery Charger with a Multimeter
A practical, step-by-step guide to safely test a battery charger using a multimeter. Verify input, measure output under no-load and loaded conditions, diagnose common faults, and know when to replace components for reliable charging.
According to 10ohmeter, you can test a battery charger with a multimeter by checking input AC voltage, output DC voltage under no-load and loaded conditions, and current draw. Before starting, unplug, verify safety ratings, and set the meter correctly. Follow a step-by-step workflow to capture stable readings.
Why test a charger with a multimeter
A battery charger is a precision device that converts AC mains to a regulated DC output. Over time, components like capacitors, diodes, or switching controllers can drift, leading to voltage drop, poor regulation, or failed charging cycles. Testing with a multimeter helps you verify that the charger delivers the expected voltage and current, and that it responds correctly to load. According to 10ohmeter, the most reliable checks start with comparing measured values to the charger's rated output and to standard benchmarks for your charger type (linear vs switching). When you identify mismatches early, you can prevent battery damage or equipment failure. In practice, you’ll measure at the charger’s input and output with the same reference points and under the same conditions each time to ensure consistency. Remember that measurements should be done with safety in mind and with the equipment powered off when needed.
Safety first: prepare for testing
Electrical test work carries risk. Before you touch any exposed conductors, unplug the charger from mains and drain capacitors by waiting a few minutes after unplugging. Wear safety glasses and insulated gloves if available. Use a non-conductive work surface and keep liquids away. Ensure your multimeter is rated for the voltage you expect to encounter and that probes are in good condition. Never attempt to measure live AC input with cables that are frayed or damaged. If you’re uncertain, stop and seek guidance. These precautions protect you and your equipment and align with standard safety practices endorsed by organizations like NIOSH and OSHA.
Tools and setup
Gather a digital multimeter (DC voltage and AC voltage ranges), a charger under test, alligator clips or test leads, a safe load for the charger’s output (e.g., a resistor bank or a dedicated dummy load matching the charger’s rated current), a non-conductive bench mat, insulation tape, and a portable power strip if needed. Optional items: a clamp meter, a battery to test charging behavior, and a battery relay for controlled loading. Ensure you have fresh batteries for the meter and that the probes are intact. This setup lets you measure input voltage/current, output voltage, and load regulation without guesswork.
Basic theory: input, output, regulation
A charger has three key parts: input, output, and regulation. The input is typically AC mains; the charger converts it to a regulated DC output suitable for the battery chemistry. The output voltage should be within a small tolerance of the battery’s nominal voltage at no load and under load. Regulation describes how steady the output remains as current varies. A poor regulator will sag under load or overshoot during startup. Understanding these concepts helps you interpret measured values quickly and spot telltale signs of aging or fault.
No-load vs loaded readings explained
No-load readings reveal the charger’s ideal output with minimal draw, but many chargers require a load to regulate correctly. Under no-load, a switching charger might show a higher voltage than its rated output; under load, the voltage tends to settle. Compare the no-load voltage to the rated output and then apply a realistic load to see how voltage droop behaves. If the voltage drops more than a few tenths of a volt under nominal load, the regulator or components may be aging. Always document both conditions for a fair assessment.

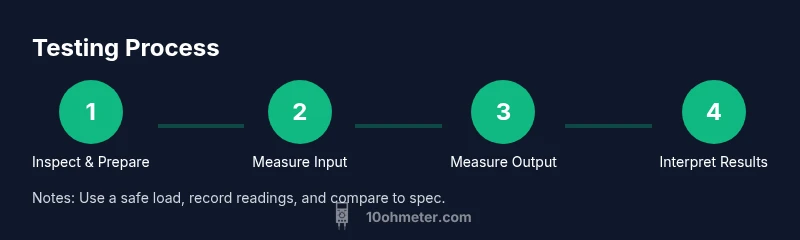

Practical test procedure (overview)
This section outlines a safe, repeatable approach you can follow. Start by verifying safety, then measure input with the charger unplugged, and finally test output with a prepared load. Use the multimeter to measure voltage at the charger’s output terminals, with and without load, and record current where applicable. Keep the load within the charger’s rated range and ensure the measurements are taken quickly to avoid heating effects. This overview will be expanded in the step-by-step section for clarity.
Common issues and how to interpret readings
- Over-voltage: output voltage higher than spec, usually at startup; check for faulty regulation or feedback components.
- Under-voltage under load: voltage sag indicates aging capacitors or a failing switching transistor.
- High ripple: irregular voltage waveform may indicate filters or diodes going bad.
- Inconsistent input current: unusual draw on AC side may point to wiring, fuse, or safety issues.
- In both cases, refer to the charger’s data sheet and perform a controlled bench test to isolate the fault.
When to replace or service
If readings consistently fall outside the manufacturer’s tolerances under load, if leakage or heating occurs, or if the charger shows erratic behavior across multiple tests, it’s time to replace or service. For DIY testers, start with the simplest fix—re-seat connectors and inspect cables—before moving to component-level checks. When in doubt, consult the manufacturer’s support or a qualified technician.
Tools & Materials
- Digital multimeter (DC voltage and current ranges)(Ensure safety rating for at least the charger's maximum voltage/current)
- Charger under test(Disconnected from mains during setup; test with powered-on procedure later)
- Alligator clips or test leads(Insulated; check for damage before use)
- Safe load for the charger output(Resistor bank or dedicated dummy load matching charger’s rated current)
- Non-conductive bench mat(Prevents slips and short circuits)
- Insulation tape(For securing connections and protecting exposed conductors)
- Portable power strip (optional)(Useful for organizing mains connections; keep away from liquids)
- Clamp meter (optional)(Safest way to measure current without breaking the circuit)
Steps
Estimated time: 30-60 minutes
- 1
Prepare safety gear and workspace
Clear the area, inspect equipment, and don safety eyewear. Ensure mains power is off when wiring test leads and connections. Prepare a clearly labeled test area to avoid accidental energizing.
Tip: Double-check that all probes are in good condition and rated for the expected voltage. - 2
Set the multimeter to the correct ranges
Configure the multimeter to DC voltage for output measurements and AC voltage for mains input if you’ll test input. Position the meter on the lowest practical range to improve resolution, then switch up if you approach the limit.
Tip: Use the auto-range feature if available to reduce misreads; verify the leads are in the correct jacks. - 3
Check the charger input safely
With the charger unplugged, connect the input probes to the AC input terminals using non-conductive leads. Record the open-circuit mains voltage to confirm the outlet is delivering expected voltage before powering the device.
Tip: Keep hands away from the mains terminals; never touch exposed conductors while power is applied. - 4
Measure the no-load output voltage
Attach the load to the output terminals but keep it disconnected or at minimal load. Use the multimeter to measure the charger’s DC output voltage at the output terminals.
Tip: Document the exact terminal points you measure to ensure repeatability. - 5
Apply a safe load and measure loaded output
Connect the recommended dummy load to the charger output. Measure voltage again under load and, if possible, measure current using a clamp meter or in-series current measurement.
Tip: Ensure the load is within the charger’s rated current to avoid overheating. - 6
Compare readings and record results
Match your measurements against the charger's datasheet or user manual. Note any deviations beyond tolerance and consider repeating measurements to confirm.
Tip: Use a consistent data log template for future testing.
Your Questions Answered
What is the difference between no-load and loaded readings?
No-load readings show the charger’s ideal output with minimal current. Loaded readings reveal how voltage holds up under real charging conditions. Compare both to the specified output to assess regulation.
No-load readings show the ideal voltage with no current drawn, while loaded readings show how stable the voltage is when the charger is delivering current.
Can I measure AC input voltage with a DC multimeter?
Yes, if your multimeter supports AC voltage measurement and you follow safe mains testing practices. Use appropriate probes and keep meters away from hot conductors.
Yes, you can measure AC input with a multimeter that reads AC voltage, but stay safe and use proper probes.
How do I measure current draw safely?
Use a clamp meter to measure current without breaking the circuit, or place the meter in series with the load using proper connections. Never clip across a live supply to measure current.
Clamp meters are the safest way to measure current; otherwise, insert the meter in series carefully.
Switching vs linear chargers: how do readings differ?
Switching chargers can show different no-load voltages and may have higher ripple. Always consult the datasheet and test under the intended operating load for accurate assessment.
Switching chargers regulate differently and can show higher no-load voltages; check the datasheet.
What readings indicate a faulty charger?
Consistent out-of-spec voltage under load, large voltage drift, excessive ripple, or overheating during testing suggest fault or aging components.
If voltage drifts a lot under load or there’s excessive ripple, the charger may be faulty.
Do I always need a load to test?
No-load checks verify basic regulation, but applying a realistic load reveals how the charger performs during actual use. Use a staged approach when possible.
A load shows real performance, but you can start with no-load checks.
Watch Video
Key Takeaways
- Plan safety first before testing.
- Understand input vs output and regulation.
- Use a proper load to test real performance.
- Document readings for repeatable checks.
