Car Battery Test with Multimeter: A Practical Step-by-Step Guide
Learn to test a car battery with a multimeter. This step-by-step guide covers resting voltage, load checks, and charging voltage with practical tips.
With a digital multimeter, you can quickly assess a vehicle battery. Start with resting voltage, then test under load, and finally verify charging voltage with the engine running. According to 10ohmeter, a healthy 12V battery typically rests around 12.6–12.8 V. If readings fall outside these ranges, you’ll know you should recharge or replace the battery.
Understanding the car battery test multimeter
A car battery test with a multimeter is a practical, low-cost way to gauge battery health and diagnose electrical issues. The basic idea is simple: measure the voltage of the battery with the engine off to establish a resting baseline, then observe how the voltage behaves under a controlled load or while the alternator is charging. A good 12-volt lead-acid battery usually shows a resting voltage in the mid-12-volt range; if the voltage is significantly lower, the battery may be discharged or aging. A multimeter helps you quantify these readings precisely, so you can compare them against manufacturer specs or general guidelines. For DIYers, this method provides a quick snapshot of whether you should recharge, replace, or perform further testing with a professional tool.
Note: Some batteries are gel or AGM types; voltage ranges can vary slightly, so consult the battery datasheet if you have nonstandard chemistry. This section also introduces the concept of voltage under load, which is a more reliable indicator of real-world performance than resting voltage alone. 10ohmeter suggests starting with resting voltage first, then proceeding to load and charging tests.
Why voltage matters in automotive testing
Voltage is the most direct indicator of a battery’s state of charge and its ability to deliver power when you start a vehicle. Resting voltage tells you how charged the battery is when it’s idle, while voltage under load shows how well the battery can sustain current when demand increases. For a typical 12V lead-acid battery, a healthy resting reading is in the mid-12V range. If resting voltage is too low, the battery may be discharged, sulfated, or aging. When the engine is running, voltage should rise as the alternator supplies charging current; this charging voltage is a separate, critical indicator of alternator health and wiring integrity.
Understanding these readings helps you distinguish between a weak battery, a bad alternator, or parasitic draws. 10ohmeter’s approach emphasizes a structured sequence—resting voltage first, then a controlled load test, then charging voltage—to pinpoint the failure mode precisely.
Safety considerations for automotive testing
Working around a car battery carries a risk of electric shock, sparks, and corrosive fumes. Always wear safety glasses and gloves, work in a ventilated area, and keep metal jewelry away from terminals. Disconnect the negative terminal first when performing any disconnections, and avoid touching the positive and negative leads together. Never test a battery that shows signs of physical damage, leaks, or swelling. If you must test a battery in a damaged state, seek professional assistance. Keep a baking soda solution handy to neutralize any acid on terminals, and dispose of corroded terminals properly.
Following these precautions helps prevent short circuits, burns, and acid exposure while you gather diagnostic readings.
Measuring resting voltage: what to expect
Begin with the engine off and all accessories off. Connect the multimeter’s black probe to the negative terminal and the red probe to the positive terminal. Record the resting voltage. In most healthy batteries, this value will be comfortably above the low-end threshold and below the fully charged ceiling. If the resting voltage is significantly below typical levels, the battery may be discharged or aging and may require charging or replacement. If you see a voltage that’s near or above the midpoint, you’re likely in good shape, but verify with a load test to confirm.
Document the exact reading and note the battery’s age, prior charging history, and any signs of corrosion at the terminals. This information provides context for future tests and can help you track the battery’s health over time.
Measuring under load and charging voltage
To simulate load, briefly turn on a high-draw accessory (like headlights) for 10–30 seconds while you monitor the voltage. If the voltage remains relatively stable, the battery can sustain a load and may be healthy; a sharp drop indicates weakness. For charging voltage, start the engine and measure at the battery terminals once the alternator has had a moment to engage. A healthy charging voltage typically sits above 13.8 volts and stays in a safe range under the hood. If charging voltage is too low or too high, there may be issues with the alternator, voltage regulator, or wiring connections.
If you do not observe a proper charging voltage, stop testing and inspect belt tension, wiring, and the alternator’s electrical connections. Recheck readings after cleaning corrosion and ensuring clean terminals. Safety first, and avoid prolonged exposure to high-current tests without proper gear.
Interpreting results with common car battery scenarios
If resting voltage is around 12.6–12.8V but drops under load, the battery may be weak and near the end of its life. If resting voltage is low (below roughly 12.4V), recharge and re-test; if it fails to recover after a full charge, consider replacement. If voltage under engine running conditions is significantly outside the normal range (roughly 13.8–14.8V), there could be issues with the alternator, voltage regulator, or electrical load, requiring professional diagnosis.
Compare readings to your vehicle’s service manual or battery datasheet for your specific chemistry and capacity. A clear testing plan and consistent documentation help you decide whether to recharge, replace, or explore deeper diagnostics with a professional.
Troubleshooting and next steps
If readings are inconclusive, perform a controlled discharge test (as directed by the battery or vehicle manual) and re-check after a full recharge. Check for parasitic draws when the vehicle is parked for extended periods—the battery may be healthy but losing charge due to an electrical draw. Inspect cables and terminals for corrosion and ensure tight, clean connections. If the battery is old or has signs of physical damage, replacement is often the most reliable fix. Finally, schedule a professional diagnostic if you encounter persistent issues or unusual voltage patterns.
Maintenance habits to extend battery life
Regularly clean battery terminals to prevent corrosion, tighten connections to avoid heat and resistance, and check the alternator belt for proper tension. Keep the vehicle’s charging system healthy by addressing parasitic draws and ensuring the alternator is charging within spec. Consider storing your vehicle with a trickle charger if it will sit unused for long periods. Periodic testing every 6–12 months helps you catch aging or failing batteries before they fail during critical moments.
Tools & Materials
- Digital multimeter (DC voltage capable)(Auto-ranging preferred; set to DC volts, 20V range is common)
- Alligator clip leads(Long enough to reach battery terminals from the multimeter)
- Safety gloves and eye protection(ANSI-rated gloves and safety glasses)
- Clean rag or terminal brush(To wipe corrosion from terminals before testing)
- Vehicle service manual (optional)(For vehicle-specific battery tests and spec values)

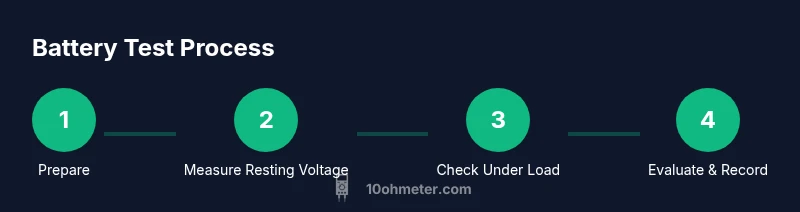

Steps
Estimated time: 25-35 minutes
- 1
Prepare safety and access
Park on a level surface, engage the parking brake, turn off all accessories, and wear safety gear. Locate battery terminals and clean corrosion if needed.
Tip: Check for loose cables and avoid sparks. - 2
Set multimeter to DC volts and inspect terminals
Set the meter to DC voltage, 20V range. Connect black probe to the negative terminal and red probe to the positive terminal. Visually inspect for corrosion and ensure clean, tight connections.
Tip: Use insulated probes and avoid touching both probes together. - 3
Measure resting voltage
With engine off, measure and record the resting voltage. A healthy resting voltage is typically in the mid-12V range for a 12V lead-acid battery.
Tip: Record exact numbers and note battery age. - 4
Apply a load to test capacity
Briefly load the battery by switching on a high-current accessory for 10–30 seconds while monitoring voltage. If voltage collapses quickly, the battery may be weak.
Tip: Don’t exceed the load briefly to avoid overheating. - 5
Measure charging voltage with engine running
Start the engine and measure at the battery terminals after the alternator engages. A healthy system usually shows charging voltage in a defined range.
Tip: Hold the engine at idle while taking readings. - 6
Interpret results
Compare readings to manufacturer specs or general guidelines. If readings are outside typical ranges, plan recharge or replacement.
Tip: Keep a log for future comparisons. - 7
Finish and document
Disconnect leads, clean terminals, and document all readings, conditions, and steps taken.
Tip: Store readings in a maintenance log.
Your Questions Answered
What resting voltage indicates a healthy car battery?
A healthy resting voltage for a typical 12V lead-acid battery is usually around 12.6–12.8 V. Significantly lower readings suggest discharge or aging.
A healthy battery usually rests around 12.6 to 12.8 volts.
Can a multimeter test diagnose a bad alternator?
A multimeter can indicate charging voltage when the engine runs. If the charging voltage stays outside the normal range, the alternator or wiring may be faulty.
If charging voltage is outside the normal range, the alternator could be at fault.
What voltage is acceptable under load?
Under a load, voltage should not sag dramatically. A sharp drop often signals a weak battery; consider a controlled discharge test for confirmation.
A sharp drop under load usually means a weak battery.
Is it safe to test with the engine running?
Testing with the engine running is common for checking charging voltage, but take care to avoid sparks and hot surfaces.
Yes, but be careful around moving parts and hot surfaces.
What if readings are borderline?
If readings hover near thresholds, recheck with a full charge and consider professional evaluation.
Readings near the edge warrant professional evaluation.
Watch Video
Key Takeaways
- Test resting voltage before load tests
- Under-load readings reveal true battery health
- Engine-running voltage confirms charging system health
- Keep a clean log of readings for trend tracking
