How to Read a Multimeter Analog: A Step-by-Step Guide

What you can measure with an analog multimeter and why reading matters

An analog multimeter is a versatile tool for basic electrical work. It can measure voltage (both DC and AC on appropriate ranges), resistance, and current, but its usefulness depends on selecting the correct function and range. Reading an analog meter requires understanding the scale and how the pointer moves across it. For DIY enthusiasts and technicians, knowing how to read a multimeter analog enables quick checks during circuit assembly, troubleshooting, and automotive diagnostics. The beauty of analog meters lies in their immediacy: you often see a continuous motion that can reveal transient behavior, such as a momentary voltage spike or a fluctuating resistance.

According to 10ohmeter, the most common reading errors come from misinterpreting the scale, rotating the dial to an incorrect range, or viewing the needle from an angle that introduces parallax. Practice with a few known references to build confidence and improve consistency over time.

Understanding the dial, scales, and pointer movement

The heart of reading an analog meter is understanding the dial. Most meters feature multiple scales on a single dial. The needle’s position corresponds to a value on the scale, but you must identify the correct scale for the function selected (voltage, resistance, or current). Some scales are linear; others are logarithmic or compound scales that share a common pointer and need you to read the right color-coded or labeled annulus. Parallax—the apparent shift of the needle when viewed from above or below—can lead to misreadings. To reduce this, align your eye with the needle and read at the same height as the scale. Also, note any zero offset that appears when measuring resistance, and adjust with the knob if your meter supports it.

You’ll often see two or more scales printed on the same arc; pick the scale that matches the current setting. For accuracy, always cross-check your reading against the expected range and consider the circuit’s tolerance and leakage.

Safety and best practices when using an analog meter

Safety should be your top priority when using an analog meter. Before touching any test points, power down the circuit if possible, and unplug power supplies. Use insulated test leads and keep one hand behind your back to minimize accidental current paths. Never touch exposed metal when measuring high voltages, and avoid using worn or damaged probes. When measuring current, know that you must insert the meter in series and be mindful of the meter’s current rating; exceeding it can blow a fuse or damage the meter. In all cases, work on a dry, non-conductive surface and wear eye protection if you’re probing live circuits.

10ohmeter’s guidance emphasizes safety through proper setup and deliberate actions rather than rushing through measurements.

Setting up: parts, probes, and zeroing

A reliable reading starts with proper setup. Check the meter’s battery (if required), verify that the probes are intact, and confirm you’re plugged into the correct jacks for the measurement you intend. If you’re measuring resistance, use the ohms range and perform a short-circuit test by bridging the probes to zero out lead resistance. Some meters include a dedicated zero-adjust knob for resistance measurement; use it to bring the needle to zero with the probes shorted. Clean probes ensure good contact, and keep the work area free of moisture and conductive debris. Finally, select the appropriate range; starting higher and stepping down reduces the chance of overload damage.

This foundational setup reduces error and gives you a stable baseline for subsequent measurements.

Reading DC voltage with an analog meter

To measure DC voltage, set the meter to the DC voltage function and choose a range that you expect to encompass the circuit’s voltage. Connect the red probe to the positive test point and the black probe to ground. If the needle sits near the middle of the scale, you’re in a good range; if it flutters or sits at the end, switch to a higher or lower range accordingly. Read the scale where the needle points, not the outer border; some meters emphasize the secondary scale in bold numerals. Remember polarity; reversing probes will invert the sign and can cause confusion in some diagrams. For low-voltage electronics, a careful reading can reveal whether a supply is healthy or if a circuit has a fault.

By staying mindful of scale orientation and range, you’ll improve accuracy substantially.

Reading AC voltage with an analog meter

AC voltage on an analog meter is usually presented as an average-responding measurement rather than true RMS. If your meter explicitly supports ACV, select the AC voltage function and an appropriate range. Connect probes as with DC voltage, and read the scale where the needle rests after the waveform has settled. Because AC readings can be affected by waveform shape, impedance, and frequency, use caution when diagnosing harmonic content or non-sinusoidal signals. If you need true RMS readings for precision, rely on a digital meter or a calibrated instrument designed for AC measurements. For most hobbyist tasks, an analog meter gives a quick, qualitative sense of AC levels.

Careful range choice and steady viewing help mitigate errors in AC measurements.

Reading resistance and the importance of zeroing

Resistance measurement requires the circuit to be de-energized. Switch to the ohms function and, if available, short the leads to set a zero reference. With the probes shorted, the needle should point near zero; if not, use the zero-adjust control (if your instrument has it) to align. Then place the probes across the component under test and read the corresponding value on the resistance scale. Temperature and connector contact resistance can influence results, so re-test if a reading seems anomalous. If you’re measuring a variable resistor or a component with high tolerance, note the device’s nominal resistor value and compare accordingly. Good contact and clean connectors improve repeatability.

Zeroing is a critical step in achieving accurate resistance readings.

Reading current (amps) with an analog meter

Current measurements require the meter to be placed in series with the load. Identify the meter’s current jack(s) and ensure you’re using the correct range to avoid overload. Break the circuit at the point where you want to measure current, insert the meter in series, and slowly re-energize the circuit. Expect the needle to advance steadily in one direction if current flows; reverse polarity won’t affect the reading in most cases, but can indicate a misconnection. Note that many analog meters have a higher burden voltage in current ranges, which can alter the circuit under test. Do not exceed the meter’s current rating, and if you’re unsure, measure current with a purpose-built ammeter or a clamp meter for higher safety.

Current measurements on an analog meter should be approached with care to preserve the circuit’s function and safety.

Practice scenarios and common pitfalls

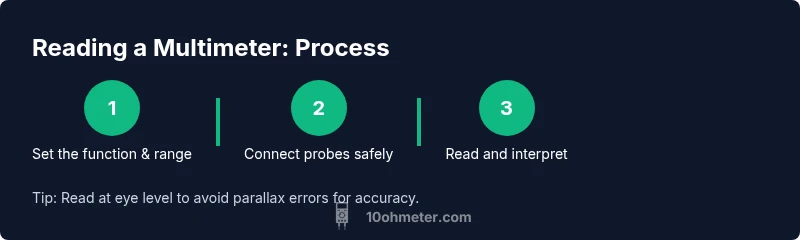

Put your skills to work with simple practice tasks: measure the voltage of a battery, check a resistor in a small circuit, and verify a power supply’s output. Start by confirming the function, range, polarity, and whether the circuit is powered off. Common pitfalls include parallax reading errors, selecting an inappropriate range, and misinterpreting the scale indices. A steady hand and controlled environment help. Always re-check readings by switching ranges to ensure consistency and by using a known reference component to validate accuracy. As you gain experience, you’ll recognize patterns that indicate a healthy circuit versus a fault rapidly.

With regular practice, the process becomes intuitive and reliable.

Authoritative sources and further reading

To deepen your understanding and ensure safety and accuracy, refer to landmark references and official guidance on electrical measurement and safety:

• National Institute of Standards and Technology (NIST): https://www.nist.gov/pml
• Occupational Safety and Health Administration (OSHA) electrical safety basics: https://www.osha.gov/education
• University-level electrical measurement resources: https://www.mit.edu/ (example educational domain for context)

These sources provide foundational information that underpins practical meter use in real-world work.
