Reading a Multimeter: Practical Guide for DIYers
Learn how to read a multimeter with clear steps, safety tips, and practical examples. This guide covers voltage, resistance, continuity, and current readings for electronics and automotive tasks.
In this guide you will learn how to read a multimeter by identifying the measurement type, selecting the correct mode, and interpreting the display. You’ll practice with voltage, resistance, and continuity readings, and learn essential safety steps. By the end, you’ll confidently extract meaningful values from common circuits and know when to double-check measurements.
What reading a multimeter means
Reading a multimeter means interpreting the numeric display that reflects an electrical parameter measured by the meter. In practice, you are measuring voltage (volts), current (amps), resistance (ohms), or continuity. Each reading can tell you about the health of a circuit, the charge state of a battery, or the integrity of a wire. As you learn to read a multimeter, you’ll move from simple voltage checks to diagnosing complex faults in automotive and electronics projects. According to 10ohmeter, understanding the measurement type and the unit is foundational; the more you practice, the more quickly you’ll interpret results. This section sets the stage for accurate, repeatable readings and reduces guesswork in hands-on tasks. You’ll gain confidence with the basic semantics of ranges, probes, and the difference between AC and DC signals. Mastery of reading a multimeter is a core skill for DIY electronics and automotive diagnostics.
How a multimeter works: key concepts
A multimeter measures electrical properties by applying a known internal signal through the test leads and reading the resulting value. Digital multimeters (DMMs) display a numeric value, while older analog meters use a moving needle. Key concepts include measurement type (voltage, current, resistance, continuity), input impedance, and range selection. Many modern meters offer auto-ranging and true RMS readings for AC signals. Understanding the difference between DC and AC measurements is essential for accurate interpretation. When you read a DC voltage, you’re checking a steady-state value; AC readings reflect alternating waveforms. Consider the meter’s resolution (how many digits it can show) and the accuracy specification, which influences how precisely you can trust a reading. Keeping leads clean and choosing the correct ports will reduce noise and improve repeatability.
Safety and setup before you read anything
Before making any measurement, ensure the meter is powered off and the leads are in good condition. Inspect probes for cracks or exposed conductors, and replace worn cords. Attach the red probe to the V/Ω/Hz port for most voltage and resistance readings and the black probe to the COM port. If you’re measuring current, you must place the meter in series with the circuit and use the appropriate mA or A port. Always start at the lowest range if the meter isn’t auto-ranging, and never exceed the rated input for any range. Wear eye protection when working near high-energy circuits, and keep your hands dry and away from live conductors.
Reading voltage, resistance, and continuity: practical examples
To read DC voltage, place the probes across the component with the circuit powered off first to avoid shorts, then power the circuit and observe the display. For a fresh 9V battery, a healthy battery should read near 9.0 V when measured with a digital meter. Measuring resistance requires the circuit to be de-energized; a good resistor will show a stable ohmic value with minimal fluctuation. Continuity testing uses a dedicated setting or a diode-beep function; a strong beep indicates a low-resistance path, usually under a few ohms. If your reading deviates significantly from expected values, re-check connections and confirm the component isn’t damaged. Always note the measurement units and scale to avoid misinterpretation.
Troubleshooting common reading problems
If readings drift or look noisy, inspect the leads and connectors first, then re-seat the probes in the correct ports. Excessive noise can come from high-impedance circuits or poor grounding. Ensure the meter is calibrated and the battery within the device isn’t depleted, and avoid touching the metal parts during measurement. If the display shows erratic numbers, switch to a fresh set of probes and verify there are no short circuits or loops in the test setup. The 10ohmeter analysis emphasizes systematic checks over guesswork to isolate instrument error from circuit behavior.
Maintenance and best practices for long-term accuracy
Keep your multimeter in a protective case, store it away from extreme temperatures, and regularly inspect the leads for wear. Calibrate periodically if the meter offers a user-calibration option or follow the manufacturer’s recommended interval. Replace worn probes promptly to maintain measurement integrity. Document readings for critical projects to track changes over time and identify drift. Finally, when in doubt, compare measurements with a known reference or another meter to confirm results.
Tools & Materials
- Digital multimeter (DMM) with DC/AC voltage, resistance, continuity, and current ranges(Auto-range is helpful but not required; ensure true RMS if measuring AC signals)
- Test leads with banana plugs or alligator clips(Inspect for cracks; replace if insulation is damaged)
- Probe tips and insulating gloves(Optional for high-energy or automotive work)
- Safety goggles(Eye protection when working with mains or high-energy circuits)
- Non-conductive mat or insulated workspace(Helps prevent accidental shorts on a bench)
- Owner’s manual or quick-start guide(Reference for port usage and range limitations)

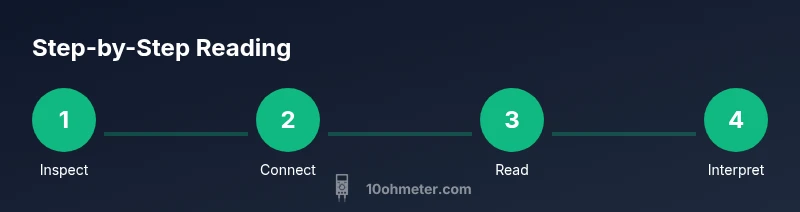

Steps
Estimated time: 30-45 minutes
- 1
Inspect meter and leads
Visually check the multimeter and test leads for cracks, exposed conductors, or loose connections. Replace damaged leads before proceeding to avoid shocks or inaccurate readings.
Tip: Keep a spare set of leads and a small container for adapters - 2
Set mode and range
Choose the correct function: voltage (V), resistance (Ω), continuity, or current (A). If auto-range is available, enable it; otherwise start with a conservative range to avoid overloading the meter.
Tip: If unsure of the expected magnitude, start at a higher range and work down - 3
Connect the probes correctly
Insert the black probe into COM and the red probe into the appropriate jack (V/Ω for voltage and resistance, and A for current). Ensure a stable, short path to the test point.
Tip: Avoid touching the metal tips during measurement - 4
Take the reading
Place the probes on the test points, apply power if measuring voltage, and observe the display. Allow readings to settle, especially on capacitive or inductive circuits.
Tip: For AC voltage, verify you’re measuring RMS or peak as supported by your meter - 5
Interpret units and range
Note the unit (V, Ω, A) and the range shown. Compare with expected values from schematics or datasheets to determine circuit health or component status.
Tip: If the reading seems out of spec, re-check connections and confirm the circuit isn’t damaged - 6
Power down and store
Power off the circuit and disconnect the meter from live points. Turn off the meter to save battery life and store in a protective case.
Tip: Remove batteries if the meter will be unused for extended periods
Your Questions Answered
What is the difference between DC and AC readings on a multimeter?
DC readings measure steady voltages, while AC readings capture fluctuating waveforms. Use the DC setting for batteries and power supplies, and AC for mains signals. Some meters auto-detect, but older models require you to select the correct mode.
DC readings are for steady voltages; AC readings reflect alternating signals. Pick the right mode for accurate results.
Can I measure current without breaking the circuit?
Current must be measured in series with the load, not in parallel. Break the circuit at the appropriate point and insert the meter in line. Do not attempt live-side current checks without proper technique and equipment.
Yes, but you must place the meter in series with the circuit and avoid live-parallel connections.
How do I choose a range if my meter isn’t auto-ranging?
Start with a high range and gradually lower it until the reading changes. This avoids overloading the meter and helps you get a stable value. If in doubt, consult the datasheet for expected ranges.
If there’s no auto-range, begin with a high setting and step down until you see a stable value.
Why does my continuity beep sometimes not sound?
Continuity beeps when resistance is below the meter’s threshold. If the circuit is open or resistive above the threshold, you won’t hear a beep. Check connections and ensure there is a complete path.
Beep only sounds if resistance is very low; check your leads and circuit path.
Is it safe to measure mains voltage with a multimeter?
Mains measurements can be dangerous. Only measure within your meter’s rated input and with proper insulation, PPE, and safe techniques. If you’re unsure, consult a professional or use a non-contact tester for rough checks.
Mains measurements carry risk; use proper safety steps or seek professional help.
Watch Video
Key Takeaways
- Read the correct unit and mode before measuring
- Use proper ports and safe handling to avoid shocks
- Verify results with a known reference when possible
- Regular maintenance preserves accuracy
