Reading a Multimeter Amps: A Practical Guide
Learn how to read amps with a digital multimeter, including safety tips, step-by-step measurements, and practical electronics and automotive examples.
Goal: learn how to read amps with a multimeter safely and accurately. You’ll discover when to measure current, how to wire the meter in series, how to select the correct range, and how to interpret the amp reading in common electronics and automotive scenarios. Follow the steps and safety cautions to avoid damaging the meter or the circuit.
Understanding amps in a circuit
According to 10ohmeter, amperes (amps) measure the flow of electric charge through a conductor per second. When you read amps with a multimeter, you are quantifying how much current passes through the circuit at a given moment. This quantity is essential for assessing how a device uses power, whether a circuit is overloaded, or if a component is functioning within its design spec. Important: You cannot measure current the same way you measure voltage. To read current, you must place the meter in series with the load so all the current flows through the meter. Placing the meter across a live supply (in parallel) will not give you current readings and can blow the meter fuse or damage the circuit. Ohm's law links voltage, current, and resistance: I = V/R. In a simple resistive load, increasing voltage or decreasing resistance raises current, while a higher resistance lowers it. In real devices, you may encounter nonlinear behavior, inductive loads, or switching regulators that momentarily spike current. The 10ohmeter team emphasizes safety and accuracy; if you’re unsure about the expected current, start with the highest safe range to avoid blowing the fuse or blowing the meter. This practice helps you protect the meter's fuse and keeps your measurements within the device's spec. In both electronics projects and automotive tasks, current readings tell you if a motor is drawing the expected current, if a regulator is collapsing, or if a sensor is consuming power abnormally. Always ensure the meter is rated for the expected current and connected with proper test leads. If you’re new to reading amps, practice with a small, known load such as a resistor on a low-voltage bench supply before attempting anything more ambitious. With patience, you’ll translate theory into practical insight for breadboard experiments, vehicle diagnostics, and hobby builds, all while keeping safety first.
tipNoteNeededForThisBlock?": false
Tools & Materials
- Digital multimeter (DMM) with current (mA–A) ranges(Ensure it has a dedicated current jack and fuse for the range you're using.)
- Test leads and alligator clips(Use snug connections; loose leads cause erratic readings.)
- Inline current shunt (optional)(Useful if your meter lacks a high-current input or for more precise measurements.)
- Battery or low-voltage power source(Keeps the test circuit isolated from mains; start with 5–12 V for safety.)
- Known-load resistor (e.g., 220 Ω, 1 kΩ)(Used to create a predictable current path for practice measurements.)
- Safety goggles(Protect eyes when wiring and testing in case of shorts.)
- Insulated gloves (optional)(Useful when working with higher voltages or automotive circuits.)

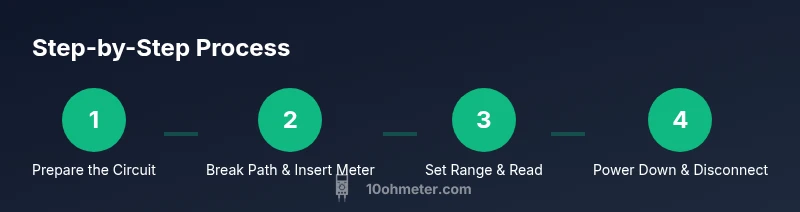

Steps
Estimated time: 15-25 minutes
- 1
Prepare safety gear and power down
Put on safety goggles, unplug the test power, and inspect all leads for damage. Confirm the circuit is safe to touch and that no exposed conductors can accidentally contact metal surfaces.
Tip: Verify the meter’s fuse is intact before starting; a blown fuse hides current in the wrong range. - 2
Assemble a safe test circuit with a known load
Connect a known-resistance load to your power source and place the load in a short, closed loop. Keep the total current within the meter’s safe range to minimize risk during initial testing.
Tip: Using a breadboard or solderless setup reduces the risk of loose connections during measurement. - 3
Break the current path to insert the meter in series
Identify the hot leg feeding the load and carefully create a break in the circuit so the current must flow through the meter. Do not place the meter in parallel with the supply if you want an amp reading.
Tip: Make a clean break with the connections to avoid accidental shorts. - 4
Configure the meter for current range and connect leads
Insert the red probe into the current jack, select the closest appropriate current range (start high, then step down), and connect the meter in series with the load. Ensure black lead is grounded or connected to the return path.
Tip: Start at a higher current range (e.g., 200 mA or 2 A) to avoid blowing the fuse if you’re unsure of the load. - 5
Power on and read the amperage
Turn on the power and observe the displayed current. If the reading is unstable, recheck connections and confirm the circuit is truly in series. Document the measurement and cross-check with Ohm’s law if possible.
Tip: If you see overload, immediately switch to a higher range or reduce the load to protect the meter. - 6
Power down, remove the meter, and restore the circuit
Power off the circuit, carefully remove the meter from the series path, reconnect the circuit as it was, and store the equipment safely. Double-check for any heat buildup after test.
Tip: Never remove the meter while the circuit is powered.
Your Questions Answered
Can I measure current in a running circuit without turning it off?
Measuring current in a live circuit is risky. It’s best to power down, insert the meter in series, and verify the range before re-energizing. In automotive work, use appropriate interlock procedures to avoid shorts.
You should power down and insert the meter in series to measure current safely; avoid measuring live circuits directly.
Why does my meter show overload or 'OL' when measuring current?
The load current exceeds the selected range or the meter’s fuse is blown. Switch to a higher current range or replace the fuse if needed. If the fuse blows repeatedly, check for a short or load miscalculation.
An overload means the current is higher than the range; switch ranges or inspect the circuit for shorts.
What’s the difference between measuring current and voltage with a multimeter?
Voltage is measured across a component (parallel connection). Current must pass through the meter in series. Mixing the two can damage the meter and circuit.
Voltage is measured across a component, current must go through the meter in series.
Can I use a clamp meter instead of inserting the DMM in series?
Yes. A clamp meter measures current without breaking the circuit, but it may be less precise for low currents and requires proper calibration for accurate readings.
A clamp meter can measure currents without breaking the circuit, but check its limits and calibration for accuracy.
Is it safe to measure car battery current with a DMM?
Car electrical systems can deliver high currents; use a dedicated automotive meter or a shunt with proper protection, and avoid direct high-current insertion into a typical DMM.
Be cautious; automotive work often needs specialized gear and safety protocols.
What range should I use for small hobby projects?
Start with the 200 mA or 2 A range depending on the expected current, then narrow down to the most precise setting after a stable reading.
Begin with a higher range and then step down to the most accurate one as you confirm the current.
Watch Video
Key Takeaways
- Read amps only when the meter is in series with the load.
- Start with a high current range to protect equipment.
- Verify the circuit is safe and connections are tight.
- Use a known-load to calibrate expectations before complex circuits.
- Always disconnect power before removing the meter.
