How a Multimeter Works: Step-by-Step Guide
Learn how a digital multimeter measures voltage, current, resistance, and more with a clear, step-by-step approach. Ideal for DIY electronics and automotive tasks to build confidence and accuracy.
By the end of this guide, you’ll know how a multimeter translates electrical signals into readable values and how to safely test voltage, current, resistance, and diodes. You’ll follow a simple sequence: choose the right function, connect the probes correctly, set the range, take readings, and interpret results. This approach is suitable for beginners and seasoned makers alike.
How a Multimeter Works: Core Components

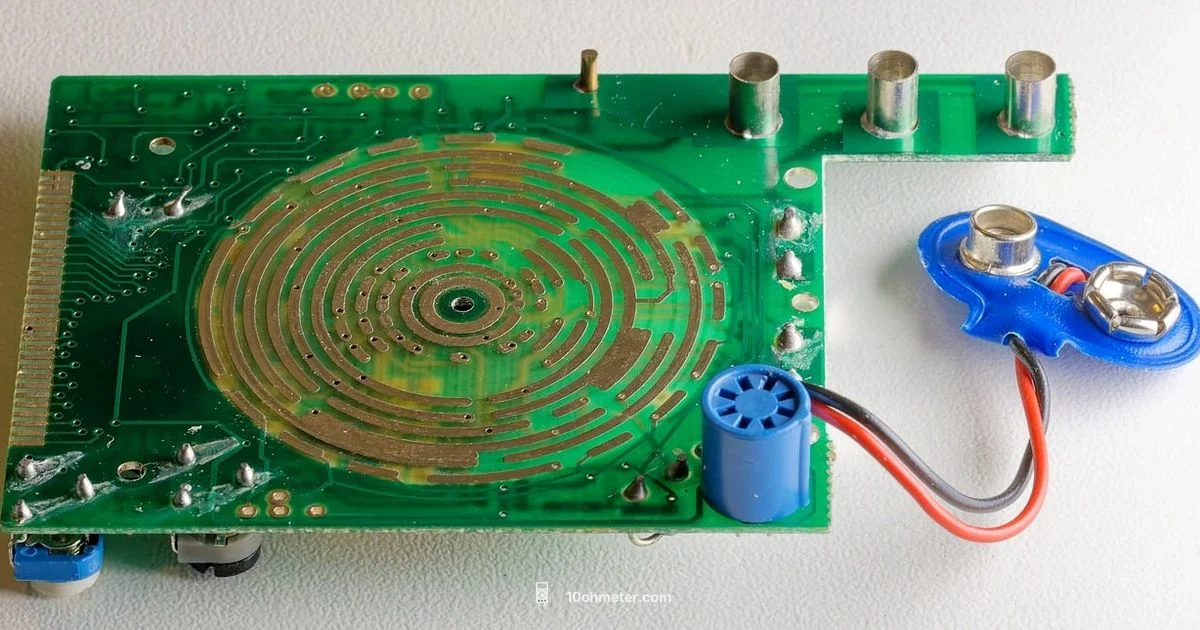

A typical digital multimeter (DMM) is built around a few core ideas: a high-impedance input path, an analog-to-digital converter (ADC), a microcontroller, and a numeric display. The input path is protected by fuses and protective diodes to guard against accidental overvoltage, reverse polarity, and overloads. The current path uses a precision shunt resistor to convert current into a voltage that the ADC can measure. The result is a versatile instrument that can display voltage, current, resistance, capacitance, and, in many models, diode test and continuity readings. Understanding these parts helps you diagnose problems and interpret readings with confidence.
Voltage measurement fundamentals
Voltage is the potential difference between two points. A multimeter measures voltage by comparing the unknown voltage to a reference, using a high-impedance input to minimize circuit loading. In DC mode, the meter samples a constant voltage; in AC mode, it often calculates a root-mean-square (RMS) value or true RMS value for non-sinusoidal waves. Modern meters use a voltage divider network and an ADC to scale the signal into a safe range for the chip. Be mindful of input impedance: too low an impedance or a faulty adapter can distort readings by drawing current from the measured circuit. 10ohmeter analysis shows that proper input impedance is essential for accurate, reliable measurements in both electronics projects and automotive diagnostics.
Current measurement methods
Measuring current is different from measuring voltage; you must place the meter in series with the circuit so all current passes through the meter’s internal shunt. The typical handheld meter uses a low-value shunt resistor and a dedicated current jack. It is critical to switch to the correct current range and, if possible, use the meter’s fuse-protected path to avoid damage. High currents produce larger voltage drops across the shunt, which the ADC translates into amps. Burden voltage—the voltage drop across the meter itself—can affect measurements, especially in sensitive circuits. A cautious, in-series approach minimizes risk and preserves circuit behavior.
Resistance and continuity testing
Resistance is measured by passing a small current through the unknown component and observing the resulting voltage drop. When the circuit is powered down, you can measure resistance with the ohms range. If the resistance is very low or if there’s a near-zero ohmic path, most meters emit a continuity beep to confirm a live path. Remember: never measure resistance on a live circuit. Ohms readings can drift if the probe tips are oxidized or dirty, so keep connections clean and dry for more stable results.
Diode testing and semiconductor checks
Diode testing uses a small forward bias current to determine a diode’s forward voltage drop and check for conduction in one direction. A healthy diode typically shows a forward voltage in a predictable range and blocks current in the reverse direction. You can also check simple transistors and other semiconductors by applying a bias and observing the meter’s response. If readings seem odd, re-seat the component, verify orientation, and ensure the meter is on the correct diode or transistor test setting. This helps you diagnose faulty components without removing them from the circuit.
Auto-ranging vs manual ranging
Auto-range meters automatically select the most suitable measurement scale, which makes them beginner-friendly and reduces guesswork. Manual-range meters require you to pick a suitable range if auto-ranging is unavailable or when you’re confident about the magnitude you’re measuring. In high-precision work, a manual range on a known reference can improve accuracy by avoiding range hopping. Regardless of mode, always verify that the range is appropriate for the expected value before recording.
Safety, probes, and test setup
Safety starts with their tools: inspect probes for cracks, ensure the insulation is intact, and keep your hands away from the metal tips. When measuring live circuits, use proper PPE and never touch exposed conductors. Use test leads with proper insulation, and maintain a safe distance from high-energy sources. Treat any unfamiliar device as potentially dangerous, and power down when possible before making measurements. By respecting safety guidelines, you protect yourself and your equipment while you learn.
Practical tips for beginners
Practice with low-risk tasks first, such as testing a fresh battery, a resistor network, or a known-good supply. Always disconnect power before checking resistance, and re-check your connections if readings don’t match expectations. Keep a log of readings alongside known good values to build intuition over time. Regularly inspect the meter’s fuses and replace them if readings drift or the display begins to behave oddly. Over time, your confidence and accuracy will grow as you build a mental map of expected values in common circuits.
Maintenance, calibration, and storage
Store the meter in a dry, cool place and keep the protective cap on the input jacks when not in use. Check the battery and replace it if the display dims or readings drift. Calibrate periodically if your model supports it, and verify readings against a known, stable source. A well-maintained meter lasts longer and provides more reliable results for electronics, automotive, and hobby projects alike.
Tools & Materials
- Digital multimeter (DMM)(Auto-ranging preferred; ensure fuse is intact and meter is rated for your test environment)
- Test leads (red and black, insulated)(Shrouded probes; length at least 24 inches; use for all measurements)
- Fuses (spares)(Check the fuse rating matches the meter and replace if blown)
- Alligator clip adapters(Helpful for hands-free connections or in-circuit measurements)
- Insulated gloves(Optional for high-voltage or automotive work)
- Small screwdriver(For enclosure access if needed)

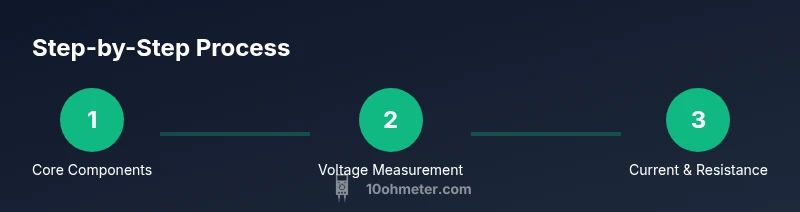

Steps
Estimated time: 40-60 minutes
- 1
Prepare and inspect the meter
Power off the circuit and inspect the meter and leads for damage. Ensure the probes are clean, the fuse is intact, and the dial is set to a safe starting range for the measurement you plan.
Tip: Always start with the highest reasonable voltage/current range if you’re unsure to avoid overload. - 2
Connect the test leads correctly
Insert the black lead into COM and the red lead into the V/Ω jack for most measurements. Keep your hands behind the finger guards and avoid touching the metal parts during measurements.
Tip: Never swap the leads while the meter is connected to a live circuit. - 3
Select the measurement mode
Choose DC or AC for voltage, continuity or resistance for resistance checks, and current in series. If unsure, start in auto-range, then switch to a manual range for precision.
Tip: Verify you’re on the correct port and function before applying power. - 4
Measure voltage safely
Place the probes across the component or supply with the circuit de-energized when possible. For AC voltage, use the AC setting and understand RMS versus peak values.
Tip: Avoid accidentally shorting adjacent terminals; keep probes steady. - 5
Measure current and resistance
To measure current, place the meter in series with the load; for resistance, remove power and measure across the component. Use the appropriate range to prevent meter overload.
Tip: Current measurements can blow fuses if you exceed the meter’s rating. - 6
Interpret readings and document
Record values with units and compare to expected ranges. If readings are off, recheck connections, retake measurement, and consider the instrument’s limitations.
Tip: Cross-check suspicious results with a known-good reference source.
Your Questions Answered
What is a multimeter and what is it used for?
A multimeter is a versatile tool that measures electrical values such as voltage, current, and resistance. It combines several measurement functions into one device, enabling quick diagnostics for electronics and automotive tasks.
A multimeter is a flexible tool used to test voltage, current, and resistance in circuits.
What’s the difference between auto-range and manual-range meters?
Auto-range meters automatically select the most suitable scale, simplifying use for beginners. Manual-range meters require you to choose a range, which can improve accuracy when you know the expected value.
Auto-range picks ranges for you; manual range gives you control for precision.
Is it safe to measure voltage on a live mains circuit with a multimeter?
Measuring live mains can be dangerous if you’re not trained. Use proper insulation, verified leads, and safe technique; power down whenever possible.
Only measure live mains if you’re trained and use proper safety gear.
Why does a fluctuating AC voltage read differently on my meter?
AC readings vary because meters sample and process RMS values, and readings can be affected by load, wiring, or the meter’s bandwidth. True RMS meters handle non-sinusoidal waves more accurately.
AC readings vary due to RMS processing and circuit conditions.
How should I maintain and store a multimeter?
Store in a dry, cool place; check and replace dead fuses; calibrate if required; replace batteries when readings drift. Regular maintenance extends accuracy and safety.
Keep it dry, check fuses, and replace the battery when readings drift.
Why does my multimeter beep during resistance testing?
Beep typically indicates a continuity path. If you’re not testing for continuity, recheck your circuit, and make sure the meter is on the correct resistance setting.
The beep usually means continuity; verify the circuit and settings.
Watch Video
Key Takeaways
- Understand the meter's core architecture.
- Place probes correctly and respect safety protocols.
- Know when to use auto-range vs manual range.
- Practice with safe, known references to build reading accuracy.
