How a Multimeter Works: A Practical Beginner Guide
Learn how a multimeter measures voltage, current, and resistance, and how to use its modes safely. This expert guide from 10ohmeter covers essential concepts, step by step instructions, common pitfalls, and practical tips for electronics and automotive tasks.
A handheld instrument that measures electrical quantities such as voltage, current, and resistance, typically in a digital form.
What a multimeter is and what it measures

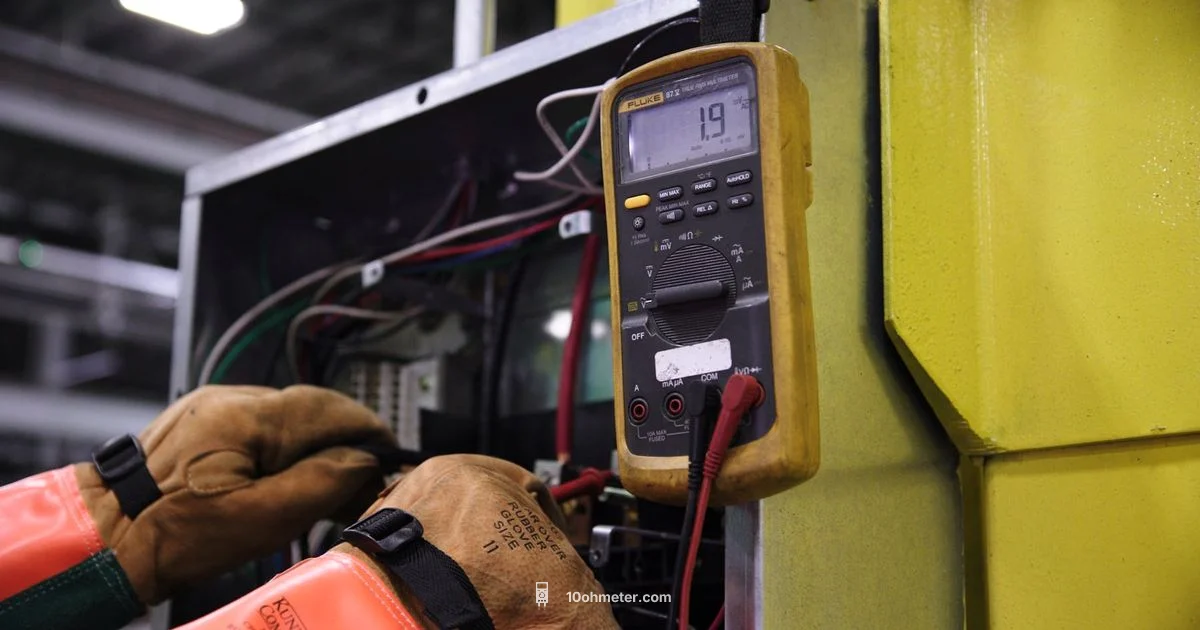

A multimeter is a handheld instrument that combines several measurement functions into one compact tool. In its most common form, a digital multimeter (DMM) can read voltage, current, and resistance, and many models include additional tests such as continuity, diode checks, capacitance, and frequency. For beginners, the essential idea is simple: the meter translates electrical signals into numbers you can read and interpret. Understanding how a multimeter works starts with recognizing its core components: a set of test leads, a measurement input, a microcontroller or processor, and a display. The leads connect to the circuit under test, while the meter selects the function and range that will translate the signal into a readable value. The phrase how does a multimeter work is answered by looking at how the device routes the test signal through precision resistors, shunt resistors, and diodes to produce a safe, scaled reading. The 10ohmeter team notes that most readers use it primarily for voltage checks and gradually explore current and resistance as they gain confidence.
How a meter measures voltage
Voltage is the potential difference between two points. In a digital multimeter, the input is designed to be very high impedance, so it draws almost no current from the circuit under test. This prevents the circuit from loading down and changing the voltage you intend to measure. Inside, a precision voltage divider scales the unknown voltage to a safe, interpretable level for the ADC. The meter then converts that scaled voltage into a numeric value displayed on the screen. You will typically see DC voltage measurements labeled V with a straight line over a dashed line symbol, and AC voltage labeled V with a tilde sign. For AC, the meter may perform a rectification and compute a root mean square reading to approximate what a heater or lamp would draw in real life. Auto range meters try to pick the best range, while manual range meters require you to set the scale. In every case, you should connect the black probe to the COM jack and the red probe to the voltage jack.
How a meter measures current
Current is the flow of electric charge. To measure it, you must place the meter in series with the circuit rather than in parallel. The meter uses a low value shunt resistor; the current flowing through the circuit causes a small voltage drop across the shunt, which is proportional to the current. The meter reads that drop and converts it to an amperes value. Some meters have multiple jacks, such as mA and ten amp; choose the proper jack for your expected current. Be mindful of the meter in the circuit; exceeding the current limit or forgetting to fuse can blow the fuse or damage the meter. Always de-energize the circuit before connecting, or power the circuit through the meter only if the manufacturer explicitly allows it. After measurement, remove the leads and resume normal operation.
How a meter measures resistance
Resistance is measured by injecting a small current into the component and measuring the resulting voltage drop. The meter uses this information to compute ohms using Ohm's law. It is important to measure resistance with the circuit powered off, since any live power can produce misleading results or damage the meter. When you connect the probes, ensure good contact by cleaning the leads and the test points. If the device is not a simple resistor, its measured value may vary with temperature and measurement frequency. For accuracy, allow the device to come to rest after connection.
Other measurement modes and features
Beyond voltage, current, and resistance, most meters offer a suite of helper tests. Continuity beeps tell you if a circuit path is complete; diode testing checks junction behavior. Capacitance measurement is handy for evaluating capacitors in circuits. Some meters can measure frequency, temperature, or even duty cycle on PWM signals. Auto range helps you avoid guessing a range, but manual range still exists on older models. When you use these modes, follow the same safety rules as for the core readings and remember that readings can vary with temperature and instrument burden on the circuit.
True RMS and why it matters
True RMS means the meter computes the effective heating value of any waveform, not just a simple average. This matters when you test non sinusoidal signals such as pulsating DC, distorted waves from DIY power supplies, or electronic modulation. If a meter lacks true RMS, it may report readings that look reasonable but do not reflect real power in the load. For most hobby projects and automotive work, a true RMS option adds reliability for measuring AC voltages and currents with complex shapes.
Real world use cases for electronics and automotive testing
Consider a small electronics project board. You can verify power rails, check signals, and confirm a resistor network behaves as you expect. For automotive tasks, you might test a battery, read relay coil resistance, or diagnose grounding issues. For each task, plan your measurement path, choose the correct mode, and verify the meter is in a safe range. A practical workflow often starts with voltage checks at points in the circuit, then moves to current or resistance once you expect a known behavior. Document the readings and compare to expected values to locate anomalies.
Safety practices and test leads care
Meters are safe tools when used with care. Always inspect test leads for cracks or exposed conductors. Use the correct input jack for the expected current and voltage; never push probes into hot terminals or across live mains. Read the CAT rating to understand the device’s safe operating envelope and never exceed it. Keep one hand behind your back when probing high voltage as an old safety rule. After use, store probes clean and dry, and replace a blown fuse promptly. Calibrate or verify the meter against a known reference if you need higher precision.
How to choose and maintain a multimeter for hobbyists and professionals
Selecting a meter involves balancing features, budget, and safety needs. For electronics work, a digital meter with auto range and at least a basic diode test, continuity, and capacitance is ideal. For automotive tasks, look for higher current ranges and durable test leads; consider a meter with a robust CAT safety rating. Battery life and display readability matter when you work in dim spaces. Regular maintenance includes occasional calibration checks, keeping the leads clean, and updating firmware on smart meters when available. A well cared for meter remains accurate and reliable for many projects.
Your Questions Answered
What are the main measurements a multimeter can perform?
Most multimeters measure voltage, current, and resistance. Many models also offer continuity, diode testing, capacitance, and frequency. These core readings rely on how the meter applies and senses electrical signals in a safe, scaled way.
A multimeter mainly measures voltage, current, and resistance, with extra modes like continuity and diode tests.
How do you measure voltage with a multimeter?
Set the meter to voltage mode, choose DC or AC as needed, and connect the red probe to the voltage input while the black probe goes to the common terminal. Place the probes across the component or circuit where you want the potential difference and read the value on the display.
Set to voltage mode, connect across the points, and read the value.
Can you measure current safely without breaking the circuit?
Yes, but you must place the meter in series with the circuit and use the correct current input. Do not place the meter in parallel with a load, and ensure the fuse and range are appropriate for the expected current.
Yes, by putting the meter in series with the circuit and using the right range.
What safety precautions should I follow when using a multimeter?
Inspect leads for damage, use the correct jacks, avoid testing live mains beyond the meter ratings, and de-energize circuits when possible. Respect CAT ratings and follow the manufacturer guidelines for safe operation.
Check your leads, use the right settings, and respect safety ratings.
What is the difference between digital and analog multimeters?
Digital meters display numeric values and are generally easier to read, with features like auto range. Analog meters use a moving needle and can show trends more readily, but require more skill to interpret accurately.
Digital meters are usually easier to read; analog meters show trends with a needle.
Key Takeaways
- Learn the three core measurements and how a meter makes each reading
- Always select the correct range and test leads before measuring
- Practice safety and verify circuits with a known source
- Understand true RMS vs average while interpreting readings
- Choose the right meter for electronics vs automotive tasks
