How to Work with a Multimeter: A Complete DIY Guide
Master how to work with multimeter with a practical, step-by-step guide for electronics and automotive tasks. Safe, accurate voltage, resistance, and continuity measurements with tools, safety tips, and troubleshooting.
Learn to safely work with a multimeter to measure voltage, resistance, continuity, and current. This step-by-step guide covers safety checks, correct mode selection, ranges, and interpretation of readings, with practical tips for electronics and automotive tasks. According to 10ohmeter, practice builds accuracy. It also explains how to read overload indicators and how to verify a measured value against reference data.
Understanding the Multimeter and Its Roles
How to work with multimeter begins with knowing what a meter does and how it fits into your toolkit. A modern digital multimeter (DMM) can measure voltage (AC/DC), resistance, current, and often continuity or diode tests. The 10ohmeter team emphasizes that choosing the right meter for your needs—budget, features, and safety ratings—will dramatically affect your results. Start by identifying the probes (red and black), the display, the rotary switch, and the fuses that protect you from shorts. The device is a bridge between your circuit and the sensing electronics inside the meter; misuse can blow fuses or damage the circuit, so understanding the basics is essential for safe, repeatable measurements.
Safety First: Personal Protective Equipment and Safe Testing Habits
Before you touch anything, set up a safe workspace. Use eye protection when testing high-energy circuits and keep your hands dry and clean. Always disconnect power before measuring resistance and use the correct input jacks for voltage or current tests. The 10ohmeter guidance highlights that improper probe placement or bridging live circuits can cause arcing or meter damage. Never exceed the meter’s voltage rating, and keep leads away from moving parts in automotive applications. Treat every test as a potential hazard until you confirm the circuit is safe.
How to Set Up and Calibrate Your Meter
Set up starts with selecting the correct range and function. For most beginners, use auto-range meters or start with a mid-range setting when measuring unknowns. Connect the black probe to COM and the red probe to the appropriate jack for the test you’re performing. If you’re measuring current, the circuit must be in series and you may need to move the red lead to the appropriate mA or A input. A small shake test on the dial confirms whether the device is on and responsive. Regular calibration checks help ensure measurements stay accurate over time.
Measuring Voltage, Resistance, and Continuity
To measure voltage, connect the probes across the component or node under test, select DC or AC as needed, and read the display. Resistance is measured with the circuit powered off; place the probes across the component, and compare the reading to known values or a datasheet. For continuity, switch to the continuity or diode mode; a beep typically indicates a low resistance path, helping you quickly verify wiring integrity. Always test the meter with a known good resistor before critical measurements to confirm the instrument is functioning correctly. In real projects, you’ll often compare to reference data to identify drift or fault conditions.
Measuring Current and When to Use a Clamp Meter
Measuring current often requires the circuit to be in series with the meter or using a dedicated clamp meter for non-contact current measurement. If you’re using a standard handheld meter, place the meter in series with the load and select the correct current range. Do not attempt to measure current in a live circuit by bridging the meter across a component; that can blow fuses or damage the meter. When dealing with automotive systems, a current clamp can simplify measurements without interrupting the circuit. Following best practices reduces risk and improves repeatability across tests.
Maintenance, Troubleshooting, and Common Mistakes
Like any precision instrument, a multimeter benefits from regular care. Keep test leads clean and inspect insulation for nicks. Store the meter in a dry place and avoid exposure to solvents. If readings seem off, check the fuse, connections, and input jack integrity. Calibrate periodically if you rely on precise measurements for critical tasks. Common mistakes include measuring voltage with the leads in the current jack, ignoring the fuse status, and testing while the circuit is energized without proper PPE. By checking these issues systematically, you improve reliability over time.
Tools & Materials
- Digital multimeter (DMM)(Prefer updated auto-range models for ease of use)
- Test leads with probes(Should be rated for the voltages you test)
- Alligator clips or grabbers(Helpful for hands-free testing)
- User manual/datasheet(Refer for ranges and safety specs)
- Safety goggles(Protect eyes from arcs or sparks)
- Insulating gloves (optional)(For high-voltage testing)
- Non-conductive mat or workspace(Reduce shock risk)

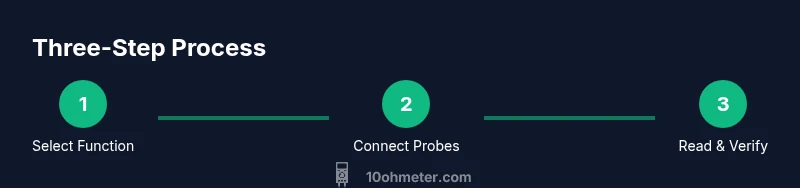

Steps
Estimated time: 45-60 minutes
- 1
Inspect the meter and the workspace
Begin by visually inspecting the meter, leads, and probes for damage. Clear the area of liquids and ensure you are wearing PPE. This step establishes a safe baseline before any testing.
Tip: If you see damaged leads or cracked insulation, replace them before proceeding. - 2
Connect the leads to the meter
Connect the black probe to COM and the red probe to the voltage/input jack appropriate for the test. Ensure the probes are fully seated and the meter is powered off before connecting in voltage-resistance mode.
Tip: Keep the red lead in the voltage or current jack only as needed; accidental reuse can blow the fuse. - 3
Set the meter function and range
Turn the rotary switch to the correct function (DC voltage, AC voltage, resistance, continuity, or current). If your meter has auto-range, you can skip manual range selection. Confirm the display is active before touching the circuit.
Tip: For unknown values begin with a mid-range setting to avoid overload. - 4
Measure voltage or resistance
For voltage, place probes across the test points. For resistance, ensure the circuit is de-energized and the component is isolated. Read the value and, if possible, compare to a datasheet or reference data.
Tip: Always disconnect power when measuring resistance. - 5
Check continuity
Switch to continuity mode and test the suspected conductor path. If the circuit is intact, you’ll typically hear a beep indicating low resistance.
Tip: Be aware some meters beep softly; confirm with a manual check if unsure. - 6
Measure current in series (if needed)
To measure current, place the meter in series with the load. Use the correct current input and range. Do not rely on parallel connection as this can short the circuit.
Tip: If unsure, consult the datasheet to determine whether you should use mA or A ranges. - 7
Verify readings and shut down
Cross-check readings with a known reference or a separate meter. When finished, remove the probes, switch off the meter, and store it safely.
Tip: Always remove power before storing to avoid residual charge in the circuit.
Your Questions Answered
What is a multimeter and what does it measure?
A multimeter is a versatile tool that measures electrical properties such as voltage, current, resistance, and sometimes continuity or diode tests. It helps you diagnose circuits and components without guesswork.
A multimeter measures voltage, current, resistance, and other checks to diagnose circuits.
How do I choose the correct measurement range on a meter?
When unsure, start with auto-range if available. If using a manual range, pick a value higher than your expected measurement to avoid blowing fuses or damaging the meter, then narrow down for precision.
If you’re unsure, start with auto-range or a higher manual range to protect the meter.
Can I measure current with a regular multimeter without breaking the circuit?
Current must be measured in series with the load, often requiring moving the lead to a dedicated current jack. Do not place the meter parallel to a live circuit, as this can short the circuit and damage the meter.
Yes, but you must put the meter in series with the circuit and use the right current input.
What safety precautions should I follow when using a multimeter?
Always power down before testing resistance, use appropriate PPE, verify probes are undamaged, and respect voltage ratings. Avoid touching live conductors and insulate exposed connections.
Wear eye protection, check for damaged leads, and never test high voltages beyond the meter’s rating.
What should I do if the meter shows no reading or an out-of-range value?
Check the connections, ensure the device is powered or de-energized appropriately, and re-check the range. If readings persist, consult the datasheet or test another known component to verify meter health.
If you get no reading, verify connections and try a different range or device to confirm the meter is working.
How do I test a resistor quickly to confirm its value?
Set to resistance, zero the meter with a known resistor or shorted leads, then place probes on the resistor leads. Compare the reading with the color code or the datasheet value.
Set the meter to resistance and compare the reading with the resistor’s expected value.
Watch Video
Key Takeaways
- Use proper PPE and safe work practices
- Know the meter’s range and jack configuration
- Test voltages and currents in a controlled, de-energized way when needed
- Verify readings with reference data for accuracy
- Regularly inspect and maintain test leads and fuses
