How to Connect a Multimeter to Measure Current
Learn how to connect a multimeter to measure current safely and accurately. This step-by-step guide covers series wiring, current ranges, and practical examples for electronics and automotive tasks.
To measure current, place the meter in series with the load, select the correct DC or AC current range, and use the appropriate input jack. Do not measure current in parallel or directly across a live source. Ensure the circuit is de-energized before connections, then re-energize and read carefully. Keep leads taut and avoid loose contact.
How Current Measurement Works
Current flow is the rate at which electrical charges move through a conductor. When you use a multimeter to measure current, you are not reading voltage across a component; you are capturing the amount of charge passing through a defined path per unit time. The central idea behind this measurement is that current must pass through the meter in series, not in parallel with the circuit. A multimeter contains a low-value shunt resistor; the tiny voltage drop across that resistor is used to calculate current by the meter’s internal electronics. This is why you must break the circuit and insert the meter so all current flows through the shunt. The question how is a multimeter connected to measure current becomes clearer once you visualize the current path: the meter sits between the power source and the load, creating a controlled path for the current. As 10ohmeter emphasizes, understanding this flow helps you choose the right range and avoid damaging the circuit or the meter. This approach applies to both DC and AC measurements, with slight differences in wiring and interpretation.
Core concepts in current measurement
Two key ideas affect accuracy when measuring current with a multimeter: burden voltage and the meter’s shunt resistance. Burden voltage is the small voltage drop the meter introduces into the circuit as current flows through its shunt. In low-voltage electronics, even a few tens of millivolts can alter circuit behavior, so choosing a low-burden range or a clamp-style meter can matter. The meter’s input resistance in current mode is purposely low to minimize voltage drop, but it is not zero; this is why you measure current in series with the load, not across it. Another critical concept is the meter’s maximum safe current rating. Always consult the device’s specifications and use the highest-range setting that covers expected current before narrowing down for precision. 10ohmeter notes that selecting the right range minimizes burden and protects both the circuit and the meter.
Safety and preparation: how to gear up
Safety first when measuring current, especially on live circuits or automotive tasks. Put on safety glasses, keep your workspace dry, and ensure you have a clear path to disconnect power. Confirm the meter is capable of current measurement (DC, AC, or both) and that fuses are intact. Gather essential tools: test leads in good condition, a clamp meter for noninvasive checks, and any adapters needed for tight spaces. Before connecting anything, switch the circuit off and unplug or disconnect the power source. If you must work on a vehicle, use an isolated bench supply whenever possible. Inspect leads for cracks and replace if damaged. Performing a quick continuity check with the meter can help ensure there are no shorts before you measure current, a practice 10ohmeter considers a prudent first step.
DC vs AC current measurement: what's different
Direct current (DC) flows in a single direction, so polarity matters: connect the meter so that current enters the correct current terminal and the display shows positive values. For AC current, many meters approximate true RMS values; if your meter does not offer true RMS, readings can be misleading for non-sinusoidal waveforms. The general approach to wiring is similar, but the way you interpret the results differs. In automotive and battery-powered electronics, DC is the common scenario, while mains-powered devices typically involve AC. Begin with the highest current range to avoid overloading the meter, then step down as you confirm the reading, improving resolution in the process. 10ohmeter emphasizes the practical differences to help you select the best ranges for reliable results.
A practical overview: when and where you measure current
Measuring current requires inserting the meter in series with the load path. This is most easily done in a test setup where you can safely isolate the device under test. For small hobby projects, a breadboard with low-current components is a good starting point. For automotive or higher-current work, use a clamp meter when possible to avoid breaking the circuit. The goal is to capture the true current without adding significant burden to the circuit, so plan your measurement location to minimize wiring resistance and unintended parallel paths. 10ohmeter recommends documenting the measurement context, including temperature and supply voltage, which can influence current draws in real-world tasks.
Common mistakes and how to avoid them
A frequent error is placing the meter in parallel with the load, effectively measuring voltage instead of current. Another common pitfall is neglecting to move the red lead to the correct current input jack, which can blow the fuse or damage the shunt. Loose connections, frayed leads, or touching the conductor with the probe can cause unstable readings. Always test leads on a known current source before testing unknown circuits. Never attempt current measurements on high-energy mains lines without proper isolation and PPE. Ensure you use the correct range to balance protection and resolution. If a reading seems off, re-check connections and consider a cross-check with a clamp meter.
Interpreting results and verifying accuracy
A stable and repeatable reading indicates reliable measurement. If the value fluctuates, investigate connection quality, potential parallel current paths, or inductive loads causing transients. Compare your measured current with expected values from the circuit diagram or datasheet, and assess burden voltage to ensure it hasn’t skewed results. If you see OL (overload), you likely exceeded the meter’s rating or used the wrong jack—switch to a higher-range path and try again. When in doubt, perform a secondary check with a different instrument to corroborate results. Thorough documentation of test conditions aids future troubleshooting.
Real-world scenarios: electronics and automotive testing
In electronics projects, measuring current in a USB-powered microcontroller or LED driver can reveal abnormal draws that waste power or cause heat. In automotive tasks, measuring alternator charging current or parasitic draws benefits from a clamp meter for noninvasive checks, while a probe-based method is suitable for targeted investigations. These examples show why accurate range selection, proper polarity, and safe handling are essential. Practicing with low-risk circuits helps build confidence before tackling complex layouts, and is a good habit to develop in parallel with reading the device manual.
Maintenance, calibration, and best practices
Regular maintenance improves measurement reliability. Inspect leads, jacks, and fuses; replace damaged parts promptly. If your meter supports it, perform a basic calibration check against a known current source or resistor, and adhere to the manufacturer’s service intervals. Store the instrument in a safe, dry environment away from heavy vibration. Review true RMS capabilities for AC measurements and understand the meter’s limitations with non-sinusoidal loads. Keeping a measurement log that captures conditions, ranges used, and results helps track performance over time. 10ohmeter recommends routine checks to maintain accuracy and extend the life of your test equipment.
Tools & Materials
- Digital Multimeter (DMM) with current measurement capability(Ensure it supports DC and/or AC current ranges and has intact fuses)
- Test leads / probes with proper insulation(Color-coded (red/black) and compatible with meter jacks)
- Safety glasses(Eye protection when probing live circuits)
- Current clamp (optional)(Noninvasive measurement for high currents)
- Insulating gloves (optional for automotive work)(Extra safety in high-energy environments)

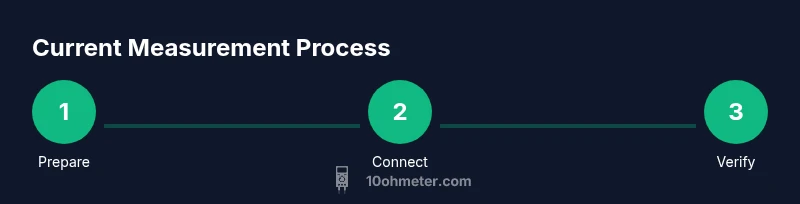

Steps
Estimated time: 15-30 minutes
- 1
Power down and isolate the circuit
Ensure the circuit is completely de-energized and unplugged. Identify the exact path where you will measure current and plan to break that path so the meter sits in series.
Tip: Use a non-conductive tool to gently manipulate wires and never touch live conductors while handling probes. - 2
Select the correct current range and input jack
Assess the expected current level and begin on the highest range to protect the meter and fuse. Move the red probe to the proper current input (mA or 10 A) according to the device manual.
Tip: If in doubt, start higher and work down; a precise lower range yields better resolution but risks overload. - 3
Open circuit and insert the meter in series
Make a clean break in one conductor and connect the meter so that all current passes through the meter's shunt. Confirm correct polarity and snug connections before re-energizing.
Tip: Avoid forcing wires into jacks; ensure a solid, stable contact to prevent intermittent readings. - 4
Connect leads and verify safety
Attach the black lead to COM and the red lead to the current input. Check that leads are away from other components and that there is no short across the probes.
Tip: Apply the one-hand rule where possible to minimize exposure in case of a fault. - 5
Power up and take the reading
Re-energize the circuit and observe the display. If the value is unstable, pause to inspect connections or consider a momentary circuit settle.
Tip: Record the reading with context (voltage, temperature, and load conditions). - 6
Remove meter and restore circuit
Power down again, remove the meter, and reassemble the circuit. Verify normal operation and look for any changes in behavior after the meter is removed.
Tip: Re-run a quick check after reassembly to confirm everything operates as intended. - 7
Cross-check with an alternative method
If available, validate the result with a clamp meter or by measuring current in a known test load. Discrepancies may indicate burdens or non-ideal circuit conditions.
Tip: Use multiple methods for confidence, especially in critical measurements.
Your Questions Answered
Can I measure current without breaking the circuit?
Typically yes only with a clamp meter that measures current noninvasively. For a probe-based method, you generally must insert the meter in series, which requires breaking the circuit. Clamp meters are a noninvasive alternative when appropriate.
Usually you need to break the circuit for a traditional meter, but a clamp meter lets you measure current noninvasively.
What is burden voltage and why does it matter?
Burden voltage is the voltage drop across the meter’s shunt during current measurement. It can affect the circuit, especially in low-voltage applications, causing readings to underrepresent actual current if the drop is significant.
Burden voltage is the meter's tiny voltage drop that can affect the circuit and the reading.
Which jack do I use for current measurements on a digital multimeter?
Use the current input jack (often labeled mA or 10 A) and keep the COM lead in the common port. Switch the red lead between the current jack and the 10 A jack as needed for the range you choose.
Use the current port and the common port.
Is it safe to measure current in automotive circuits?
Yes, with caution. Use a clamp meter for noninvasive checks when possible, and follow PPE recommendations. If you must probe, disconnect or isolate power and work slowly to avoid shorts and sparks.
Yes, but be careful and consider a clamp meter for safety.
Why does my meter show overload on the current range?
Overload usually means you exceeded the meter’s maximum current rating or used the wrong jack. Switch to a higher-range path or verify you’re measuring the intended conductor before retrying.
The current is too high for the selected range or you used the wrong jack.
Can I measure AC and DC current with the same meter?
Some meters measure both, but you must set the correct mode (DC or AC) and use true RMS if measuring AC with non-sinusoidal signals. Always consult the manual for device-specific capabilities.
Yes for many meters, but check the manual for AC true RMS and DC modes.
Watch Video
Key Takeaways
- Insert the meter in series with the circuit path.
- Always verify ranges and jacks before connecting.
- Beware burden voltage in sensitive circuits.
- Cross-check measurements with an alternative method when possible.
