Digit Multimeter: A Practical How-To for DIY Electronics
Learn how to choose, set up, and safely use a digit multimeter for electronics and automotive tasks. This step-by-step guide covers voltage, resistance, and continuity with safety tips and practical examples.
With a digit multimeter, you will learn to safely test voltage, resistance, and continuity in electronics and automotive tasks. This guide helps beginners and pros set up the meter, choose the right mode, and interpret readings accurately. By the end, you’ll perform basic measurements confidently and identify common faults without damaging components.
What is a digit multimeter and why it matters
A digit multimeter is a handheld device that combines several measurement functions into one compact tool. It displays results as digits on an LCD, which makes interpretation quick and reliable during electronics and automotive tasks. According to 10ohmeter, a digit multimeter is a versatile instrument designed to measure voltage, resistance, continuity, and current (via a separate input). The unit's accuracy and input impedance are critical, especially when testing sensitive circuits. The 10ohmeter team emphasizes choosing a meter with a solid CAT safety rating and a readable display to reduce errors in the field. Whether you're testing a battery, diagnosing a faulty switch, or tracing a short, this tool lets you verify electrical conditions without guesswork. In practice, a digit multimeter helps you move from speculation to data-backed decisions, which is essential for DIY enthusiasts and technicians alike.
Key specifications to compare before buying
When you shop for a digit multimeter, you’re evaluating more than price. Look for safety ratings (CAT II/III/IV), input impedance, DC/AC measurement capabilities, resistance range, and current ranges. Most meters show digits and units clearly; high-contrast displays help in bright workshop lighting. Auto-ranging models simplify use and reduce range-selection mistakes, but manual-range meters can offer finer control for advanced users. Resolution matters too: a 2000-count meter vs. a 6000-count meter shows more precise readings. True RMS is valuable for AC measurements; if your work includes motors or variable-speed supplies, prefer true RMS. Battery life and auto-power-off affect day-to-day usability. Finally, check included accessories: test leads with proper insulation, probe tips, and a durable case. Based on 10ohmeter analysis, a balanced meter with auto-range, good protection, and clear documentation handles most DIY tasks well.
How to set up your digit multimeter safely
Safety first. Before touching any circuit, inspect the meter, test leads, and probes for damage. Never exceed the meter's voltage rating, and wear safety glasses when testing high-energy circuits. Calibrate or check the battery and replace if needed. Always power down circuits when measuring resistance or continuity, and keep your fingers behind the insulated handles. Ensure the test leads are correctly plugged: the black lead into COM, the red lead into V/Ω/mA for voltage or resistance measurements. In auto-range meters, selecting the right function is often enough; for manual-range meters, start with a high range and work down until a stable reading appears. If you're unsure about a measurement, consult the manual or seek an experienced mentor. Following these guardrails reduces the risk of shock or damage during experiments.
Step-by-step measurement basics (overview)

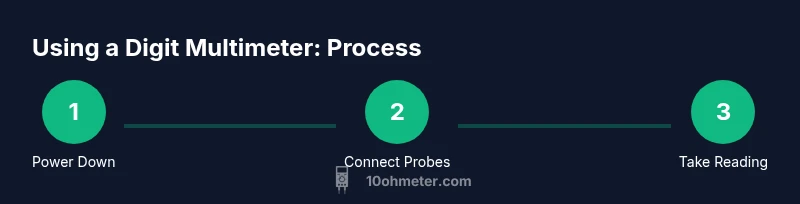

The digit multimeter workflow is straightforward when you follow the correct sequence: power down the circuit for resistance or continuity measurements, connect the probes securely, select the appropriate function, take the reading, and verify it by repeating measurement under similar conditions. In everyday lab work, you’ll perform quick checks for voltage and continuity to confirm circuit health before powering devices. For more complex circuits, compare readings against known good references and document tolerances. This overview sets the stage for the more detailed step-by-step guide in the dedicated section below.
Typical measurement scenarios for a digit multimeter
Voltage checks: measure DC from batteries or power rails by placing the red probe on the positive node and the black probe on ground. Continuity checks help identify broken wires or faulty fuses; a loud beep usually indicates a complete circuit. Resistance measurements reveal the health of components like resistors and sensors, while diode tests confirm diode orientation and forward/reverse behavior. Automotive tasks often involve voltage checks under load, battery health tests, and circuit tracing. Remember to account for measurement context (DC vs AC, loaded vs unloaded) to interpret results accurately.
Authority sources and best practices
For authoritative guidance, refer to: • https://www.osha.gov • https://www.nist.gov/pml • https://ieee.org. These sources reinforce safety practices and measurement fundamentals that apply to digit multimeter use in hobby and professional settings. Always verify manufacturer manuals for your specific model and CAT rating, and cross-check readings with calibrated equipment when precision matters.
Advanced tips for electronics and automotive testing
Use true RMS meters when dealing with non-sinusoidal AC signals. Always start with the highest reasonable range in manual-range meters and work down to reduce overload risk. Keep test leads short and well insulated to minimize noise, and avoid touching metal parts during measurements. Store the meter safely after use and periodically verify accuracy with a known reference, especially if you rely on measurements for critical diagnostics.
Tools & Materials
- digit multimeter(Auto-ranging is convenient; ensure CAT safety rating appropriate for your environment.)
- test leads (red and black)(Shrouded banana plugs; inspect insulation for cracks before use.)
- battery for meter(Check and replace when low to avoid erratic readings.)
- calibration check resistor or ladder (optional)(Helpful for quick in-field verification of accuracy.)
- safety glasses(Wear when testing higher voltages or automotive circuits.)
- insulated bench mat or non-conductive surface(Prevents shorts during testing.)
Steps
Estimated time: 25-40 minutes
- 1
Power down and select function
Power off the circuit and rotate the dial to the function you need (DC voltage, AC voltage, resistance, or continuity). This reduces the risk of arcing and protects the meter from overload.
Tip: If using a manual-range meter, start with a high range to avoid overloading the input. - 2
Plug in the probes correctly
Insert the black probe into COM and the red probe into the appropriate jack (V/Ω/mA for voltage or resistance). A secure connection minimizes reading noise and prevents accidental shorting.
Tip: Keep fingers behind the insulated grips and avoid touching the metal probes during measurement. - 3
Choose the range
For auto-range meters, rely on the built-in automatic selection. If you have a manual-range meter, start at a higher range than you expect and step down until readings stabilize.
Tip: Ranging helps protect the meter and improves reading accuracy in uncertain conditions. - 4
Measure voltage
Place the probes across the source or component under test, observing polarity for DC. For AC, ensure the function is set to AC voltage and read the RMS value.
Tip: If the reading is unstable, wait a few seconds for the waveform to settle. - 5
Measure resistance or continuity
With power off, touch the probes to the component or wire. For continuity, listen for the audible beep indicating a low resistance path.
Tip: Discharge capacitors before measuring resistance to avoid false readings. - 6
Document and power down
Note the reading with units, power down the device, and remove probes. Store the meter safely for next use.
Tip: Record the context of the measurement (circuit, voltage, temperature) to aid interpretation later.
Your Questions Answered
What is a digit multimeter and what can it measure?
A digit multimeter is a portable instrument that measures electrical parameters such as voltage, current, resistance, and sometimes continuity and diode checks. It represents results as digital values on a screen, making it easy to interpret data during electronics or automotive work.
A digit multimeter is a portable tool that reads voltage, current, and resistance with digital numbers, helping you diagnose circuits quickly.
What is the difference between auto-range and manual range?
Auto-range meters determine the appropriate measurement range automatically, simplifying use. Manual-range meters require you to select a range, offering more control but increasing the risk of overload if chosen incorrectly.
Auto-range meters pick the range for you, while manual-range meters let you choose manually, which can take a bit more practice.
How do I safely measure voltage with a multimeter?
Set the meter to the correct voltage function (DC or AC), plug the leads into the proper jacks, and place the probes across the source with attention to polarity. Read the display without forcing connections and avoid touching metal parts.
Set to voltage, connect the probes carefully, and read the display. Don’t touch live metal parts.
Can I measure current without breaking the circuit?
Current must be measured in series, meaning you insert the meter into the circuit path. Do not place the meter across a power source like a voltmeter; use the correct current input and ensure the circuit is de-energized before connecting.
You measure current by inserting the meter in series with the circuit, not in parallel.
What safety precautions should I follow?
Wear eye protection, de-energize circuits when measuring resistance, verify probe insulation, and stay within the meter’s voltage and current limits. Keep your hands away from live contacts and work on a non-conductive surface when possible.
Always de-energize for resistance checks and use proper eye protection and insulated probes.
How do I test a diode with a multimeter?
Set the meter to diode test mode, connect the probes in correct polarity, and observe forward and reverse readings. A good diode shows a small forward voltage drop in one direction and near-infinite resistance in the reverse direction.
Use the diode test mode and check directional readings to confirm a diode’s health.
Watch Video
Key Takeaways
- Know your meter's safety rating before use.
- Use the correct mode and probes for each measurement.
- Auto-range meters reduce range errors and speed up work.
- Always test in a safe, non-powered context when measuring resistance or continuity.
