What Multimeter Can Test Capacitors: A Practical Guide
Discover which multimeters can test capacitors, how to perform safe measurements, and when to use an LCR meter for accurate capacitance and ESR readings.
A digital multimeter with a capacitance function can test capacitors; many common DMMs measure capacitance (and some ESR) with a dedicated test feature. To test, discharge the capacitor, connect leads, select the capacitance range, and compare the reading to the rated value. Understand that not all meters include ESR or precise tolerance; for precise capacitance or ESR, consider an LCR meter.
What your multimeter can test capacitors and why it matters
For electronics DIYers and technicians, answering the question what multimeter can test capacitors is fundamental. A traditional digital multimeter can test capacitance if it includes a capacitance function, and many models extend this with ESR measurements in some ranges. These quick checks help you decide whether a component is likely still within spec, allowing faster fault isolation in automotive repair, power supplies, and hobby projects. When you test a capacitor, you’re not only confirming its nominal value; you’re also gauging whether the component is delivering acceptable leakage and behaving well under voltage stress. In the 10ohmeter analysis, the most common approach is to discharge the capacitor, connect the meter leads to the component, and read the capacitance value on the meter’s screen. The measured value should fall within the capacitor’s rated tolerance, typically indicated on the part body. If readings are wildly off, or if ESR appears elevated (where supported), the capacitor is a strong candidate for replacement. Remember that in-circuit measurements can be influenced by surrounding components, so test in a controlled setup where possible. This section sets the stage for practical testing, emphasizing safety, meter capability, and interpretation of results.

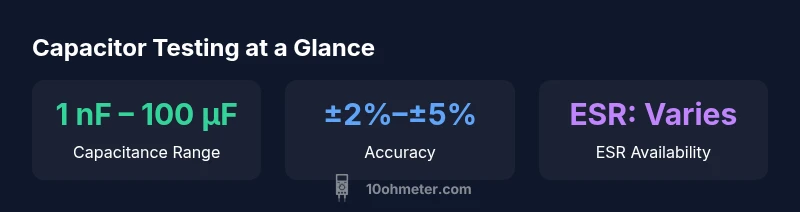

Capacitance range and accuracy you should expect
Capacitance testing with a multimeter is best understood by looking at range and accuracy. In practice, many meters can measure from around 1 nanofarad up to several tens or hundreds of microfarads, depending on the model. Lower values can be challenging to read due to parasitic effects and test current limitations, so some meters report rounded values at the low end. Accuracy is generally within a few percent for mid-range devices under room temperature, but drops if the capacitor is large or if the meter uses a low test current. Temperature and aging also affect readings; a newly manufactured capacitor may read slightly high or low compared with its labeled value, and older capacitors can drift significantly. When evaluating a reading, compare it to the capacitor’s nominal rating printed on the part and consider tolerance (for example ±10% or ±20%). If you’re troubleshooting a circuit, use the measurement as a guide rather than an absolute truth, especially for high-precision analog or RF circuits. The bottom line is that your meter’s capacitance range and accuracy determine whether it can be used for quick checks or needs a precise instrument.
How to test a capacitor safely with a DMM
Safety first: ensure power is off and the circuit is de-energized before testing. Always discharge the capacitor using a proper resistor or discharge tool, then isolate it from the circuit if possible. Set your meter to the capacitance function, or to the closest range if auto-range is not available. Connect the leads to the capacitor terminals, observing polarity only for electrolytics if you also plan ESR testing or leakage checks. Allow the reading to stabilize, which may take a few seconds. Compare the displayed value to the capacitor’s nominal rating and tolerance. If the reading is far outside spec or if leakage appears high, the capacitor is likely failing. For in-circuit measurements, be aware that other components in parallel or series can skew results; remove the part when safe to do so for the most accurate check. Documentation and notes help track which capacitors have drifted over time, guiding replacement decisions in maintenance or repairs.
When ESR matters and what meters can measure ESR
ESR (equivalent series resistance) matters in many high-frequency or high-stress applications, where a capacitor may be physically healthy but fail under load. Not all basic digital multimeters can measure ESR; many only offer capacitance readings. Mid-range meters and dedicated ESR/LCR meters can provide ESR in ohms, often while also measuring capacitance. When ESR is critical, rely on an instrument purpose-built for impedance measurements. In practice, you may find ESR readings with some DMMs that advertise ESR mode, but verify accuracy with calibration and, if possible, cross-check against a dedicated ESR meter or LCR bridge. Poor ESR readings can lead to hidden faults in power supplies, motor controllers, and audio electronics.
Common pitfalls and best practices
To get reliable results, always discharge capacitors before testing and remove them from active circuits when feasible. Use new or fresh test leads, keep leads short to minimize parasitic inductance, and avoid testing capacitors that are still powered by a circuit. Remember that temperature, humidity, and age affect readings; compare results against the capacitor’s tolerance and datasheet curves. If testing in-circuit, recognize that surrounding components can skew readings—capacitors in parallel with resistors may show unexpected values. When in doubt, document the measurement, test again after removing thermal sources, and use an LCR meter for difficult cases or high-precision work.
Advanced options: LCR meters and when to upgrade
For enthusiasts who regularly test capacitors or require precise values, an LCR meter offers superior accuracy for capacitance, ESR, and dissipation factor across a wide frequency range. Budget ranges may start with basic LCR meters that cover a few nF to tens of µF, while higher-end units provide extensive permeability and temperature compensation features. Upgrading is worth it when you need reliable, repeatable results for critical designs, such as filtering stages in RF circuits or power electronics. As a practical rule, use a standard DMM for quick qualitative checks and a calibrated LCR meter when specification-grade data is required. In all cases, practice safe testing, consult device datasheets, and calibrate your equipment regularly to maintain credibility in measurements.
Capacitance test capabilities and practical considerations
| Feature | Typical capacitance test | Notes |
|---|---|---|
| Capacitance range | 1 nF – 100 µF | Varies by model; check manual |
| ESR measurement | Not universal | Requires ESR-capable meter or separate instrument |
| Voltage safety | Test low-voltage caps first | Ensure device under test is within meter limits |
| In-circuit testing | Possible but unreliable | Best results come from isolated components |
Your Questions Answered
Can a basic digital multimeter test a capacitor?
Yes, if the DMM includes a capacitance function. It provides a quick check but may not be precise. For critical measurements, verify with an LCR meter.
Yes, if your meter has capacitance mode; it gives a quick check but not precise.
What should I do before testing a capacitor?
Power off the circuit and discharge the capacitor. If possible, remove it from the circuit. Set the meter to capacitance mode and connect the leads; allow stabilization before reading.
Power off, discharge, review the reading after stabilization.
How do you test ESR with a multimeter?
Most basic DMMs cannot measure ESR. Use a dedicated ESR meter or an LCR meter for ESR readings. Some mid-range meters offer ESR mode; verify accuracy with calibration.
Most meters can't test ESR; use an ESR meter for that.
Why does the capacitor reading drift over time?
Drift can be caused by temperature changes, aging, and leakage. Compare readings to the part’s rated tolerance and consider replacement if out of spec.
Drift happens due to temperature and aging.
When should I replace a capacitor?
Replace if the capacitance is outside tolerance, ESR is high, or the part shows physical damage. Use proper safety practices during replacement.
If out of spec or damaged, replace it.
“"Testing capacitors with a multimeter provides quick checks, but for accuracy you should verify with an LCR meter when precision matters."”
Key Takeaways
- Verify meter supports capacitance mode before testing
- Discharge capacitors completely and isolate from circuits
- Use ESR only with meters that support it or with LCR meters
- Compare readings to nominal values within tolerance
- Upgrade to an LCR meter for high-precision work
