Test Motor with Multimeter: Step-by-Step Diagnostics
Learn how to safely test a motor with a multimeter. This step-by-step guide covers windings, continuity, and insulation tests, with practical tips for DIY electronics and automotive tasks.
In this guide, you will learn how to test motor with multimeter to diagnose windings, continuity, and insulation. This practical method helps identify open windings, shorted turns, or grounding issues before a full teardown. According to 10ohmeter, a careful, methodical approach yields reliable readings when you compare results to manufacturer specs and known-good benchmarks. You’ll complete the basic tests safely and document your findings for later analysis.
What testing a motor with a multimeter means for diagnostics
Testing a motor with a multimeter is a practical way to gauge electrical health without disassembly. The goal is to confirm windings are continuous, identify potential shorts, and detect grounding faults that could cause overheating or failure. For DIY enthusiasts and technicians, this approach can save time, money, and frustration by catching issues early. It’s important to tailor the tests to the motor type (DC, induction, or universal) and to use the manufacturer’s specs as a reference when available. Throughout this guide you will see how to perform measurements safely, interpret results, and decide if a motor needs professional service. As 10ohmeter notes, a methodical testing plan produces meaningful signals rather than random numbers when the setup is correct and readings are properly documented.
Safety and preparation before you begin
Before you touch any motor, ensure you are in a safe, controlled environment. Power must be completely disconnected, and any stored energy in capacitors or drive circuits must be discharged. Wear eye protection and insulated gloves as a precaution. Use lockout-tagout procedures if you’re working in a workshop or lab, and keep a clean workspace to avoid accidental shorts. Label wires as you inspect them to avoid miswiring on reassembly. If you’re uncertain about wiring diagrams, obtain the motor’s datasheet or a trusted schematic. 10ohmeter emphasizes that safety isn’t optional; it’s the foundation that makes the tests informative rather than hazardous.
Basic electrical concepts you’ll use
To interpret motor readings, you’ll rely on several foundational ideas: resistance (ohms) reflects winding continuity; too-high or too-low resistance indicates issues such as partial shorts or damaged windings; insulation resistance (ideally very high) shows how well windings are separated from the motor frame and ground. Continuity checks confirm that windings form complete circuits. When you test with a meter, temperature matters; winding resistance increases with heat, so test when the motor is cool or note ambient temperature to compare readings fairly. The intent is not to memorize a single value but to detect readings that deviate from a known-good baseline or manufacturer tolerance, then investigate further.
Motor configurations and why they matter for testing
Motors come in several configurations—DC brush, three-phase induction, single-phase induction, and universal types. Each configuration presents different testing points: DC windings are often checked for resistance between terminals, while three-phase induction motors require comparing two winding resistances or using a method that isolates phases. Wire terminations and color codes vary by model, so a wiring diagram is the best guide. If you don’t have one, focus on identifying the main windings, the supply input, and the ground path. Understanding the configuration helps you choose the right measurements and prevents misinterpreting a legitimate reading as a fault.
A practical testing plan you can apply (overview)
A practical testing plan blends cautious setup with a logical sequence of measurements. Start with safety checks, then perform a resistance test across windings, followed by a continuity check and a grounding check. If you have insulation resistance capability, perform that test between windings and the frame. In this section you’ll see how to document each reading so you can compare later with manufacturer data or a known-good motor of the same model. This structured approach reduces ambiguity and empowers you to decide whether a motor is repairable, restorable with a rewind, or beyond economical repair. Remember, the goal is to gather actionable data, not to guess.
Interpreting results and next steps
Interpreting motor readings requires a calm, methodical mindset. Consistent winding resistances across windings suggest healthy windings, while significant imbalance points to a shorted turn or defective insulation. Continuity should be present between windings that are connected in the intended circuit, and there should be no measurable continuity from any winding to the metal frame (ground). Abnormal readings warrant reseating connections, rechecking with a cold baseline, or conducting insulation tests if available. If readings clearly indicate a fault, you can plan next steps such as replacement, rewinding, or more advanced diagnostics with professional equipment. Documentation is essential for re-testing and for communicating findings to technicians or suppliers.
Troubleshooting quick reference: common fault signs
In many situations, the simplest indicators of trouble are open circuits, resistance that deviates from the expected range, or leakage to the frame. If you see wildly inconsistent readings between windings, something is wrong with the coil network or insulation. A hearsay approach—believing a single odd value—can mislead you; instead, compare all windings, measure each once, then re-measure to confirm persistency. Finally, if you must reassemble, mark and label every component so you can accurately restore the original wiring arrangement. That discipline is what makes motor testing reliable.
Tools & Materials
- Digital multimeter(Set to ohms (resistance) for winding tests; use DC ranges where appropriate and ensure probes are rated for the working voltage.)
- Alligator leads or test probes(Strain-relief connections recommended; keep leads short to minimize measurement error.)
- Insulation resistance tester (megohmmeter)(Optional but recommended for insulation tests between windings and frame.)
- Screwdrivers (flat and Phillips) and wrenches(For opening terminal boxes and freeing windings if needed.)
- Lockout-tagout supplies(To secure power sources during testing in a workshop or lab.)
- Wiring diagram or datasheet(Identify windings, terminals, and frame connections.)
- Safety gear: goggles, gloves(Protect eyes and hands from accidental contact with energized parts.)
- Non-conductive tools and strain-relief clips(Helpful for safe handling and cable management.)
Steps
Estimated time: 60-90 minutes

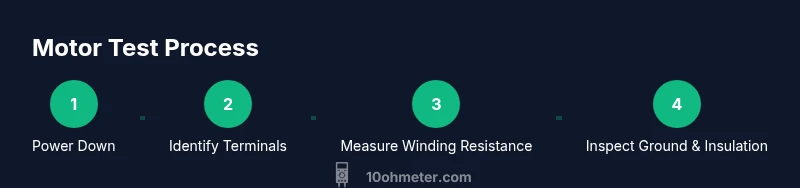

- 1
Power down and isolate the motor
Begin by disconnecting all power sources and placing a lockout tag if possible. Physically verify that the motor cannot be energized, and discharge any capacitors in the drive circuit according to the equipment manual. This step minimizes the risk of shock, arc flash, or damaging the meter during measurements.
Tip: Always double-check the main disconnect and capacitors before touching wires. - 2
Identify terminals and obtain wiring information
Carefully identify motor terminals and windings using the wiring diagram or datasheet. If the diagram is not readily accessible, map the terminals by visual inspection and continuity testing with the meter set to ohms. Proper identification prevents cross-wiring during measurements.
Tip: Label each terminal with tape or a marker as you verify connections. - 3
Measure winding resistance across each winding
Set the multimeter to the appropriate resistance range and measure between the winding terminals in pairs as defined by the diagram. Record each reading and note the ambient temperature, since resistance changes with temperature. Compare readings to the expected range in the datasheet or to readings from a known-good motor of the same model.
Tip: Take multiple readings and average them to reduce transient fluctuations. - 4
Test continuity between windings and the motor frame
Check for unintended continuity between each winding terminal and the motor housing. A good motor should show very high or infinite resistance to ground. Any measurable resistance to the frame indicates insulation or grounding issues that require further investigation.
Tip: Be cautious—steady hands and proper probe placement prevent accidental shorting. - 5
Inspect insulation resistance (if you have the tool)
If your meter supports insulation or you have a megohmmeter, perform insulation resistance testing between windings and the frame. Record the insulation resistance value and compare it to the manufacturer’s specifications or accepted industry norms. Low insulation resistance can indicate degraded insulation or moisture.
Tip: Use the proper test voltage for the insulation test and avoid touching exposed conductors during the test. - 6
Optional: bench-test with controlled power (only if qualified)
If you have a safe test bench and appropriate protective gear, perform a controlled power-on test at a very low voltage to observe current draw and any abnormal heating. Do not run a live motor unless you are trained and have appropriate safety equipment. Monitor current with a clamp meter and note any abnormal spike.
Tip: Never exceed the low-power current and keep hands clear of rotating parts. - 7
Document results and compare
Compile all readings in a clear table, including winding resistances, insulation readings, and any qualitative observations. Compare results to the datasheet or a known-good motor, and identify anomalies such as imbalanced windings or high leakage. This documentation becomes the basis for decisions on repair versus replacement.
Tip: A well-organized log speeds up future diagnostics and communications with suppliers. - 8
Safely reassemble and plan next steps
Reassemble components with care, reconnect power sources according to the original wiring, and remove lockout devices. If results indicate faults beyond simple repairs, consult a qualified technician or consider motor rewinding or replacement. Maintain a copy of your test results for future reference.
Tip: Double-check all fasteners and wire terminals before restoring operation.
Your Questions Answered
Can I test any motor winding with a standard multimeter?
A standard multimeter can test DC resistance and continuity for many windings, but it cannot replace specialized insulation testing or diagnostic equipment. Use it to build a baseline and identify obvious faults.
You can test windings with a meter to check for continuity, but for insulation or complex faults you may need extra equipment.
What reading indicates a faulty winding?
There is no universal fault value. Look for readings that are out of tolerance compared to other windings or the datasheet. Large imbalances or an open circuit suggest a problem.
There isn’t a single number that flags a bad winding; compare all windings and check for large differences.
Is a live powered test safe to perform?
Live testing should be avoided unless you have proper equipment and training. Use a controlled bench supply and monitoring equipment to limit risk.
Only perform powered tests in a safe, controlled environment with the right equipment.
Do capacitors affect motor testing with a multimeter?
Capacitors can store charge and affect readings. Discharge them safely before testing and ensure the circuit is de-energized.
Capacitors hold energy; discharge them before you test to avoid shocks or false readings.
What’s the difference between testing DC motors and AC motors?
DC motors are typically checked with resistance and continuity tests on windings. AC motors often require phase and insulation checks and may need different diagnostic approaches.
DC and AC motors require different tests; consult the datasheet for the correct method.
Would a megohmmeter be necessary?
An insulation resistance test benefits from a megohmmeter or a meter with insulation testing capability. It’s not always included in a basic digital multimeter.
Insulation tests are helpful but not always built into every multimeter.
Watch Video
Key Takeaways
- Isolate and document readings before interpreting results
- Winding resistance should be consistent across similar windings for a healthy motor
- Use insulation resistance testing if available to confirm winding-to-frame integrity
- Compare measurements to manufacturer specs or a known-good motor
- Safety and methodical records are essential for reliable diagnostics
