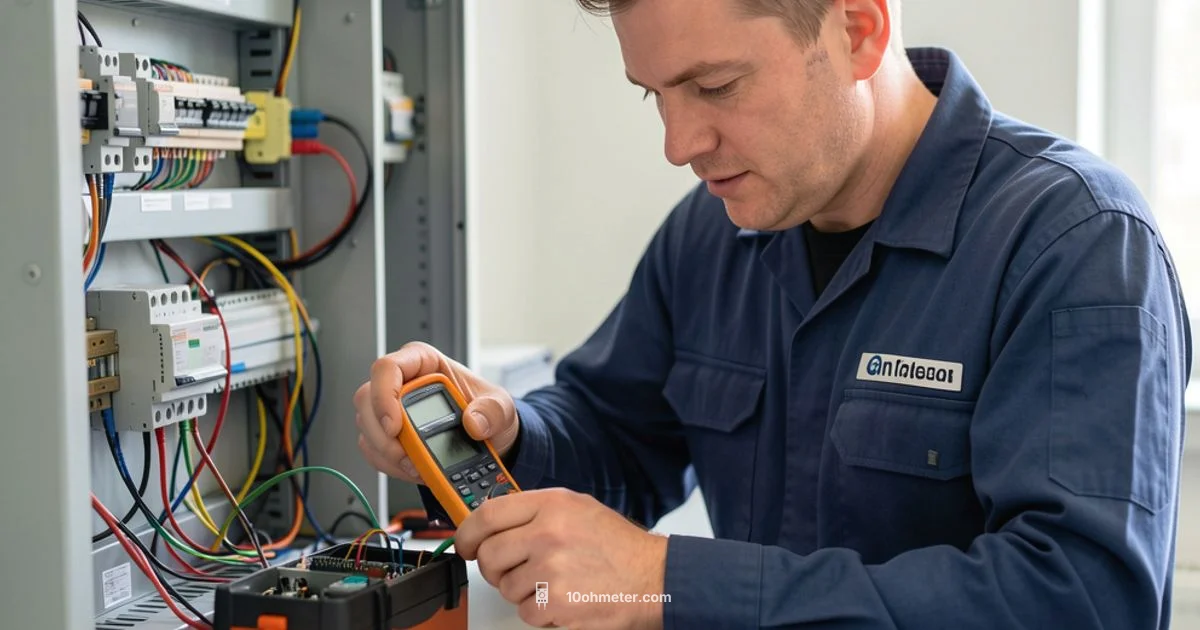

Testing with Multimeter: A Practical Step-by-Step Guide
Learn how to test with a multimeter safely and accurately. This step-by-step guide covers voltage, resistance, continuity, diodes, safety, and troubleshooting for electronics and automotive tasks.
With this guide you will learn how to test with a multimeter safely and accurately, from basic voltage checks to diode tests and continuity. You’ll understand how to set ranges, interpret readings, and avoid common mistakes. This step-by-step approach helps DIY enthusiasts and technicians troubleshoot circuits in electronics and automotive tasks.
How a Multimeter Enables Testing
Testing with multimeter is about translating electrical properties into readable numbers you can act on. A digital or analog meter uses a sensing network and internal circuitry to present voltage, resistance, continuity, and diode readings. The core skill is choosing the right mode and, when needed, the correct range. Whether you are checking a car sensor or a breadboard circuit, the meter should disturb the circuit as little as possible while delivering actionable data. In this guide, the emphasis is on practical testing with multimeter techniques you can apply in electronics labs and automotive workspaces. By mastering safe probe placement and reading interpretation, you gain a reliable tool for diagnosing faults without guessing.
What You’ll Learn in This Guide
- How to perform basic DC voltage, AC voltage, resistance, continuity, and diode tests
- How to interpret typical meter readings in real-world circuits
- The steps to run a safe test that protects you and the components
- Common mistakes and how to avoid them
Throughout, you’ll see practical tips and real-world examples to solidify your understanding of testing with multimeter.
Safety Mindset for Testing with Multimeter
Safety is the foundation of any testing workflow. Always power down the device and unplug power sources before measuring resistance or continuity. Capacitors can store charge; never assume they’re discharged. Use the correct ports on the meter and wear eye protection when working around energized systems. Keep the work area dry and organized to prevent accidental shorts. By establishing a consistent safety routine, you reduce the risk of shocks, blown fuses, and damaged components. The goal is accurate results, not rapid testing at the expense of safety.
Practical Scenarios: Electronics and Automotive Use Cases
In electronics projects, a multimeter helps verify power rails, test resistors, and confirm component orientation. For automotive tasks, you’ll check battery voltage, fuses, and sensor signals. In both contexts, begin with a non-contact check if your meter supports it, then move to direct probing on exposed conductors. Always compare readings against expected values from schematics or vehicle manuals. Real-world testing with multimeter becomes a habit when you document outcomes and reuse reference measurements for future diagnostics.
Reading the Readings: What Numbers Mean and Common Pitfalls
Readings depend on the mode you select and the circuit context. A stable DC voltage reading in a known-good supply indicates proper power delivery. Resistance approaching infinity usually means an open circuit, while near-zero resistance may indicate a short. A continuity beep confirms a low-resistance path; a lack of beep can indicate a break. Diode tests reveal forward and reverse bias behavior, helping identify bad junctions. Misinterpretations often occur when measuring without removing power or when testing a live circuit; always verify setup first and re-check with a known-good reference when in doubt.
Tools & Materials
- Multimeter (digital or analog)(Ensure the battery is fresh and the meter is calibrated. Auto-ranging models reduce range guessing.)
- Test leads (red and black)(Check for cracks or exposed conductor; replace worn leads. Use jacks labeled V/Ω/mA for common measurements.)
- Alligator clips or probe tips (optional)(Helpful for hands-free testing or reaching tight spots.)
- Insulating mat or non-conductive work surface(Prevents accidental shorts and protects the circuit and user.)
- Known-good reference (e.g., a resistor or battery) for verification(Useful to confirm the meter is reading correctly before testing unknown circuits.)
- Personal protective equipment (eye protection)(Recommended when working around energized components or automotive systems.)

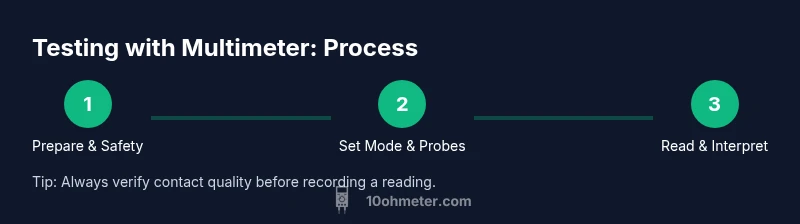

Steps
Estimated time: 25-40 minutes
- 1
Power down and prepare the circuit
Turn off the device and unplug from any power source. If testing a circuit during assembly, ensure it is isolated. Put the meter in the default safe range and connect the red probe to V/Ω and the black probe to COM. This initial setup reduces risk and ensures you’re ready to measure correctly.
Tip: Double-check that the power is off and the leads are in the correct jacks before touching any conductors. - 2
Set the meter and test leads
Choose the measurement mode: DC voltage for power rails, AC voltage for line inputs, or resistance for component checks. For voltage readings, touch the probes to the points in reverse polarity if needed to understand polarity and sign. If your meter has auto-range, enable it to simplify selection.
Tip: Ensure the black lead stays in COM and the red lead in the appropriate input; misplacing leads can blow fuses inside the meter. - 3
Measure DC voltage across a circuit
With power restored to the circuit (if you’re testing live voltage diagnostics in a controlled way), place the probes across the supply or component to read voltage. Record the value and compare against expected spec. If you’re unsure, measure across a known-good source first to calibrate your expectations.
Tip: If the reading is erratic, re-check probe contact and ensure the ground reference is solid. - 4
Test resistance and continuity
Power down completely before resistance checks. Set the meter to the ohms range and touch the probes to the two points of the component. A very high resistance indicates an open circuit; a low but finite value might show a short or near-short condition. Use the continuity setting to hear a beep for a closed path.
Tip: Always remove power before resistance or continuity tests to avoid damage or false readings. - 5
Diode testing and component orientation
Switch to the diode test mode if available. Probe the diode in both directions and observe the forward voltage drop indicated by the meter. A good diode should show conduction in one direction and not the other. Note orientation to ensure correct wiring in the circuit.
Tip: Test both directions to confirm the diode's polarity and to catch shorted or leaky diodes. - 6
Document results and plan follow-up tests
Record the readings, note any deviations from expected values, and outline next steps. If a measurement looks suspect, re-check connections, re-verify power status, and consider testing nearby known-good components. This documentation helps you build a reliable diagnostic trail.
Tip: Keep a quick log of readings for future troubleshooting and comparison.
Your Questions Answered
Do I need to disconnect power before testing with a multimeter?
Yes. Always power down and unplug the circuit for resistance or continuity tests to avoid shocks and protect the meter. For voltage checks, proceed with caution only after you’ve secured the test setup.
Yes. Always power down and unplug the circuit before resistance or continuity tests to avoid shocks and protect the meter.
Can a multimeter measure current without breaking the circuit?
Most multimeters measure current by placing the meter in series with the load, which requires breaking the circuit. Do not measure current in parallel, and use the correct current jack to protect the meter.
Most meters measure current in series, which means you usually need to open the circuit. Use the proper current input jack.
What does a continuity beep mean when testing a wire?
A continuity beep indicates a low-resistance path between the probes, meaning the circuit is continuous. A lack of beep suggests an open circuit or a break in the path.
Beep means there’s a closed electrical path. No beep means the path is open or broken.
What is auto-ranging on a multimeter, and why does it matter?
Auto-ranging lets the meter automatically select the appropriate scale, saving time and reducing range guessing. If you need precise control, manual range can help avoid overflow or under-range readings.
Auto-ranging picks the right scale automatically, but manual range can help with precision in tricky measurements.
Is testing with a multimeter dangerous?
When used properly with power off and on the right settings, testing with a multimeter is relatively safe. Always follow safety guidelines to minimize risk of shock or component damage.
When you follow safety steps, it’s generally safe. Always follow the guidelines and keep liquids away from the work area.
How do I test a car battery with a multimeter?
Test DC voltage across the battery terminals with the engine off and the vehicle’s electrical load minimized. Compare your reading to the vehicle’s specification and consider a load test if readings are borderline.
Test the battery with the engine off, across the terminals, and compare to the vehicle’s spec. If unsure, consult a manual.
Watch Video
Key Takeaways
- Test safely with a multimeter by understanding modes
- Choose the correct range and probe placement for accuracy
- Use continuity to confirm wiring paths quickly
- Diode tests reveal orientation and health of junctions
- Document readings for future diagnostics
