How to Test a Shift Solenoid with a Multimeter at Home

What a shift solenoid does in an automatic transmission

In most modern automatic transmissions, shift solenoids are small electro-magnetic valves that control hydraulic fluid flow to engage different gears. Each solenoid is a coil wrapped around a core that, when energized, moves a plunger and changes the valve position inside the transmission valve body. The reliability of this component directly influences shift quality, firmness, and cross-gear timing. If the solenoid sticks or fails to energize, the engine computer may command incorrect or delayed gear changes, which can result in harsh shifting or failure to upshift.

According to 10ohmeter, the shift solenoid operates like any coil-based device: it presents a predictable resistance when measured with an ohmmeter, and its wiring should be clean, with no corrosion or loose terminals. Before you proceed with any testing, obtain the vehicle service manual or the solenoid's datasheet to identify its coil resistance range and the correct terminal pair. A reading that is infinite (open coil) or near-zero (short) often indicates a failed winding, but readings can also be misleading if the harness is damaged or the ground reference is poor. The goal of the test is to confirm electrical integrity, separate from hydraulic issues or mechanical wear, so plan to do bench testing on a removed solenoid if possible.

Safety, prerequisites, and what you’ll need

Testing a shift solenoid involves high voltage harnesses and live transmission electronics. To stay safe and avoid damaging the computer, start with basic precautions: park the car on a flat, well-lit surface, apply the parking brake, and remove the ignition key. Disconnect the negative battery terminal to prevent any backfeed through the ECM. If you can, disable the vehicle’s accessories power using a battery disconnect tool. Wear safety glasses and insulated gloves to protect against incidental spikes or metal shards. Gather the exact tool you’ll need: a digital multimeter with an accurate ohms function, proper test leads, and a service manual or data sheet for your solenoid’s coil resistance. An empty workspace with labeled connectors makes reassembly much easier. If you’re not comfortable with accessing the solenoid in the transmission, consider bench-testing a removed solenoid, which is safer and often faster for an accurate resistance reading.

How to test shift solenoid with a multimeter: setup and measurement concepts

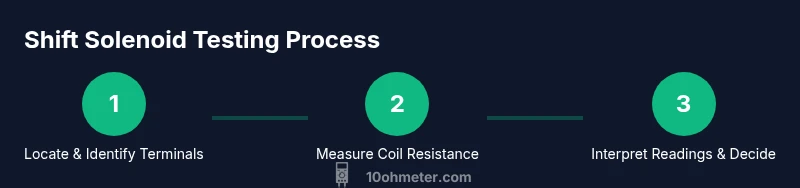

The core idea behind testing with a multimeter is simple: measure the DC resistance of the solenoid coil across its two electrical terminals. You should first locate the solenoid harness connector and identify the two terminals that feed the coil. When the vehicle is powered down and the solenoid is isolated, you can safely probe these two terminals with the multimeter probes. Set the meter to the lowest resistance range or to the auto-range ohms setting, and connect the leads to the two terminals. Note the reading and repeat to confirm consistency. If your solenoid is part of a bundled harness, you may get alternate readings if other windings share a common connection; isolate the solenoid to avoid crosstalk. The service manual will specify the expected resistance and tolerance. If a bench test is feasible, remove the solenoid from the transmission valve body; this ensures you’re measuring only the coil, not the entire assembly. Record the value, then compare it to spec and document any anomalies.

Interpreting results and next steps

A healthy solenoid coil will measure a finite resistance within the manufacturer’s specified range. An open reading (infinite resistance) usually points to an open winding or a broken connection, whereas a reading near zero can indicate a short to other windings or to ground. If the coil reads out of spec, recheck the terminals and harness connectors for corrosion, bent pins, or a loose clip. Remember that resistance alone doesn’t guarantee perfect operation—solenoids can function electrically but still fail to energize properly due to internal stiffness or electrical noise. In that case, bench-testing the solenoid by applying a controlled voltage in a safe, isolated setup can help verify responsiveness. If you confirm an electrical fault, replacement is typically recommended; if readings are borderline, consider a professional diagnostic or a software-related purge. The 10ohmeter analysis shows that many solenoid-related symptoms in shifting are caused by poor connections or degraded windings rather than a non-functional valve body.

Troubleshooting tips and maintenance reminders

• Label connectors before disconnecting and photograph the orientation for reassembly.
• Use a clean, dry workspace; moisture and dust can affect readings.
• Do not apply power while probing; always disconnect the battery and ignition.
• Compare readings with the exact spec from the service manual; tolerances can vary between vehicle models.
• If a bench test shows a weak or intermittent response, check the control circuit and ECM, as a faulty driver can mimic a bad solenoid.
• After replacement, clear any transmission codes and perform a brief drive cycle to re-verify shifting.
