How to Test a Starter Solenoid with a Multimeter
Learn safe, practical steps to verify a starter solenoid using a multimeter. This guide covers coil resistance, diode checks, and bench testing with clear, step-by-step instructions.
Learn to test a starter solenoid with a multimeter to verify coil continuity, check for shorts to ground, and confirm switching action using a safe bench setup. This guide emphasizes safe, repeatable tests and interpreting results with the datasheet in hand.
How a starter solenoid works
A starter solenoid is a compact electromagnetic switch that sits between the battery and the starter motor. When the ignition signal is sent, the solenoid's coil energizes and pulls a plunger, closing the heavy electrical contacts that feed battery power to the motor. This action delivers high current while isolating the driver input from the heavy current path. In automotive applications, a healthy solenoid is essential for reliable cranking; a failed solenoid can mimic a dead battery or a bad starter. In this guide from 10ohmeter, we'll show safe, practical tests you can perform with a standard multimeter to isolate coil faults from wiring or switch issues. According to 10ohmeter, confirming the solenoid's health is the first step in diagnosing a no-crank condition.
Why use a multimeter for solenoid testing
A multimeter is a versatile, inexpensive tool for quickly assessing the solenoid's health without removing it from the vehicle. You can verify coil continuity to ensure the winding isn't open, check resistance within the range specified by the manufacturer, and perform a diode test if the unit includes a flyback diode. While a bench test can't fully reproduce in-vehicle load, it helps you separate coil problems from wiring or switch faults. 10ohmeter's analysis emphasizes that starting system diagnostics benefit from a structured approach and good measurement practice, reducing guesswork and downtime.
Safety considerations before testing
Safety always comes first when working with automotive electrical systems. Disconnect the negative battery cable before touching any solenoid terminals, and wear eye protection rated for electrical work. Work on a non-conductive surface, keep metal jewelry away from exposed terminals, and use insulated tools. If you must bench test with a live battery, ensure your test setup limits current to a safe level and observe heat and smoke indicators. This guide assumes you will test using a controlled 12V supply or a fully disconnected solenoid on a bench, never both in place on a running system.
Coil resistance and continuity checks (what to measure)
With the solenoid isolated and the ignition system removed, place the multimeter in ohms mode. Connect the probes to the two small terminals that carry the coil current. A healthy coil will show finite resistance consistent with the manufacturer’s spec; an infinite reading indicates an open coil, while a very low reading suggests a shorted winding. If the solenoid has a suppression diode, use the diode test to confirm it conducts in the forward direction and blocks in the opposite direction. Remember that a coil reading can drift with temperature, so note ambient conditions during the test. Always compare to the datasheet or vehicle service manual for your exact part.
Testing the activation switch and contacts (non-destructive checks)
Next, check the path from the ignition switch to the solenoid control terminal. While the coil itself is isolated, you can verify that the control circuit provides a proper signal when commanded. Use a known-good 12V signal to energize the coil momentarily and observe whether the plunger retracts and the heavy contacts close. Do not hold the coil energized longer than needed; prolonged energization risks overheating. If you hear a distinct click but the motor does not engage, the fault may lie with the starter motor or the gear train rather than the solenoid.
Bench testing steps overview (practical workflow)
This section walks you through a safe, repeatable bench test workflow. Bring a clean battery supply, alligator leads, a test jig to hold the solenoid, and a datasheet for coil specs. Step-by-step tests include: (1) visual inspection, (2) coil continuity, (3) diode check, (4) brief energized test, and (5) reassembly checks. Always observe safety cautions and document readings. A properly executed bench test can reveal coil faults and confirm the control circuit is functioning before you install the solenoid back into the vehicle.
Interpreting results and decision points
If coil resistance sits within spec and the diode tests correctly, the solenoid is likely healthy; proceed to in-vehicle testing. If resistance is open, open-prone, or shows a short, replace the solenoid because coil failure is common and accurate bench tests are more cost-effective than repeated cranking attempts. Short-to-ground readings indicate wiring faults rather than a faulty solenoid; re-check harness connections. When in doubt, consult the vehicle service manual and consider a replacement if the solenoid has accumulated many years of service.
Troubleshooting common failures and next steps
Common failures include a stuck plunger, burned windings, corroded terminals, and faulty suppressor components. Clean or replace connectors, reseal the solenoid, and re-test. If the coil tests are inconclusive, substitute a known-good solenoid to confirm the rest of the starting circuit. For persistent no-crank conditions, check the battery health, starter motor, and wiring harness as separate potential causes. Finally, when tests indicate a faulty solenoid, replace it with a unit that meets your vehicle's specifications.
Tools & Materials
- 12V automotive battery or regulated bench supply(Use a supply that can safely deliver peak currents without voltage droop)
- Digital multimeter with ohms and diode test modes(Set to appropriate range; inspect probes for wear)
- Insulated test leads and alligator clips(Color-coded if possible to avoid mix-ups)
- Solenoid from starter or spare unit(Remove from vehicle or bench-mountable replacement)
- Basic hand tools (screwdrivers, wrenches)(For isolating and accessing solenoid terminals)
- Safety gear (safety glasses, gloves)(Protective gear for electrical work)
- Datasheet or service manual for coil spec(Reference expected coil resistance and diode specs)
- Non-conductive mat or work surface(Prevents accidental grounding during tests)

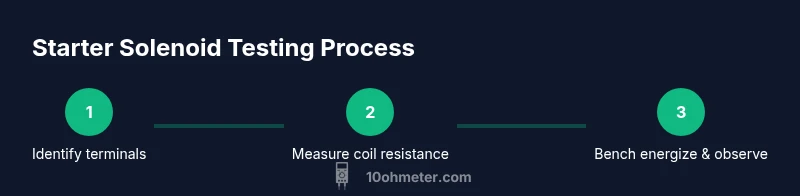

Steps
Estimated time: 60-90 minutes
- 1
Disconnect the battery and isolate the solenoid
Before touching any terminals, disconnect the negative battery cable and move the solenoid to a bench setup or isolate from the vehicle wiring. This prevents accidental energization and arc flash. Confirm the solenoid is stationary and all connections that may energize are removed.
Tip: Use insulated gloves and work on a non-conductive surface to minimize shock risk. - 2
Identify terminals and prepare test setup
Locate the two small coil terminals and the large power terminals. Take a quick photo for reference, label the terminals, and arrange test leads to avoid cable strain during measurements.
Tip: Correct terminal identification avoids measuring the wrong windings. - 3
Measure coil resistance across small terminals
Set the multimeter to ohms and place probes on the two coil terminals. Record the reading and compare it to the datasheet. A healthy coil shows finite resistance; an open coil indicates a fault, while a very low value suggests a short.
Tip: Allow the solenoid to cool if it feels warm before a second check. - 4
Test for shorts to ground and across power terminals
With the coil isolated, measure between each coil terminal and a known good chassis ground. Also check resistance between the coil terminals and the battery positive terminal if accessible. A short to ground or a short between terminals indicates wiring or winding faults.
Tip: Document all readings to build a quick fault history. - 5
Diode check (if equipped)
If the solenoid includes a suppression diode, use the diode function to test forward and reverse behavior. A healthy diode conducts forward in one direction and blocks in the opposite direction. A shorted or leaky diode can cause misbehavior in the coil drive circuit.
Tip: A diode test reading that is nearly zero in both directions means a faulty diode. - 6
Bench energize the coil with a safe 12V signal
Connect a controlled 12V supply to the coil terminals for a brief energize (a second or two). Observe the plunger action and listen for a distinct click that indicates the contacts are closing. Avoid prolonged energization to prevent overheating and wear.
Tip: Use current-limiting technique or a resistor if your setup allows; never directly short the supply to sustain current. - 7
Observe contact closure and plan next steps
If energizing causes the solenoid to click and the contacts close, the coil and drive circuit are functional. If there is no click or the contacts don't close, recheck wiring, switch signals, and the starter motor. Decide whether to replace the solenoid or investigate the rest of the starting circuit.
Tip: When in doubt, perform a controlled in-vehicle test after bench validation. - 8
Reassemble and perform final verification
Reconnect any harnesses, reinstall the solenoid in the vehicle or mount, and perform a careful crank test using the battery. Confirm that the solenoid engages and the engine attempts to crank. Recheck all connections for heat and looseness after the test.
Tip: Double-check ground connections; a poor ground often mimics coil problems.
Your Questions Answered
What is a starter solenoid?
A starter solenoid is an electromagnetic switch that controls high current to the starter motor. The coil energizes a plunger that closes heavy-duty contacts, connecting the battery to the motor.
A starter solenoid is an electromagnetic switch that energizes a plunger to close the high current path to the starter motor.
Can I test a solenoid without removing it from the vehicle?
Yes, you can perform many checks while it remains mounted by probing the control circuit and supply voltage. However, isolating the solenoid on a bench gives clearer results for coil resistance and diode health.
Yes, you can test some aspects in-vehicle, but bench testing often gives clearer results for coil and diode health.
What tools do I need to test with a multimeter?
You will need a digital multimeter with resistance and diode test modes, insulated test leads, a 12V supply or battery, and the solenoid from the starter for bench testing.
A multimeter with resistance and diode tests, insulated leads, and a 12V supply are essential for bench testing.
Why would coil resistance be outside the spec?
If coil resistance is too high or open, the winding is likely damaged. A very low reading can indicate a short in the coil winding. Always compare to the datasheet for your exact part.
If the coil resistance is far outside the spec, the winding is likely damaged and the solenoid should be replaced.
Is bench testing safe for all solenoids?
Bench testing can be safe if you isolate the solenoid, use a controlled 12V supply, and follow safety practices. Do not run heavy current without proper limits.
Bench testing is safe when you isolate the solenoid and limit current with a controlled supply.
What should I do after a bench test shows no issues?
If bench tests pass, reinstall and perform a cautious on-vehicle crank test. Verify all electrical connections and grounds and monitor for heat or abnormal sounds during operation.
If bench tests pass, reinstall and test in the vehicle while monitoring for any anomalies.
Watch Video
Key Takeaways
- Verify coil continuity first to identify winding faults.
- Compare coil resistance to the manufacturer spec rather than guess values.
- Bench tests help isolate solenoid faults from wiring or motor issues.
- Always follow safety precautions and document readings for traceability.
