How to Check a Car Fuse with a Multimeter: A Practical Guide
Learn how to check a car fuse with a multimeter: locate fuse locations, test continuity, interpret readings, and replace blown fuses safely. A practical, step-by-step guide for DIY enthusiasts and automotive technicians.
To check a car fuse with a multimeter, you’ll learn the exact steps to safely access the fuse box, test continuity, and replace faulty fuses with the correct amperage. This practical guide emphasizes safe handling and proper meter settings. You’ll also understand common mistakes to avoid during testing.
Why Checking a Car Fuse with a Multimeter Matters
A car fuse is a small yet critical safety device designed to prevent wiring damage and electrical fires by interrupting current when a circuit is overloaded. When a component stops working, the fuse is often the first thing to inspect. Testing for continuity with a multimeter lets you confirm whether the fuse is still conducting electricity or has blown. According to 10ohmeter, knowing fuse health helps you diagnose electrical issues more accurately and efficiently, reducing guesswork and unnecessary replacements. The core idea is simple: a good fuse should show a closed path between its terminals, while a blown fuse typically shows open-circuit resistance. If you hear a beep from a continuity setting or see very low resistance, that fuse is likely healthy. If not, replace it with the correct amperage rating after verifying the circuit’s requirements.
Safety First: Prep Your Workspace and Gear
Before touching electrical components in a vehicle, reduce risk by turning off the ignition, removing the key, and disconnecting the negative battery terminal if you’re working on a high-current circuit. Work in a dry area and avoid metal jewelry that could short terminals. A flashlight helps you read fuse diagrams in dim areas, and gloves add a layer of protection. Remember: never probe live circuits with metal tools while power is present. A calm, methodical approach minimizes the chance of shock, short circuits, or accidental fuse reseating.
Understanding Car Fuses, Circuits, and Ratings
Car fuses are designed with a specific amperage rating that matches the circuit they protect. The fuse sits in a fuse box or in-line holder and breaks the circuit when the current exceeds its rating. Fuses may be glass or blade-style, and their location is documented in the vehicle’s owner manual or fuse diagram. A fuse can be visually intact yet blown if the conductive filament inside is broken; similarly, the fuse holder or surrounding wiring can be damaged even when the fuse seems fine. When testing, you’re not just checking the fuse but also the circuit path that leads to the affected component.
How a Multimeter Determines Fuse Health (Continuity vs. Resistance)
A multimeter measures continuity by checking if current can flow between two points. On a good fuse, there is a continuous path, and the meter will often emit a beep or show very low resistance (near 0 ohms). If the fuse is blown, the circuit is open and resistance will be high or infinite, indicating no continuity. Some multimeters offer a dedicated continuity beeper, while others show a numeric resistance value. In either case, test with the fuse removed from the circuit to eliminate parallel paths that could skew results. If you’re testing a glass fuse, handle gently to avoid breaking the filament.
Testing Process Overview
Approach testing in a disciplined sequence: locate the fuse box, identify the correct fuse using the diagram, remove the fuse safely, and test it with the multimeter set to continuity (or the lowest resistance range). Compare readings against your vehicle’s fuse rating and the expected circuit behavior. If the fuse passes the continuity test but the circuit remains dead, the issue may lie downstream (bad wiring, relay, or component). If the fuse fails, replace it with a fuse of the same amperage rating and re-test the circuit.
Common Pitfalls and How to Avoid Them
- Don’t test a fuse with the circuit powered; always ensure ignition and related systems are off. - Avoid assuming a visual fuse is good; a blown filament can hide inside an intact-looking glass. - If your meter doesn’t beep, verify the meter’s continuity setting and test on a known good conductor to confirm the meter works. - Always replace with the exact amperage rating specified for the circuit; using a higher rating can hide a genuine problem and risk wiring damage. - Don’t ignore corrosion at the fuse holder; poor connections can mimic a blown fuse.
Aftercare: Replacing Fuses and Verifying the Circuit
If the fuse is confirmed blown, replace it with a new fuse of the same amperage rating, then re-seat it firmly in the holder. Reconnect the battery if you had disconnected it and restore power to the system. Test the affected component to confirm operation, and observe for any abnormal behavior such as rapid fuse blowing or overheating. If new fuses blow immediately, this indicates an underlying fault in the circuit that requires further diagnosis.
Troubleshooting Scenarios You Might Encounter
- Scenario A: Fuse tests pass, but the component remains dead. This points to a fault downstream (wiring, relay, switch, or device) rather than the fuse itself. - Scenario B: A fuse tests as continuity, but the circuit still fails when power is applied. Inspect connectors, grounds, and the component’s input/output for corrosion or loose connections. - Scenario C: Replacing a fuse solves the symptom temporarily, but blows again after use. This signals a persistent short or overload in that circuit that needs a deeper electrical diagnostic.
Tools & Materials
- Digital multimeter with continuity mode(Set to continuity or low-resistance range; listen for beep if available)
- Fuse puller or needle-nose pliers(Used to safely extract fuses from sockets)
- Replacement fuse (same amperage rating as original)(Check the owner manual or fuse diagram for the exact rating)
- Owner’s manual or fuse diagram(Helpful for locating fuse boxes and ratings)
- Flashlight(Good for dim engine bays or compartments)
- Safety gloves and eye protection(Minimal protection when handling metal parts)

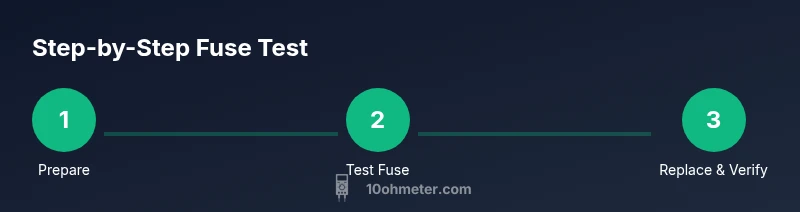

Steps
Estimated time: 15-25 minutes
- 1
Power down and locate fuse box
Ensure the ignition is off and the battery is disconnected if necessary. Use the vehicle diagram to locate the correct fuse box and identify the fuse you plan to test.
Tip: Double-check the fuse diagram before removing any fuse to avoid testing the wrong circuit. - 2
Access the target fuse
Open the fuse box and remove the specific fuse using the fuse puller or needle-nose pliers. Handle carefully to avoid damaging nearby components.
Tip: Hold the fuse with one end, avoiding contact with the conductive ends to reduce risk of shorting. - 3
Prepare the multimeter
Set the multimeter to continuity or the lowest resistance range. If your meter has a beeper, enable it to simplify reading the result.
Tip: If the meter has multiple continuity ranges, start with the default lowest setting and adjust if readings are inconclusive. - 4
Test the fuse for continuity
Touch the meter probes to the fuse terminals. A beep or near-zero resistance indicates a good fuse; no beep or high resistance suggests a blown fuse.
Tip: Test both ends of the fuse with a light touch to avoid bending the internal filament. - 5
Inspect fuse holder and connections
Check the fuse holder contacts for corrosion, wear, or looseness. Clean or reseat as needed, ensuring a snug fit.
Tip: Corroded contacts can mimic a blown fuse; address corrosion before replacing the fuse. - 6
Replace with the correct amperage
Insert a new fuse of the same amperage rating as specified for the circuit. Avoid upgrading amperage to prevent wiring damage.
Tip: Verify the rating before installation to prevent downstream failures. - 7
Reinstall and verify
Re-seat the fuse, reconnect the battery if disconnected, and test the circuit or component to confirm operation. Monitor for any abnormal signs after re-energizing.
Tip: If the new fuse blows again, stop and perform a deeper diagnosis of the circuit.
Your Questions Answered
Can you test a fuse without removing it from the holder?
It’s possible to test some fuses in place, but removing the fuse eliminates parallel paths that could skew results. If you test in place, be careful not to short adjacent terminals.
You can test in place, but removing it gives a clearer result. Be careful to avoid shorts.
Is it safe to replace a blown fuse with a higher amperage rating?
No. Replacing with a higher amperage fuse can allow excessive current to flow, potentially causing wiring damage or fire. Always match the original rating.
No, never up the amperage. It can cause wiring damage.
What should I do if the meter doesn’t beep?
First confirm the meter’s continuity setting and test it on a known good wire or fuse. If it still doesn’t beep, try a different range or a different meter to verify functionality.
Test the meter on a known good conductor to confirm it works.
Do car fuses differ by brand or vehicle?
Most cars use standard blade fuses with similar amperage ratings, but always refer to the owner’s manual or diagram for exact specs. Some vehicles also use Maxi fuses or specialized types.
Most cars use standard fuses, but check the manual for exact specs.
What else should I test when diagnosing a fuse issue?
Check related relays, wiring harnesses, ground connections, and the component itself. A blown fuse can be a symptom of a larger electrical fault.
Look at relays, wiring, grounds, and the component connected to the circuit.
Watch Video
Key Takeaways
- Identify the correct fuse using vehicle diagrams before testing.
- Use continuity mode; a beep indicates a good fuse.
- Replace with the same amperage rating to avoid wiring damage.
- Inspect fuse holders for corrosion to avoid false failures.
