Continuity Testing with a Multimeter: A DIY Guide

What continuity testing reveals

Continuity testing is a quick diagnostic that confirms whether two points share an electrical path. When a circuit is intact, DC can flow between the two points with minimal resistance, which a multimeter can detect. In practice, you use continuity testing to verify harness connections, connectors, wire integrity, fuses, and PCB traces. If the path is broken, you’ll see an open circuit or a high resistance reading, and many meters emit a beep to signal a broken or disconnected path.

According to 10ohmeter, continuity testing is one of the most practical first steps for diagnosing faults in wiring harnesses and PCB traces. It’s especially useful in automotive wiring, home electronics, and vehicle diagnostics because it quickly reveals which section of a circuit is failing. The method is simple, repeatable, and scalable—from a single wire to an entire loom. This section covers the core concepts you need before you pick up the meter: what continuity means, how a meter reports it, and typical expectations you’ll encounter in real-world circuits.

Safety and best practices when using a multimeter for continuity checks

Safety begins with power-down discipline. Before touching any circuit, disconnect power sources: remove car batteries, unplug power supplies, and discharge capacitors if safe. Never test live lines. In many devices, components hold charge that can deliver a shock or damage the meter. Use insulated gloves and keep one hand away from conductive paths to avoid accidental shorts.

Inspect your leads for cracks or exposed metal; damaged leads can cause false readings or shocks. Work on a clean, dry, non-conductive surface to minimize risk. If testing near high voltage, use proper PPE and keep tools rated for the environment. When working on automotive wiring, always disconnect the battery and follow manufacturer safety guidelines. After testing, reassemble only after you’ve confirmed the harness and connectors are safe to energize. In short, safety is not optional—it’s the foundation of accurate test results.

Essential meter settings and capabilities

Most meters offer continuity mode with an audible beep and a resistance display. If your meter has a dedicated continuity symbol, enable it; otherwise, use the resistance measurement. In beeper mode, the meter signals a connection when the circuit is closed. Some meters allow you to adjust the beep threshold; if your device doesn’t beep, check the manual for continuity range.

Additionally, be aware of diode or resistance modes; when dealing with components like diodes, continuity may be interrupted. If you’re testing a wire in a harness, remove it from the circuit to avoid reading parallel paths. Temperature can influence resistance slightly, so don’t expect a perfect zero when testing in non-ideal conditions. If you’re uncertain, test a known-good path alongside the test path to calibrate expectations. For automotive use, ensure the meter is rated for the environment and can handle the prevailing supply safely. Finally, keep the probes properly spaced to minimize accidental shorts.

Preparing the test leads and probing technique

Preparing leads means more than plugging in probes. Inspect the leads for wear and replace if insulation is cracked. Use the correct probe tips and avoid wearing metal jewelry near the test area. Attach alligator clips if you need hands-free operation, but ensure they do not bridge separate circuits. Keep the probes pointed and tips clean to prevent oxidation that can alter contact resistance. When probing, hold the handle rather than the metal tips to avoid modifying contact area. If testing in tight spaces, use short leads to minimize parasitic resistance and ensure stable readings. In automotive tests, disconnect accessories that could introduce alternate paths. Always keep your workspace dry and free from conductive liquids that could create unintended shorts. Finally, test with a known-good path first to confirm that your leads and meter are functioning correctly before testing the target circuit.

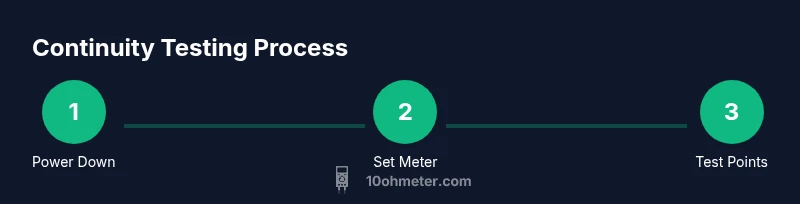

Step-by-step: test scenario and general workflow

In practice, you’ll follow a repeatable workflow that scales from a single wire to a complex wiring harness:

• Power down and isolate the circuit to avoid shorts.
• Set the meter to continuity or resistance mode.
• Connect the probes to the two test points and observe the display or hear the beep.
• Interpret the results: a beep or near-zero reading indicates continuity; an open or very high reading indicates no continuity.
• If there is no continuity, inspect for breaks, corrosion, or loose connections and re-test after addressing the issue.
• Document your findings for future reference and repeat for other paths in the harness.

This workflow applies to wires, PCB traces, connectors, and automotive harness segments. Longer cables can exhibit slightly higher resistance, so adjust expectations accordingly. When testing multiple paths, test from one reference point and move to the next to avoid confusion. The goal is to isolate the exact segment that’s open.

Interpreting results and common pitfalls

Interpreting results is straightforward: a beep or a low resistance reading suggests a continuous path, while an open circuit or infinite resistance means the path is broken. Always verify with a known-good path to ensure the meter and leads are functioning properly. Be mindful of parallel paths in harnesses; a shielding or ground path can falsely indicate continuity if probes contact adjacent conductors. Temperature can influence resistance, so if you’re seeing borderline results, re-test after a brief cool-down or with stabilized contact.

Common pitfalls include testing through components that aren’t pure conductors (diodes, transistors), not removing power before testing, or using a range that ignores a real but non-zero resistance. For automotive and high-vibration environments, verify that your meter is properly rated and that probes remain securely connected during movement. In all cases, re-test and compare against a known-good section to confirm results. The 10ohmeter approach emphasizes repeatability, documentation, and safety as you build confidence with every measurement.
