How to Check Ground with a Multimeter: A Practical Guide
Learn to verify ground continuity safely with a multimeter. This step-by-step guide covers tools, safe testing, interpretation of readings, and tips for both home electrical and automotive setups.
Using a multimeter for checking ground, you verify that the ground path from outlets, equipment chassis, and grounding electrodes is continuous and low-resistance. This quick check helps prevent shock and equipment faults. The guide covers required tools, safe testing steps, and how to interpret readings in both home and automotive contexts.
Grounding Basics and Why It Matters
Grounding provides a safe, defined reference potential for all metal parts and enclosures in electrical systems. When you use a multimeter for checking ground, you verify the connection between the equipment’s ground path and a known earth reference. A solid ground path prevents exposed metal from drifting to dangerous voltages during faults and helps protective devices trip correctly. According to 10ohmeter, understanding the ground path in both residential and automotive contexts is essential for safe diagnostics and reliable operation. In the home, a three-prong outlet should tie the metal ground conductor to the equipment chassis and to the earth via the building’s grounding electrode system. In vehicles, the chassis often serves as the ground reference for electronics that return current. This section lays the foundation so you can interpret test results with confidence and avoid guesswork.
Tools & Materials
- Digital multimeter with continuity and resistance modes(Prefer a meter with audible continuity beeper and a low-ohm range.)
- Test leads with alligator clips(Silicone-insulated; long enough to reach outlets and chassis points.)
- Screwdriver or outlet-removal tool(To safely remove outlet faceplates for direct ground checks.)
- Insulated gloves(Optional protection when handling exposed conductors.)
- Safety goggles(Eye protection in case of sparks or arcing.)
- Cleaning supplies (alcohol wipes, brush)(Prepare contact surfaces to avoid reading errors.)

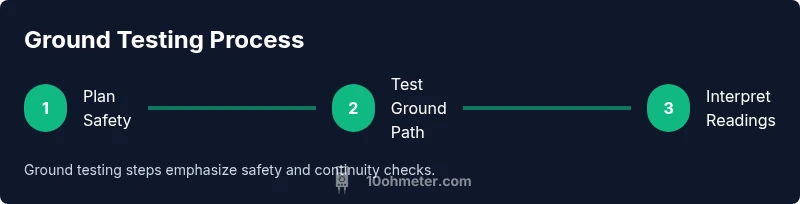

Steps
Estimated time: 30-45 minutes
- 1
Power down and prepare safety
Power down all equipment and unplug devices. If you are working on a vehicle, disconnect the battery and ensure the area is de-energized. Confirm no stored energy remains by testing with a non-contact tester on exposed conductors before you touch anything. This fundamental step protects you from shock and accidental arcs.
Tip: Double-check capacitors on larger equipment are discharged according to manufacturer guidance. - 2
Set your meter to continuity or low resistance
Configure the multimeter to the continuity setting or to a low-resistance range appropriate for ground testing. A loud beep or a near-zero resistance reading typically indicates a good ground path. If your meter lacks a bead or audible tone, rely on a minimal resistance value rather than a visual indicator alone.
Tip: Test the meter on a known good resistor first to confirm it is functioning correctly. - 3
Inspect and prepare leads
Inspect test leads and probes for any wear or exposed copper. Replace damaged probes before starting. Attach alligator clips if you need stable contact on grounding points and keep wires away from moving parts. Clean surfaces where you’ll place probes to avoid false readings.
Tip: Use clips to reduce hand movement and improve contact stability for accurate readings. - 4
Test outlet ground to the metal enclosure
Remove the outlet faceplate if needed and locate the ground path behind the receptacle. Place one probe on the ground conductor or metal box, and the other on the grounding terminal. You should see continuity with a low resistance or hear a beep. Repeat at multiple outlets to ensure consistency across the circuit.
Tip: Always verify that the outlet itself is de-energized before touching the conductors. - 5
Test equipment chassis ground
For devices with a three-prong plug or metal chassis, measure between the chassis and the ground terminal or earth reference. A good path will show continuity and a low resistance value. If the chassis is not grounded, inspect the internal bonding strap, screws, and contacts for corrosion or looseness.
Tip: If you detect poor grounding, check the bonding strap and re-seat connections after cleaning contacts. - 6
Check earth electrode or grounding electrode system
If accessible, test from the main service ground to an earth stake or water pipe that serves as the grounding electrode. The goal is a continuous path from the service ground to earth with minimal impedance. In some installations this step may be impractical; document the limitation and move to the next applicable check.
Tip: Do not force readings beyond the meter’s rated range; switch to a higher sensitivity range if needed. - 7
Document results and interpret readings
Record which locations you tested, readings obtained, and whether continuity was achieved. Compare readings across points to identify loose connections or corrosion. Interpret readings in context: slightly higher resistance in longer paths can be normal, but large jumps indicate a problem.
Tip: Create a simple log with date, location, and reading to track changes over time. - 8
Restore power and finalize
Reinstall any faceplates, reattach connectors, and restore power carefully. Confirm that all tools are removed from the work area and that the test path remains undisturbed after energizing the system. Verify again with the meter to ensure no changes occurred during reassembly.
Tip: Perform a final safety check and store your tools properly after testing.
Your Questions Answered
What is ground in electrical systems and why test it?
Ground is a reference point that safely carries fault current away from equipment. Testing ground ensures this path is continuous and low-resistance, helping protect people and equipment from shocks and faults. A good ground also helps protective devices operate correctly.
Ground gives fault current a safe path. Testing ensures continuity so devices trip properly and you stay safe.
Can I test ground while the circuit is live?
No. Ground testing should be performed only after de-energizing the circuit to avoid shock or arc injuries. Work on de-energized equipment and use appropriate PPE.
Do not test live circuits. De-energize first and follow safety steps.
Why might my reading show infinite resistance?
Infinite resistance usually means an open circuit: the ground path is broken, the contact is dirty, or a connection is loose or corroded. Recheck connections, clean contact surfaces, and retest.
Infinite resistance means no complete path. Check connections and clean contact areas.
Is a low resistance reading always good for ground?
Generally yes, a low resistance reading indicates a solid ground. However, consider path length and potential parallel paths; very low readings could indicate a short or unintended cross-path. Interpret within the system context.
Low resistance is usually good, but confirm it’s the intended ground path.
How is outlet grounding different from vehicle chassis grounding?
Outlet grounding checks the building’s protective earth of the outlet system. Vehicle grounding checks the chassis-to-battery or body-to-battery return path. The principles are the same, but the physical paths and voltages differ.
Outlets test building ground; cars test the chassis path.
What readings indicate a healthy ground?
Look for continuity with a beep and a low, stable resistance reading. Readings should be consistent across multiple test points and not drift with slight position changes.
A consistent beep and low, steady resistance suggest a healthy ground.
Watch Video
Key Takeaways
- Verify continuous ground paths across outlets and chassis
- Use proper safety steps before touching any conductors
- Record readings and compare across points to identify problems
- Be mindful of corrosion and paint that can fake high resistance
- Reassemble carefully and retest after re-energizing
