Can a Multimeter Test Ground: A Practical How-To
Learn how to safely test ground with a multimeter, including continuity, resistance checks, and interpreting results. A practical guide for DIYers and technicians in electronics and automotive work.
Yes—under safe conditions a multimeter can test ground points such as chassis grounding, service panel earth, and equipment grounds. You’ll verify continuity or low-resistance connections between the ground node and a known reference ground using the meter’s continuity or resistance ranges. Always power down first and follow proper safety practices. See the steps below for a safe, repeatable method.
Grounding in Electronics: What It Is and Why It Matters
Grounding is more than a wire and a label; it is a deliberate reference point that all voltages in a system rely on. In electronics, ground serves as the common return path for current and as a stable reference for measurements. Different ground types exist: chassis ground is tied to the metal enclosure, earth ground connects to the facility's grounding system, and signal ground is used for sensor and control signals. Each plays a distinct role in safety, noise suppression, and circuit behavior. When you explore can multimeter test ground, you must first understand which ground you’re testing and what a correct bond looks like. A solid ground minimizes voltage differences, reduces hum and interference, and helps protect users from shock in fault conditions. In DIY electronics and automotive work, a clear grounding strategy leads to more reliable readings and fewer puzzling symptoms such as floating references or erratic meter behavior.
Common Ground-Testing Scenarios with a Multimeter
Testing ground with a multimeter is often about continuity and relative resistance rather than an absolute voltage. You can verify that a device ground is bonded to a known reference by placing one lead on the reference and the other on the ground point under test. In automotive work, the negative battery terminal is typically a practical ground reference, and in AC mains work you compare against the service panel grounding conductor. Note that measuring live mains grounds carries obvious safety risks; never make contact with exposed conductors or metal parts while the circuit is energized. For portable gadgets or battery-powered gear, grounding checks focus on ensuring the chassis or enclosure is at the same potential as the reference ground. Always document your test points and readings for future troubleshooting.
Safety First: Gear, Environment, and Procedures
Safety should govern every ground-test procedure. Wear insulated gloves and ANSI-rated safety glasses, and use rubber-soled shoes in a dry environment. Work on a non-conductive surface and keep metallic jewelry away from expected conductors. Before touching any test point, de-energize the system, lockout power sources if possible, and discharge capacitors. If you must work near high-energy circuits, use distance and shielding and never rely on a meter's protection alone. After completion, store your tools in a dry, organized area to avoid accidental contact later.
How to Prepare Your Multimeter and Leads
First, power down the circuit and confirm there is no residual voltage. Switch to a continuity setting or the low-resistance range on your digital multimeter, and test your leads on a known good connection to verify they beep or show near-zero resistance. Use alligator clips or probe tips for stable contact to ground points. Identify a clean, bonded ground reference (such as a panel ground stud or a water pipe bonded to earth) and ensure the test points are accessible. If your meter has a relative or relative-ground feature, use it to improve accuracy by zeroing out lead resistance.
Practical Ground Testing: Reading, Interpreting, and Troubleshooting
Begin by connecting your meter between the reference ground and the point you want to test. In continuity mode, listen for a steady beep; in resistance mode, look for a very low reading. If readings are inconsistent, check for long or corroded bonding spots, loose clamps, or paint and oxidation on metal surfaces. Temperature and humidity can influence contact resistance, so re-test if conditions change. For automotive grounds, verify the engine block, chassis, and battery negative are all bonded; for house wires, confirm that the service-ground conductor remains continuous back to the panel.
Interpreting Results and Best Practices
Interpret results by comparing to expected bonding behavior rather than a single golden value. A solid, near-zero reading in resistance or a continuous beep across the ground path generally indicates a healthy bond. If you observe high resistance, re-clean mating surfaces, tighten connections, or extend bonding paths as needed. Always recheck after reassembly and consider repeating tests under different load conditions. Finally, integrate grounding checks into your standard maintenance routine so future projects start with a known-good ground.
Quick Reference Checklist
- Confirm the circuit is powered down and capacitors discharged.
- Identify a clean reference ground and bonded ground points.
- Set the multimeter to continuity or low resistance and test each ground path.
- Use clips for stable connections and avoid dangling leads.
- Check readings at multiple points to catch loose bonds or corrosion.
- Document results with point names, readings, and date.
- Re-test after any mechanical work or reassembly.
- Repeat tests under different temperatures or loads when possible.
Tools & Materials
- Digital multimeter (preferably auto-ranging)(Must measure continuity and resistance with a stable low-range setting.)
- Test leads with probes and alligator clips(Secure contact to ground points; clips help stability.)
- Known good reference ground(e.g., service panel ground stud or bonded earth ground.)
- Safety gear (insulated gloves, safety glasses)(Wear when working near potentially energized circuits.)
- Non-conductive work surface(Reduces risk during probing.)

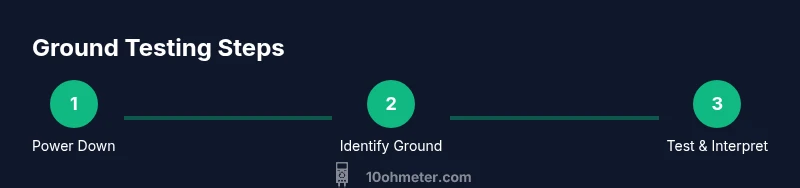

Steps
Estimated time: 25-40 minutes
- 1
Power down and isolate the circuit
Turn off the power, unplug equipment, and discharge any capacitors. Confirm there is no voltage present before touching conductors. Keeping the circuit de-energized minimizes risk and prevents false readings caused by residual charge.
Tip: Use a lockout/tagout procedure when available to prevent accidental re-energizing. - 2
Identify a stable ground reference
Select a known ground point that is bonded to earth or the chassis ground, depending on what you’re testing. This point will serve as your reference for continuity checks.
Tip: Label the reference point so future tests don’t use an incorrect ground. - 3
Configure the multimeter for continuity or low resistance
Set the meter to continuity mode if available, or to a low resistance range. Test the leads on a known good connection to verify the beeper or low-ohm display works correctly.
Tip: Always verify the meter and leads with a quick test on a known good circuit. - 4
Connect ground leads to test points
Attach the meter’s ground lead to the reference ground and place the test lead on the ground point you want to check. Ensure solid, non-slip contact using clips if needed.
Tip: Keep leads short to minimize additional resistance. - 5
Take readings and interpret
Observe whether there is a continuous beep and a very low resistance value. A beep or low reading indicates a solid ground; a weak or fluctuating reading suggests a loose bond or corrosion.
Tip: Test multiple ground paths if possible to verify consistency. - 6
Document results and re-test
Record the test points, readings, and conditions. Re-test after any mechanical work or reassembly to verify that bonds remain sound under real-use conditions.
Tip: Capture photos or schematics for future reference.
Your Questions Answered
What is grounding in electrical testing?
Grounding provides a common reference point and a safe return path for current. It helps stabilize voltages and reduces shock risk in fault conditions.
Grounding gives a safe reference point and return path, which helps keep voltages stable and reduces shock risk.
Can I test ground while a circuit is energized?
No. Testing ground on energized circuits is dangerous and can cause electric shock or further damage. Always de-energize and discharge capacitors before testing.
No. Always switch off power and discharge capacitors before testing ground to stay safe.
What does a beep in continuity mode indicate?
A continuous beep usually means there is a low-resistance, intact ground path. It is a quick indicator of connectivity, not a precise value.
A beep means the path is continuous, indicating a good ground connection, not an exact resistance.
What readings indicate a good ground?
A steady beep or a very low resistance reading typically indicates a solid ground path. Higher or fluctuating readings suggest bonding issues or corrosion.
A steady beep or near-zero resistance usually means a good ground; higher values suggest problems to investigate.
How is chassis ground different from earth ground?
Chassis ground ties to the device’s metal enclosure; earth ground connects to the building’s grounding system. Use them appropriately depending on what you’re testing.
Chassis ground is the device’s frame; earth ground is the building’s ground network. Use the one that matches your test context.
What should I do if I find high resistance on the ground path?
Check for loose connections, corrosion, paint, or damage in bonding paths. Clean mating surfaces and re-tighten or re-route bonding where needed, then re-test.
If resistance is high, inspect and clean connections, then re-test to verify improvements.
Watch Video
Key Takeaways
- Power down before testing to avoid shock or false readings
- Use a stable reference ground and verify contact quality
- Beep or very low resistance indicates a good ground path
- Document readings for future troubleshooting
- Repeat tests under different conditions to confirm grounding integrity
