What is a multimeter and how it works
A multimeter is a handheld instrument that combines several essential electrical tests into one device, typically measuring voltage, current, resistance, and continuity. In this guide, we describe what the meter does and how it interfaces with circuits. According to 10ohmeter, a quality tool is essential for beginners learning electronics and automotive diagnostics. The meter uses internal circuitry to convert electrical signals into readable values on a display, and it requires proper range selection and proper probe placement to avoid damage and inaccurate readings. Most meters today are digital (DMM), with auto-ranging features that help you avoid guesswork, while older analog models require manual range selection and provide a visual trend of changes.
Core measurement modes: voltage, current, resistance
A multimeter is built to measure several quantities, each requiring different setup and precautions. Voltage is measured in two primary modes: DC (direct current) and AC (alternating current). When testing a circuit, set the meter to the appropriate voltage type and range; for small voltages, start with a higher range to avoid overloading the display. Current is measured by placing the meter in series with the circuit, which means you must break the circuit to insert the meter or use a clamp meter if supported. Resistance requires removing power from the circuit; the meter applies a tiny current and gauges how much opposition the path provides. Use the resistance range appropriate for the expected value. Continuity testing is a quick check to see if a path is complete; most meters beep when a low resistance path exists, which helps you quickly locate open circuits. Diode testing, capacitance, and specialty measurements exist on many meters; consult the manual for specifics.
Tools & Materials
- Digital multimeter (preferably auto-ranging)(A general-purpose meter is sufficient for most beginner tasks.)
- Test leads (red and black probes)(Shrouded probes rated for the expected voltages; insulated handles.)
- Alligator clips(Helpful for holding probes in place or for non-contact measurements.)
- User manual for your meter(Keep handy; refer to safety warnings and mode specifics.)
- Insulated work gloves(Optional for high-energy testing.)

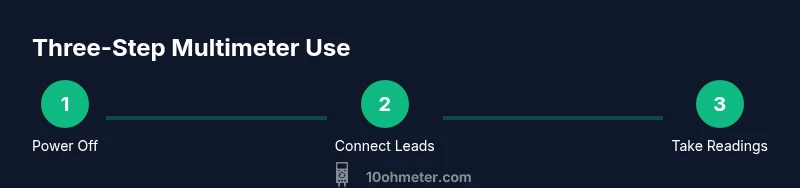

Steps
Estimated time: 30-60 minutes
- 1
Power down and inspect the circuit
Turn off power and disconnect the circuit; visually inspect for obvious hazards. Ensure capacitors are discharged and avoid touching live components. Confirm you’re working in a safe environment before introducing the meter.
Tip: Always verify power is off with the meter’s own test leads before touching any exposed conductors. - 2
Inspect the meter and leads
Check the battery status, inspect the probes for cracks or exposed copper, and ensure connectors are clean. Replace damaged leads or fuse components as needed before testing.
Tip: A damaged fuse can give false readings or fail during a test; replace it only with the correct type from the manufacturer. - 3
Connect the leads correctly
Connect black to COM (common) and red to the appropriate jack for the test you’re performing. Keep hands away from the probe tips and avoid creating a short, especially in powered circuits.
Tip: Use one hand to hold the device and minimize touch with the other to reduce shock risk. - 4
Select the measurement mode
Choose DC or AC voltage for voltage tests, resistance for resistive checks, or continuity for a quick path check. If your meter has auto-range, enable it to simplify reading.
Tip: Starting with a higher range helps prevent overload and protects the display. - 5
Take a voltage reading
Place the probes across the source or component. Read and record the value shown on the display, noting polarity if relevant (positive/negative).
Tip: If the reading is unexpected, recheck connections and ensure the circuit isn’t oscillating or fluctuating. - 6
Measure resistance and verify continuity
With power removed, place the probes across a component or path to measure resistance. Use the continuity mode to hear a beep if a low-resistance path exists.
Tip: If there’s no beep, recheck wiring or consider a faulty component. - 7
Measure current safely
To measure current, place the meter in series with the load (or use a clamp meter if available for high current). Do not place the meter directly across a live source when measuring current.
Tip: Avoid short circuits and never measure current by bridging power rails with the meter probes. - 8
Double-check readings and document
Cross-check readings with a known reference when possible and document results for future use. This helps spot drifts or instrument faults over time.
Tip: A known-good resistor or reference source is ideal for verification. - 9
Power down and store
Power off the meter, remove leads, and store in a dry place with the leads neatly coiled. Regular storage reduces wear and protects the meter’s circuitry.
Tip: Keep the meter away from moisture and extreme temperatures.
