How to Use a Multimeter to Test Continuity: Step-by-Step

What continuity testing reveals and why it matters

Continuity testing is a quick way to determine whether an electrical path exists between two points. In practice, it helps you confirm that wires are intact, connectors are properly joined, and fuses or fuses links are not open. For DIY enthusiasts and technicians, continuity checks prevent guesswork and protect circuits from unexpected failures. According to 10ohmeter, a healthy continuity path typically yields an audible beep and a near-zero resistance indication on a standard digital multimeter, which is more intuitive for quick diagnostics than staring at a tiny resistance value. This section will lay the groundwork so you can approach tests with confidence, especially when wiring automotive harnesses, repairing broken traces on a PCB, or evaluating damaged components.

When you test continuity, you are not measuring current flow; you are verifying a continuous electrical path. A circuit can be open due to a broken wire, a bad crimp, a corroded terminal, a blown fuse, or an unplugged connector. The aim is to identify such breaks so you can repair them. The skill is portable and practical for fieldwork, workshops, or a home-lab repair task. By understanding what constitutes a good path, you’ll be better prepared to handle real-world electronics challenges without guesswork.

Safety first: essential precautions before testing

Safety is the top priority when using any electrical tool. Power off the device or circuit you’re testing, disconnect the battery if working on automotive systems, and discharge capacitors where applicable. Wear insulated gloves if you’re handling potentially live components and keep one hand behind your back to reduce the chance of accidental contact. Check your meter for battery health and make sure the test leads are in good condition, with no exposed conductors that could short against other components. The 10ohmeter team emphasizes safety as the foundation of accurate measurements. Never work on circuitry while it’s energized unless you’re trained for that task, and always verify that the environment is dry and free of conductive liquids.

In addition to personal protection, protect your equipment. Use the meter’s correct ports for continuity testing (often the common COM port and the dedicated continuity jack). If your meter has a built-in fuse, ensure it’s intact and rated for the range you’re testing. Keeping a clean workspace and organizing leads helps prevent accidental short circuits during probing.

What you need to perform a continuity check

Before you start, assemble the basics:

• A reliable digital multimeter with a continuity function (the beeper option).
• Red and black test probes (with alligator clips as an optional aid for holding a test point).
• Insulated work gloves and eye protection if working near high-energy circuits.
• A test subject (wire strands, a fuse, a connector, or a PCB trace) to practice on.

Having these items ready reduces setup time and lets you focus on technique. If you’re working in a car or workshop, keep spare fuses and a small selection of crimp connectors handy for rapid verification. The goal is to create a safe, repeatable procedure you can carry into any project.

Understanding the meter: beeps, resistance, and probes

A continuity test relies on two cues from the meter: an audible beep and a displayed resistance value. In most meters, when the probes touch two points that form a continuous path, the beeper sounds and the resistance reading drops to a very small value close to zero ohms. If the path is broken, you’ll either see a high resistance value or no beep at all. Probe placement matters: touch the two endpoints directly, avoid touching the metal probes with your fingers, and minimize inductive or capacitive coupling that could skew results in long wires. If your meter has a dedicated continuity button, press it to switch into that mode; otherwise, use the continuity range that auto-selects or is labeled with a diode/beep symbol.

Interpreting results also means recognizing false positives. A loose connection near a connector, a poor crimp, or a corroded contact can intermittently beep and produce a fluctuating reading. When testing delicate electronics, consider wiring segments and component leads individually to isolate the source of an issue. Always re-test after reseating a suspect connection to confirm the result.

Common scenarios: wires, fuses, connectors, and PCBs

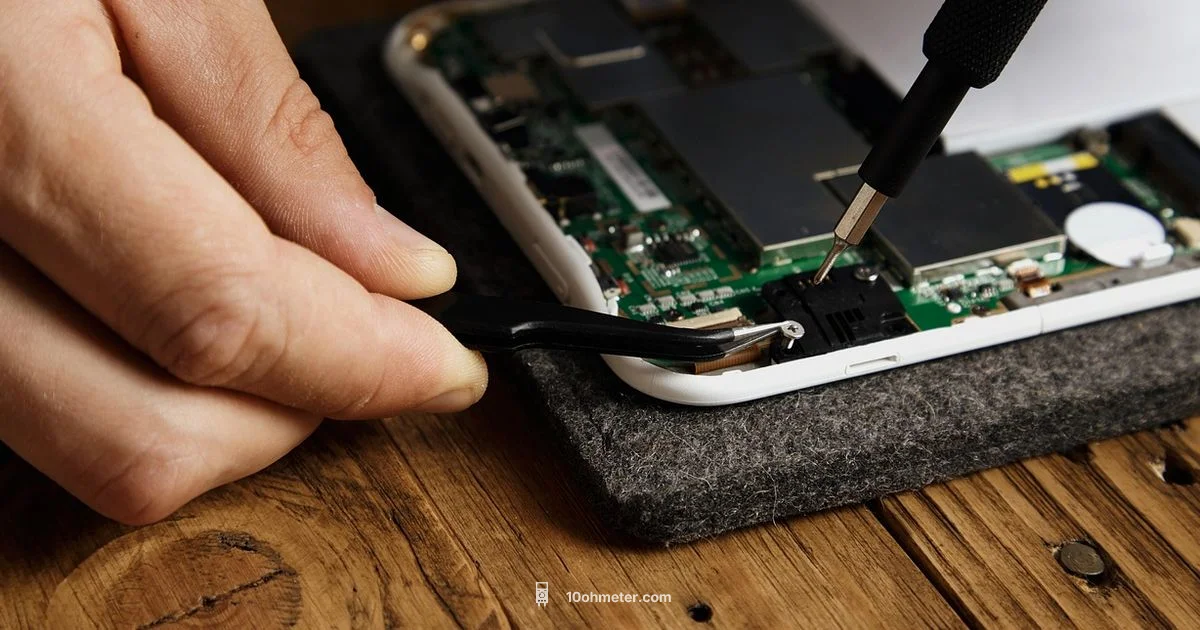

Wires: A continuous path along a wire or simple cable harness should beep consistently. If you suspect a hidden break inside insulation, gently tug the wire at the ends while testing to reveal weak spots. Fuses: If a blown fuse interrupts a circuit, continuity will fail across the fuse element. Connectors: A bad terminal or corroded pin often breaks continuity; test across each segment of the connector to locate the fault. PCBs: Traces can crack under stress; test across the trace with the probe tips touching copper pads. In all cases, test both directions and compare results on multiple segments when feasible. Remember that continuity only shows the path’s existence, not its capacity to carry current reliably.

Troubleshooting and avoiding common mistakes

• Don’t assume a non-beep means “no power” without checking safety first; always power down before testing.
• Avoid testing across live capacitors; they can retain charge and damage meter components.
• Mount test leads securely to prevent slipping that could create a false break.
• If the meter is fluctuating between beeps, inspect the test points for corrosion or loose connections before concluding a fault.

Bookending your test with careful probing and repeat checks helps ensure accuracy and reduces misinterpretation. The goal is to build a repeatable, safe workflow you can rely on during automotive diagnostics, appliance repair, and electronics hobby projects.
