How to Check Continuity in a Long Wire with a Multimeter
A practical, safety-first guide to testing end-to-end continuity in long wires with a multimeter. Learn setup, readings, and troubleshooting for automotive and electronics wiring.
Learn how to check continuity in a long wire with a multimeter, including meter preparation, test setup, and interpreting results. This guide covers establishing a baseline resistance, recognizing acceptable variances over long runs, and troubleshooting common faults. You’ll verify end-to-end continuity and pinpoint breaks or opens quickly in automotive wiring or electronics harnesses, with safety tips for high-resistance situations.
Understanding continuity in a long wire
Continuity isn't just a binary 'yes or no' matter; it represents a continuous electrical path with low resistance. In long wires, factors like connector quality, insulation integrity, and shared ground paths can affect readings. A healthy conductor should show near-zero resistance in continuity mode or a very small ohmic value in resistance mode. For automotive harnesses or extended electronics runs, the challenge is distinguishing a genuine, low-resistance path from a subtle break, corroded contact, or loose splice. This section explores how length, gauge, and temperature influence resistance and explains how to structure tests so results are reproducible. According to 10ohmeter, a consistent approach reduces ambiguity and speeds fault isolation. You’ll learn to plan tests that scale from a single jumper to a full-length run and how to compare readings against a known-good reference.
Factors that affect continuity measurements
Several variables can bias a continuity reading on long wires. Wire gauge and insulation type affect contact resistance at terminations. Temperature shifts alter copper resistance, so measurements taken in a hot engine bay may differ from room-temperature readings. Junctions, splices, and connectors add resistance even when the conductor itself is intact. The method matters: a beep indicates low resistance, but it doesn’t quantify how low. For long runs, measuring with an ohms range can reveal detail but may require removing insulation to access the conductor. Plan tests to isolate segments and compare each against a reference length to spot anomalies.
Setting up your multimeter for a long-wire test
Start by choosing the appropriate range. In most cases, the continuity setting suffices; if your meter lacks a beeper, switch to the lowest ohms range to read small resistances. Ensure the meter battery is fresh, because a weak battery can undervalue continuity. Inspect test leads for damage and use insulated probes or alligator clips for stable contact at wire ends. For long runs, having a second person can help: one holds a probe at a fixed point while the other moves along the wire to note changes. Keep the wire de-energized and away from nearby metal surfaces that could create alternate current paths.
A practical test plan for end-to-end verification
Adopt a systematic approach to verify continuity along long runs. Start by establishing a baseline with a known short link and record the reading. Expose both ends of the target wire to ensure clean metal contact. Connect the probes to the ends and observe the beeper or reading. Move one probe along the length in measured increments, noting resistance or the presence/absence of continuity. If you detect a change, isolate that segment with a reference length and re-test to map the fault precisely.
Interpreting readings and distinguishing faults
Long-wire readings should show very low resistance if the conductor is intact. A sudden jump in resistance or a missing beeper indicates a potential break, loose connector, or compromised splice. If resistance drifts when you move the probe, resistive joints or damaged insulation are likely culprits. Document every segment, environment, and reading, then compare to a known-good reference. In many cases, cleaning contacts or reseating connectors restores continuity without replacing the wire.
Troubleshooting common issues when continuity fails
If there’s no beep, verify the meter is in the correct mode and the probes are contacting clean metal. Re-test after removing nearby metal paths that could create parallel circuits. For braided wires or shielded bundles, test each conductor individually to avoid cross-talk. If resistance remains high, inspect insulation for wear, pinholes, or corrosion at splices. When in doubt, cut back to a clean section and re-strip to ensure fresh contact surfaces.
Extending tests to automotive and electronics harnesses
Automotive wiring experiences vibration, temperature cycling, and moisture, all of which can affect continuity over time. Test with conditions that mimic service as closely as possible, including grounds and shielding that may influence results. For electronics harnesses, use short leads and avoid creating new noise paths. Establish a repeatable procedure and label each segment to build a traceable map of continuity along the entire length.
Best practices to document and maintain wiring tests
Record the date, instrument model, battery level, and ambient temperature for each session. Photograph exposed ends and connector interfaces for future comparison. Maintain a reference ledger of tested lengths, expected tolerances, and notes about any environmental variance. Schedule periodic re-tests on critical runs—especially where temperature or flexing is common. Building a test archive enables quick verification after repairs.
Tools & Materials
- Digital multimeter(Set to continuity or low-ohm range; ensure fresh battery for accurate readings.)
- Test leads/probes(Insulated, with sharp tips; use alligator clips for stable contact.)
- Alligator clips or grabbers(Helpful for securing connections at wire ends; reduces hand error.)
- Known-good reference wire(Useful for baseline comparison across segments.)
- Wire stripper and pliers(To expose conductor ends cleanly without nicking copper.)
- Safety gear (gloves/eye protection)(Personal protection when handling exposed conductors.)

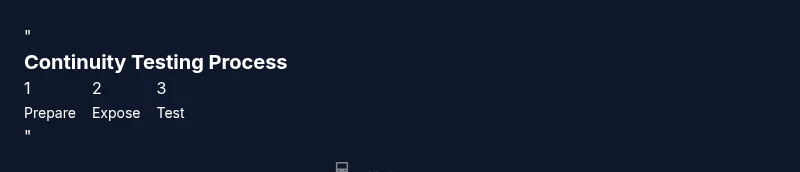

Steps
Estimated time: Estimated total time: 20-40 minutes
- 1
Prepare the test setup
Power down the circuit and inspect wires for damage. Gather your meter, leads, and any clips. Confirm the work area is dry and well-lit to prevent accidental contact with live components.
Tip: Verify battery level before starting to avoid false negatives. - 2
Expose and secure wire ends
Carefully strip insulation to expose clean copper at least 1/4 inch long. Secure the ends with clips to prevent movement during measurement and ensure repeatable contact.
Tip: Avoid nicking copper; damaged strands add resistance. - 3
Set the meter range
Choose continuity mode if available; otherwise select the lowest ohms range. A fresh battery helps ensure the reading is accurate.
Tip: If your meter lacks a beeper, rely on the resistance readout for transparency. - 4
Connect probes to ends
Attach probes firmly to both ends of the wire segment. Minimize touching bare copper with fingers to avoid adding contact resistance.
Tip: Use alligator clips for steadier contact on long wires. - 5
Read and record results
Observe whether the meter beeps or shows a low resistance value. Document the reading and note any environmental factors such as temperature.
Tip: Take multiple readings at the same segment to confirm stability. - 6
Move along the length
Slide one probe along the wire in fixed increments, testing each segment. Note any resistance changes to locate potential faults.
Tip: Mark each tested point on a diagram for quick reference. - 7
Document and label results
Create a segment map with readings, beeper status, and segment lengths. Store this with the other test data for future troubleshooting.
Tip: Keep a digital or printed ledger; it speeds repairs later.
Your Questions Answered
How do you test continuity with a multimeter?
Set the multimeter to continuity or the lowest ohm range, touch the probes to the wire ends, and observe the beeper or resistance value. If there is a closed path, you’ll hear a beep or see a very low resistance. Repeat across segments to map continuity along the wire.
Use the continuity or ohm setting, touch both ends, and listen for a beep or note the resistance. Repeat across sections to map the run.
What if there is no continuity beep?
If there’s no beep, test the meter range and probes first. Ensure ends are clean and contacts are solid. If still no beep, measure resistance; a high or infinite value suggests a break or a poor connection.
If there’s no beep, check the meter range and contact quality, then re-test. A high resistance usually means a break or bad connection.
Can you test continuity on long wires?
Yes. Test in segments to avoid cumulative contact resistance. Start from one end and move incrementally along the length, documenting each segment's reading to locate any fault.
You can test long wires by checking each segment along the length and noting readings to find faults.
How do temperature and length affect readings?
Copper resistance increases slightly with temperature and length. For long runs, readings may drift with ambient temperature, so compare measurements taken under similar conditions and use a reference segment for consistency.
Resistance grows a little with temperature and length, so compare under similar conditions and reference a known good segment.
Should you test a wire while it's in a circuit?
Ideally, test wires with the circuit de-energized to avoid parallel paths. If you must test in circuit, isolate the wire from other conductors to prevent cross-talk and misleading readings.
Test with power off to avoid interference; if you must test in circuit, isolate the wire to prevent cross-talk.
What tools do you need for this test?
A digital multimeter with continuity or low-ohm range, insulated probes, and optionally alligator clips. A known-good reference wire helps baseline comparisons, and wire strippers aid clean terminations.
You need a multimeter, probes, clips, and a reference wire to baseline your test.
Watch Video
Key Takeaways
- Verify end-to-end continuity before fault-finding.
- Document segment readings for a reliable fault map.
- Use proper tools and safety practices at all times.
- Compare against a reference length to identify anomalies.
- Extend tests to automotive or electronics harnesses with repeatable procedures.
