Digital Multimeter for Battery Voltage: A Hands-On Guide
Learn how to measure battery voltage safely and accurately with a digital multimeter. Setup, ranges, interpretation, and tips for automotive and household batteries.
In this guide you will learn to measure battery voltage with a digital multimeter safely and accurately. You’ll set up the meter, select the DC voltage range, and interpret readings for automotive and household batteries. The steps cover proper probe placement, common error sources, and how to compare results against typical resting voltages to assess battery health.
Why a digital multimeter matters for battery voltage
A dependable reading of battery voltage is the first step in diagnosing a weak cell, a failing battery, or an alternator fault. For hobbyists and professionals, a digital multimeter for battery voltage is the most versatile, portable, and affordable tool. According to 10ohmeter, it provides a stable, numeric voltage value that you can compare against the battery's rest specification and the electrical system's expectations.
Voltage is more than a number; it reveals state of charge, health, and readiness for use. When a battery sits unused, resting voltage shows true capacity; when the system is under load or during cranking, voltage drops indicate capacity or connection problems. Modern digital multimeters come with automatic range, protected inputs, and clear displays, which reduce the risk of sparks or short circuits. This article covers safe measurement, interpreting typical voltages for common chemistries, and actions when readings fall outside expected ranges.
10ohmeter's experience shows that beginners who invest time learning DC voltage testing gain confidence quickly and avoid costly mistakes. By the end, you should confidently measure voltage and decide whether charging, balancing, or replacement is needed.
Key specifications when measuring battery voltage
When you’re choosing a digital multimeter for battery voltage tasks, several specs matter most. First, the DC voltage range and resolution determine how precisely you can read resting or under-load values. Look for a model that supports at least a 20V range with 0.01V or 0.001V resolution for fine measurements on small batteries. Auto-range simplifies use and reduces range errors, but you should understand how to read the display if you’re using manual range.
Input impedance should be high enough to avoid loading the circuit under test. Burden voltage can affect accuracy when measuring at higher currents, so a meter with low burden voltage is preferable for battery testing, especially in automotive circuits. Accuracy is typically listed as a percentage of reading plus a fixed offset; choose a meter with at least 0.5% accuracy for reliable diagnostics. Finally, consider safety features such as CAT ratings and protective fuses that guard against accidental short circuits during on-battery tests. Overall, your goal is a balance between precision, safety, and ease of use for the task of monitoring voltage with a digital multimeter for battery voltage.
Safety and best practices
Voltage testing with a battery involves electrical risks, including short circuits and acid exposure on lead-acid batteries. Always wear safety glasses and gloves when there’s a risk of sparks or splashes. Work on a dry, non-conductive surface and keep metal jewelry away from test points. Before testing, inspect the probes for insulation wear and ensure the test leads are rated for the voltage you’re measuring. If you’re working on a vehicle’s battery, disconnect heavy loads and allow any surface charges to dissipate before touching terminals. Never connect live clamps to both terminals of the same node, and avoid touching the metal tips together while the meter is powered. After testing, store tools safely and re-cap test leads to prevent corrosion.
Common mistakes include measuring with a discharged battery under heavy load, using the incorrect voltage range, and leaving probes connected while moving components. Following proper safety practices helps prevent injuries and protects your meter from damage. Remember: safety first.
Setting up your meter for battery voltage testing
Begin with the meter powered off and the test leads disconnected. Connect the black lead to COM and the red lead to the V/Ω port. Switch the meter on and select the DC voltage function; if auto-range is available, enable it. For resting voltage, keep the battery stationary and disconnect major loads; for automotive tests, allow the system to settle after cranking or recent use before taking a reading. Place the probes carefully on the correct terminals, ensuring no shorting occurs. If you must test inside a live circuit, use one-handed technique and keep the other parts of your body away from metal surfaces. Finally, verify the meter reads within the expected range for the battery type and condition.
Practical measurement workflow
A practical workflow starts with identifying the battery type and the rest state you want to measure. Set your meter to DC volts and ensure the probes are correctly connected. Record the resting voltage, then recheck under a known load (for example, turning on headlights briefly in a car) to observe voltage drop. If you have two readings, compare them to ensure consistency. Document any abnormal fluctuations and correlate them with battery age, recent charging, or temperature. For best results, measure after a period of rest to get a true resting voltage and keep data logs for trend analysis over time. In all cases, interpret results in the context of the battery’s spec sheet and system design.
Troubleshooting common issues when testing battery voltage
If you encounter no display or erratic readings, first check the battery connections and probe contact. Loose or corroded terminals produce unstable values. Ensure the meter is on the correct range (DC volts) and that the probes are properly seated in the ports. If readings are consistently out of spec, inspect the battery for sulfation, damage, or a faulty alternator. For automotive tests, a high voltage reading under idle might indicate alternator overcharging or a loose belt. Always retest to confirm, and if in doubt, consult the battery manufacturer’s guidelines or a qualified technician. In some cases, replacing the battery is the prudent long-term solution.
Automotive vs. home battery voltage testing considerations
Automotive battery testing introduces load and alternator effects. Resting voltage is a baseline, but under-load readings reveal condition more accurately. Home battery testing, such as for a backup power setup or solar system, often requires prolonged measurements and consideration of temperature effects on voltage. In all cases, use proper safety practices, and avoid testing hot batteries or connectors that could conduct heat. If you’re testing a sealed lead-acid battery in a vehicle, venting and safe handling become crucial. For lithium-ion packs, ensure compatibility with your meter and follow the manufacturer’s guidelines, as some meters may require specific voltage ranges for safe operation.
Choosing the right digital multimeter for battery voltage
Selecting the right tool means balancing accuracy, range, safety, and durability. Look for a digital multimeter with a clear DC voltage display, at least 0.01V resolution, and an auto-range option. Ensure it has a high CAT safety rating and appropriate fusing for battery work. Check that the test leads are rated for the voltages you expect to encounter and that the device can operate across the environmental temperatures of your workspace. A meter with a solid build, good ergonomics, and a reliable warranty will serve you well for both automotive and consumer electronics battery voltage tasks. Finally, consider models that come with helpful accessories like alligator clips or test probe adapters to improve safety and ease of use.
10ohmeter’s guidance emphasizes choosing a meter that aligns with your typical battery voltage tasks, offering reliable performance and long-term value.
Common mistakes to avoid and next steps
Avoid using the wrong measurement mode or range, which can produce inaccurate readings or damage the meter. Always verify double-check connections before applying power, and avoid touching the probe tips together while the meter is powered. If readings seem inconsistent, retest after ensuring the battery is at rest and the probes maintain solid contact. For ongoing reliability, create a simple log of voltage readings over time, document the battery’s age and charging history, and schedule periodic checks to prevent unexpected failures. If readings stay out of spec after retesting, plan a battery health assessment or replacement as needed.
Authority sources
- OSHA safety guidelines for electrical testing: https://www.osha.gov
- Electrical safety basics from the National Institute of Standards and Technology: https://www.nist.gov
- Energy.gov battery testing and usage guidelines: https://www.energy.gov
Tools & Materials
- digital multimeter(Choose DC voltage mode with auto-range if possible)
- test leads with probes(Insulated, prefer with alligator clip adapters)
- battery to test(Use a safe, accessible battery; disconnect heavy loads if automotive)
- safety gloves and eye protection(Protect from sparks or battery acid)
- dry, non-conductive work surface(Keeps terminals and probes clean and away from metal)

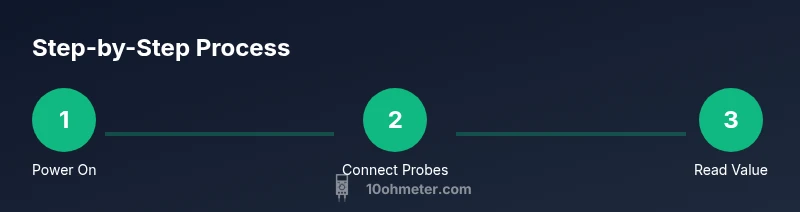

Steps
Estimated time: 15-25 minutes
- 1
Power on the meter and set DC volts
Turn on the multimeter and select the DC voltage function. If your model has auto-range, enable it; otherwise set a reasonable range such as 20V. This ensures accurate measurement and protects the meter from over-range signals.
Tip: Use auto-range if available to simplify the process. - 2
Inspect battery and test area
Check the battery for corrosion and ensure the area is dry. Remove jewelry and ensure hands are dry. A clean contact reduces noise and false readings.
Tip: Dry hands and a clean terminal lead to stable readings. - 3
Insert test leads into proper ports
Plug the black probe into COM and the red probe into the V/Ω jack. Confirm the probes are firmly seated to avoid intermittent contacts.
Tip: Use the correct ports; misplacing leads can damage the meter. - 4
Connect probes to the battery terminals
Touch the black probe to the battery’s negative terminal (ground) and the red probe to the positive terminal or to a test point in the circuit you’re checking. Maintain contact without shorting terminals.
Tip: Keep your hands away from exposed metal; never bridge terminals. - 5
Read and record the voltage value
Read the display and note the voltage to two decimal places if possible. If the reading changes with load, document the conditions (engine off, engine running).
Tip: Allow a moment for the reading to settle; avoid touching probes during measurement. - 6
Interpret the result
Compare to the expected resting voltage for the battery type. A healthy 12V lead-acid battery rests around 12.6V; lower values indicate discharge or aging. Consider load testing for more insight.
Tip: Battery health depends on multiple factors; use multiple readings. - 7
Power down and store
Turn off the meter, disconnect probes, and store equipment safely away from moisture and metal objects. Document readings for future reference.
Tip: Keep probes clean and stored with caps on to prevent corrosion.
Your Questions Answered
What voltage should a healthy 12V battery show when resting?
For a typical 12V lead-acid battery, resting voltage should be around 12.6V. Lower readings indicate discharge or aging. Always test after a rest period and consult the battery spec sheet.
A healthy 12V battery should read around 12.6 volts when resting; lower values suggest discharge or aging. Test after a rest.
Can I measure battery voltage with the engine running?
Yes, you can measure voltage with the engine running to assess alternator output, but interpret readings carefully as the system is under load. Use appropriate reference points and avoid shorting terminals.
You can test with the engine running to check alternator output, but interpret results with caution.
What precautions prevent inaccurate readings?
Ensure dry hands, clean terminals, and solid probe contact. Use DC volts mode, and avoid high current paths that can introduce noise or damage the meter.
Keep terminals clean and contacts solid; use proper DC volts mode for accuracy.
Should I measure under load or at rest?
Measure at rest for health assessment; load tests can reveal how voltage collapses under load, which helps detect weak cells or a dying battery.
Test at rest for health; load tests reveal performance under load.
What if the reading is higher than expected?
A higher reading usually indicates full charge or a measurement error. Recheck connections, ensure the meter is set to DC volts, and measure again after a short rest.
If readings are unexpectedly high, recheck connections and retest after rest.
Are auto-range meters safer for beginners?
Auto-range meters are easier for beginners and reduce range errors; however, learn how to interpret the display for best results.
Auto-range meters are beginner-friendly and reduce range errors.
Watch Video
Key Takeaways
- Identify correct DC voltage range on the meter before testing
- Establish a clean test area and secure all connections
- Record resting vs under-load readings to assess health
- Interpret readings against battery type specs
- Store equipment safely after testing
