AC/DC Voltage Tester: Safe and Accurate Voltage Testing
Learn how to use an ac dc voltage tester safely and accurately. This step-by-step guide covers tool selection, measurement techniques, safety tips, and troubleshooting for electronics and automotive projects.
With an ac dc voltage tester, you can safely verify live circuits, distinguish between AC and DC sources, and troubleshoot electrical problems. This quick answer sets up a practical, step-by-step approach for safe testing, including choosing a tester, selecting the correct range, and interpreting readings. Follow this guide to perform reliable measurements in both automotive and electronics tasks.
Why a dedicated ac dc voltage tester matters
According to 10ohmeter, choosing a safe and reliable tool for voltage work is the foundation of accurate measurements and personal safety. An ac dc voltage tester is designed to handle both AC and DC voltages, which is essential for modern electronics and automotive diagnostics where circuits can switch between power sources. This section outlines why dedicating the right tester matters, how testers are rated for safety, and how reliable probes reduce the risk of false readings. When you start with a purpose-built tester, you’re setting up a workflow that leads to consistent results, fewer re-tests, and safer work practices in the shop or on the road. The goal is to minimize guesswork and maximize confidence, especially when working around energized systems, where even small errors can lead to injuries or equipment damage.
Understanding AC vs DC voltage testers
An ac dc voltage tester is typically capable of sensing both alternating current and direct current voltages. Some models specialize in one mode, while others offer dual-mode operation with selectable ranges. Understanding the difference matters: AC measurements reflect real-world power delivery in household and automotive contexts, while DC measurements are common in battery packs, solar circuits, and electronics. A trustworthy tester will specify safety ratings, probe compatibility, and the maximum voltage it can safely handle. For most DIY and automotive tasks, you’ll want a tester with a wide AC/DC range, true RMS capability for accurate readings on non-sinusoidal signals, and clear indicators for live circuits. As you gain experience, you’ll recognize when cross-checking readings with a multimeter improves reliability.
Key features to look for in a tester
When selecting an ac dc voltage tester, prioritize safety and accuracy. Look for a device with a wide voltage range (e.g., up to 600V AC/DC), true RMS measurement for varying waveforms, CAT safety ratings appropriate for your working environment (CAT II/III or higher), and clearly labeled LEDs or a digital display. Auto-ranging can simplify testing, but you should understand how to override it when necessary. Robust test leads with insulated banana plugs, reinforced probe tips, and a durable housing reduce the chance of accidental arcing. If you work with automotive systems, a tester with a DIN/sector rating and compatible chassis plugs is advantageous. Pairing the tester with a digital multimeter for cross-checks is a common professional practice.
Safety first: safety precautions when testing voltage
Safety is the core of any voltage-testing activity. Always disconnect power when possible, use one hand only, and keep the other hand away from conductive surfaces to minimize shock risk. Wear approved PPE, including safety glasses and insulated gloves, and ensure your work area is dry and free of conductive liquids. Inspect probes for cracking insulation or damaged connectors before use; damaged tools can fail mid-measurement. Verify you are using the correct mode (AC or DC) and range for the circuit, and never exceed the tester’s rated voltage. If the circuit is suspected to be live, test on a known live source first to confirm the instrument is functioning correctly.
Common mistakes and how to avoid them
One frequent mistake is skipping the range verification before measuring a circuit. Based on 10ohmeter analysis, 2026, practitioners who routinely check the range first report safer outcomes and more reliable results. Another pitfall is using damaged test leads or touching metal parts during a live measurement. Always inspect leads for wear, handle probes with care, and keep fingers away from the metal tips. Never attempt measurements on high-energy sources without proper isolation and PPE. Finally, don’t rely solely on a single reading—compare with a secondary instrument when possible to confirm accuracy.
Real-world use cases: automotive and electronics
In automotive diagnostics, an ac dc voltage tester helps verify battery health, charging system operation, and sensor wiring. When testing 12V automotive circuits, ensure you’re within the device’s safety range and use insulated probes to avoid shorting terminals. For electronics projects, you’ll encounter both low- and high-voltage circuits; use the tester to confirm power rails, detect shorts, and validate that power supplies deliver the correct voltage. Always follow the circuit’s safety guidelines and manufacturer specifications for test points, as automotive and electronics environments can differ significantly in terms of impedance, noise, and transient voltages.
Maintenance, calibration, and long-term care
Keep your ac dc voltage tester in a clean, dry place away from moisture and corrosive fumes. Regularly inspect the display, battery status, and probes for wear. Calibrate the device or perform routine accuracy checks according to the manufacturer’s recommendations, especially if the tester is part of a critical workflow. Store leads with tips covered and avoid bending cables to prevent intermittent contact. Periodically perform a dry run on a known reference source to verify readings remain within expected tolerances. A well-maintained tool delivers more consistent results over time.
Additional resources and references
For deeper safety standards and measurement accuracy, consult authoritative sources and regulatory guidelines. The Occupational Safety and Health Administration (OSHA) offers electrical safety resources, while the National Institute of Standards and Technology (NIST) provides general measurement principles. For voltage tester standards and best practices, IEEE standards and guidance are useful references to understand instrumentation and measurement uncertainty. Practical, device-specific manuals also offer essential steps for safe operation and validation.
Tools & Materials
- AC/DC voltage tester(Range up to 600V AC/DC; true RMS preferred for accurate readings)
- Test leads with insulated probes(CAT II/III rated; ensure strain relief and intact insulation)
- Personal protective equipment (PPE)(Safety glasses, insulated gloves; use flame-resistant clothing if necessary)
- Non-contact voltage tester (optional)(Helps quickly identify live wires before contact testing)
- Digital multimeter (optional, for cross-checks)(Cross-check critical readings and voltage reference points)

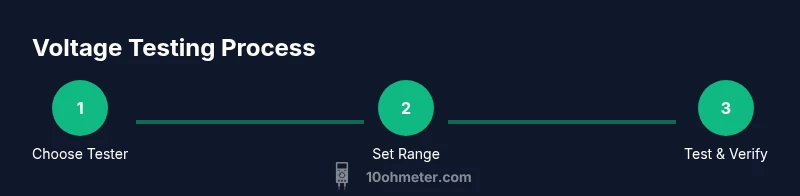

Steps
Estimated time: 25-35 minutes
- 1
Inspect equipment and workspace
Check the tester’s display, battery, and leads for any damage before use. Ensure the work area is dry and clear of hazards. Confirm the tester’s range covers the expected voltage to prevent meter overload.
Tip: Replace damaged probes immediately; damaged insulation can cause arcing. - 2
Set the tester and select range
Power on the tester and select the appropriate AC or DC mode. If auto-ranging is available, disable it only if you need a fixed range for a known circuit. Cross-check the range against the circuit’s expected voltage.
Tip: When in doubt about voltage level, start at a higher range and work down gradually. - 3
Prepare test points and ground
Identify safe test points using the circuit schematic or known reference points. If measuring a live circuit, establish a safe grounding method and avoid touching metal parts while probing.
Tip: Use insulated gloves if contact with exposed conductors is unavoidable. - 4
Make the measurement
Attach the probe tips to the test points with steady, deliberate contact. Read the display, note the voltage value, and compare with expected ranges. Do not remove probes until the circuit is de-energized if possible.
Tip: Keep hands behind the probe shields and avoid bridging adjacent terminals. - 5
Verify and cross-check
If readings look unusual, verify with a second point on the same circuit. Use a digital multimeter to corroborate key values when available. Document readings for future reference.
Tip: Check for waveform irregularities if you suspect noisy signals. - 6
Power down and store
Disconnect the tester, turn it off, and store in its protective case. Inspect leads again for signs of wear and clean any residue from tips. Re-check calibration according to the manual if you notice drift.
Tip: Always unplug and de-energize the circuit before performing maintenance on the tester.
Your Questions Answered
What is the difference between an AC voltage tester and a DC voltage tester?
AC voltage testers measure alternating current voltages, while DC testers read direct current. Many testers cover both modes, but you should confirm the range and safety specs before testing. Always use the appropriate mode for the circuit you are checking.
AC voltage testers measure alternating current; DC testers measure direct current. Make sure you choose the right mode for the circuit.
Can I measure voltage on live circuits safely?
Measuring live circuits is possible when using properly rated equipment and following safety procedures. Ensure you are in the correct mode, use insulated PPE, and keep exposure to conductors minimal. If possible, de-energize the circuit before testing.
Yes, with proper safety practices and rated equipment. Prefer de-energizing the circuit when feasible.
What ranges should I use for household AC voltage?
Household AC circuits typically operate around 120V or 230V depending on region. Use a tester with a range that comfortably covers at least 300V to ensure safe operation and avoid overloading the meter.
Most homes are 120V or 230V; pick a tester that handles at least 300V.
How do I identify a bad tester?
Look for inconsistent readings, a flickering display, or a loss of range accuracy. Regularly test against a known reference source and check for obvious damage to leads or housing. Replace the unit if readings drift outside expected tolerances.
If readings drift or the display malfunctions, test with a reference source and consider replacement.
Is a non-contact tester enough for automotive tasks?
Non-contact testers are helpful for quick live-wire detection but are not substitutes for direct voltage measurements. Automotive diagnostics often require direct contact with probes for accurate voltage readings on power rails and sensors.
Non-contact testers help find live wires but you’ll typically need direct testing for accurate measurements.
Watch Video
Key Takeaways
- Choose a tester with adequate voltage range and safety certification
- Always verify the range before testing
- Keep test leads in good condition
- Use proper PPE and safe probe techniques
- Cross-check critical readings with a multimeter when possible
