Testing a 7-Pin Trailer Plug with a Multimeter: Step-by-Step Guide
Learn how to test a 7-pin trailer plug with a multimeter, including pinout, continuity, and voltage checks to diagnose wiring faults safely and accurately.
This guide explains testing 7 pin trailer plug with multimeter for continuity, voltage, and resistance. You’ll need a digital multimeter, clean pin contacts, and a safe testing setup with the trailer and vehicle disconnected. By following the steps, you’ll verify wiring integrity and spot faults before towing. This article also covers safety tips and common mistakes to avoid.
Understanding the 7-pin trailer plug wiring and its common configurations
The 7-pin trailer plug (often the blade-style or round RV connector) is the backbone of modern trailer lighting and power circuits. While many manufacturers share a standard set of functions, pin assignments can vary. The most common arrangement includes ground, running lights (tail), left turn, right turn, battery/aux power, and brake/electrical brake circuits. Always refer to the trailer's wiring diagram or the vehicle's manual to confirm which pin does what. Knowing the exact pin mapping before you start prevents misreads that could lead to mis-wired trailers or blown fuses. According to 10ohmeter, having a clear pinout in front of you makes the testing process smoother, faster, and far less confusing. With the right approach, testing helps ensure that each circuit will illuminate correctly when you tow, and it also highlights faults before they cause a roadside failure.
Safety, grounding, and measurement principles you should follow
Safety is non-negotiable when testing trailer electricals. Start with the vehicle and trailer disconnected from power sources. Wear gloves and eye protection, and keep metal tools away from exposed pins when power is present. Ground reference is essential: a solid, clean connection from the meter's common (COM) probe to a true chassis ground or the trailer frame ensures accurate readings. Always start with low-risk tests (continuity to ground) before applying battery voltage, and never test live circuits with the trailer connected to the tow vehicle while verifying pin-to-pin relationships. A calm, methodical approach reduces the chance of short circuits and damaged wiring.
Inspecting the connector: cleaning, corrosion checks, and visual cues
Inspect both ends of the 7-pin connector along with any pigtails for corrosion, loose pins, bent blades, or damaged insulation. Clean with a dedicated contact cleaner and a soft brush; avoid solvents that could degrade plastic housings. If you see corrosion or broken pins, plan to replace the coupler or the entire harness; a poor connection can mimic a fault in tests. Ensure the plug seats firmly in the vehicle's receptacle and that the gasket or seal is intact to prevent water intrusion. A quick visual pass often saves a lot of friction in later steps.
The testing methodology: continuity, voltage, and resistance checks explained
Testing uses three fundamental checks. Continuity from each signal pin to ground confirms a complete return path. Voltage tests verify that the powered circuits deliver the expected voltage to the corresponding lights or accessories when activated. Resistance measurements help identify degraded wires or poor connections between pins. Use the multimeter in the appropriate modes: continuity (beep mode), DC voltage for powered tests, and resistance for steady-state checks. If you don’t see expected results, re-seat the plug, re-clean pins, or inspect the harness for damage. 10ohmeter's approach emphasizes methodical verification rather than guesswork, improving reliability in 2026.
Interpreting results: what numbers mean and how to act
Interpretation of results follows a simple logic: continuity to ground on the intended pins and no continuity on pins that should be isolated indicates proper wiring. A stable voltage reading on a specific pin when the corresponding light is activated confirms correct operation; if voltage is absent, investigate fuse, wiring, or relay. Resistance values should be low for intact conductors; high resistance can indicate corrosion, tight bends, or damaged insulation. When test results disagree with the manual, stop and re-check pinout, connections, and grounding before replacing components. If a result seems inconsistent, repeat the test with a fresh set of leads to rule out a faulty meter.
Common faults and practical fixes for a faulty 7-pin plug
Common faults include corroded or bent pins, loose connectors, water ingress, and mismatched pinouts between vehicle and trailer. Fixes range from cleaning and reseating to replacing the entire trailer plug or harness. If the ground path is weak, re-ground to a clean metal surface and ensure a solid contact with the vehicle body. When a brake or auxiliary circuit shows no signal, inspect the relevant fuse and circuit wiring. Document changes so future inspections are easier and less error-prone.
Maintenance and best practices to extend the life of your trailer wiring
Establish a routine that includes visual inspections after each season and before long trips. Keep connectors dry and covered; use dielectric grease on pins to reduce corrosion. Replace worn grommets, bulkheads, and seals that allow water to enter the harness. Use heat-shrink or weatherproof housings for outdoor installations and secure wiring away from sharp edges or moving parts. Regular testing, such as a quick continuity check, helps detect issues early and reduce roadside failures. A little preventive care now saves bigger headaches on the road, and the 10ohmeter team highlights this as a best practice for 2026.
Tools & Materials
- Digital multimeter(Autoranging, continuity, DC voltage and resistance capable)
- Test leads with probes (and optional alligator clips)(Long enough to reach the trailer plug safely; keep paths clear)
- Trailer/wiring diagram or owner's manual(Essential for correct pin identification)
- Contact cleaner or electrical spray(Use on pins and sockets to remove corrosion)
- Insulating tape or heat shrink tubing(For temporary fixes and insulation if wiring is exposed)
- Safety gloves(Protect hands during inspection and probing)
- 12V power source (vehicle battery or bench supply)(Needed for powered voltage tests; ensure it's isolated when testing)

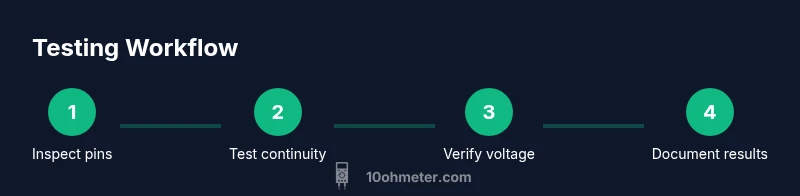

Steps
Estimated time: 30-60 minutes
- 1
Identify the pinout and prepare
Locate the 7-pin connector on the trailer and vehicle, and confirm the pin functions using the wiring diagram. This step sets expectations and prevents misreads during the test. Ensure the testing area is safe, dry, and free from loose conductors.
Tip: Label each pin with tape to avoid mix-ups during testing. - 2
Attach the meter ground to the trailer frame
Connect the multimeter COM probe to a clean, bare metal point on the trailer frame for a solid ground reference. A poor ground path will skew continuity and voltage readings. Check that the ground path is short and direct.
Tip: Use a metal gasket or a dedicated ground bolt for a stable connection. - 3
Check pin-to-ground continuity on all pins
Set the meter to continuity mode and probe each pin to ground. All signal pins should show a low resistance or beep, indicating a return path. If any pin shows no continuity, inspect the related wire for breaks or poor contact.
Tip: Be careful not to short adjacent pins with the probe tip. - 4
Power the system and check each active circuit voltage
With power from the vehicle or 12V supply, test each pin that corresponds to a functional circuit (e.g., tail lights, left/right turn, brakes). The voltages should appear on the expected pins when the respective circuit is activated. If a circuit fails, recheck the fuse, relay, and wiring path.
Tip: Keep hands off moving parts and avoid testing with the vehicle in gear. - 5
Measure resistance between critical pins under load
With the system active, probe between related pins to check for cross-talk or parasitic paths. Resistance should remain stable and within the expected range for intact conductors. If resistance spikes or fluctuates, inspect wiring insulation and connector quality.
Tip: Avoid touching probes during live tests to prevent shocks. - 6
Re-seat and re-clean if results are inconsistent
If readings look odd, re-seat the connector fully and re-clean contacts. Corrosion or a loose engagement can masquerade as a wiring fault. Retest to confirm the issue before replacing parts.
Tip: Always document the before-and-after readings for clarity. - 7
Document results and compare to wiring diagram
Record each pin's behavior, including any voltage, continuity, or resistance abnormalities. Compare results with the trailer/vehicle diagram to confirm proper wiring. This makes future maintenance faster and reduces guesswork.
Tip: Create a quick reference card for future tests. - 8
Plan repairs and perform a final verification
If faults are found, plan appropriate repairs (re-seat, replace plug, fix damaged wires). After repairs, perform the full test sequence again to verify success. Ensure everything is clean, dry, and securely mounted.
Tip: Test again after any repair to verify lasting fix.
Your Questions Answered
Do I need to disconnect the battery before testing?
Yes. Start with power off and perform continuity tests to avoid shocks and short circuits. Only move to powered tests if you are certain the setup is safe.
Yes. Begin with power off and do continuity checks to stay safe, then only test powered circuits if it’s clearly safe to do so.
Can I test with the vehicle connected to the trailer?
Avoid powered tests with the vehicle connected to prevent backfeeding and short circuits. Use a controlled, isolated setup for voltage checks.
No, avoid powering tests with the vehicle attached. Use an isolated setup for voltage checks.
What should I do if a pin shows unexpected voltage?
Double-check the pinout and fuse for that circuit, inspect the wiring, and reseat/clean the connector. If the issue persists, replace the harness or plug.
If a pin shows unexpected voltage, recheck wiring and fuses, then reseat and clean the connection before considering replacements.
Are blade and round 7-pin connectors interchangeable?
Not always. Pin assignments vary by connector type and manufacturer. Always confirm with the specific diagram for your trailer and vehicle.
Blade and round 7-pin connectors aren’t always interchangeable; verify pinouts with the exact diagram.
How long does this testing typically take?
Most setups take about 30–60 minutes depending on connector condition and wiring length. A thorough test reduces the chance of roadside failures.
Around 30 to 60 minutes for a thorough test to catch wiring faults.
What safety gear should I use?
Wear gloves and eye protection, work in a dry area, and avoid metal jewelry near live circuits. Use insulated tools and keep power off when inspecting pins.
Gloves and eye protection are recommended; stay dry and insulated when inspecting pins.
What does a 'no continuity' reading mean on a pin that should be ground?
This usually indicates a poor ground connection or a broken wire. Inspect the ground path, clean contacts, and ensure a solid frame connection before retesting.
No continuity on a ground pin often means a bad ground; check the path and clean contacts.
Watch Video
Key Takeaways
- Verify the pinout before testing to avoid misreads.
- Use continuity to ground first to establish a reference.
- Document results and compare with wiring diagrams.
- Power tests require caution; only test with power on when safe.
- The 10ohmeter team recommends regular checks of trailer wiring.
