Testing a 4-Pin Trailer Plug with a Multimeter
Learn to safely test a 4-pin trailer plug using a multimeter. Map pin functions, verify continuity and voltage, and interpret results with clear, step-by-step instructions.
You can test a 4-pin trailer plug with a multimeter by mapping the pinout, verifying ground continuity, and checking each signal line for continuity and voltage. Start with a known ground, confirm the tail, left, and right pins follow the standard color-to-pin mapping, then perform live checks with the vehicle signals active. Always disconnect power when wiring checks are performed.
What a 4-pin trailer plug does and its standard pinout
A 4-pin trailer plug carries essential lighting signals: ground, tail/running lights, and the left and right turn signals. In most North American setups, the typical pinout for the flat 4-pin connector is: White = Ground, Brown = Tail lights, Green = Right turn, Yellow = Left turn. Always verify against your trailer’s documentation or the vehicle harness, because variations exist between manufacturers and regions. Having a clear wiring map before you begin saves time and reduces the risk of misreading readings. According to 10ohmeter, starting with a wiring map is the fastest way to prevent mistakes and ensures you test the correct pins in the right order. This section lays the groundwork so you can translate a multimeter’s readings into meaningful conclusions.
Safety and preparation for electrical testing
Before you touch any wiring, ensure the vehicle and trailer are safely parked, the ignition is off, and the battery is disconnected if you’re working near exposed metal. Wear eye protection and insulated gloves when probing connectors, and keep metal tools away from exposed terminals to prevent shorts. Use dry, non-conductive surfaces and keep liquids away from the connector area. A loose aluminum blanket or a non-slip mat can help prevent slips that could damage pins. Pro tip: work with one hand in your pocket to minimize the chance of accidental shorts. 10ohmeter’s guidance emphasizes that a calm, prepared workspace reduces the risk of damaging wiring and the multimeter.
Tools and materials overview
You don’t need a full toolkit, but having the right items makes testing easier and safer. A good digital multimeter with DC voltage and continuity modes, alligator clips, test leads, and insulated probes are essential. A wiring diagram or pinout card helps you confirm which pin corresponds to which circuit. Optional but helpful items include a flashlight, zip ties to organize leads, and a small flashlight for low-light work. This block gives you a mental checklist for the actual shopping list and setup, so you’re not hunting for tools while the test is underway.
Understanding variations in trailer wiring and how to verify yours
Trailer wiring can vary by country, vehicle model, and trailer builder. Some harnesses use a ground case instead of a dedicated ground pin, and a few older trailers might use nonstandard color codes. The safest approach is to verify each pin with the vehicle harness disconnected first, then confirm continuity as you reattach. Create a simple, labeled map of color-to-pin relationships and compare readings to the expected values. If your readings don’t match the standard, don’t assume—it’s time to consult the manufacturer’s schematic or a certified technician.
Multimeter setup basics for trailer testing
Set your multimeter to a two-mode approach: continuity mode for pin-to-pin checks and DC volts mode for active signal testing. Use a fresh battery in the multimeter and verify the leads are in good condition. When you test, connect the black lead to a solid chassis ground and the red lead to the pin under test. Keep the probe tips insulated and avoid contacting two pins at once to prevent shorts. This setup provides reliable readings for both passive continuity and active voltage checks.
The testing workflow: power-off checks first
Power-off checks are the foundation. With the vehicle ignition off and the trailer disconnected, verify continuity from each lighting pin to the vehicle ground, one pin at a time. Any resistance is normal if the path is through the connector body, but you should have a clear, low-resistance path to ground. Check for catastrophic shorts by testing pin-to-pin resistance; a near-zero resistance reading indicates a potential short. Document readings and compare against your wiring map. A clean power-off baseline helps distinguish real faults from noise.
Power-on verification: live testing with vehicle signals
Power-on tests require the vehicle to be wired to the trailer or the trailer plugged into the vehicle’s harness. With the vehicle lights activated (park lights, left/right signals), measure the voltage on the tail, left-turn, and right-turn pins relative to ground. You should see approximately the battery voltage (about 12V in most systems) when the corresponding circuit is active. If you observe a partial voltage or zero on a signal pin, recheck fuses, relays, and the wiring between the vehicle and trailer. This live check confirms that the circuit is not only continuous but also functional under load.
Interpreting results and common fault scenarios
When a pin shows continuity but no voltage during live tests, the fault may be in the wiring between the vehicle and the trailer, or in a blown fuse or relay in the vehicle’s harness. If you see voltage with no continuity, the pin may be misidentified or the test ground is not solid. For a failed ground, all lights may appear dim or flicker. In some cases, the trailer’s ground can be poorly bonded to its frame; check mounting hardware and clean metal surfaces to restore a solid ground. Keep a log of readings for future reference and to help a technician diagnose intermittent issues.
Documentation, troubleshooting, and next steps
After testing, create a simple one-page report with the pin mapping, baseline continuity readings, live voltage results, and any anomalies. If faults are found, trace the circuit from the connector back to its source, testing step by step. Replace or repair damaged wires as needed and recheck each step to confirm the fix. For persistent or confusing issues, consult a professional or use manufacturer service literature to confirm the exact pin assignments and required wiring practices.
Tools & Materials
- Digital multimeter (DC voltage capable)(Auto-ranging preferred; set to DC voltage, 20V range)
- Alligator clip leads(For stable connections without piercing insulation)
- Insulated test probes(Fine tips to reach small trailer pins)
- Wiring diagram or pinout card for your trailer/harness(Helps map pins to circuits)
- Basic flashlight or headlamp(Works in dim environments)
- Soft-bristle brush or contact cleaner(Clean corrosion from ground points)
- Safety gloves and eye protection(Personal protective equipment)
- Rags or towels(To wipe connectors and avoid dirt transfer)

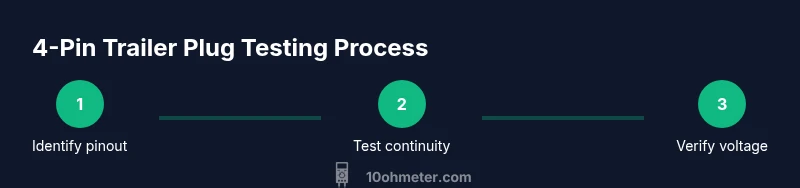

Steps
Estimated time: 25-40 minutes
- 1
Prepare the workspace and tools
Clear the testing area, arrange tools within easy reach, and inspect the 4-pin connector for corrosion or damage. Ensure the vehicle is parked on a flat surface and the ignition is off. A tidy setup reduces the chance of accidental shorts.
Tip: Lay a dry mat under the connector to prevent slips. - 2
Identify pin positions
Locate the ground pin and the signal pins using the standard color-to-pin mapping or your trailer diagram. Label pins to avoid mix-ups during testing.
Tip: If in doubt, refer to the manufacturer’s pinout sheet. - 3
Set multimeter to continuity mode
Connect the black probe to chassis ground and test the continuity from each pin to that ground. A low resistance is expected for a proper ground path.
Tip: Use short clips for a stable ground reference. - 4
Test ground continuity
Probe the ground pin and verify solid continuity to the vehicle frame. A flaky ground causes dim lights or intermittent operation.
Tip: If the ground reads high resistance, clean connections and tighten mounting screws. - 5
Test tail light pin continuity
With power off, check continuity from the tail-light pin to the vehicle’s tail-light circuit pin. Note any unexpected resistance that may indicate a split or damaged wire.
Tip: Mark any unusual readings for later comparison. - 6
Test left/right turn pins for continuity
Similarly, verify continuity from the left and right turn pins to their respective circuits on the vehicle side.
Tip: Ensure the vehicle circuits are isolated during this step to avoid cross-talk. - 7
Power-on voltage check for each signal
With the vehicle’s lights engaged (park, left or right indicators), measure voltage on each corresponding pin relative to ground. Expect ~12V when active, confirm the correct pin is energizing.
Tip: Use the same ground reference as earlier to keep readings consistent. - 8
Document and compare readings
Record all continuity and voltage values, then compare to your wiring map. Note where readings deviate and plan fixes accordingly.
Tip: A tidy log makes future troubleshooting faster. - 9
Final verification and wrap-up
After any repair, re-run the full set of tests to confirm the issue is resolved. Re-check ground integrity and ensure all pins are correctly identified.
Tip: Keep the connector dry and protected after testing.
Your Questions Answered
Do I need the vehicle running to test the 4-pin trailer plug?
For voltage verification of active circuits, you should have the vehicle in a mode that powers lighting (park, signals). If you only need continuity, power is not required. Always follow safety practices when testing near moving parts or hot surfaces.
You only need the vehicle running for voltage checks; for continuity, power is not required. Always follow safety steps when testing near hot or moving parts.
Which pin is ground on a standard 4-pin connector?
In most North American 4-pin flat connectors, white is the ground pin. However, verify against your trailer’s documentation because some setups vary.
White is usually the ground pin on the common 4-pin connector, but always check your wiring diagram.
What if I see voltage but no continuity on a pin?
Voltage without continuity indicates the path may be opened somewhere between the source and the pin or the ground reference isn’t solid. Recheck wiring, connections, and ground integrity.
If you have voltage but no continuity, recheck the wiring and ground connections; there may be a break or loose connection somewhere.
Can I test live circuits with a basic multimeter?
Yes, but use caution. Only test one pin at a time, keep probes insulated, and avoid shorting adjacent pins. If possible, remove power then perform continuity checks first.
You can test live circuits with a multimeter, but be careful and test one pin at a time with insulated probes.
What should I do if the readings don’t match the standard pinout?
Double-check the pin orientation, confirm the diagram for your vehicle, and inspect for damaged wiring or corrosion. If doubt remains, consult the manufacturer’s schematic or a professional.
If readings don’t match, re-check your pinout and wiring, and consult the manufacturer or a pro if needed.
Watch Video
Key Takeaways
- Map pinout before testing to prevent mistakes
- Verify ground with both continuity and voltage checks
- Test both power-off continuity and power-on voltage
- Log readings for traceability and future troubleshooting
- Clean and secure grounds to ensure reliable results
