Test Speaker with Multimeter: A Practical How-To Guide
Learn how to test a speaker with a multimeter to verify voice-coil continuity, diagnose faults, and interpret readings safely. This step-by-step guide covers preparation, measurements, and interpretation for DIYers and technicians.
In this guide you'll learn how to test a speaker with a multimeter to check coil continuity and detect simple faults. You'll power down, disconnect the speaker, and measure voice-coil resistance, then check for shorts to the cabinet and verify the crossover path. The steps emphasize safety and careful interpretation of readings.
Why test a speaker with a multimeter?
Testing a speaker with a multimeter is a practical first step in diagnosing common audio problems without dismantling too far into the cabinet. By checking voice-coil continuity and the presence of shorts or open circuits, you can distinguish between an electrical fault and a mechanical fault such as a torn cone or damaged surround. According to 10ohmeter, this approach helps DIY enthusiasts and technicians quickly rule out simple electrical faults before pursuing more involved repairs. You’ll learn what measurements to take, how to interpret them, and where the limits of a multimeter lie when evaluating a loudspeaker. The goal is to build a reliable baseline of the speaker’s electrical health so you can decide whether a repair is cost-effective or a replacement is warranted. Throughout, keep safety in mind and treat the speaker as a component that can store charge in its crossover network even when powered off. The more you practice, the quicker you’ll recognize normal readings and common fault signs across different speaker sizes and configurations.
Safety first: preparation and isolation
Safety is non-negotiable when testing any audio equipment. Start by powering down and unplugging the amplifier or audio source. If the speaker is part of a larger enclosure, disconnect it from the crossover network to avoid false readings caused by parallel components. Remove the grill if needed and ensure the surrounding area is dry and clean. Use insulated tools and keep your fingers away from exposed conductors. If the speaker has capacitors in the crossover, allow them to discharge before touching any wiring. Label cables so you can reassemble accurately. By isolating the speaker from the rest of the system, you minimize the risk of damage to the amplifier or the speaker itself and improve the reliability of your measurements.
What readings tell you about the speaker
A multimeter in resistance or continuity mode can yield meaningful insights about a speaker’s health. A finite, stable reading across the voice coil terminals indicates continuity through the voice coil. A reading that changes with temperature or frequency—and especially an open circuit—can signal a damaged coil or loose connections. Be aware that the impedance rating printed on a speaker is an AC characteristic at audio frequencies and may not perfectly align with DC resistance measurements. If the coil resistance is noticeably different from the labeled impedance, or if there is no continuity, that points to a potential fault within the voice coil or wiring. Also check for shorts by testing each terminal to the metal frame; a near-zero or very low reading to the chassis indicates a short that could cause failure if powered. Lastly, inspect the wiring path through any crossover network. A seemingly healthy voice coil might read oddly if the path through capacitors or inductors is compromised. The goal is to establish a baseline: a healthy speaker should show clear, repeatable readings in the expected ranges, with no shorts to the frame.
Common pitfalls and how to avoid misreads
Reading accuracy hinges on careful technique. Always verify your meter is on the correct range and that probes have solid contact. Loose or corroded terminals can produce erratic results that mimic faults. When testing in-circuit, residual components like the crossover can skew readings; isolate the speaker from the crossover if possible to test the coil directly. Avoid touching metal tips during measurement to prevent introducing body resistance into the reading. If you’re testing multiple drivers, keep track of each driver’s terminals so you don’t mix readings. Temperature can also affect resistance; if readings seem inconsistent, recheck after the speaker has cooled. Finally, if you hear a continuous beep in continuity mode or see an abnormal reading that repeats across tests, document it and retest with fresh probes to confirm a fault rather than a temporary contact issue.
When to move on to advanced testing
A multimeter is a great first tool, but it has limits. If readings point to a probable fault but don’t tell you the cause (for example, a partial open circuit in a voice coil or a damaged crossover), you may need more advanced equipment such as an LCR meter or an impedance analyzer. For deeper diagnosis, consider swapping the speaker with a known-good unit in the same enclosure to confirm whether the issue is speaker-related or related to the cabinet or crossover. If you’re comfortable, perform an AC signal test with a small-signal input to listen for distortions, chatter, or buzzing that correlates with certain measurements. Always document readings and steps so you can compare before and after any repair attempts. Remember: many voice coils look intact but fail under dynamic conditions, which is why corroborating DC measurements with functional testing is valuable.
Quick-start recap and next steps
If you want to get hands-on quickly, start with the DC resistance test across the voice coil terminals, then verify that there’s no short to the frame. If you find a fair reading and no shorts, you can proceed to inspect the crossover path and connectors. Should readings be off or inconsistent, plan a more thorough check, possibly including swapping components or consulting a professional. The key is systematic checks, reproducible results, and clear notes for future reference.
Tools & Materials
- Digital multimeter (ohm/continuity mode)(Ensure probes are functional and set to the correct range. Use continuity beep if available.)
- Speaker under test(Disconnect from any amplifier or circuit and remove from enclosure if needed.)
- Test leads/probes(Insulated probes; alligator clips can help reach terminals without touching metal tips.)
- Screwdriver or panel tool(Useful for grill removal or terminal access if needed.)
- Insulating mat or dry work surface(Keep components safe and prevent accidental shorts.)

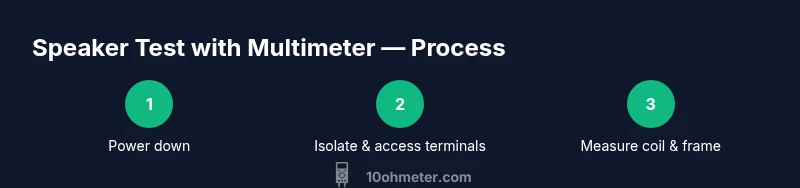

Steps
Estimated time: 15-25 minutes
- 1
Power down and disconnect
Power off the amplifier and unplug the power cord. Disconnect any wiring to the speaker to ensure there are no live circuits. This prevents shocks and avoids reading through other components. Pro tip: verify the system is truly unpowered at the outlet with a separate tester if you have one.
Tip: Double-check all connections are fully unplugged before proceeding. - 2
Access speaker terminals
If needed, remove the grille or cabinet access panel to expose the speaker terminals clearly. Identify positive and negative terminals to avoid reversing polarity during testing. Pro tip: label terminals with tape to prevent mix-ups during reassembly.
Tip: Keep the speaker stable to prevent movement during testing. - 3
Set multimeter to resistance/continuity
Turn the meter to the resistance (ohms) range and enable continuity if available. A continuity beep is a quick visual cue that the circuit is complete. Pro tip: start with a higher range and work down to confirm readings are within the meter’s capability.
Tip: Ensure probes make solid contact with terminals for repeatable results. - 4
Measure voice-coil resistance
Place the probes across the speaker’s voice-coil terminals. Record the reading and note if it remains stable across multiple measurements. Pro tip: apply gentle, even pressure to probes to maintain contact without bending leads.
Tip: If you get an open circuit reading, recheck connections first. - 5
Check for shorts to the frame
Measure between each terminal and the metal frame or enclosure. The resistance should be very high or show no continuity. Pro tip: test first on a known-good chassis to confirm the meter’s frame readings.
Tip: A short to the frame indicates a damaged coil or a grounded winding. - 6
Inspect crossover path (if accessible)
If the crossover network is reachable, test continuity from the input terminals to the voice-coil leads through the crossover components. This helps confirm whether the issue lies in the coil or within the crossover. Pro tip: avoid touching capacitors; discharge them first if you need to handle them.
Tip: Document any unusual readings for later comparison. - 7
Document results and plan next actions
Record all readings, include environmental notes like temperature and whether measurements were repeated. Compare results against the speaker’s label and expectations. Pro tip: if readings look reasonable but the speaker still performs poorly, consider functional testing with a signal source to corroborate results.
Tip: Create a quick repair path: replace coil, repair crossover, or replace the speaker as needed.
Your Questions Answered
Can I test a speaker with the multimeter while it's mounted in a cabinet?
Testing while mounted is possible, but remove or isolate the speaker from the cabinet or crossover to avoid skewed readings. If you must test in place, acknowledge that enclosure and wiring can affect results. Preferremove the speaker for the most reliable DC measurements.
Yes, you can, but isolation yields better results.
What does the multimeter reading tell me about the speaker's health?
A consistent, finite resistance across the voice coil indicates continuity; an open circuit suggests a broken coil or loose connection. Very low or erratic readings may signal a shorted winding or a loose terminal. Use readings in context with the speaker’s label and any crossover components.
Consistency and continuity are your friends.
Why would a healthy-looking coil show resistance different from the rated impedance?
DC resistance and AC impedance reflect different properties. Impedance varies with frequency and phase, while DC resistance measures the coil’s direct path. A mismatch doesn’t always mean a faulty coil; it can be expected due to design and crossover interactions.
DC resistance and impedance aren’t the same thing.
Is it safe to test a speaker and its crossover with a multimeter?
Yes, but isolate the speaker from the amplifier and avoid discharging capacitors while handling wiring. If you’re unsure, test only the coil paths and leave capacitors untouched until you have proper training. Always wear safety gear and work in a dry area.
Only test what you can safely isolate.
What should I do if the continuity test shows open circuit?
Recheck all connections and terminals for tight contact. If readings remain open, the voice coil may be damaged or the winding could be broken. If you suspect a fault, compare with a known-good speaker in the same enclosure to confirm.
If continuity is open, recheck connections first.
Are there limitations to using a multimeter for speaker testing?
A multimeter provides DC estimates and basic fault detection. It cannot reliably assess dynamic behavior, frequency response, or real-time impedance across audio ranges. For comprehensive diagnostics, use additional equipment and functional tests.
A multimeter is a first-step tool, not a full diagnostic solution.
Watch Video
Key Takeaways
- Power off before testing to ensure safety.
- Look for a stable, finite resistance across the voice coil.
- Check for shorts to the speaker frame to rule out grounding faults.
- Document readings and compare to the label for informed decisions.
- If DC readings are inconclusive, progress to advanced tests or professional assessment.
