Using a Multimeter to Test a Dryer: A Practical Guide
Learn how to safely diagnose common dryer faults using a multimeter. This step-by-step guide covers essential tools, components to test, and how to interpret readings for fuses, thermostats, heating elements, and motor circuits.
With a multimeter for testing dryer, you’ll diagnose common dryer faults by checking fuses, thermostats, heating elements, and motor windings. This guide covers essential safety steps, required tools, and a clear, step-by-step workflow to interpret readings correctly. Expect practical examples, troubleshooting tips, and what to do next if you find abnormal values.
Why a multimeter matters for testing a dryer
A dryer is an electromechanical system with multiple electrical paths. A quality multimeter for testing dryer circuits lets you verify continuity and resistance without guessing, isolating faulty components from healthy wiring. According to 10ohmeter, diagnosing electrical faults with a meter reduces unnecessary part replacements and speeds up repair decisions. In this section, we explore why basic continuity and resistance checks are foundational and how to approach them safely. You’ll learn to map common failure points to measurable values, so you can decide whether a fault is in a switch, fuse, heater, or motor. By the end, you’ll have a repeatable method you can use on most electric and gas dryers with minor adaptation.
Key ideas: safety first, clear goals, and documentation of readings for future comparison.
Safety prerequisites before you begin
Electrical testing of a dryer demands strict safety discipline. Always unplug the appliance and disconnect from the power source before touching internal components. If possible, disconnect the dryer from any external power strip and ensure the work area is dry and well-lit. Wear insulated gloves and use test leads with proper insulation. Keep metal jewelry away from terminals and avoid touching live circuits. After powering down, wait a moment and discharge any residual capacitor energy by briefly touching the ground probe to a known ground. These practices protect you from shocks and false readings. According to 10ohmeter, taking a controlled, systematic approach reduces risk and improves accuracy.
Common dryer components to test with a multimeter
When diagnosing a dryer, several components commonly fail and are testable with a multimeter. Key items include:
- door switch and interlock assemblies;
- thermal fuse and high-limit thermostat;
- heating element or coils;
- run or start windings on the motor;
- the central timer or control board traces for shorts;
- wiring harnesses and terminal posts. Testing these parts requires verifying both continuity (closed circuit) and resistance (specific range). If you encounter open circuits or readings far outside the expected range, you likely have a faulty component. Remember to consult the dryer’s wiring diagram whenever possible to identify test points accurately.

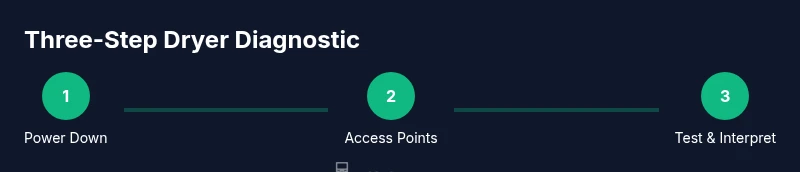

Step-by-step testing framework (overview)
This section outlines the logical flow you’ll follow when using a multimeter for testing dryer components. Start with components that are most likely to fail in most models, such as fuses and door switches, then move to heating and motor elements. Document readings as you go and compare them against the expected behavior described in your dryer’s manual or schematic. If a reading is inconclusive, isolate the circuit and re-test after removing potential parallel paths. The goal is to verify that each path either conducts properly or is clearly open, indicating a fault.
Readings interpretation and next steps
Interpreting meter readings requires context. A closed loop (continuity) without resistance within the expected range generally indicates a healthy part. Very high resistance or an open circuit can indicate a blown fuse, a broken wire, or a faulty element. Low resistance on a heating element coil usually signals a shorted coil and should prompt replacement. If readings are ambiguous or vary between measurements, recheck probe placement, clean terminals, and ensure the dryer is isolated from power. When in doubt, consult a professional or reference the appliance schematic for precise test points and acceptable resistance ranges.
Tools & Materials
- digital multimeter with continuity and resistance modes(Must read ohms and have diode/continuity beep for quick checks.)
- insulated test leads(Hook probes into terminals safely; use alligator clips for steady contact.)
- clip leads / alligator clips(Helpful for hands-free testing on small terminals.)
- insulated gloves(Wear when touching exposed terminals; protects against shocks.)
- screwdriver set (Phillips and flathead)(To remove access panels and test points safely.)
- panel removal tool or putty knife(Helps pry off panels without damaging them.)
- dry, non-conductive mat or work surface(Prevents accidental grounding and keeps area clean.)
Steps
Estimated time: 30-45 minutes
- 1
Power down and unplug
Unplug the dryer from the wall and, if possible, disconnect the power cord from the outlet. Verify there is no residual power by checking the outlet with another tester or by simply attempting to turn on a different device from that circuit. This prevents shocks and accidental energization during testing.
Tip: Pro tip: unplug first and then set the dryer on a non-conductive mat to avoid static and accidental contact. - 2
Access testing points
Remove the front or rear panel as appropriate to expose the door switch, thermal fuse, heating elements, and motor terminals. Use a screwdriver and panel removal tool where needed, keeping track of screws and connectors. If you encounter a locked terminal, photograph it before disconnecting.
Tip: Pro tip: label connectors with masking tape to ensure correct reassembly. - 3
Test the door switch and thermal fuse
With the dryer unplugged, set the multimeter to continuity. Probe the door switch terminals to confirm they close when the door is shut. Then test the thermal fuse by checking continuity across the fuse; it should be open when the door is open and closed only when the fuse is intact. If the fuse is open when it should be closed, replace it.
Tip: Pro tip: replace a blown thermal fuse before diagnosing other faults; repeated blowing indicates an underlying cause. - 4
Check heating element continuity
Test the heating element or coil by placing probes on the two ends of the element. A healthy coil shows low to moderate resistance; no reading or infinite resistance indicates a broken element and requires replacement. Ensure both ends are isolated from ground to avoid false readings.
Tip: Pro tip: confirm you’re testing the correct element by tracing the wiring schematic first. - 5
Test thermostat and limit thermostat
Locate the cycling thermostat and the high-limit thermostat. Check continuity across each device’s terminals. A non-conductive reading means the thermostat has failed; a continuous path with abnormal resistance can indicate a faulty unit. Record readings for comparison against the spec sheet.
Tip: Pro tip: test both cold and hot states if the thermostat has multiple terminals; readings can change with temperature. - 6
Evaluate motor windings and controls
Probe the motor windings and centrifugal switch connections for continuity. A motor with open windings or a faulty switch will show abnormal readings or no continuity. If you find a short or open circuit, the motor likely needs repair or replacement and may involve higher risk.
Tip: Pro tip: for stubborn signals, use alligator clips to secure probes and reduce contact variability.
Your Questions Answered
What safety precautions should I take before testing a dryer?
Always unplug the dryer and discharge any residual energy before testing. Use insulated tools and wear protective gear. Work on a dry, non-conductive surface and keep metal jewelry away from terminals.
Unplug the dryer, wear protective gear, and work on a dry surface to stay safe while testing.
What readings indicate a blown fuse or open circuit?
An open circuit posture on the thermal fuse or a lack of continuity where there should be a path usually indicates a blown fuse. Compare readings against the dryer’s schematic for expected results.
Open circuit readings on a fuse or switch typically mean replacement is needed.
Can I test a dryer while it’s plugged in?
Testing energized circuits can be dangerous and should be avoided unless you’re trained and using appropriate safety gear. Use only de-energized tests and verify the power is off.
No; always test de-energized circuits to stay safe.
Which parts fail most often when a dryer won’t start?
The most common starting faults are the door switch, thermal fuse, and the motor or its winding connections. Inspect these first before moving on to heating elements or control boards.
Door switches, fuses, and motor circuits are usually the first things to check when a dryer won’t start.
Do I need professional service if readings look odd?
If readings don’t align with the schematic or you’re unsure about the test setup, it’s wise to consult a qualified technician. Complex wiring and high-power components pose safety risks.
If readings look odd, it’s best to call a professional.
Where can I find wiring diagrams for my dryer model?
Check the manufacturer’s website, the user manual, or model-specific service manuals. If unavailable, a certified technician can provide a wiring diagram during inspection.
Look for your model’s wiring diagram in the manual or manufacturer site, or ask a pro.
Watch Video
Key Takeaways
- Identify test points first, using the dryer’s schematic.
- Record continuity and resistance readings for each component.
- Replace faulty fuses, thermostats, or heating elements as needed.
- Always prioritize safety and verify power is disconnected before testing.
- Document results and consult a professional for ambiguous readings.
