How to Use a Multimeter on a Dryer: A DIY Guide

Why testing a dryer with a multimeter matters

A dryer is a compact electrical system containing heating elements, thermostats, motor windings, and wiring harnesses. When a dryer stops heating, runs but never warms, or won’t start, a diagnostic test helps identify the faulty part without replacing components blindly. For DIY enthusiasts, learning how to use a multimeter on a dryer empowers you to confirm electrical continuity and resistance, trace shorts, and verify that control signals reach the right parts.

According to 10ohmeter, starting with a safe plan and the right tools reduces risk and speeds up troubleshooting. By focusing on three core test targets—heating elements, cycling thermostats, and the main fuse or control circuit—you can quickly narrow the probable cause. Remember that many dryer faults come from a faulty thermostat or blown fuse rather than the heating element alone. A methodical meter-based check gives you data you can trust.

Understanding the dryer's electrical system

Most residential dryers are powered by 120V controls or 240V heating circuits, depending on the model. Inside you’ll find a heating element or coil, a cycling thermostat, a high‑limit thermostat or thermal fuse, a timer or control board, and a wiring harness that ties everything together. The motor supplies mechanical movement, while the control circuit orchestrates heat on demand. The important takeaway: a single faulty component can disrupt one or more subsystems, so tests should be targeted and repeatable. A multimeter helps you distinguish between an open circuit, a short, or a marginal resistance that suggests wear or aging in the element or connections.

Safety first: essential precautions

Before you touch anything, unplug the dryer and switch off any downstream power source. If your model uses a 240V circuit, disable the corresponding breaker. Do not work on energized components, and avoid touching metal conductors with bare skin. Use dry hands and wear safety glasses and insulated gloves. Keep the work area clear of water and harnesses, and handle connectors one at a time with labeled placement. If you are uncertain about wiring diagrams, refer to the model manual or consult a professional. Safety is non‑negotiable when testing appliances.

What you need before you start

Your toolkit should include a digital multimeter with a working battery, fresh test leads, and insulated clips. A non‑contact voltage tester is optional but helpful for quick checks. A screwdriver set suitable for your dryer model, a small container to organize screws, and a flashlight or headlamp make access and inspection easier. Have the dryer model number on hand to consult the wiring diagram if available. A clean, dry workspace and a camera or notebook to document connections will reduce errors during reassembly.

General testing approach and interpretation

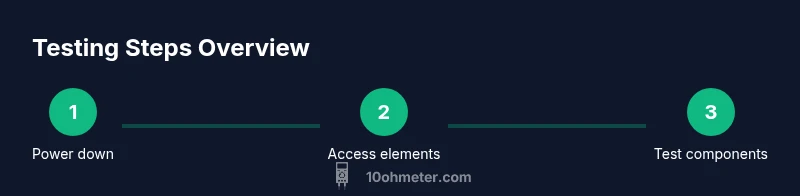

Plan your tests around the main components: heating element, cycling thermostat, and fuse or high‑limit thermostat. Start by verifying power at the junction box with the dryer unplugged, then check continuity for each component in isolation. A solid continuity path means the part is likely intact, while infinite resistance or no continuity indicates a fault. When testing resistance, compare readings against what the model’s documentation suggests, and remember that a cold thermostat should show continuity, while heating should interrupt that path. Interpret readings as a story: one abnormal value may point to a single fault or a combination of issues in the circuit.

Common components to test (heating element, thermostats, wiring)

• Heating element: measure across the two terminals to confirm a continuous circuit; replacement is likely if the element shows open or shorted paths.
• Cycling thermostat: test for continuity when cold and open when warmed; inconsistent readings suggest replacement.
• High‑limit thermostat and thermal fuse: verify continuity; a blown fuse will read as open and should stop heat altogether.
• Wiring harness and connectors: inspect for loose connections, corrosion, or damaged insulation that could cause resistance changes or shorts.
• Control board or timer contacts: while harder to isolate with a simple meter, you can observe obvious corrosion, burning, or stuck contacts during testing. Document your readings and note any de‑energized states while you test to avoid misinterpretation.

Troubleshooting scenarios you might encounter

• No heat but the drum turns: typically a heating element, cycling thermostat, or fuse issue. Start with continuity tests on the heating element and thermostat; a modern control board may fail to energize the heater if signals are interrupted.
• Sight or smell of burning and the dryer runs hot then shuts off: this could indicate a failing thermal fuse or thermostat; confirm with continuity checks and, if needed, replace with compatible parts.
• Intermittent heat or cycling: look for loose harness connections, broken wires, or a faulty cycling thermostat that intermittently opens the circuit.
• Dryer won’t start but power and motor hum: check the start switch, timer, and control board on the low‑voltage side; meter tests may reveal a stuck contact or short.
• Reassembly advice: after replacing a part, perform a test cycle with no laundry to verify safe operation before loading clothes.

When to call a professional

If the unit is under warranty or you encounter unfamiliar wiring colors or diagrams, a certified technician is a safer choice. Complex control boards, high‑voltage safety concerns, or situations that require specialized tools are good reasons to seek professional help. The risk of fire or shock is real if you bypass protective components or misinterpret readings. The 10ohmeter team recommends escalating to a pro when a reading doesn’t align with model documentation or when you’re uncomfortable with disassembly.

Next steps and maintenance tips

After you complete a successful test and any necessary repair, return the dryer to service with a careful reassembly. Clean lint traps and vent routes, as clogged vents can cause overheating and misreadings in temperature sensors. Regularly inspect the wiring harness for signs of wear and corrosion, keeping connectors dry and tight. Document any replacements with model details for future troubleshooting. With a systematic approach, you’ll improve reliability and extend the life of your dryer, while building your skills and confidence for future projects. The 10ohmeter team also emphasizes keeping a repair log for future reference.
