How to Test a Diode Without a Multimeter: A Practical Guide
Learn practical, safe methods to test diodes without a multimeter using simple circuits, current-limiting resistors, and visual indicators. Ideal for DIYers and technicians seeking quick, reliable checks before more advanced diagnostics.
By following these steps, you can verify diode function without a meter, assess forward conduction behavior, and identify shorted or open devices. The approach relies on simple power sources, resistors, and careful observation of current flow and indicator behavior. It’s ideal for DIY enthusiasts and technicians who want quick sanity checks before more advanced diagnostics. Real-world diodes show characteristic responses; this guide explains both in-circuit and out-of-circuit testing.
Understanding diode basics and why testing without multimeter can be tricky
Diodes are one-way devices that allow current flow in one direction while blocking it in the reverse direction. A typical silicon diode has a forward voltage drop around 0.6–0.7 volts, while germanium diodes drop around 0.2–0.3 volts, and Schottky diodes can be even lower. When you don’t have a multimeter to measure resistance or forward voltage, you can still infer a diode’s health by observing current flow in a controlled circuit. The challenge is that circuits can obscure a diode’s behavior: other components like resistors, LEDs, or transistors can mask a diode’s true state. Therefore, any test without a meter should be done with conservative voltages, current-limiting resistors, and careful observation.
To start, you must ensure you’re not exceeding the diode’s reverse voltage rating. Exceeding this can permanently damage the diode or nearby components. Also, never apply power directly to a diode without a resistor in series unless you know the exact current and voltage. The basic idea is to create a small, predictable test path that only includes the diode and a resistor, so you can observe whether current flows in the expected direction. In practice, you’ll use a simple breadboard setup with a battery or regulated power supply, a resistor, and a few jumper wires. If the LED in your test circuit glows when forward-biased, that’s a strong indicator the diode is conducting; if not, the diode may be open or reverse-biased, or there may be an issue with polarity. Throughout this guide, we’ll emphasize safety, repeatability, and interpretation of results.
note”:null
Tools & Materials
- Breadboard (full-size)(5-7 columns for diode-resistor test circuits)
- DC power source (3–9 V)(A regulated supply or 9 V battery with current limiting)
- Current-limiting resistor (270 Ω to 1 kΩ)(To limit current during forward-bias tests)
- Jumper wires / alligator clips(For clean connections and flexibility)
- Diodes to test (unknowns and a known-good)(For practice and reference)
- LED (optional)(Visual indicator of conduction)
- Multimeter (optional)(Helpful for verification if available)

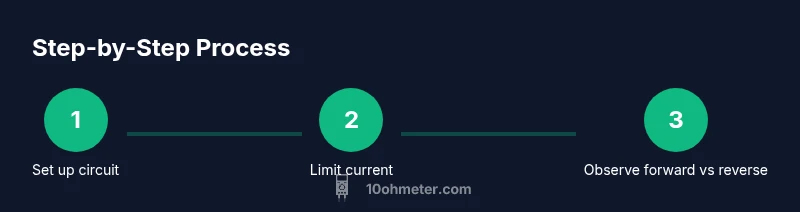

Steps
Estimated time: 40-60 minutes
- 1
Gather components and safety gear
Assemble all parts on a non-conductive mat. Inspect the diode and resistor, ensure the polarity markings are clear, and verify your power supply is unplugged while you arrange the circuit. This step reduces the chance of accidental shorts and helps you plan the test safely.
Tip: Label each component and orient the diode with the anode and cathode visible before powering. - 2
Build a simple forward-bias path with a resistor
Place the diode in series with a resistor on the breadboard. Connect the resistor to the positive rail and the diode’s other lead toward ground, matching the diode’s anode to the supply. This creates a safe, current-limited forward-bias test path.
Tip: Double-check the diode polarity before applying power to avoid reverse damage. - 3
Connect the power source with current limiting
Attach your power supply so that a controlled current will flow through the resistor and diode when forward-biased. Set a conservative current limit (a few tens of milliamps) to prevent excessive current if the diode conducts strongly.
Tip: Always start with the lowest voltage setting and increase gradually while watching for any signs of stress. - 4
Apply forward bias and observe the indicator
Power the circuit and observe whether the indicator (LED or brightness change) shows conduction. A lit indicator indicates forward current is flowing through the diode, which suggests the diode is healthy in the forward direction.
Tip: If there is no indication, re-check wiring and verify the resistor value matches your plan. - 5
Reverse bias to test blocking behavior
Swap the diode leads so the opposite polarity faces the supply, and repeat the test with the same current limit. A healthy diode should block current in reverse, so the indicator should stay dark and the current should be minimal.
Tip: Be aware that some reverse leakage exists; don’t push the supply beyond the diode’s rated reverse voltage. - 6
Power down and inspect results
Turn off the supply and remove power; inspect the circuit for heat or signs of damage. If the diode has behaved as expected in both directions, it’s likely healthy. If it failed one direction, consider trying another diode to compare results.
Tip: Record your observations for future reference and compare with a known-good diode. - 7
Optional cross-check with a known-good diode or meter
If you have a known-good diode or access to a multimeter later, verify the results against the bench test. Correlate any discrepancy with possible circuit interactions and re-test in a stripped-down setup.
Tip: A quick, repeatable reference diode helps validate your test jig.
Your Questions Answered
Can I test a diode without a multimeter?
Yes. A simple, current-limited setup lets you observe forward conduction and reverse blocking. It won’t give you precise voltage readings, but it provides a quick health check.
Yes, you can test a diode without a multimeter using a safe, current-limited setup to verify conduction in one direction and blocking in the other.
What types of diodes can you test this way?
This method works for common signal diodes like silicon, germanium, and Schottky types, especially in non-critical, quick checks. For high-power or rugged diodes, professional testing is recommended.
You can test common signal diodes like silicon, germanium, and Schottky types with this method, but save high-power or critical components for formal tests.
Why do readings vary in-circuit?
Other components in the circuit can provide alternative paths for current, masking the diode's true behavior. Always test in a stripped-down setup when accuracy matters.
In-circuit readings vary because nearby components can influence the path of current; isolate the diode for a cleaner test.
Is it safe to test diodes with a battery?
Yes, as long as you limit current with a resistor and stay within the diode’s voltage rating. Keep voltages modest and avoid short circuits.
You can use a battery if you limit current with a resistor and stay within the diode's limits. Safety first.
What if the diode shows conduction in both directions?
That usually indicates a shorted diode. Stop testing and replace the component; re-test with a known-good part to confirm.
If it conducts in both directions, the diode is likely shorted and should be replaced.
Can you test a diode in-circuit vs out-of-circuit?
Out-of-circuit tests are more reliable. In-circuit tests can still be useful for a quick check, but interpret results with circuit context in mind.
Out-of-circuit tests are more reliable, but in-circuit checks can be a fast first pass if you understand the circuit context.
Watch Video
Key Takeaways
- Test diodes safely with current-limited power sources.
- Forward conduction indicates health; lack of conduction needs circuit isolation.
- Reverse bias behavior confirms blocking; watch for leakage only within specs.
- In-circuit readings can mislead; isolating the diode improves accuracy.
