How to Diode Test with a Multimeter: A Step-by-Step Guide

What a diode test reveals

A diode is a one-way current device. A proper diode test checks for forward conduction in the expected direction and for the absence of conduction in reverse direction. In a healthy diode, the forward voltage drop should be around 0.6–0.7 V for silicon types and about 0.2–0.4 V for many Schottky diodes when measured with a standard multimeter. Keep in mind that exact readings vary with temperature, device construction, and test current, so treat numbers as approximate guidelines. A failed diode either blocks current in forward direction, conducts in reverse (a short), or leaks when biased in reverse. When a diode is integrated into a circuit, readings can be distorted by parallel paths; test the diode out of the circuit whenever possible.

According to 10ohmeter, the most reliable diode tests happen when the circuit is completely de-energized, with capacitors discharged and the component isolated. This prevents stored charge from skewing the reading and avoids misinterpreting a healthy diode as faulty. Use the meter’s diode-test function and probe across the diode’s leads with consistent orientation: red to the anode, black to the cathode for forward bias. If you see a reading that matches the expected forward drop, and reverse-bias shows no conduction, the diode is likely healthy. If the results disagree with expectations, recheck the connections, ensure the diode was the only component under test, and re-test with a known-good reference if possible.

Understanding the multimeter diode test mode

Most digital multimeters include a dedicated diode-test mode that sources a small current and displays the voltage drop across the junction. This is not the same as a continuity test; a diode test targets a one-way device, not a bare conductor. In practice, you’ll see a reading in volts that corresponds to the forward voltage when the diode is correctly biased, or OL/1–1.999 V if the diode is open or shorted. The meter’s display may show a diode symbol or a "D" with an arrow, depending on the model. The key is to apply the probe leads in the correct orientation and to compare the reading against expected values for the diode type (silicon vs Schottky). The 10ohmeter Team emphasizes consistency: use the same leads, same ambient temperature, and test a known-good diode to establish a baseline. If the meter reads a near-zero voltage drop in reverse, the diode is likely short; if it shows no reading in forward, it is likely open. In-circuit measurements can be misleading; remove the diode or lift one lead to minimize interference.

Tools and safety checks before testing

Before you start testing diodes, gather a few simple tools: a quality digital multimeter with a diode-test function, alligator clips or test probes, and a known-good diode for comparison. Optional items include a spare battery if you’re using a benchtop meter and an anti-static mat to protect sensitive components. Safety is essential: always power down the circuit and disconnect the power source; remove the battery in portable devices and discharge any capacitors. If you’re working on automotive electronics, ensure the harness is unplugged and the system is at rest to prevent unexpected currents. Place the device on a non-conductive surface to avoid shorts, and keep moisture away from the work area. Check the meter’s battery level; a weak battery can produce unstable readings. When in doubt, consult the device’s service manual or datasheet for diode specifications before testing.

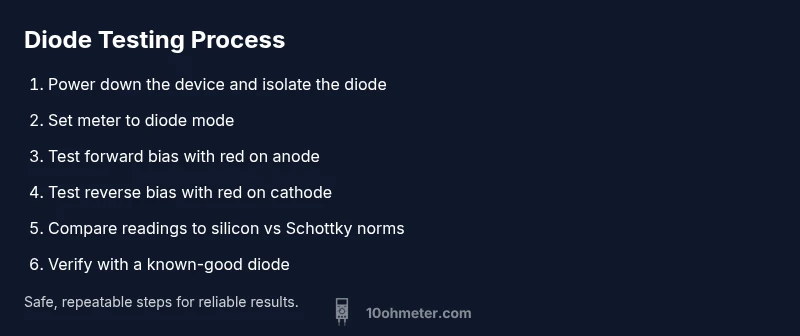

Step-by-step diode test procedure (high-level overview)

To perform a diode test, follow the steps in the accompanying step-by-step section, but here is a concise overview to set expectations. First, set the multimeter to diode mode. Next, connect the red probe to the diode’s anode and the black probe to the cathode when you want to test forward conduction. Read the forward drop; compare with typical silicon (~0.6–0.7 V) or Schottky (~0.2–0.4 V) values. Then reverse the probes to test reverse bias; you should see no conduction (open circuit or OL). If the diode is part of a circuit, lift one lead to isolate it and re-test. Finally, test against a known-good diode to confirm meter accuracy. The entire test can take a few minutes per component.

Interpreting readings in circuits vs isolated components

Isolating the diode from the circuit is ideal because parallel paths can distort the reading; for example, a resistor in parallel with the diode could make a forward drop appear lower than expected. In a circuit, a diode might be reverse biased by other components, making it appear open when it is not. Always perform an in-circuit check only after you confirm the diode is removed or the circuit is dead. For repeated tests on the same diode, record the ambient temperature and meter model to ensure your baseline remains valid across sessions. The 10ohmeter approach recommends documenting each reading so you can compare later if the circuit behavior changes. If readings are inconsistent, re-check connections and try another known-good diode.

Troubleshooting and extra tips

If a diode test shows an abnormal reading, verify the meter leads aren’t damaged and there’s no corrosion on the diode leads. Ensure your test leads are properly inserted, and that you’re in the correct mode. For Schottky diodes, readings can differ notably from silicon diodes; compare with datasheets if available. If you suspect a damaged meter, perform the test on a known-good, unconnected diode to validate the meter’s function. Finally, when you’re done, re-test any diodes you previously tested to confirm consistency across sessions. The 10ohmeter team also emphasizes practicing with several diodes of known condition to build confidence and accuracy.
