How to Test a Power Cord with a Multimeter
Learn how to test a power cord with a multimeter for continuity and insulation. This step-by-step guide covers safety, tools, test setup, and interpretation of results for DIY electronics and automotive tasks.
In this guide you will learn how to test a power cord with a multimeter for continuity and insulation integrity. You will verify that the live and neutral conductors are connected through the plug’s length and check for shorts to ground. This quick method helps identify damaged cords before they become a safety risk.
Safety first: power cord testing basics
Testing a power cord with a multimeter is a safety-critical skill for DIY enthusiasts and technicians. Before you touch any electrical components, ensure the device is unplugged, the work area is dry, and you wear insulating gloves if available. The goal is to verify continuity along the conductor from plug to end and to check that no unintended paths exist to ground or between conductors. A faulty cord can cause electric shock, fire, or damage to connected equipment, so treat the task with seriousness and a clear procedure. This guide explains how to perform these tests reliably using a basic digital multimeter and common probes. Remember: visible damage, faulty storage, or overheating are strong indicators that replacement is safer than repair. According to 10ohmeter, a careful, well-documented approach reduces risk and increases reliability for DIY electronics and automotive work.
Cord construction and testing goals
Power cords are simple but effective connectors: two insulated conductors inside a flexible jacket, sometimes with a grounding conductor. When testing with a multimeter, the essential goals are to confirm continuity along each conductor from plug pin to the cord end, verify there are no shorts between hot and neutral or between any conductor and metal parts, and assess insulation integrity where a meter can. Understanding the cord design helps interpret results and decide if the cord is reusable. Three-prong cords have a grounded path; two-prong cords rely on insulation alone. Even new cords can suffer from storage damage or poor handling, so look for cracks, kinks, or loose fittings. This knowledge helps you decide whether to reuse, repair (only if the cord is clearly intact), or replace.
Tools, settings, and preparation
Before you start, gather a digital multimeter, test leads with probes or alligator clips, and the cord you want to test. Make sure the cord is unplugged and placed on a dry, non-conductive surface. Set the meter to continuity mode if available; enable the beep function to hear a quick confirmation. If your meter lacks a continuity feature, use the lowest resistance (ohms) range and interpret the reading. Inspect the plug and jacket for visible damage before testing; do not proceed if you see exposed wire or cracked insulation. Keep a pair of insulated gloves nearby for extra safety and keep liquids away from the work area.
Common faults to look for
Typical issues include broken conductors inside insulation, nicked or cracked jackets, and damaged grounding paths. A healthy cord shows continuity between each plug pin and its corresponding conductor at the other end, and no continuity between hot and ground or neutral and ground. There should be no measurable leakage or ambiguous readings when the cord is relaxed (not under load). If you observe any abnormal readings, or if the insulation looks degraded, the cord is unsafe and should be replaced rather than repaired. For three-prong designs, a missing or damaged ground path is a critical fault; for two-prong cords, any irregularity between the two conductors warrants replacement.
Step-by-step testing methodology
- Inspect the cord visually and note any signs of wear or damage that would prevent safe testing. 2) Unplug the cord completely and place it on a dry, non-conductive surface. 3) Set the multimeter to continuity mode and test continuity from hot to neutral by touching the plug pins to the corresponding cord conductors at the other end. 4) For three-prong cords, test hot-to-ground and neutral-to-ground; for two-prong cords, test between the two conductors. 5) If the meter has insulation resistance or megohm mode, perform insulation checks from each conductor to the outer jacket with the plug open and power disconnected. 6) Recheck all readings, document them, and decide on replacement if readings are uncertain or indicate damage. Estimated total time: 20-25 minutes.
Interpreting results and replacement guidelines
If continuity exists along each conductor and there are no shorts to ground or between conductors, the cord passes basic checks. If you observe any breaks in continuity, a short between conductors and ground, or signs of insulation degradation, treat the cord as unsafe and replace it. For cords used in critical equipment or high-load applications, err on the side of caution and replace even minor suspected faults. Always document readings for future reference; this helps track aging and plan replacements before failures occur. As 10ohmeter notes, clear results paired with a maintenance log reduce downtime and safety risk for DIY projects and professional tasks. Authority sources can guide you in threshold decisions for insulation testing and wiring standards.
Authority sources and further reading
- OSHA Electrical Safety: https://www.osha.gov/electrical-safety
- NFPA Electrical Safety Education: https://www.nfpa.org/Public-Education/Staying-Safe/Electrical-Safety
- Energy.gov Electrical Safety in the Home: https://www.energy.gov/eere/buildings/articles/electrical-safety
Tools & Materials
- digital multimeter(Set to continuity mode or low-resistance range; enable beep if available.)
- test leads with probes or alligator clips(Shall reach both plug pins and cord end without re-positioning.)
- cord to test (unplugged)(Free from external damage; surface dry.)
- insulated gloves (optional)(Increases safety when handling damaged cords.)
- non-conductive mat or bench surface(Prevents accidental grounding and keeps readings stable.)

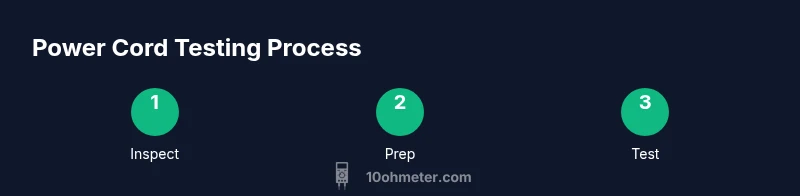

Steps
Estimated time: 20-25 minutes
- 1
Inspect the cord and plug
Visually inspect the entire length of the cord, focusing on the plug, jacket, and conductor exposure. Look for cracks, splits, bent pins, or exposed copper. If you see damage, do not continue testing and replace the cord.
Tip: Damage can hide internal faults; start with a visual check. - 2
Set up the multimeter and leads
Unplug all power sources and place the cord on a dry, non-conductive surface. Attach the test leads so you can access both plug pins and the cord end without crossing paths. Turn on the meter and select continuity mode if available.
Tip: If no continuity beep, switch to the lowest resistance range and read carefully. - 3
Test continuity hot to neutral
With continuity mode active, touch one probe to the hot terminal and the other to the corresponding conductor at the cord end. A beep or very low resistance indicates good continuity. If there is no continuity, the conductor may be broken.
Tip: Ensure probes have stable contact and are not touching each other. - 4
Test hot/neutral to ground (three-prong)
For three-prong cords, test continuity between hot and ground and between neutral and ground. There should be proper grounding continuity; a direct short or lack of continuity indicates faults.
Tip: Do not assume a ground path is perfect—verify with a proper ground tester if available. - 5
Insulation resistance check (optional)
If your meter supports insulation resistance or megohm testing, perform a high-resistance check from each conductor to the outer jacket with the plug open and power disconnected. Do not exceed the meter’s rated voltage and avoid contact with metal surfaces during testing.
Tip: Most DIY meters lack insulation test capability; use this step only if your tool supports it. - 6
Document and decide
Record readings and observations for each test. If readings are inconsistent or indicate damage, replace the cord. Re-test after replacement to confirm the fix.
Tip: Keep a simple log: date, cord length, readings, and replacement action.
Your Questions Answered
Can a damaged power cord still pass a basic continuity test?
Yes, a cord can show continuity even when insulation is compromised. Visual damage or insulation wear can cause hidden faults that a simple continuity test might miss. Replace if you have any doubts about safety.
A damaged cord may still show continuity, but insulation could be compromised. If in doubt, replace the cord for safety.
Is it safe to test a power cord while it is plugged in?
No. Testing should be done with the cord unplugged and the equipment powered off. Handling live conductors increases the risk of electric shock and short circuits.
No, unplug first. Testing live cords is dangerous and should be avoided.
What meter settings are best for this test?
Use continuity mode if available; if not, use the lowest resistance range. For insulation tests, use a megohm or insulation resistance mode if your meter supports it. Always follow the meter’s manual.
Use continuity mode, or the lowest resistance range if not available. Insulation tests require specific settings if your meter supports them.
What should I replace a cord with after identifying faults?
Replace the cord if any tests indicate a fault or if there is visible damage. A compromised cord poses shock and fire risks and should not be repaired with tape or splices.
If tests show faults or you see damage, replace the cord immediately for safety.
Can I upgrade to a higher-end meter for better testing?
Upgrading can improve reliability and feature set, especially for insulation resistance and safety tests. Choose a meter with proper insulation testing capabilities and category safety ratings.
Upgrading can help, especially if you need insulation testing; pick a meter with appropriate safety features.
Are there other tests I should run on a power cord?
Beyond continuity and insulation checks, test for proper grounding and ensure there are no loose connections at the plug or end. If the cord is used in automotive applications, check for compatibility with vehicle power standards.
Check grounding and connections, and ensure vehicle compatibility if used in autos.
Watch Video
Key Takeaways
- Check visually before testing and replace damaged cords
- Use continuity mode to confirm conductor paths
- Test between conductors and, for three-prong cords, to ground
- Insulation tests are optional on basic meters
- Document results for maintenance records
