How to Fix Multimeter Test Leads

Why Test Leads Wear Out

Test leads are the bridge between your meter and the circuit under test. Over time, mechanical flexing, repeated plugging, and exposure to heat from high-amps measurements cause the insulation to crack, the conductor strands to break, and the tips to corrode or loosen. The most common wear points are the probe tips, the banana plug housings, and the insulation near the strain reliefs. Damaged insulation can hide a live conductor, which is dangerous, and exposed conductors can cause intermittent contact, leading to inconsistent readings or arcing in sensitive circuits. Visual signs are not always obvious; a lead may look fine while the copper inside is stretched or broken. By understanding wear patterns, you can anticipate failures and prevent sudden measurement errors that erode your confidence in the tool. The 10ohmeter team emphasizes regular visual checks and tactile inspections as a first line of defence against hidden faults. Regular exercises, like bending an unplugged lead gently and inspecting with a magnifier, can reveal issues before they become dangerous.

Safety First: Electrical Safety Basics for Test Leads

Electrical safety with multimeters starts before you pick up the probe. Always power down equipment when possible and unplug devices before exchanging leads. Inspect insulation for cracks, splits, or signs of heat damage; never use a lead with exposed copper. Ensure the lead insulation and connectors are rated for the voltage and category you measure (especially for mains work). Use protective gear as needed, and keep liquids away from the work area. When a lead shows any sign of damage, tag it as out of service and replace it. If you are repairing a lead, only do so with the meter unplugged and only after you have determined the fault does not lie with the meter itself. Safety is not optional—it protects you and your equipment, and it keeps readings trustworthy.

Common Problems You’ll See

Here are the typical failure modes that affect accuracy and safety: cracked or nicked insulation along the length, exposed conductors near the tips, bent or cracked probe pins, loosened banana plugs, corroded contacts inside the plug housing, and damaged strain reliefs where the wire meets the connector. Intermittent contact can show up as sporadic readings or a tone that cuts in and out during a continuity check. Thermal damage from high-current measurements may reveal brown staining or softening at the plug end. Another frequent issue is using insulated leads with non-insulated probes that ends up causing accidental shorting. The goal is to identify these problems early, because repairing or replacing worn parts is cheaper and safer than risking a live measurement.

Quick Diagnostic Checks (before repair)

Before disassembling anything, perform a quick series of checks to confirm the fault lies with the leads and not with the device under test. Visually inspect for visible cracking and test wobble by gently wiggling the tips while connected to a known-good meter. Measure resistance across the two conductors at zero or near-zero ohms when the leads are shorted together; a reading of several ohms indicates loose connections or damaged conductors. Check the continuity beep on the meter and listen for a solid tone across the core; any intermittent tone points to loose contacts. Use a controlled, low-voltage source to test the leads and confirm they do not heat up unexpectedly. If you detect any signs of damage, remove the lead from service—do not attempt to repair while energized. This diagnostic phase saves time and reduces risk, and it frames the repair plan.

Cleaning and Care for Test Leads

Cleaning is an important maintenance step to extend lead life and preserve contact quality. Start by disconnecting from all sources and wiping down the outside with isopropyl alcohol on a lint-free cloth. Avoid harsh solvents that can soften the plastic or dissolve adhesives. Inspect each tip and banana plug for corrosion; if needed, use a tiny brush or cotton swab to clear debris. Allow all parts to dry completely before reassembling; moisture inside the plug can create shorts. For stubborn grime, remove the tip assemblies if you are comfortable, but never force components; reassemble with proper heat-shrink tubing or cable ties to maintain strain relief. Proper storage—coiling loosely and keeping the leads in a dedicated pouch—also reduces wear.

Repair vs. Replace: Decision Criteria

Not every worn lead is worth repairing. If insulation is cracked through to the conductor, if there are multiple broken strands, or if the tip mechanism is loose or missing, replacement is usually the safer option. For high-quality leads, you can sometimes replace only the damaged tip or plug assembly, which saves money and keeps the rest of the lead intact. However, consider the cost and effort of a repair versus purchasing a new lead with the correct ratings and safety features. If your lead is old and the shield around the wire looks worn, replacing it may prevent future failures. Always prioritize integrity and safety over cosmetic fixes; if in doubt, replace the lead and test with a known-good meter.

Replacing Tips and Connectors

Replacing a worn tip or connector requires matching the connector style (banana plug vs. shrouded plug), the tip length, and its insulation class. Use a solder-capable tip if the lead will be subjected to high vibration and ensure a strong; soldered connections are more robust than a simple crimp in some cases. For crimping, choose a high-quality crimp tool and appropriate ferrules; for heat-shrink solutions, select heat-shrink with the correct shrink ratio and use a heat gun to seal. When reattaching tips, verify the polarity markings and maintain the original color-coding. If you reattach using solder, apply flux and avoid cold joints; if using crimp, ensure a solid mechanical grip with no loose strands. Finally, test the repaired tip end with a peer meter to verify that no extra resistance has been introduced and that the reading is stable.

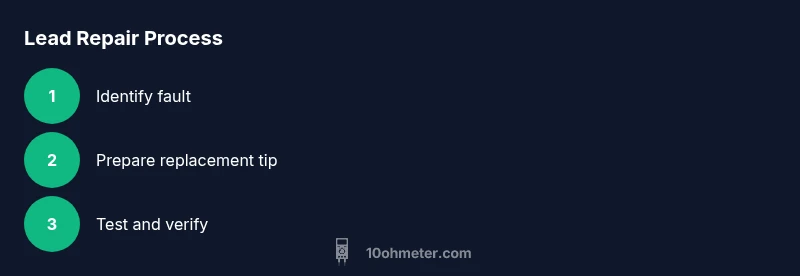

Step-by-Step Repair Process (Concise Path)

1. Gather the required replacement tips or plug assemblies and your tools; 2) Disconnect everything and remove the damaged tip from the lead; 3) Prepare the exposed conductor by trimming damaged insulation and tinning the wire; 4) Attach the new tip with solder or crimp, ensuring a tight connection; 5) Re-seat the plug into the lead and reapply heat shrink or insulation; 6) Inspect the finished assembly for smooth operation and no exposed copper; 7) Test with a known-good meter and a simple circuit to confirm reliability; 8) Document the repair in your maintenance log. See diagrams for the exact crimps and solder joints. Estimated time: 60-90 minutes.

Testing After Repair: Verifying Readings

After you complete a repair, validate the leads under real conditions. Start by measuring a known reference, like a standard battery, and compare with a trusted meter. Check resistance along the full length of the lead to ensure continuity and uniform readings even at full extension. Perform a short-circuit test across a safe, low-voltage source to confirm the protection of the insulation. Use a calibration or a lab-grade reference meter if available to confirm that the repaired lead is within acceptable tolerance. If readings drift, re-examine the solder joints, crimps, and insulation. Document the test results and mark the lead as tested.

How to Extend Lead Life and Efficiency

Store leads properly, avoid sharp bends, and always return the lead to its protective case after use. Use strain reliefs and keep the conductor lengths relaxed to prevent fatigue; rotate which lead you use to distribute wear evenly. When possible, choose leads with reinforced insulation and robust plug designs. Regularly inspect and clean the leads, and retire damaged items promptly. With mindful use, your test leads will deliver reliable readings for many years.
