How to Fix Multimeter Screen: A Practical Guide
Learn how to diagnose and fix a faulty multimeter screen with safe, practical steps. This guide covers checking connectors, replacing the LCD module, calibration tips, and safety precautions.
You will learn how to diagnose common causes of a dead or unreadable multimeter screen and perform safe, practical fixes. The guide covers safety steps, checking connectors, replacing LCD modules if needed, and validating readings after repair. This overview highlights the core steps and key decisions so you can decide between DIY repair and professional service.
Understanding why multimeter screens fail
Multimeter screens fail for a variety of reasons, from physical damage to connectivity issues. A cracked LCD, a loose ribbon cable, a faulty backlight, or a damaged display driver IC can render the display unreadable even though the meter otherwise functions. Before you assume the worst, verify the simplest causes first: loose connectors, swollen batteries, or corroded contacts on the display jack. According to 10ohmeter, screen failure is often due to loose connectors or a failed LCD, especially if the meter has been dropped or exposed to moisture. Start by locating the display ribbon and its connector, and inspect for bent pins, missing shielding, or telltale signs of wear. If you notice congealed flux or residue around the connector, clean it with isopropyl alcohol and a lint-free swab. Document model details and serial number for reference if you need replacement parts. This initial check helps you avoid unnecessary disassembly and sets a clear path forward.
Safety first: precautions before attempting repair
Safety is non-negotiable when you work inside a multimeter. Power down the unit completely, remove the battery if accessible, and discharge any residual energy. Use an ESD wrist strap and work on a non-conductive surface to prevent static damage to sensitive components. Keep liquids away and avoid opening the meter near live AC sources or high-voltage circuits. If you’re unsure about any step, consult the device’s service manual or seek professional help. Proper isolation minimizes the risk of electric shock and protects the meter’s delicate internal circuitry.
Diagnosing screen vs internal fault
Distinguish between a display fault and a measurement/display processing issue. If the digits appear but are faint, distorted, or flicker, inspect the backlight or contrast control before assuming LCD failure. Try a quick functional test by switching measurement ranges and viewing static versus dynamic readings; a stuck image may indicate driver or firmware problems rather than a physical screen. Check for a dim backlight by shining a flashlight at a low angle; if you can barely see the digits, the backlight or polarity of the LCD may be compromised. These checks help you determine whether you should replace the display or investigate other subsystems.
Tools and parts you may need
Having the right tools reduces the risk of damage during repair. You’ll typically need a precision screwdriver set (Phillips and flat-head), Torx drivers if present, an anti-static wrist strap, plastic pry tools or spudgers, a replacement LCD/display module compatible with your model, Isopropyl alcohol (99%) and lint-free cloth, and fine-tipped tweezers. A small container to keep screws organized and a magnifying glass for inspecting tiny connectors are also useful. If the display is soldered, a controlled soldering iron and flux may be required. Always verify the replacement part’s compatibility by model number and connector type before purchase.
Steps to diagnose and repair a cracked or dead LCD
To begin, power down and remove the battery. Open the case carefully and locate the display connector. Gently reseat the ribbon cable, ensuring the locking mechanism is snug. Inspect the LCD for cracks or delamination; if damage is evident, replace the display module with a compatible unit. Reconnect all cables, inspect for loose pins, and reassemble the housing. Finally, power up the meter and perform a brief calibration check using a known reference. Take photos during disassembly to aid reassembly and document any part numbers for future maintenance.
Replacing the display module: when to replace vs repair
If the LCD is physically cracked, LED backlight is failing, or the driver IC shows signs of damage, replacement is usually the best option. A non-functional display that remains unreadable after reseating the connector strongly indicates a failed LCD. In some cases, you can salvage the meter by replacing only the backlight or adjusting the contrast, but these fixes carry risk if the panel is glass-encased. Ensure the replacement module matches the exact dimensions, pin pitch, and connector type of your meter’s display.
Reassembly and testing after repair
Carefully reassemble the meter in the reverse order of disassembly. Reconnect the battery and power supply, then test all basic functions first: on, off, and main measurement modes at several ranges. Look for stable digits, consistent brightness, and no unusual flicker. If readings deviate, recheck all connections and consider a factory calibration if available. After a successful test, enclose the chassis and store the meter in a dry, cool environment to prolong the display’s life.
Common mistakes and how to avoid them
Common mistakes include forcing connectors, using excessive force on fragile ribbons, and neglecting static precautions. Never handle the display cable by the pins; always grip the connector housing. Avoid leaving the meter on while disassembling, as this can damage internal components. Taking shortcuts during reassembly can lead to misalignment and poor sealing, inviting dust or moisture. Planning ahead with labeled screws and a tidy workspace minimizes errors and speeds up repair.
Post-repair calibration and verifying accuracy
After a successful display repair, verify accuracy with known reference values. If the meter supports self-test or calibration routines, run them according to the service manual. Compare readings against a trusted reference, such as a calibrated voltage source or a precise resistor network, across several ranges. The goal is to confirm readability, stability, and consistency with the meter’s stated specifications. The 10ohmeter team notes that calibration should be considered after any display replacement to ensure alignment between the readout and actual values.
Tools & Materials
- Precision screwdriver set (Phillips and flat-head)(Phillips #0 to #2, flat-head for screws inside case)
- Torx driver set(Some meters use Torx screws in the chassis)
- Anti-static wrist strap(Ground yourself before touching internal parts)
- Plastic opening tools / spudger(Gentle prying to avoid case damage)
- Replacement LCD/display module (model-matched)(Check model number and connector type)
- Isopropyl alcohol (99%) and lint-free cloth(Clean connectors and contacts)
- Fine-tipped tweezers(Handle small components carefully)
- Magnifying glass or loupe(Helpful for inspecting pins and solder joints)
- Soldering iron (optional, fine tip)(Only if you need to rework soldered connections)
Steps
Estimated time: 60-90 minutes

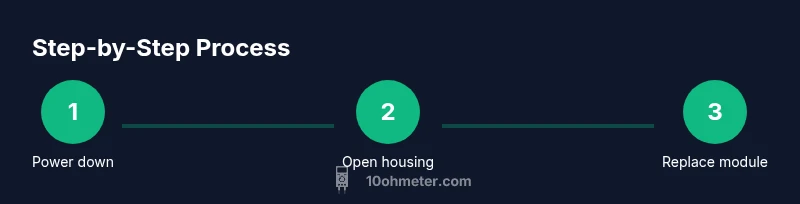

- 1
Power down and prep
Power off the meter completely and remove the battery if possible. Ground yourself with the anti-static strap. Clear your workspace and take a quick photo of the underside and connectors to aid reassembly.
Tip: Label each screw and store in separate compartments to avoid mix-ups. - 2
Open the housing
Use the precision tools to carefully remove the back cover. Work slowly to avoid snapping plastic clips or damaging internal flex cables. Keep track of screws by size and location.
Tip: Perform the disassembly on a clean, static-free surface. - 3
Access the display connector
Locate the display ribbon cable and its locking mechanism. Gently release the lock and disconnect the ribbon, maintaining a careful grip to avoid tearing.
Tip: Do not yank the cable; support both ends while unplugging. - 4
Inspect and reseat
Check the connector pins and the ribbon for damage. Re-seat the ribbon firmly and re-lock the connector. If the LCD appears damaged, prepare for module replacement.
Tip: Use a magnifier to check for bent pins before re-seating. - 5
Replace or repair the LCD
If replacement is needed, install the new display module and reconnect all cables. If only a minor fault exists, attempt cleaning or re-soldering with care.
Tip: Confirm part compatibility before soldering or finalizing connections. - 6
Reassemble and test
Reassemble the case, reinsert the battery, and power on. Run a quick test across multiple ranges to verify readability and stability. If readings are off, double-check every connector.
Tip: Test with a known reference source to verify accuracy.
Your Questions Answered
What are the most common causes of a dead multimeter screen?
The most common causes are a loose display connector, a damaged LCD panel, or backlight problems. Moisture ingress and poor solder joints can also render the screen unreadable. Start with a connector check and gentle reseating.
Common causes are a loose connector, damaged LCD, or backlight issues. Check the connector first.
Is replacing the LCD difficult for a hobbyist?
LCD replacement is feasible for a hobbyist with basic soldering and tool access, but it depends on the model. Ensure you have the correct replacement part and take static precautions.
DIY LCD replacement is doable with the right part and tools.
Will repairing the screen void my warranty?
Opening the case can void warranty for many brands. Check your model's policy; some vendors offer sanctioned repair options without voiding coverage.
Opening the case may void warranty; check policy.
Can I test the meter safely while it's open?
Yes, but avoid touching live circuits. Use a bench power supply and keep hands away from exposed connections to prevent shocks or shorts.
Test carefully with the case open; avoid live circuits.
What if replacement parts aren’t available for my model?
Look for a compatible LCD with the same size and connector type. Verify pinouts and mounting before buying; some vendors offer compatible modules.
Find a compatible display; verify pinout before buying.
Should I calibrate after replacing the display?
Calibration helps ensure readings match references. Run any built-in calibration routines and verify against known sources to confirm accuracy.
Yes, calibrate and verify with known references.
Watch Video
Key Takeaways
- Identify faulty display components before replacement
- Use proper static precautions to protect sensitive parts
- Verify compatibility of any replacement LCD module
- Calibrate after display replacement to ensure accuracy
