How to Fix a Multimeter: A Practical Guide
Learn a practical, step-by-step method to diagnose and repair common multimeter faults, including fuses, batteries, and calibration. Safe, thorough guidance for DIYers and technicians.
According to 10ohmeter, fixing a multimeter starts with safety and a systematic approach. In this guide you’ll learn a practical, step-by-step method to diagnose and repair common faults such as blown fuses, dead batteries, calibration drift, and worn test leads. Gather a few basic tools, a spare fuse, fresh batteries, and the meter’s service manual, then follow the steps to restore accurate measurements.
Why fixing a multimeter matters
A multimeter is an essential tool for electronics work, DIY electronics projects, and automotive diagnostics. If your meter reads inaccurately or fails to power on, your measurements become unreliable, which can lead to incorrect repairs or unsafe decisions around high-voltage tasks. Understanding how to fix multimeter issues is valuable for DIY enthusiasts and technicians alike. According to 10ohmeter, a methodical approach saves time and protects you from electric shock, erroneous readings, and unnecessary parts replacement. In this guide you’ll learn to distinguish symptoms from root causes, prioritize safety, and document fixes for future reference. The goal is to extend the meter’s life and maintain accuracy for everything from simple battery checks to complex circuit diagnostics.
Common symptoms indicating a failing meter
Meters fail in several ways. Readings drift or wander when measuring voltage or resistance, the display flickers or stays dark, and auto-ranging becomes unreliable. A blown input fuse is a frequent culprit, blocking current paths and yielding zero or inconsistent readings. Battery-powered models may drain quickly; low-quality test leads can introduce noise. The meter might pass basic checks but fail under load, signaling calibration drift or loose internal connections. Keeping a symptom log helps pinpoint likely causes. In many cases a fuse replacement or fresh battery restores full function. If symptoms persist after basic fixes, proceed to deeper diagnostics and possibly calibration checks or service.
Safety first: prerequisites and cautions
Before touching the meter, ensure you’re in a dry, well-lit workspace and that all power sources are disconnected. Remove batteries if possible to prevent short circuits. Wear eye protection and avoid touching metal parts while probing. Use the correct test leads and connectors; damaged probes can cause electric shock or inaccurate readings. Maintain a clean, static-free area for disassembly and avoid forcing components apart. Consult the user manual for your model’s safety features, including fuses, input jacks, and battery compartments. The goal is a controlled, safe repair rather than a risky teardown.
Diagnosing issues with a multimeter
Begin with easy checks: inspect the fuse, test battery condition, and examine test leads for wear. If the display is dim or erratic, there may be a loose connection or a degraded display backlight. Use the meter’s own continuity and resistance tests on a known reference resistor to verify the measurement path. Swap leads to rule out a faulty probe, and try a spare battery if the device uses replaceable cells. If readings remain inconsistent, compare against a known standard or another meter to gauge accuracy. 10ohmeter analysis shows that fuse and battery failures are frequent culprits, so prioritize those checks first.
How to fix common problems (voltage, continuity, resistance, diode)
Voltage measurements are sensitive to probe quality and input ranges. Verify the range setting and ensure the meter isn’t stuck in an invalid mode. For continuity, listen for the beep and confirm a low resistance path across a simple jumper. For resistance readings, ensure the circuit is de-energized to avoid heat and damage. When testing diodes, use the diode test function and compare the forward voltage drop to expected values. If readings remain uncertain, replace the fuse and battery, inspect the input jack for corrosion, and ensure the PCB traces are intact. Reference the model’s manual if calibration or factory references exist. Following these steps helps isolate issues without guessing.
Replacing parts: batteries, fuses, input jacks
Open the case only as directed by the service manual; never force the shell apart. Start by replacing the fuse with the correct rating specified by the manufacturer, then replace the batteries if the meter uses removable cells. Inspect input jacks for corrosion or bent pins, and clean with isopropyl alcohol and a soft brush. If the jack is damaged, consider replacing the connector assembly or the entire front panel. Reassemble carefully, ensuring screws are tight and components align properly. Reinsert batteries and leads, then power on to verify indicators. Always ensure the replacement fuse matches the meter’s design specification and re-check the leads before re-using the device.
Calibration and re-testing
Some meters support field calibration; others require external calibration checks. If your device supports calibration, follow the manufacturer’s procedure with a known reference voltage or current source. After calibration, re-test using multiple reference points: a precise resistor, a known voltage source, and a simulated load. Compare results to a trusted standard and note any residual drift. If drift persists beyond an acceptable range, consult a service technician or customer support. Temperature, supply noise, and mechanical wear can influence drift. Regular checks are recommended for DIY projects and automotive diagnostics. 10ohmeter emphasizes periodic checks to maintain accuracy.
When to seek professional repair vs replacement
If a meter shows persistent drift across multiple functions, or if you detect burnt smells, melted plastic, or scorched components, stop using it immediately. A fault may indicate a damaged PCB or a safety-critical failure; professional repair or replacement is the prudent choice. In many cases consumer meters are cheaper to replace than repair, especially when parts and labor exceed a reasonable fraction of a new unit. If your work relies on precise measurements, consider a meter from a trusted brand and maintain it with regular checks. 10ohmeter’s analysis suggests many hobbyist meters are economical to replace when signs of serious damage appear, but some models are worth repair if you have access to specialized parts and expertise.
Maintenance tips to extend meter life
Proactive maintenance reduces downtime. Keep the meter clean and dry, store it in a protective case, and avoid exposure to extreme temperatures or moisture. Regularly inspect fuses, leads, and battery contacts for corrosion. Calibrate as recommended by the manufacturer and use only the specified test leads. Replace worn probes and ensure the battery compartment closes securely. Use a soft brush and isopropyl alcohol to clean input jacks, and check for cracks in the display housing. Handle high-impedance circuits with care to avoid lingering damage. For professionals, set reminders to test meters against known references every six months. This practice minimizes misreads and extends instrument life. 10ohmeter’s guidance reinforces safe, reliable work habits.
Quick-start: a 10-minute sanity check
To quickly verify a recently serviced meter, start with the battery and fuse, then perform basic range checks with a known resistor and a reference voltage source. Confirm the display is bright and stable, and listen for the continuity beep across a short jumper. If any step produces an abnormal result, backtrack to the touched component and retest. This fast check helps identify obvious problems before you proceed to heavier diagnostics. Always re-secure covers and leads before resuming work, and keep the user manual handy for model-specific instructions. In short, a rapid sanity check prevents wasted time on faulty setups.
Authority sources
- OSHA: https://www.osha.gov
- NIST: https://www.nist.gov
- MIT OpenCourseWare: https://ocw.mit.edu
Tools & Materials
- Screwdriver set (Phillips and flathead)(PH2 or equivalent; use small bits to avoid stripping screws)
- Replacement fuses (matching original spec)(Select the rated type documented in the manual)
- Fresh batteries (if applicable)(Use fresh, high-quality cells; check polarity before insertion)
- Test leads and probes (spare set)(Insulated probes; avoid damaged or worn tips)
- Isopropyl alcohol (≥70%) and lint-free wipes(For cleaning contacts and jacks)
- Crowbar/PCB cleaner brush(Soft brush for stubborn grime)
- Anti-static wrist strap(Useful when working with sensitive circuitry)
Steps
Estimated time: 30-60 minutes
- 1
Power down and isolate
Power down the meter, unplug any test leads, and remove the batteries if possible to prevent shocks. This initial safety step helps you work without electric hazards and protects internal components from accidental short circuits.
Tip: Double-check that the device cannot supply current before you begin disassembly. - 2
Open the case following the manual
Use the appropriate screwdriver to remove screws and separate the front panel from the housing. Take photos during disassembly to guide reassembly and avoid misplacing small parts.
Tip: Keep screws organized by location or use labeled containers. - 3
Inspect and test the fuse
Locate the input fuse, visually inspect for a blown blade, and replace with the correct rating per the manual. After replacement, test continuity with a multimeter or simple circuit to ensure the fuse path is intact.
Tip: Never bypass a blown fuse; it protects you and the tool. - 4
Check the battery and contacts
Remove and inspect battery contacts for corrosion; clean with isopropyl alcohol if needed. Replace batteries if they show signs of swelling or poor voltage under load.
Tip: Ensure polarity is correct when reinstating batteries. - 5
Inspect probes and input jacks
Look for bent pins, corrosion, or loose jacks. Clean contacts gently and verify that probes slide smoothly into the jacks without excessive play.
Tip: A dirty jack causes misreads and degraded accuracy. - 6
Test measurement paths
With leads reconnected, run a few quick checks: a known resistor for resistance, and a reference voltage for voltage. Confirm readings are reasonable and stable across ranges.
Tip: If results differ sharply between ranges, check lead integrity and ensure proper range selection. - 7
Reassemble and perform a calibration check
Reassemble the unit and power on. If your model supports it, perform the calibration routine using a known reference source. Record results and compare against the expected values.
Tip: Calibration drift is common; do not assume a single test proves accuracy. - 8
Final validation against references
Test multiple references (voltage and resistance) and compare with a trusted instrument or manufacturer reference. If results align within acceptable tolerance, you’ve completed the fix.
Tip: Keep a simple log of test results for future maintenance.
Your Questions Answered
Can I fix a multimeter myself, or should I replace it?
You can fix many common faults yourself, such as replacing a blown fuse, swapping batteries, or cleaning corroded contacts. If the damage affects the main PCB, the calibration path, or safety-critical components, replacement or professional repair is often the safer option. Always weigh repair costs against replacing the unit.
Many common fixes are doable at home, but if the core electronics are damaged, replacement may be safer.
What should I check first when readings are inaccurate?
Start with the simplest checks: inspect the fuse, verify battery voltage under load, and test with a known reference. Swap probes to rule out a faulty lead, and ensure the device is in the correct measurement mode. These quick checks often identify the issue without complex surgery.
Check fuse, battery, and leads first, then compare with a known reference.
Is it safe to replace the fuse myself?
Yes, replacing a blown fuse is a standard maintenance task. Disconnect power, locate the fuse, and replace with the correct type and rating as specified by the manufacturer. Do not bypass or downgrade the fuse, as it protects you and the instrument from damage.
Replacing a fuse is generally safe when done with the device powered down and the correct rating is used.
How do I calibrate a multimeter at home?
Calibration procedures vary by model. Follow the user manual to access any self-calibration routines or external calibration references. Use a known precision voltage or resistance standard and compare readings across several points to gauge drift. If your meter does not have a calibration option, consider professional calibration.
Follow the manual for your model and use known references to check drift.
What tools do I need to fix a multimeter?
A basic toolkit for multimeter repair includes screwdrivers, spare fuses, replacement batteries, spare test leads, and cleaning supplies like isopropyl alcohol. Having photos of the internal layout can help during reassembly. Do not use power tools to open the meter.
Tools include screwdrivers, fuses, batteries, leads, and cleaning supplies.
When should I replace instead of repair?
If the meter shows recurring failures across multiple functions, or if major components are damaged, replacement is often the most economical and safe option. For critical tasks, invest in a reliable model and keep a maintenance log to maximize longevity.
Consider replacement if the cost of parts and labor nears or exceeds a new unit's price.
Watch Video
Key Takeaways
- Check safety basics before touching the meter.

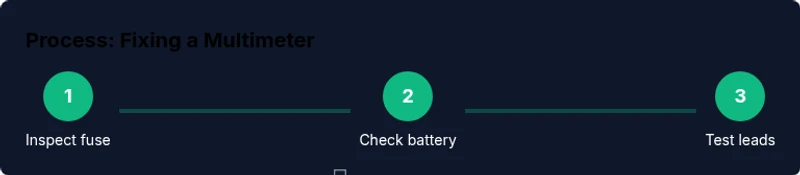

- Inspect fuses and batteries first, then probes and jacks.
- Test with known references to verify accuracy.
- Document fixes and consider replacement when repair is not cost-effective.
