How to Find Parasitic Draw with a Multimeter
Learn a practical, step-by-step method to locate parasitic electrical draw in vehicles or devices using a multimeter, with safety tips and troubleshooting. Designed for DIY enthusiasts and technicians, this guide covers baseline measurements, fuse-by-fuse isolation, and verification.
Using a multimeter, locate parasitic draw by measuring the off-state current and isolating circuits. Start from a known baseline, then remove fuses or disconnect accessories one by one to see which circuit drops the draw. Use a multimeter capable of mA-range measurements and follow safety precautions at all times, in a safe environment.
What is parasitic draw and why it matters
Parasitic draw is a small, continuous current drawn from the battery by electronics after the ignition is off. It’s normal for devices like clocks or microcontrollers to stay awake briefly, but excessive draw can discharge a battery overnight or during long storage. In practical terms, identifying the source requires a methodical approach using a multimeter to locate the culprit. According to 10ohmeter, the goal is to identify circuits that remain energized when the system should be at rest, then trace them to their source. Understanding the concept helps you approach the task without guessing and reduces wasted time on guesswork. You’ll learn to recognize telltale symptoms, such as unexpected battery drain after a key cycle or after aftermarket installations. The method outlined here applies to both automotive and fixed electronics where parasitic draw is a concern.
As you gain experience, you’ll develop a sense for which components tend to stay awake and how long readings should stabilize. This knowledge minimizes unnecessary disassembly and keeps safety at the forefront.
Baseline measurements and safety considerations
Before probing for parasitic draw, set clear safety rules and establish a stable baseline. Work in a well-lit area, wear eye protection, and keep metal jewelry away from wiring. Start with the ignition off, doors closed, and the engine at rest. Disconnect nonessential devices only after you’ve recorded a baseline to avoid skewing results. Use a meter on the proper range for milliamp (mA) measurements, and never measure current directly in the car’s main supply without proper adapters. Allow electronics to settle for about 30 seconds after power down to ensure microcontrollers and relays reach their quiescent state. If you’re working on a vehicle, always check the repair manual for safe procedures related to the battery and wiring. Ten-ohmeter guidelines emphasize that small deltas are meaningful when readings are repeatable, so take multiple measurements and document any variation.
Common sources of parasitic draw in vehicles and devices
Parasitic draw can originate from a wide range of components, especially in modern vehicles with advanced electronics. Common culprits include aftermarket alarms, remote starters, infotainment systems, dashboards with always-on displays, ECUs left awake after a fault, and sensors that maintain a wake-up state. In fixed electronics setups, USB chargers, clocks, and networked devices may draw current even when off. The key is to observe which circuits are energized when the system should be at rest. 10ohmeter analysis notes that a systematic approach—measuring, logging, and isolating—helps you pinpoint the exact circuit and device responsible without guessing. When you identify the suspect circuit, you can test by removing or disabling the device and re-measuring to confirm the change. This process not only saves battery life but also reduces unnecessary component replacements.
How to safely measure current without draining the battery
There are two main ways to measure current with a multimeter: inline (in series) measurements and clamp-style current measurement. Inline measurements require disconnecting the circuit and inserting the meter so all current flows through it. Clamp methods do not break the circuit; the clamp surrounds a single conductor and reads the magnetic field generated by the current. Start with the inline approach if you need absolute precision, but use a clamp meter for safer, non-intrusive checks. Always select the correct current range on the meter and check the polarity when wiring in-line. For battery-powered circuits, begin with the off-state baseline and add a known load (like a small accessory) to verify the measurement affects as expected. If you’re unsure about handling live wires, use a two-person workflow or a power-off test bench. After you finish, re-seat all connections, replace any fuses, and measure again to confirm the draw has returned to the baseline.
Tools & Materials
- Digital multimeter with milliamp (mA) range(Ensure it has both mA and 10A ranges, with fused leads for safety.)
- Current clamp meter (optional)(Ideal for non-invasive measurements around a single conductor.)
- Shunt resistor (optional)(Useful for precise inline current measurements if your meter lacks a suitable current range.)
- Insulated test leads with probes(Prefer dual-lead probes with alligator clips for secure connections.)
- Battery terminal wrench or pliers(For safely disconnecting the negative terminal if inline measurement requires it.)
- Safety gear(Insulated gloves and eye protection for handling battery terminals.)
- Vehicle wiring diagram/manual(Reference for circuit locations and fuse mapping.)
Steps
Estimated time: 60-120 minutes
- 1
Power down and set up
Turn off the vehicle and remove the key. If you need to disconnect the battery, do so only after documenting your baseline and in a controlled manner. Gather your meter, leads, and any adapters, and establish a clean workspace. This initial setup reduces the risk of shorts and erroneous readings.
Tip: Never probe live high-current circuits; keep metal tools away from battery terminals. - 2
Establish a baseline off-state current
With ignition off, sensors settled, and doors closed, connect the meter in the chosen configuration (inline or clamp) and record the off-state current. Allow about 30 seconds for stabilization, then take a second reading to verify consistency.
Tip: Take multiple readings to confirm stability before proceeding. - 3
Choose inline vs clamp method
Decide between inline measurement for precision (needs circuit disconnection) and a clamp meter for non-invasive checks. Inline is preferred when you need to quantify exact current, while clamp testing minimizes disturbance to the circuit.
Tip: Clamp meters reduce disturbance to the circuit and are safer for beginners. - 4
Measure current on the first suspect circuit

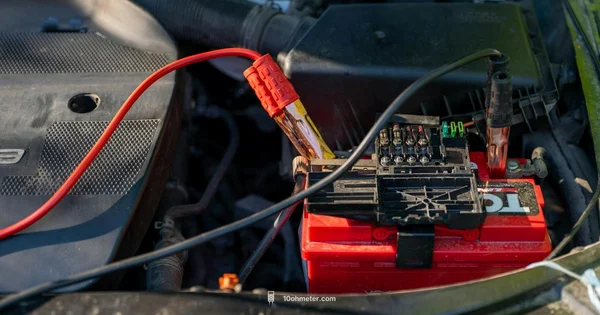

If inline, carefully disconnect the negative battery cable and insert the meter in series. If using a clamp, place the clamp around a single conductor in the suspect circuit and read the current. Record the reading and observe any fluctuations.
Tip: Keep fingers away from exposed terminals and avoid shorting wires. - 5
Isolate circuits by removing fuses one-by-one
Remove one fuse at a time while watching the current. A noticeable drop points to the circuit tied to that fuse. Re-seat the fuse after measurement and proceed with the next suspect fuse.
Tip: Remove only one fuse at a time to preserve overall system integrity. - 6
Test the suspect device and verify
With the suspect circuit isolated, disconnect or power down the suspected device. Re-measure to see if the current return to baseline. If it does, you’ve identified the culprit and can plan remediation.
Tip: If the draw persists, re-check wiring and consider hidden modules or shorts. - 7
Restore and validate the fix
Reconnect all circuits, restore the original wiring, and perform a final baseline measurement to confirm the idle draw has returned near baseline. Document the findings and implement a permanent fix if needed.
Tip: Document readings and fuse locations for future maintenance.
Your Questions Answered
What is parasitic draw?
Parasitic draw is the small current drawn from the battery by electronics after the vehicle is turned off. It is normal for some devices to stay awake briefly, but excessive draw can drain the battery. The goal is to locate and identify the circuit that remains energized.
Parasitic draw is the small current drawn when the system is off. The aim is to locate the circuit causing the drain.
Can I use a clamp meter to measure parasitic draw?
Yes. A clamp meter can measure current without breaking the circuit, making it a non-invasive option. For precise identification, inline measurement may still be needed.
Yes. A clamp meter works without disconnecting wires, which is handy for quick checks.
What if the draw remains after removing all fuses?
If the draw persists, recheck wiring, sensors, and any aftermarket installations. Sometimes the issue is a stuck relay, a module that stays awake, or a battery health problem rather than a circuit fault.
If the draw remains, recheck the wiring and modules; the battery itself could be faulty.
How long should I wait after turning everything off before measuring?
Wait about 30 seconds to allow electronics to settle, then take your baseline measurement. If readings vary, pause and retest later.
Wait a short settle period, around 30 seconds, before taking readings.
What are common culprits for parasitic draw in vehicles?
Common culprits include aftermarket alarms, remote starters, infotainment systems, and dashboards with always-on displays. In some cases, faulty sensors or relays can also cause excessive draw.
Look for aftermarket devices and always-on displays as common culprits.
Is a parasitic draw dangerous**?
Parasitic draw is usually not dangerous by itself, but it can lead to a dead battery. Exercise caution when probing circuits and avoid shorting or sparks.
It can drain the battery, so fix it promptly; be careful when probing live wires.
Watch Video
Key Takeaways

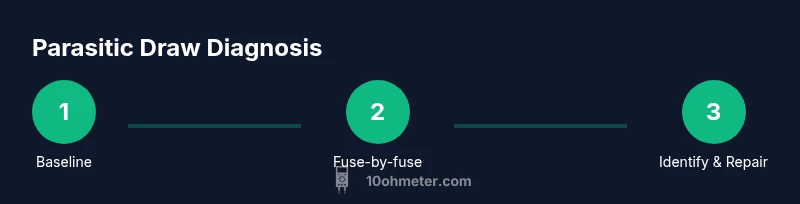

- Establish a repeatable baseline before testing
- Isolate the culprit by fuse-by-fuse inspection
- Use non-invasive methods when possible to protect circuits
- Verify results by re-measuring after remediation
- Document findings for future maintenance
