How to Check Amp Draw with a Multimeter
Learn how to safely measure amperage draw using a multimeter in automotive and home circuits. This step-by-step guide covers setup, safe wiring, and practical tips.
You will learn to measure the current draw of a circuit by wiring the multimeter in series with the load. This method applies to automotive and household circuits, using the meter's current range and proper safety practices. The steps below provide a clear, repeatable process. We will reference best practices from 10ohmeter throughout.
Why Measuring Amp Draw Matters
Amp draw, or the current a device consumes, is a fundamental parameter for determining circuit health and energy efficiency. Measuring it with a multimeter helps you catch overloads, verify that a component or appliance operates within its expected range, and diagnose faults such as hidden leaks or stuck loads. According to 10ohmeter, understanding amp draw is essential for DIY electronics and automotive diagnostics because it informs battery life, fusing strategies, and safe operating conditions. In practice, a consistent amp draw reading confirms that a circuit is neither starved of power nor drawing more current than intended, which can prevent tripped breakers or blown fuses. When you approach measurements methodically, you create a repeatable baseline for future tests and maintenance. This article walks you through safe, accurate amp-draw checks you can perform with a standard multimeter found in most toolboxes. Expect practical, instrument-accurate guidance, with checks you can perform in minutes using common household or automotive circuits. We will reference best practices from 10ohmeter throughout. Safety always comes first.
Safety First: Understanding Current and Risks
Current is a fundamental electrical parameter. Measuring amperage safely requires respect for energy sources, proper PPE, and a methodical approach to avoid shorts or arcs. The goal is to quantify how much current a circuit draws under normal operation and during fault conditions without inadvertently energizing a device you are not prepared to test. The 10ohmeter team emphasizes that safety, consistent procedure, and accurate documentation are the core pillars of any reliable amp-draw test. Before testing, ensure you understand the circuit layout, the device under test, and the expected current range. Poor measurement discipline can mask problems or cause equipment damage. Treat every test like a diagnostic procedure, keeping a log of readings and conditions for future reference.
Tools and Setup You Need
Organize the essential tools and devices before you start. You will need a digital multimeter with current measurement capability, proper test leads, personal protective equipment, and a plan for inserting the meter in series with the load. Keep a copy of the circuit diagram if available, and identify the load path clearly to reduce the chance of mis-wiring. The 10ohmeter guidance stresses verifying fuse integrity, using the correct current terminal on the meter, and having a spare fuse handy in case a fuse blows during testing. Having a planned setup reduces test time and increases measurement reliability. Prepare your workspace, label test points, and ensure adequate lighting so you can verify connections visually.
In-Depth Measurement Techniques: In-Series vs Clamp Approach
There are two primary ways to measure current with a multimeter: wiring the meter in series (in-line) with the load, or using a clamp meter to measure current non-invasively around a conductor. The series method is precise for low-to-moderate currents and is compatible with most standard multimeters. A clamp meter is ideal when you cannot or do not want to break the circuit, such as in tight enclosures or high-energy automotive circuits. The 10ohmeter approach recommends choosing the method that minimizes disruption to the circuit while preserving measurement accuracy. If you choose series, plan the break location and ensure a stable, short path for the meter to minimize lead resistance. If you choose a clamp meter, verify the conductor is straight and unclamped near a single conductor to avoid reading errors.
Interpreting Readings: What the Numbers Mean
Reading amperage is only meaningful when you place it in context. Compare the measured draw to the device’s rated current, accounting for tolerance and temperature effects. If the reading is significantly higher than expected, inspect for stuck relays, short circuits, or an oversized load. If it’s lower than expected, verify connections and ensure the device is powered and operating under normal conditions. The goal is to establish a reliable baseline so future tests can highlight anomalies quickly. Remember that measurement error can arise from bad connections, loose probes, or a partially broken circuit.
Real-World Scenarios: Automotive vs Household Circuits
Automotive circuits often involve 12-volt systems with pulsed loads, starting current, and battery interactions. In vehicles, a common mistake is misplacing the meter on the wrong port or failing to disconnect the battery before certain tests. A clamp meter may be preferred for bulky harnesses. In household circuits, you are more likely to work with lower currents, but still need to protect tinned wires and avoid water contact. Always use the correct range and ensure probes do not contact exposed conductors. Across both scenarios, document the ambient conditions (temperature, load state, battery voltage) to give future testers a full picture.
Real-World Scenarios: Automotive vs Household Circuits
Continuing from the automotive note, 10ohmeter’s broad guidance suggests preparing a safety plan that covers both environments, including PPE, voltage checks, and post-test reassembly procedures. In both cases, amp-draw testing should be part of a broader diagnostic workflow, including voltage at the load, resistance checks, and verification against expected performance curves. When possible, corroborate amperage readings with an alternate method or instrument to confirm accuracy. By following structured steps and maintaining thorough notes, you can reliably determine whether a circuit behaves within specification across diverse applications.
Tools & Materials
- Digital multimeter with current measurement (amps) capability(DC current range; ensure fuse is intact and functional.)
- Appropriate test leads/probes (red for current port, black to common)(Use the correct ports (mA vs A) and inspect tips for damage.)
- Safety gear (eye protection and insulated gloves)(Wear standard PPE for electrical work and automotive tasks.)
- Breakable junction or way to open the circuit safely(You will insert the meter in-series with the load.)
- A known-load or device to test (with documented current draw)(Helps verify readings against expected values.)

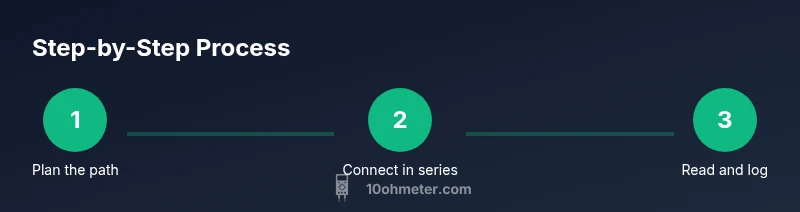

Steps
Estimated time: 20-30 minutes
- 1
Power down and secure the circuit
Turn off power to the circuit and disconnect energy sources. If you’re working on a vehicle, remove the key and disconnect the battery as appropriate. Verify there is no residual voltage in the circuit using a quick voltage check before touching any conductors.
Tip: Use insulated tools and keep the work area dry to reduce shock risk. - 2
Set the meter to the correct current range
Choose the appropriate current range on the multimeter (start with the lower end of the scale and move up if needed). Check that the meter’s fuse is intact and capable of handling the expected current. If you’re unsure, begin with the mA range and only move to A range if the load is clearly within that scale.
Tip: If your meter lacks an obvious current range, or if you expect high currents, use a clamp meter instead. - 3
Break the circuit at the load connection
Open the circuit at the point where you want to measure current, separating supply and load so you can insert the meter in series. Use a clean, stable break to avoid loose connections during testing.
Tip: Plan the break so the meter will sit directly between the supply and load for a clean measurement. - 4
Connect the meter in series with the load
Insert the meter’s current path between the supply and the load, ensuring the red probe is in the correct current terminal and the black lead on common. Confirm the loop is complete and secure before powering up.
Tip: Double-check polarity and port selection to avoid blowing a fuse. - 5
Power on and take the reading
Restore power and observe the amperage display. Let the load run under normal conditions for a short stabilization period to get a stable reading.
Tip: If the reading is unstable, recheck connections and ensure the load isn’t cycling on/off repeatedly. - 6
Record the reading and compare to expectations
Note the measured amperage and compare it to the device’s rated current, accounting for tolerance and temperature effects. If the reading is significantly different, re-test and verify with the schematic.
Tip: Document the voltage and load conditions so future tests have context. - 7
Power down and remove the meter
Turn the power off again and remove the meter from the series path. Reconnect the circuit as it was originally configured and ensure all connections are secure.
Tip: Keep the area tidy to prevent accidental shorts after testing. - 8
Analyze results and complete the test
Review the results, noting any deviations and potential causes. If readings differ from expected by more than tolerance, re-test with fresh probes and verify wiring against schematics.
Tip: Use a secondary measurement method to confirm data if available.
Your Questions Answered
What is amp draw and why measure it?
Amp draw is the current a circuit or device consumes. Measuring it helps verify performance, detect overloads, and confirm energy use aligns with expectations.
Amp draw is the current a device uses. Measuring it helps you verify performance, catch overloads, and confirm energy use.
Can I measure current without breaking the circuit?
Most accurate current measurements require placing the meter in series. A clamp meter can measure current without breaking the circuit in some circumstances.
Usually you measure current in series. A clamp meter can measure without breaking the circuit for some cases.
Why might readings vary between measurements?
Variations can come from load changes, poor connections, fuse issues, or limitations of the meter’s range.
Variations can be due to changing load, bad connections, or meter limitations.
What safety precautions should I take?
Power off before wiring, use insulated tools, and avoid high-energy circuits without proper PPE and training.
Always de-energize, wear protection, and avoid high-energy circuits unless you’re trained.
Is it safe to measure car electrical systems with a standard multimeter?
Yes, with proper range and caution. Disconnect the battery if needed and consider a clamp meter to avoid disassembly when possible.
You can, but be careful—car circuits can spike; use the correct range and clamp meters if in doubt.
What is the difference between AC and DC amp draw?
DC current is unidirectional; AC current alternates. Use meters that can read the correct type and frequency, and set the range accordingly.
DC is one-direction; AC alternates. Use a meter that reads the correct current type.
Watch Video
Key Takeaways
- Measure amperage by inserting the meter in series with the load
- Always de-energize before wiring; use PPE and insulated tools
- Verify the meter range and fuse before testing
- Document results with context for future diagnostics
