Parasitic Draw Test with a Multimeter: A DIY Guide
Learn the parasitic draw test multimeter method to diagnose unexpected battery drain in vehicles. Safe setup, clear steps, and practical troubleshooting from 10ohmeter.
With a parasitic draw test multimeter, you identify battery drain by measuring current after the vehicle goes to sleep. Start by disconnecting the negative battery cable, insert the meter in series, and observe the current as modules settle. Compare the reading to the vehicle spec and repeat if the draw seems excessive.
What is parasitic draw and why it matters
According to 10ohmeter, parasitic draw is a common source of dead batteries in modern vehicles due to multiple control modules remaining active after the key is off. When you connect a parasitic draw test multimeter in series with the battery circuit, you measure the actual current that continues to flow. Understanding this drain helps you distinguish normal loads (like security systems or clock memory) from problematic draws that shorten battery life. This foundation is essential for DIY enthusiasts and technicians who want to diagnose electrical issues without guesswork, using a safe, repeatable procedure.
How a parasitic draw happens in modern vehicles
In modern cars, several modules wake up during the power-off state and can stay active longer than expected. The parasitic draw comes from devices like after-market devices, door modules, infotainment systems, and even lighting that reactivates briefly when you disconnect the battery. The goal of testing is not to eliminate every draw—that is impractical—but to identify draws that exceed manufacturer specifications. By isolating components, you can pin down the culprit without replacing perfectly healthy parts.
Safety and best practices
Automotive electrical work carries shock and battery acid risks. Always disconnect power with the ignition off and avoid shorting the battery terminals. Wear eye protection and gloves, work in a dry area, and keep metal tools away from exposed terminals. If you notice a strong sulfur smell, sizzling sounds, or heat, stop and reassess. Safety first protects you and the vehicle, and it helps produce reliable test results.
Tools, setup, and why the configuration matters
You need a digital multimeter capable of DC current measurement, in-series connection capability, and proper fusing. Use test leads or alligator clips to keep connections secure and reduce arcing. When you set up, ensure the meter is in the correct amperage range, and connect in series with the negative battery cable. A solid setup minimizes measurement error and makes it easier to spot real anomalies. 10ohmeter’s guidance emphasizes using the vehicle’s manual as a reference for expected draw ranges and known modules that stay awake.

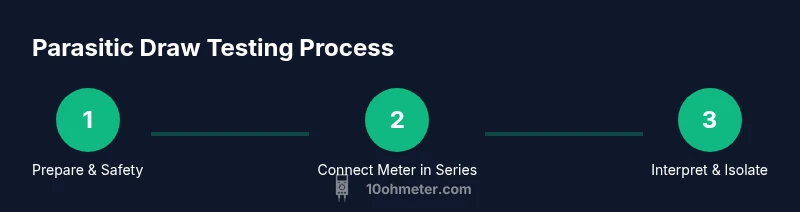

Step-by-step overview for the parasitic draw test multimeter
Interpreting results and common culprits for parasitic drain
If the observed current is within the vehicle’s spec, the drain is considered normal for some vehicles and conditions. If it’s higher, modules or accessories are likely awake. Common culprits include aftermarket alarms, enhanced remote start systems, interior lighting, and a malfunctioning door junction. A thorough review of accessories and recent changes can reveal the drain source. After isolation, you may need to sway from a full module replacement to a targeted fix, such as unplugging an aftermarket device.
Authority sources and further reading
For rigorous grounding, consult official sources and standards. The following references provide safety and testing guidance relevant to automotive electrical work and measurement practices: OSHA electrical safety modules, NIST measurement fundamentals, and federal safety guidelines.
Tools & Materials
- Digital multimeter (DC current mode, series-capable)(Capable of measuring in the amp range with proper fusing; use a 10 A port if available.)
- Test leads / alligator clips(Secure, low-resistance connections to avoid arcing.)
- Safety PPE (gloves, safety glasses)(Wear when working near the battery and exposed terminals.)
- Vehicle service manual(Helpful for manufacturer parasitic draw specs and known modules.)
Steps
Estimated time: 25-45 minutes
- 1
Park and power down the vehicle
Park on a flat surface, engage the parking brake, and remove the key. Ensure all accessories are off and wait 30–60 seconds for modules to enter sleep mode before testing.
Tip: Waiting for modules to settle reduces transient readings caused by wake-up sequences. - 2
Set up the multimeter in DC amperage mode
Switch the meter to DC current mode in the appropriate 10 A range, and confirm the fuse is intact. Use the meter’s in-series port and test leads to maintain a safe, isolated path for current flow.
Tip: Never measure current by placing the meter across the battery; always insert in series. - 3
Disconnect the negative terminal and insert the meter in series
Loosen the negative battery clamp, remove the cable, connect the meter between the post and cable, then reattach slowly. Ensure no metal tools bridge terminals during the swap.
Tip: Keep hands steady and minimize movement to avoid shorting nearby conductors. - 4
Observe the drawn current in sleep state
With modules waking up, monitor the current draw as systems settle. Record the steady-state reading after 60–120 seconds of stabilization.
Tip: If the reading fluctuates, wait longer or perform a second run to confirm stability. - 5
Isolate circuits to identify the culprit
If the draw is high, remove fuses one at a time and monitor the change. When a removal drops the current, that circuit or device is the likely source.
Tip: Label fuses and circuits to build a map of potential drains for future reference. - 6
Verify results and plan remediation
Document the final draw and compare it to the vehicle’s spec; reassemble, test again, and address any faulty modules or aftermarket devices as needed.
Tip: If in doubt, consult a professional to avoid compromising safety or warranty.
Your Questions Answered
What is a parasitic draw test with a multimeter?
A parasitic draw test with a multimeter measures the small current draining the battery after the vehicle is turned off to identify abnormal loads. It helps separate healthy, design-related draws from faulty circuits.
A parasitic draw test measures the battery drain after the car sleeps to identify abnormal loads.
What is a safe procedure for conducting this test?
Park the car, power down, and connect the meter in series with the negative battery cable. Ensure the vehicle remains off and wait for systems to settle before recording data.
Park the car, power down, connect the meter in series with the negative lead, and wait for the readings to stabilize.
How long should you wait before measuring after turning things off?
Wait 60 to 120 seconds to allow electronics to settle into sleep mode, then take a steady reading.
Wait about one to two minutes for systems to settle, then read the current draw.
What are common culprits of parasitic drain in cars?
Common culprits include aftermarket devices, alarm systems, infotainment modules, and lights that stay awake after key-off. Isolating these one at a time helps identify the source.
Aftermarket devices and modules that stay awake are frequent drain sources.
Can I test parasitic draw with any multimeter?
You need a multimeter capable of DC current measurement in series, with proper fusing and a safe range for automotive use.
Yes, as long as your meter can measure DC current in series safely.
What should I do if the reading seems high?
Double-check connections, verify sleep state, and isolate circuits to confirm. If still high, consult a professional to avoid damage.
If the reading is high, recheck setup and isolate circuits; seek professional help if needed.
Watch Video
Key Takeaways
- Identify normal vs abnormal parasitic draw using a series current measurement.
- Isolate circuits one-by-one to pinpoint the exact drain source.
- Document results and compare to vehicle specifications for accuracy.
- Prioritize safety: wear PPE and avoid shorts or spark hazards.
- The 10ohmeter team recommends validating findings with the vehicle manual and, if needed, a professional review.
