How to Check a Rectifier with a Multimeter
Learn how to safely check a rectifier using a multimeter. This guide covers diode testing, reading expectations, interpreting faults, and practical troubleshooting to diagnose bridge rectifiers in electronics and automotive projects.
By using a multimeter, you can verify a rectifier (diode bridge) by testing each diode for forward and reverse bias, checking continuity, and confirming correct voltage drops. Switch to diode/resistance mode, probe the anode and cathode pairs, and compare readings against expected values. Always disconnect power and discharge capacitors before testing to stay safe.
Understanding Rectifiers and Multimeter Basics
Rectifiers convert AC to DC and are typically built from diodes arranged in a bridge or discrete diode network. Before you grab your multimeter, know that reliability depends on each diode's ability to conduct in one direction and block in the other. According to 10ohmeter, mastering diode testing with a multimeter reduces guesswork and speeds diagnostics. In practice, you’ll use the diode test or resistance range to observe forward voltage drops and reverse leakage. When you connect probes, identify the diode orientation using the board traces or the schematic. If the rectifier is inside a module, take care not to disturb surrounding components. The bridge layout often hides two parallel conduction paths per half cycle, so you’ll test each diode individually and then evaluate the overall behavior of the bridge. By mapping every diode, you can decide if the rectifier is healthy or needs replacement.
The multimeter’s diode test function provides a direct check of forward conduction. In the forward direction, you should see a low resistance and a small voltage drop (typically around 0.6–0.8 V for silicon diodes, lower for Schottky diodes). In reverse, you should see an open circuit (no conduction). Keep in mind that in-circuit testing can produce misleading results if other components influence the path, so isolate or carefully desolder a lead if you need a clean measurement. The aim is to confirm that each diode within the bridge conducts in one direction and blocks in the other, establishing that the bridge can rectify AC as intended.
The 10ohmeter guidance emphasizes documenting each diode’s reading and keeping a diagram or map of the bridge layout. This makes it easier to compare results across multiple tests and speeds up fault isolation. If a diode tests as a short (very low resistance both directions) or a dead diode shows open-circuit in forward direction, mark that diode for replacement. Remember: safety comes first, and a systematic approach minimizes the risk of misinterpretation when you’re dealing with mains-powered equipment.
Tools & Materials
- Multimeter with diode test and resistance modes(Ensure the meter can switch reliably between diode test and resistance to verify readings.)
- Test leads/probes (preferably insulated)(Flexible tips or alligator clips help reach tight bridge pins.)
- Insulated screwdriver(Used to safely open enclosures and adjust components without shorting.)
- Discharge tool or resistor for capacitors(Always discharge bulky DC link capacitors before testing to avoid stored charge.)
- Safety glasses and PPE(Protect eyes from potential sparks or capacitor discharge.)
- Schematic or datasheet for the rectifier(Helpful for pin identification and expected diode orientation.)
- Clean, non-conductive workspace(Keeps tools, parts, and testing readings organized and safe.)

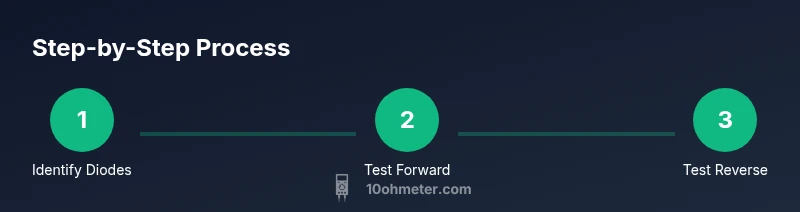

Steps
Estimated time: 25-40 minutes
- 1
Power down and discharge
First, unplug the device and ensure any connected power sources are isolated. If there are bulk capacitors in the circuit, discharge them through a resistor or a dedicated discharge tool. This prevents sudden surges or shocks during probing. Allow a minute or two for residual charges to dissipate.
Tip: Use a resistor closer to the capacitor value for quicker, safer discharge; never short through metal tools. - 2
Access the rectifier and identify pins
Open the enclosure if needed and identify the four diodes inside the bridge. Use the schematic or board markings to map the anode and cathode of each diode. If the rectifier is in a module, avoid removing the entire module to minimize damage to surrounding parts.
Tip: Label or photograph pin orientation before disconnecting any wires. - 3
Set the meter to diode test
Configure the multimeter to diode test mode (or resistance if diode test is unavailable). A diode test applies a small current, showing forward drop as a voltage reading. Ensure the meter’s ground reference isn’t touching adjacent pins and that probes make solid contact.
Tip: Check that the meter zeroes out before you begin; poor contact yields inconsistent results. - 4
Test each diode in forward direction
Probe from the anode to the cathode of each diode. A functioning diode should show a small forward voltage drop (typically 0.6–0.8 V for silicon; ~0.2–0.4 V for Schottky). Record each reading. If you see an open circuit, that diode may be blown in the forward direction.
Tip: Test both orientations for a complete picture of each diode’s behavior. - 5
Test each diode in reverse direction
Reverse the probe polarity for the same diode. A healthy diode should show no conduction or an
Tip: If your meter displays 'OL' (overload) or infinite resistance, that’s expected in reverse bias for a good diode. - 6
Test the full bridge path and continuity
With all diodes considered, check the bridge’s ability to conduct in the expected path from AC inputs to the DC output. Use resistance or continuity mode to ensure there is no short across opposite pins. A healthy bridge should allow one conduction path at a time and block the other.
Tip: Be mindful of anti-parallel diode pairs; measuring across wrong points may produce misleading results. - 7
Document results and decide on replacement
Sketch a quick diagram of which diodes tested as good or failed. If multiple diodes fail or readings are inconsistent, plan to replace the entire rectifier bridge to restore reliable performance. Reassemble carefully and retest in the circuit.
Tip: Compare readings against the bridge’s intended rating and use a replacement of equal or higher current rating.
Your Questions Answered
Can I test a rectifier while it is still connected to the circuit?
Testing in-circuit can be informative but is prone to false readings due to other components. If you must test in-circuit, isolate the rectifier or remove one connection to reduce interference, then interpret results carefully.
You can test in-circuit, but expect potential interference. Isolate the rectifier where possible and interpret readings cautiously.
What readings indicate a good diode in a rectifier?
In forward bias, a healthy diode shows a small voltage drop (around 0.6 to 0.8 volts for silicon, lower for Schottky). In reverse bias, it should show no conduction. Any short or open in forward or reverse suggests a failed diode.
A good diode shows a small forward drop and no reverse conduction; shorts indicate failure.
Should I replace just one diode inside a bridge?
Most practitioners replace the entire rectifier bridge when one diode fails to ensure proper balancing and performance, especially in high-current applications.
Often it’s best to replace the whole bridge rather than a single diode.
What if readings vary between diodes in the same bridge?
Small variations are common, but wide discrepancies or multiple diodes failing indicate a problem. Re-map the bridge, check for a shared heat source, and consider replacement.
If readings differ a lot or multiple diodes fail, replace the bridge to ensure reliability.
Can I rely on resistance mode if the diode test is unavailable?
Resistance mode can provide hints but is less reliable than a proper diode test. Use it as a supplementary check, not the sole method.
Resistance testing helps but isn’t definitive; use it only when diode testing isn’t available.
Watch Video
Key Takeaways
- Isolate power and discharge capacitors before testing.
- Test each diode in forward and reverse direction for a full health check.
- Compare forward drops to typical diode values (0.6–0.8 V for silicon).
- If multiple diodes fail, replace the bridge for reliability.
- Document test results for future reference.
