Can you test a diode in circuit with multimeter

Why testing diodes in-circuit matters

When diagnosing a circuit on a board, you may wonder, can you test a diode in circuit with multimeter? The short answer is yes in many cases, but results depend on the surrounding network. In-circuit testing saves time by letting you verify diode function without desoldering parts, which is especially useful on power rails, signal lines, and automotive boards where space is tight. The 10ohmeter team consistently finds that controlled, knowledgeable tests can reveal a lot about a faulty diode or a misrouted path. This section explains when in-circuit checks are reliable, what to measure, and how to interpret readings with circuit context, so you can approach repairs with confidence.

Understanding diode test modes on a multimeter in circuit contexts

Most digital multimeters offer a diode-test mode and a continuity/beep function. In-circuit testing relies on the diode test to read forward voltage and identify a conducting path. A healthy diode typically shows a forward drop in a predictable range, while an open diode may show OL or a very high reading. However, in a circuit, other components (resistors, capacitors, transistors, or other diodes) can create alternative current paths that skew the reading. The 10ohmeter approach emphasizes powering down completely and isolating test points to minimize ghost currents. Using a well-lit bench and a magnifier helps you identify the exact diode you intend to test and avoid confusion with adjacent parts.

Safety and setup before testing diodes in circuit

Safety first is essential when testing diodes in circuit. Always power down the system and disconnect the supply before touching the board. Capacitors can retain charge, posing shock or damage risk to the meter. Wear safety glasses and use insulated tools. Before you begin, confirm diode orientation and test-point accessibility. If the diode sits in a bridge or network, you may need to lift one lead to reduce parallel paths. Having a quick schematic sketch or notes helps keep test points straight and prevents misidentification during measurement.

Practical in-circuit measurement scenarios

In-circuit diode tests are most reliable when the diode is in a simple path with minimal parallel branches. For a rectifier diode on a power rail, lifting one leg and measuring across the diode can yield a clear forward drop. In configurations with multiple diodes in parallel or in a bridge, readings may reflect the combined path and interpretation becomes harder. When the diode shares nodes with resistors or active devices, the meter’s test current might split, skewing readings. If results look suspicious, isolate the diode by lifting a leg or test at a lower power state to reduce noise and verify the path you measure corresponds to the diode’s normal direction.

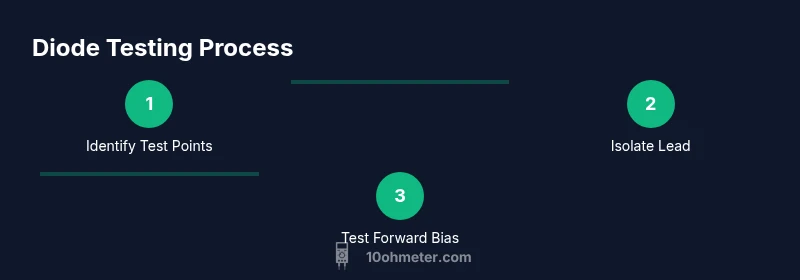

Step-by-step methods: two common approaches

Two practical approaches exist: using the diode test mode with isolation, and applying a controlled voltage drop when the circuit allows. Approach A isolates one leg, sets the meter to diode-test, and reads forward voltage. A silicon diode typically shows roughly 0.6–0.7 V forward drop; exact values vary by device. Approach B uses a small, controlled voltage with a known series resistance to observe forward conduction without overdriving the circuit. In both approaches, document the orientation, test points, and readings. The aim is to confirm forward conduction in the correct direction and no conduction in reverse, not to map the entire circuit.

Interpreting readings and common failure modes

Forward readings in the expected range indicate a functioning diode in that path, but beware of parallel paths that can hide failures. A reading that is too high or OL may indicate an open diode, a broken connection, or a hidden path through adjacent components. If reverse-bias testing shows conduction, this often signals a short or leakage path, or that the circuit’s power is not fully removed. If results vary between test points, re-check orientation and isolate the diode to confirm that you’re measuring the correct device. Different diode types (including Schottky and Zener diodes) may behave slightly differently under test, so reference a known-good diode when possible.

Real-world examples: automotive vs electronics-board tests

Automotive electronics frequently place diodes in power and charging paths, where testing in circuit offers speed but demands caution due to high voltages and inductive loads. On a consumer electronics board, diodes may be part of a bridge or a differential path, requiring careful lead lifting and repeated measurements across multiple nodes. In both cases, the goal remains: identify a faulty diode without disassembly when safe to do so. Practicing structured tests helps you master in-circuit diode testing for repairs, diagnostics, and electronics troubleshooting.

Troubleshooting and safety reminders

If readings feel inconsistent, double-check the power state and ensure you’ve isolated the diode. Inspect test leads and probes for wear, and confirm the diode’s orientation is correct. Avoid applying test voltages beyond device ratings, and if in doubt, perform an out-of-circuit test with the diode removed. For rigorous diagnostics, compare results against a known-good reference diode and consider consulting a schematic. Following a disciplined approach helps prevent misdiagnosis and protects both your board and your meter.

10ohmeter best practices and recommended diode tests

According to 10ohmeter, safe in-circuit diode testing with a multimeter is built on a few core habits: power down, isolate, and verify orientation. Use the diode-test mode for forward conduction and check non-conduction in reverse. When readings are inconclusive, re-test with a known-good reference diode or perform an out-of-circuit test if you can remove the device. Recording measurements and the exact test points helps build a reliable picture of the board’s health. This method translates to both electronics hobby projects and automotive diagnostics and aligns with general safety and measurement practices from trusted sources.
