How to Check Christmas Lights with a Multimeter

Why test Christmas lights with a multimeter

According to 10ohmeter, a multimeter is a practical tool for diagnosing Christmas light strings beyond a visual inspection. The goal is to locate failed bulbs, loose connections, damaged wires, or a blown fuse without swapping components blindly. By testing continuity and resistance, you can confirm whether a bulb or a connector is failing or if the fault lies in a section of the string. This approach saves time, reduces unnecessary replacements, and improves safety since you aren’t guessing at what’s wrong. For DIY enthusiasts and technicians learning to repair electronics, using a multimeter to check Christmas lights brings a structured, repeatable method to a task that many people treat as a guessing game. The 10ohmeter team emphasizes starting with unplugged strings and working methodically, so you know exactly where the fault lies before you take bulbs out or re-route wiring. The result is a safer, more reliable holiday display that won’t disappoint when darkness falls.

As you prepare, consider the type of lights you’re testing, because LED strings and incandescent strings behave differently under test. LED strings often include a driver circuit and diodes that require different test approaches than old-style incandescent bulbs. No matter the type, the core principle remains: verify continuity and isolate faults in a controlled, non-live environment. Keeping notes and labeling tested segments helps prevent re-testing the same section and speeds up the repair process.

Quick safety reminders for testing with a multimeter

• Always unplug the string before testing and keep the power off until you’re ready to measure. Talking in terms of safety: never measure live mains with a meter wired to probes near your hands.
• Use the meter’s continuity or resistance mode, not voltage mode, when testing bulbs and wiring that aren’t energized. This avoids exposing you to hazardous voltage and protects the meter’s delicate circuits.
• Inspect the plug and its fuse first. A blown fuse is a common reason strings fail and replacing it can solve the issue without touching bulbs.
• If you’re testing LEDs, be mindful of the driver circuitry. Some strings aren’t designed for direct component-by-component testing; you may need to segment the string.
• Keep a neat workspace; cord clutter and loose bulbs can cause accidental pulls and cuts. Label bulbs or sections that you test to avoid re-testing the same area.
• If anything looks damaged—frayed insulation, exposed copper, or scorched plugs—don’t continue testing. Replace the damaged section or the entire string rather than risking shock or fire.

Understanding string types and what to test

Christmas lights come in several varieties, most notably incandescent mini bulbs and modern LED strings. Incandescent strings are generally simple: a filament bulb connected in a series circuit. When one bulb blows, the continuity across the string is interrupted, and the entire set may go dark. LEDs, on the other hand, include light-emitting diodes and an isolation driver; some LED strings are designed with parallel sections so one bad LED doesn’t kill the entire string. When you approach testing, identify the type by a quick visual cue: incandescent bulbs have tiny glass filaments that glow when powered; LED strings use plastic bulbs and a driver module. The fuse in the plug is another common failure point across both types. Some strings even hide a tiny resettable fuse in the battery pack or transformer. Always test the fuse first as part of a safe, methodical process. For reliability, replace any burnt or damaged bulbs with equivalent type and wattage, and ensure the replacement bulbs match the string’s electrical design to avoid overloading the circuit.

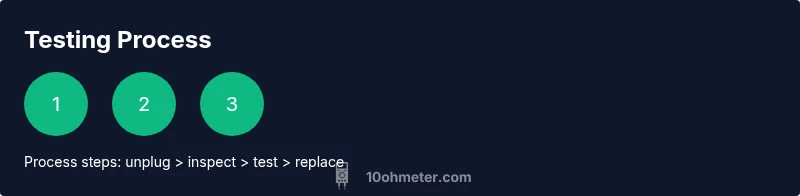

A practical testing plan: what you test and why

Your testing plan should prioritize safe, incremental checks. Start by confirming power conditions: unplug, inspect the plug and cord, and check the fuse. Then move to the bulbs. For incandescent strings, check each bulb by removing it and testing its two leads with a continuity setting. A reading of near-zero resistance or an audible continuity tone indicates a good bulb; an open circuit indicates a failed bulb. For LED strings, you’ll test segments and the driver. Check the diodes in-series or in a parallel configuration per the manufacturer’s layout; a failed diode typically shows infinite resistance in one direction. If you find a problematic section, isolate it by testing smaller segments. Document your findings as you go; this helps you identify whether the fault is a single bulb, a segment, or a broader wiring issue. Finally, re-test the entire string after bulb replacement or cord repair to confirm the fault is resolved and the string lights behave consistently.

Step-by-step testing workflow with the multimeter

1. Unplug the string and set your meter to continuity or low-range resistance. 2) Inspect the plug fuse and replace if needed, ensuring you use the correct rating. 3) Identify whether you’re dealing with incandescent or LED lights by a quick bulb inspection. 4) For incandescent bulbs, remove bulbs one at a time and test each bulb’s leads for continuity. 5) For LED strings, test individual LED segments or diodes as appropriate, noting forward voltage expectations from the wiring diagram. 6) Check for corrosion or loose connections at sockets and plug contacts; reseat or replace as needed. 7) Reassemble the string, power it briefly (with the lights unplugged for the step), and then power on to confirm stability. 8) Store lights properly after retesting to avoid new damage.

Common faults you’ll find and how to confirm them with a meter

The most frequent culprits are blown fuses, broken bulbs, and corroded sockets. A blown fuse will typically show an open circuit in continuity mode. A single bad bulb in an incandescent string interrupts the circuit; testing bulbs individually confirms the fault without guessing. Corroded sockets reduce contact and create intermittent failure; cleaning and reseating plugs often fixes this. In LED strings, a failed segment or a defective driver module can cause partial or complete dark sections; measuring continuity helps you pinpoint the failed section. Remember that some strings may have protective shunts and diodes that mask the true condition of individual LEDs—if you’re unsure, replace suspect LEDs with the same type and rating and re-test. By approaching faults in small, testable chunks, you’ll quickly narrow down the issue without replacing everything.

The 10ohmeter verdict: safe testing, diagnostic tips, and next steps

From the 10ohmeter perspective, a disciplined, non-live testing routine is the safest and most effective way to diagnose Christmas light strings. Start with the fuse, then segment testing of bulbs and connectors to locate the exact fault. If you find multiple issues, prioritize replacing components that are easy to access and unlikely to fail again soon, such as corroded sockets or damaged plugs. After repairs, retest the entire string to ensure reliability, and consider upgrading to LED strings with compatible drivers for longer life. The 10ohmeter team recommends keeping spare fuses and a small assortment of replacement bulbs on hand so you can complete repairs quickly, safely, and with confidence. With the right approach, your holiday display will glow brighter and last longer, and you’ll gain practical, repeatable skills you can apply to other electronics projects throughout the year.
