Digital Multimeter for Testing Fuses: A Practical Guide
Learn how to safely test fuses with a digital multimeter. This guide covers setup, measurement techniques, safety, and interpretation for electronics and automotive work.
To test fuses with a digital multimeter, remove the fuse from the circuit, set the meter to continuity or resistance, and verify a healthy reading or beep. If the fuse shows infinite resistance or no beeps, replace it. This guide covers safe setup, measurement techniques, and interpretation for electronics and automotive tasks.
What fuses do and why testing matters
Fuses are the first line of defense in electrical circuits, designed to protect wiring and components from overloads. They are simple devices: a thin conducting link that melts when current exceeds its rating. Testing fuses helps confirm they are still protecting circuits or identify a blown fuse that needs replacement. A practical approach uses a digital multimeter for testing fuses, enabling quick, reliable checks in both electronics and automotive tasks. According to 10ohmeter, a consistent fuse-testing routine reduces unexplained failures and speeds diagnostics. Remember that a fuse is a safety device, not a regulator of performance, so treat every test as a safety check.
Fuse basics: ratings and failure modes
Fuses come in different types (fast-acting and time-delay) and ratings, calibrated to specific currents. A fuse blows when the current exceeds its rated value for a short period, protecting wires from overheating. When you test a fuse with a digital multimeter, you’re checking whether the conductive link still exists (continuity) or whether the element has degraded (increased resistance). A good fuse should present a low resistance and a clear continuity path, while a blown fuse will typically read as an open circuit (no continuity). Understanding these basics helps you interpret readings correctly and avoid unnecessary replacements.
Safety essentials for fuse testing
Testing fuses involves live electrical systems and potential arc events, so safety comes first. Always de-energize the circuit before handling fuses, disconnect power sources, and wear eye protection. Keep your work area dry and free from metal jewelry. When working on automotive circuits, disconnect the battery or ignition to prevent backfeed. If you must work in tight spaces, use insulated tools and keep a fire extinguisher nearby. Following these precautions minimizes the risk of electric shock, short circuits, or sparks during the test.
Getting ready: workspace and tools
A clean, organized workspace reduces errors during testing. Lay out a non-conductive mat, gather your tools in a tray, and label the fuse locations you will test. Essential equipment includes a digital multimeter with continuity and resistance modes, various fuses (blade and glass types), a fuse puller, insulated pliers or tweezers, and test leads. If you test automotive fuses, keep a small assortment of common fuse sizes handy. Having spare fuses on hand ensures you can replace immediately if you find a blown unit. A tidy bench also helps prevent accidental shorts during measurements.
Set up your digital multimeter for fuse testing
Before testing, verify that your multimeter is in good working order. Install fresh batteries if the display is dim. Switch the meter to continuity mode for quick checks that emit a beep when a path exists, or to the ohms (Ω) range for a resistance reading. Start with a low resistance range to capture small values, and ensure the meter leads are firmly connected to the fuse terminals. If you’re testing in a circuit, isolate the component under test or remove the fuse entirely to avoid reading other circuit paths. Calibrate or check test leads for any resistance of their own to prevent skewed results.
Interpreting results and next steps
A good fuse normally shows continuity and a low resistance value on the meter. If you hear a beep or observe a near-zero ohms reading, the fuse is likely intact. If the meter reads open circuit or a very high resistance, the fuse is blown and should be replaced with a fuse of the same rating. If readings seem inconsistent, recheck connections, ensure the fuse is fully removed from the circuit, and retest. After replacement, re-check the circuit to confirm the fault isn’t elsewhere. Document your results for future reference and maintenance.
Common pitfalls and troubleshooting
Common mistakes include testing a fuse in-circuit, which can produce misleading readings due to parallel paths, or using the wrong meter setting, which may falsely indicate continuity. Another pitfall is assuming a low resistance guarantees safety in all parts of a circuit; some components can short after a fuse has blown. Ensure the fuse is the actual protection point by isolating the circuit and testing across the fuse terminals only. Inspect the fuse holder for corrosion or bent contacts, which can mimic a bad fuse.
Maintenance and best practices after testing
Keep your fuse inventory organized and label each fuse by circuit location and rating if possible. Store fuses in a dedicated container to prevent damage and mix-ups. Periodically test your multimeter’s accuracy with a known-good reference resistor to ensure readings stay reliable. When you replace fuses, install the exact rating specified by the device or vehicle manual. Regularly review your testing procedures and update them as your projects become more complex or you work on different systems.
Tools & Materials
- Digital multimeter (with continuity and resistance modes)(Quality leads in good condition; check the leads for any visible wear)
- Assorted fuses (blade and glass)(Include common automotive sizes and standard glass fuses)
- Fuse puller or insulated tweezers(Helps remove fuses safely without damaging contacts)
- Insulated pliers(Use to manipulate fuses in tight spaces)
- Test leads with alligator clips(Useful for non-standard fuse holders)
- Non-conductive mat or working surface(Prevents accidental shorts and protects the bench)

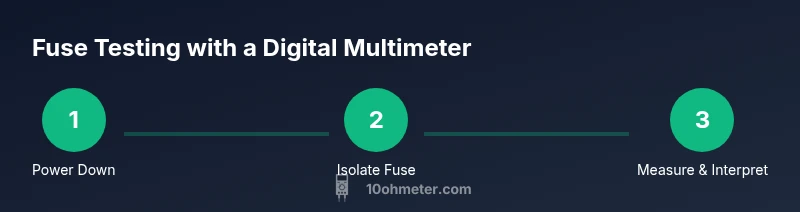

Steps
Estimated time: 15-25 minutes
- 1
Identify the fuse to test
Locate the fuse you need to test using the device's manual or a wiring diagram. Make a note of the fuse's location and rating before removal.
Tip: Label the exact circuit or device the fuse protects to avoid confusion later. - 2
Power down and disconnect
Power off the equipment or vehicle and disconnect the battery if working on automotive circuits. This reduces the risk of shock or short circuits during removal.
Tip: Wait a few seconds after powering down to let residual charges dissipate. - 3
Remove the fuse from its holder
Carefully extract the fuse with a fuse puller or insulated tool. Do not twist or bend the fuse element. Inspect visually for any charring or discoloration.
Tip: If the fuse is difficult to remove, don’t force it; check for a damaged holder first. - 4
Set the meter to continuity or resistance
Configure the digital multimeter to continuity mode for a quick beep test, or to an ohm (Ω) range for a quantitative reading. Ensure leads are connected to the fuse ends.
Tip: Starting with a low-Ω range helps capture small resistance values quickly. - 5
Test across fuse terminals
Place meter probes on each end of the fuse. In continuity mode, a steady beep indicates a good fuse; in resistance mode, you should see a low, steady value.
Tip: If you see noisy or fluctuating readings, re-seat the fuse and retest. - 6
Decide on replacement
If continuity is present and resistance is low, the fuse is likely good. If there’s no continuity or the resistance is high, replace with the correct rating.
Tip: Always replace with the same amperage rating and type as specified by the manufacturer. - 7
Reinstall and re-test
Reinstall the fuse or a replacement into its holder, re-energize the circuit, and test the circuit function. Recheck for abnormal behavior after reassembly.
Tip: Keep a log of tests and outcomes for future maintenance.
Your Questions Answered
Can I test a fuse without removing it from the circuit?
Testing in-circuit can yield misleading readings due to parallel paths. For accurate results, remove the fuse from the circuit when possible and test across the terminals.
Testing in-circuit can be misleading. It's best to remove the fuse and test across its terminals for accuracy.
What does a continuity reading tell me about a fuse?
A continuity reading (or beep) typically means the fuse is intact and conducts current. No continuity suggests the fuse is blown and should be replaced with the same rating.
Continuity usually means the fuse is good; no continuity means it's blown and should be replaced with the correct rating.
What range should I use on the multimeter for fuse testing?
Use the ohms (Ω) range sufficient to measure a low resistance value, or use the continuity setting if your meter provides a consistent beep. Do not use high-current ranges that could affect readings.
Set to continuity or a low ohm range to get a stable reading without stressing the fuse.
Can testing a fuse damage the multimeter?
When performed with proper settings and stable connections, testing a fuse generally poses little risk to the multimeter. Avoid testing high-current paths or damaged cables that could short.
If you use the right setting and solid connections, testing a fuse is safe for your meter.
What types of fuses can I test with a DMM?
Most standard glass and blade fuses can be tested. Some specialty or surface-mount fuses may require alternate methods or equipment.
Most common fuses can be tested with a digital multimeter; some special fuses need different methods.
What should I do if I cannot remove the fuse?
If removal is not possible, isolate the suspected path and perform a cautious in-circuit test only with proper precautions. Be aware that readings may be inconclusive.
If you can’t remove the fuse, test with great care and expect less definitive results.
How often should I test fuses in a repair workflow?
Include fuse testing as a standard step when diagnosing electrical faults, especially after power restoration or following component replacements.
Make fuse testing a routine part of electrical fault diagnosis.
Watch Video
Key Takeaways
- Power down before testing fuses.
- Use continuity or resistance mode for clear results.
- Replace blown fuses with the correct rating.
- Document results for future maintenance.
