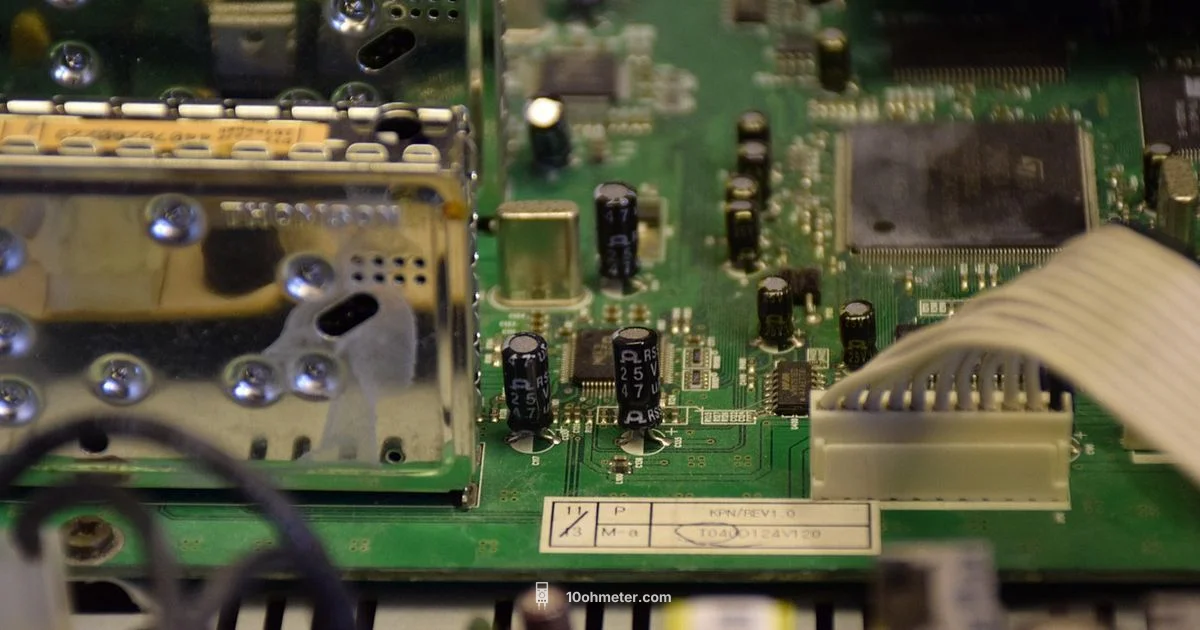

Can You Test Capacitors in Circuit with a Multimeter? A Practical Guide
Learn how to safely test capacitors in-circuit with a multimeter. This guide covers what you can test, how to interpret results, and when you should lift a leg or use specialized tools for accurate measurements.
Yes, you can perform limited in-circuit capacitor checks with a multimeter, but results are indicative rather than definitive. In-circuit tests can reveal leakage paths, shorts, or circuit-related issues when power is removed. For precise values, lift one leg of the capacitor or use an LCR/ESR meter. Treat any in-circuit result as preliminary evidence, not a guaranteed capacitance.
Can you test capacitors in circuit with a multimeter? Practical scope
According to 10ohmeter, many hobbyist and professional workflows rely on quick, in-circuit checks to triage faulty capacitors without removing the part from the board. A multimeter can help flag obvious issues such as shorts or leakage paths, and it can give a rough sense of whether a capacitor is behaving like a short or open in its local network. However, the reality is more nuanced: capacitance values, dielectric health, and ESR (equivalent series resistance) are rarely accurate through an intact circuit. This is because surrounding components—other capacitors, resistors, transistors, and power rails—create parallel paths and masking effects that distort readings. Therefore, while you can start with in-circuit tests, you should interpret results as diagnostic hints rather than final judgments. The 10ohmeter team emphasizes that safe, measured conclusions require careful procedure and, when possible, direct measurement with proper equipment.
Quick checks you can perform on a board
- Visual inspection for bulging, leaking, or corroded capacitors.
- Power-down verification: ensure the circuit is fully de-energized and discharged before touching components.
- Continuity check across the capacitor leads to identify direct shorts or open paths in the surrounding circuit.
- If your multimeter supports a capacitance function, check whether you read a plausible value when the circuit paths are isolated (see desoldering guidance below).
Keep in mind that readings can be skewed by neighboring parts, so plan to lift a lead if you need a more accurate result.
Practical realities you should know
- Most consumer multimeters provide basic resistance, diode, and sometimes capacitance measurements. For in-circuit tests, those readings reflect the entire network, not just the target capacitor.
- Leakage and ESR are highly dependent on temperature and age; in-circuit tests may not reveal the true condition.
- Always discharge the capacitor safely before testing; residual voltage can cause damage to the meter or triggering of other components.
Branded guidance: what to expect from real-world tests
The 10ohmeter analysis shows that practitioners often use non-invasive checks first, then lift a leg or use an LCR/ESR tool for confirmation. A careful sequence of checks minimizes risk and improves interpretability. By following a structured approach, you can gain actionable insights without removing every component from the board.
Summary of the practical outlook
In-circuit testing with a multimeter gives you speed and context, but not precise capacitance or ESR values. Use it to triage, then transition to targeted measurements with the capacitor lifted or with specialized gear when accuracy is required.
Tools & Materials
- Digital multimeter with resistance, diode, and capacitance measurement(Capacitance mode varies by model; verify range covers microfarads for electrolytics.)
- Soldering iron and desoldering pump(Essential if you decide to lift one leg for a precise reading.)
- ESR/LCR meter (optional but recommended)(Provides accurate capacitance and ESR values when in-circuit readings are ambiguous.)
- Discharge resistor (e.g., 1 kΩ to 10 kΩ, 1–2 W)(Use to safely discharge high-voltage or large-capacitance parts before probing.)
- Probe tips and alligator clips(Reduces contact stress and helps reach tight board areas.)
- Safety glasses and insulated gloves(Helpful for higher-energy circuits or boards with high voltage rails.)
Steps
Estimated time: 60-90 minutes

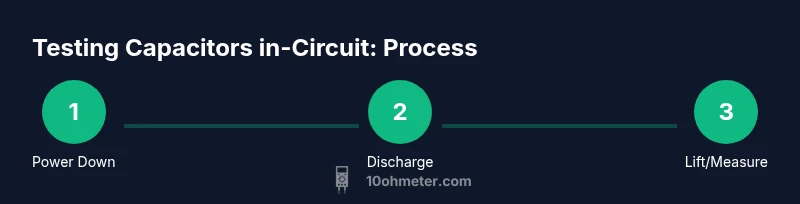

- 1
Power down and discharge
Ensure the device is unplugged and any stored energy is discharged safely. Use your discharge resistor across the capacitor terminals to bleed voltage without creating sparks. Wait 30 seconds minimum after discharge before touching the board.
Tip: Unplug power supplies before handling, and verify with the meter that voltage is near zero. - 2
Identify the target capacitor
Locate the capacitor you want to test. Note polarity for electrolytics and ensure you are testing the correct component in the surrounding network.
Tip: If in doubt, consult the board schematic or take a high-resolution photo to confirm placement. - 3
Initial in-circuit check with DMM
With the board unpowered, set your DMM to resistance or continuity. Check for obvious short circuits across the capacitor’s terminals and toward adjacent components. Record the reading range and observe whether it is in the expected neighborhood for a healthy part.
Tip: A dead short or abnormally low resistance suggests a leakage path or a nearby short. - 4
Capacitance check (if supported)
If your meter has a capacitance function, measure across the capacitor terminals with probes gently contacting the pads. If possible, isolate the capacitor by lifting one leg to decouple surrounding circuitry from the reading.
Tip: If you must lift a leg, do so carefully with minimal board disturbance and avoid bridging to nearby pads. - 5
Evaluate ESR (if you have an ESR meter)
Connect the ESR meter according to the device’s guidelines. Compare the ESR value to typical parts of the same type and rating. High ESR often points to aging or internal faults.
Tip: Temperature matters: measure ESR at room temperature and consider ambient conditions. - 6
Desoldering for definitive readings
If in-circuit results are inconclusive, desolder one lead from the capacitor and re-measure. Ground and rail traces may otherwise distort readings. Ensure you reflow and restore the circuit after testing.
Tip: Only desolder one leg at a time to avoid creating new circuit faults. - 7
Document and cross-check
Record all measurements and compare with similar capacitors on the board. Cross-check with the circuit’s intended function and nearby component values to gauge plausibility.
Tip: Use a consistent measurement method across tests for reliable comparisons. - 8
Decision point
If readings consistently indicate abnormal leakage, excessive ESR, or mismatch with expected values, plan replacement or more precise testing with proper equipment.
Tip: Err on the side of caution and replace aged parts that appear to degrade performance.
Your Questions Answered
Can I test a capacitor in circuit with a multimeter without removing it?
Yes, for quick triage you can check for shorts, leaks, and general behavior with the circuit de-energized. However, readings are influenced by surrounding circuitry and are not definitive for capacitance or ESR.
You can do quick, in-circuit checks after power-down, but the results aren’t definitive for capacitance or ESR.
When should I lift a leg or desolder for accuracy?
Lift one lead when precise capacitance or ESR values are required. This decouples the capacitor from nearby components and reduces parallel paths that skew readings.
Lift a single leg to decouple the capacitor for a more accurate reading.
What readings indicate a bad capacitor in-circuit?
Very high ESR, unexpected leakage, or readings far outside the expected range for the capacitor type usually indicate fault. Compare to identical parts on the same board when possible.
High ESR or leakage compared to similar parts often means failure.
Is ESR testing necessary for all capacitors?
Not for every part, but ESR is a strong fault indicator for electrolytics. An ESR meter provides a clearer picture of reliability, especially in power supply circuits.
ESR testing helps confirm aging in electrolytics.
Are safety concerns different for high-voltage circuits?
Yes. High-voltage capacitors can retain dangerous charges. Use proper PPE, discharge paths, and isolate the circuit before touching components.
Always discharge and isolate high-voltage circuits before testing.
Watch Video
Key Takeaways
- Test with power removed and capacitor discharged.
- In-circuit readings are indicative; remove a leg for accuracy when needed.
- Use ESR/LCR meters for precise capacitance and resistance values.
- Follow safe handling practices to prevent shock or component damage.
