How to Test a Grounding Mat with a Multimeter
Learn how to safely test a grounding mat with a multimeter, verify continuity to earth, interpret readings, and maintain reliable static control for electronics assembly and automotive work.
You will verify that a grounding mat is properly bonded to earth ground by testing continuity with a multimeter. Start by connecting the mat's ground lead to a known ground point, then measure surface-to-ground resistance at multiple spots. A low, consistent reading indicates a healthy mat; inconsistent or open readings suggest a fault or wear that needs repair.
Why testing grounding mats matters for electronics work
Grounding mats are a cornerstone of effective static control in electronics assembly, repair, and automotive work. A well-functioning mat helps dissipate electrostatic charges that can damage delicate components or cause unexpected faults. According to 10ohmeter, regular verification ensures you’re not relying on a mat that has lost its grounding path due to wear, cord damage, or connector corrosion. When you test grounding mat continuity with a multimeter, you validate that the entire mat surface remains at or near earth potential. This is especially important in practical DIY projects, where you may work with sensitive ICs, disassembly of vehicles, or soldering tasks. The goal is consistent, predictable readings across the mat’s surface, demonstrating a robust protective path for you and your components.
Safety considerations when testing grounding mats
Safety comes first when working with any electrical equipment. Never test a mat that is connected to powered equipment or installed on a live bench. Disable circuits, unplug devices, and isolate your testing area from conductive surfaces that could create alternate ground paths. Wear eye protection and insulated gloves if you’re dealing with exposed conductors or high-voltage components. A grounded mat helps reduce shock risk, but improper testing can introduce new hazards. Always handle the mat’s ground cord and test leads with care, avoiding sharp bends or damaged insulation that could expose conductors. If you spot any fraying, cracking, or discoloration on the mat or cord, stop and replace the worn component before testing further.
Understanding the grounding mat and the test setup
A grounding mat consists of a conductive surface bonded to a ground reference, typically via a ground cord with a plug or clip that connects to an earth ground. The mat is designed to be placed on a work surface where you perform tasks, while your body and tools share the same ground reference. In testing, you confirm a continuous, low-impedance path from the mat surface to earth ground. A multimeter configured for continuity or low-resistance mode is used to verify that the mat surface, mat edge, and the ground lead all form a single, intact path. The test should be performed at multiple points to confirm uniform contact across the mat.
Preparing your test setup and choosing a multimeter
Select a multimeter that can measure continuity and low resistance with audible or visual indicators. Ensure its probes are in good condition and that insulation on leads is intact. Establish a fixed earth ground reference—this could be the building’s safety ground or a dedicated ground rod—and keep the mat’s ground lead connected to that reference. Calibrate or verify the multimeter’s function using a known good jumper lead before testing the mat to avoid false negatives from a faulty meter. Clear the workspace of metal shavings or tools that could create unintended shortcuts to ground and skew readings.
Step-by-step method overview for reliable results
A methodical approach helps ensure consistency and repeatability. Plan to test at least three or four spots across the mat surface and along the ground lead at its connection point. Maintain a steady hand and keep the mat dry; moisture can alter readings. Document the readings and compare them against a baseline you establish during the first test. If readings drift over time, it’s a sign of wear, cord fatigue, or connector corrosion that warrants maintenance or replacement.
Interpreting readings and troubleshooting common issues
Readings should show a low impedance path from the mat surface to earth ground at all tested points. If the reading is very high or infinite at any spot, inspect the mat’s surface for damaged coating, a loose ground cord connection, or a faulty clip. Corroded connectors or worn insulation often cause intermittent results. If you get inconsistent readings across spots, check for moisture, uneven contact, or dirty surfaces that may hinder conduction. In DIY environments, even small gaps in the ground path can defeat static control, so repeat tests after cleaning and reconnection.
Maintenance cadence and best practices
Establish a routine: test the grounding mat every time you set up a bench for sensitive work, after cleaning, or following any movement that could impact the cord or clips. Maintain the mat by wiping the surface with a dry or slightly damp microfiber cloth (no solvents that could degrade the coating) and inspecting the ground lead for nicks or kinks. Record the results in a log, noting date, spots tested, readings, and any anomalies. With consistent checks, you’ll detect gradual wear before it compromises safety and performance.
10ohmeter's verdict and practical takeaways
The 10ohmeter team emphasizes pragmatic testing: treat grounding mats as part of a safety system, not as a one-off accessory. Regular continuity checks help you confirm the mat remains bonded to earth ground, reducing static-related risk during assembly and diagnostics. In practice, use a disciplined routine: test at multiple points, verify the ground lead integrity, and re-test after any reconfiguration of your bench. This approach aligns with best practices in electronics and automotive testing, and it’s a reliable way to protect components and yourself.
Tools & Materials
- Grounding mat with integrated ground cord(Ensure mat is rated for ESD control and that the ground cord is intact and connected to earth ground.)
- Multimeter with continuity and low-resistance range(Prefer a meter with audible continuity and a lowest common-mode resistance below a few ohms.)
- Alligator clip leads(Two clips: one for the mat, one for the earth ground point.)
- Earth ground reference (house ground or dedicated ground rod)(Use a chassis ground or a known-to-be-grounded point with good contact.)
- Non-conductive test probes(Helpful to avoid shorting when testing near edges.)

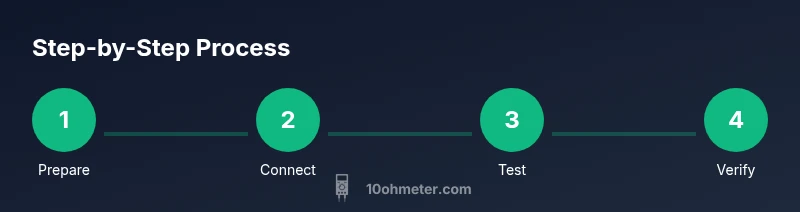

Steps
Estimated time: 20-35 minutes
- 1
Prepare workspace and safety checks
Power down all equipment and clear the bench area. Inspect the mat, ground cord, and probes for signs of wear or damage. Ensure hands and tools are dry to prevent accidental bridging to other conductors.
Tip: Document the starting condition before you begin testing to track wear over time. - 2
Connect mat ground to earth reference
Attach the mat's ground lead to your established earth ground reference point using the appropriate clip or plug. Confirm a secure, clean connection with no loose strands.
Tip: If your ground reference is a rod, ensure it has good contact with soil and is not buried under debris. - 3
Configure the multimeter
Set the multimeter to continuity mode or to a low-resistance measurement range. If using continuity mode, enable audible feedback for quick checks. Verify meter accuracy with a known good jumper lead.
Tip: Test the meter on a known resistor to confirm the reading is reasonable before testing the mat. - 4
Test mat surface-to-ground continuity
Place one probe on the mat surface and the other on the earth ground reference at multiple spots. Record readings and listen for the meter’s continuity tone if supported.
Tip: Test at corners and near the mat edge to ensure full-surface contact. - 5
Test the ground cord point and edge
Probe the connection node where the ground cord attaches to the mat, and test a few inches away along the edge. Look for consistent readings across these proximity checks.
Tip: Poor contact at the cord attachment is a common failure mode; don’t skip this check. - 6
Interpret results and document
Compare readings across all tested spots. A consistently low impedance path across spots indicates good grounding. Record all values, date, and any anomalies for future reference.
Tip: If any spot fails, inspect the corresponding area and retest after repairs or replacements.
Your Questions Answered
What is a grounding mat and why test it?
A grounding mat provides an anti-static path to earth to protect electronic components from static charge. Testing ensures the mat remains bonded to earth ground and functions correctly.
A grounding mat provides anti-static protection, and testing confirms the path to earth ground is intact.
Can I use any multimeter for this test?
A multimeter with continuity or low-resistance measurement is suitable. Ensure probes are in good condition and calibrate the meter with a known jumper before testing.
Yes, as long as your multimeter can measure continuity and low resistance, and you verify it with a known good lead.
What readings indicate a healthy mat?
A consistently low impedance path between the mat surface and earth ground across multiple spots indicates a healthy mat. High or open readings point to a fault in the mat, lead, or attachment.
Look for a low, consistent path to ground across different spots; anything high or open means a fault.
How often should I test the grounding mat?
Test the mat at the start of each project, after cleaning, and following any movement that might affect connections. Maintain a simple log for tracking.
Test it at the start of each project and after any changes, and keep a log.
What if readings are inconsistent?
Check for moisture, surface dirt, or loose attachments. Retest after cleaning and reseating connections; if inconsistencies persist, inspect the ground cord and mat for wear.
If readings wobble, check moisture and connections, then retest; persistent issues may require replacement.
Are there safety considerations during testing?
Always de-energize equipment before testing. Use insulated tools and avoid touching exposed conductors. If unsure, consult a qualified technician.
Power down first and use insulated tools; if in doubt, seek expert help.
Watch Video
Key Takeaways
- Test the mat each setup to ensure continuity.
- Use a known earth ground reference for reliable results.
- Document readings and inspect for wear between tests.
- Re-test after cleaning or reconfiguration to confirm reliability.
- Follow safety rules; a well-tested mat protects components and operators.
