Grounding Mat Testing with a Multimeter: A Practical Guide
Learn how to test a grounding mat with a multimeter to ensure safe earth bonding, effective static control, and reliable performance in electronics and automotive workspaces.
Test a grounding mat with a multimeter to verify safe earth bonding and effective static control. You will check mat-to-earth continuity, mat-to-ground resistance, and the integrity of the earth path from the outlet. This grounded setup protects sensitive electronics and automotive tasks from static discharge, ensuring reliable performance during real-world work.
Why a grounded workspace matters
In electronics and automotive work, static electricity can damage sensitive components or attract dust and moisture that compromise solder joints and connectors. A properly grounded workspace minimizes these risks by providing a defined path for static charges to dissipate. According to 10ohmeter, establishing a reliable grounding routine starts with a properly rated grounding mat and the right testing approach. The focus here is on using a common tool—the multimeter—to verify that your grounding mat and its connections are performing as intended. By validating mat-to-earth bonding, you reduce the chance of occult leaks or intermittent grounding paths that could undermine your work. This is essential whether you’re prototyping circuit boards, repairing automotive microcontrollers, or assembling precision instruments. A little upfront testing yields safer work and more predictable results during long projects.
How a grounding mat interacts with a multimeter
A grounding mat is designed to provide a stable, low-impedance path to earth for any charges that accumulate on a technician’s body or tools. When you use a multimeter to test it, you’re assessing two key concepts: continuity (is there a continuous path to earth?) and resistance (how much resistance exists along that path?). Your meter should be able to measure low ohms and offer a continuity beep or equivalent reading. The mat is typically connected to earth through a grounding cord or a dedicated earth point on a power strip or wall outlet. Understanding these interactions helps you interpret readings correctly. In practice, consumers often overlook the importance of a clean, dry connector, which can introduce resistance changes and false negatives in continuity tests. A consistent, repeatable test routine is vital for ongoing reliability.
Key measurements when using a multimeter for grounding mat
The primary measurements are mat-to-earth continuity and mat-to-ground resistance. Continuity ensures there is a path to earth; resistance gives you an idea of how easily charges travel through the mat and its connections. You should also verify the earth path from the mat to the facility ground, typically via the outlet, power strip, or building ground system. Interpreting these readings requires referencing the mat’s installation guide or the workstation’s standard operating procedures. If the mat fails to show a solid continuity reading or if the resistance is unexpectedly high, the issue is usually a loose connection, a damaged grounding cord, or contamination on the mat surface. Regular checks help catch degradation early and keep static-control performance consistent.
Safety considerations and best practices
Safety comes first when testing grounding mats. Always power down equipment before making measurements, and never test live circuitry. Use insulated tools and keep the mat surface dry and clean to maintain low resistance paths. When possible, test with a dedicated earth point rather than improvising a ground path from a metal surface. Use the multimeter’s continuity mode or resistance mode according to the manufacturer’s instructions, and wear appropriate PPE if recommended by your facility’s safety policy. Document any observed changes in readings and investigate recurring deviations promptly to prevent uncontrolled static events in your work area.
Common pitfalls and how to avoid them
Common pitfalls include skipping the earth path check, using damaged test leads, and assuming a mat is always grounded because it looks attached to a plug. Even small amounts of moisture, dust, or corrosion on connectors can raise resistance enough to compromise performance. Ensure that all connectors are clean, dry, and firmly seated. Avoid using high-humidity environments or placing the mat near heat sources, which can affect material properties over time. Finally, always calibrate or verify your multimeter’s accuracy periodically and replace worn test leads that show signs of wear or insulation damage. By avoiding these mistakes, your grounding mat remains effective at dissipating static charges during demanding tasks.
Tools & Materials
- Grounding mat(Ensure it is rated for ESD protection and connected to earth.)
- Earth grounding plug or grounding cord(Must be compatible with your mat and outlet type.)
- Multimeter with continuity and resistance testing(Prefer a meter with continuity beep and low-ohm range.)
- Alligator clip test leads(Use sturdy clips for stable connections to mat and earth.)
- Insulated hand tool & non-slip gloves(Optional for extra safety during setup.)
- Documentation notebook or spreadsheet(Record readings and dates for maintenance logs.)

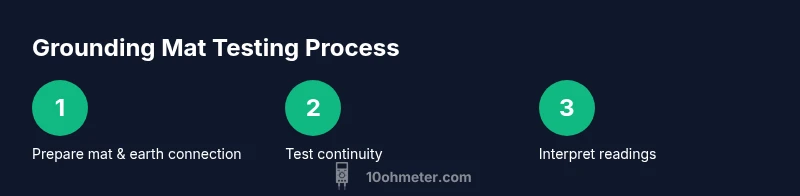

Steps
Estimated time: 25-45 minutes
- 1
Prepare workspace
Power down all equipment and clear the surface. Place the grounding mat on a clean, dry workstation. Inspect the mat and grounding cord for visible damage before starting.
Tip: Keep the mat away from sharp edges that could wear the surface. - 2
Gather and verify tools
Collect the multimeter, test leads, and earth connection. Inspect test leads for cracks in insulation and ensure the meter’s batteries are fresh. Having ready equipment prevents mid-test interruptions.
Tip: Use fresh batteries and tested leads to avoid false readings. - 3
Connect earth ground to mat
Attach the ground cord to the mat’s designated grounding point and connect the other end to an earth ground (outlet ground or dedicated earth point). Ensure all connections are snug and free from corrosion.
Tip: Double-check the path from mat to earth point for continuity before measuring. - 4
Test mat-to-earth continuity
Set the multimeter to continuity or lowest resistance setting. Probes should show a near-instant continuity reading or a low resistance value when touching the mat and earth point.
Tip: If the meter lacks a beep, observe the resistance value and ensure it remains stable. - 5
Test mat-to-ground resistance
Switch to resistance mode and measure between the mat surface and the earth point. A stable, low resistance indicates a healthy grounding path; a high value suggests a poor connection.
Tip: Record the value and compare against your facility’s standard operating parameters. - 6
Interpret results and document
Document readings, label the test with date and operator, and store the results in your maintenance log. If readings drift over time, recheck connections and consider replacement if degradation occurs.
Tip: Schedule periodic retests and set thresholds for automated reminders.
Your Questions Answered
What is the purpose of testing a grounding mat with a multimeter?
Testing verifies that the mat provides a reliable path to earth and maintains low resistance for effective static control. It helps prevent unexpected ESD events during sensitive work.
Testing ensures the mat provides a reliable path to earth for safe static control.
Do I need a specialized multimeter for this?
A standard digital multimeter with continuity and resistance measurement is sufficient for most grounding mat tests. Ensure it can measure low ohms and provide a continuity beep.
A standard multimeter with continuity and resistance features is usually enough.
What readings indicate a good grounding path?
A solid continuity reading and a stable low resistance value indicate a healthy grounding path. If either reading fails or drifts, inspect the mat, cord, and connections.
Solid continuity and stable low resistance mean the path is good.
How often should grounding mats be tested?
Test installation and after maintenance, then schedule periodic checks as part of routine safety and quality checks. Re-test when equipment changes or in high-dust environments.
Test on install, after maintenance, and periodically.
What should I do if readings are out of spec?
Re-check all connections and clean any corrosion. If readings remain out of spec, replace the grounding cord or mat and document the incident for maintenance.
Recheck connections and replace faulty parts if readings stay off.
Is a wrist strap required along with the grounding mat?
Wrist straps and grounding mats serve different purposes but can be used together for enhanced ESD protection. Follow your facility’s safety policy to decide.
Wrist straps and mats can be used together if your policy allows.
Watch Video
Key Takeaways
- Confirm mat-to-earth continuity before use.
- Measure mat-to-ground resistance with a steady setup.
- Document readings for maintenance and safety.
- Inspect connections and leads regularly to prevent drift.
- Schedule periodic re-testing to preserve static control.
