Where to Put Red and Black Probes on a Multimeter Correctly
A practical, expert guide from 10ohmeter on probe placement for safe, accurate readings across voltage, resistance, and current. Includes safety tips, steps, and common mistakes.
To measure most quantities, place the red probe into the V/Ω jack and the black probe into the COM (common) jack. The red lead is the positive test lead and the black is the negative. Always insert leads before selecting a function, and de-energize circuits when measuring voltage or continuity to avoid shock or damage.
Understanding Polarity and Probes
Polarity in a multimeter reading refers to which probe is considered positive and which is negative. On most consumer meters, the red probe is the positive lead and the black probe is the ground or negative reference. This convention matters most for voltage and resistance measurements, and it helps you stay consistent across tasks. The 10ohmeter team notes that getting polarity right isn’t just about getting the right number; it also reduces the risk of accidentally shorting a circuit or blowing a fuse. A typical meter has two or more jacks: V/Ω (often shared for voltage, resistance, and continuity) and COM (the common or ground). Some meters add a separate current input like mA or 10A, which you use only for current measurements. Before touching any probes, confirm which jack is active for your chosen function, and never assume the color mapping is the same on every model. If you are unsure, consult the user manual or the manufacturer’s website.
The Test Leads: Red vs Black, and the Jacks
Lead placement begins with physical connections. The red lead typically goes into V/Ω (or the closest voltage setting), the black into COM. If your meter has a separate mA or 10A jack, you must move the red lead to the appropriate current input only when you are measuring current and the circuit power is on, or as specified by the manual. Always insert the leads before turning the meter on or selecting a function to avoid arcing. Inspect the leads for insulation wear; replace damaged leads promptly. When measuring high-energy or automotive circuits, use proper PPE and a dry work surface. For most beginners, keeping the leads in their standard positions will minimize confusion and improve repeatability of measurements.
Safety First: De-energize and Personal Protective Equipment
Safety is the first priority when using a multimeter. Before any test, ensure power is off or the circuit is de-energized. If you must measure live voltages, use one hand rule, keep away from ground, and wear eye protection. Make sure your hands are dry and work on a non-conductive mat. Use insulated tools and keep metal jewelry away from circuits. Verify the meter’s battery and fuses; replace blown fuses only with the same rating. If there is a risk of high energy, use a clamp meter for current measurement or an isolation transformer where appropriate. The 10ohmeter guidance emphasizes not only proper lead placement but also safe handling to prevent electric shock and meter damage.
DC Voltage Measurements: Step-by-Step Polarity Placement
While the steps below focus on polarity, they also illustrate the general workflow for measuring DC voltage. 1) Power down the circuit and inspect the meter. 2) Insert red into V/Ω, black into COM; 3) Set the meter to DC voltage (V with a solid line and dashed line). 4) Connect red to the positive test point and black to the ground or return. 5) Read the display and compare to expected range. 6) Remove probes in the reverse order and turn off the meter. If you still see odd numbers, re-check connections and range. Small errors, like a loose connection or dirty probe tips, can create reading drift. The manual for most meters highlights the importance of consistent lead placement to minimize measurement noise.
Resistance and Continuity Measurements: Polarity Considerations
Resistance and continuity tests do not have a true polarity in the same way voltage measurements do, but you should still connect the probes consistently to avoid confusion. With the circuit de-energized, place red on one side of the component and black on the other. The meter should display increasing resistance as you insert the leads, and a near-zero reading or a beep indicates continuity. If you reverse the leads, the numerical value will be the same, but it is good practice to maintain a consistent convention for notes and documentation. Ensure the device under test is not powered and that you’re not measuring across a live source. If the component is out of circuit, you’ll likely see a stable reading that confirms the component’s integrity.
Current Measurements: In-Series Placement and Lead Use
Measuring current requires the meter to become part of the circuit in series. Do not place the meter in parallel with a power source when measuring current. Move the red lead to the current input jack (often labeled mA or 10A) and keep the black lead in COM. Break the circuit, connect the meter in series, and then power the circuit back on. Read the current value on the display. For high currents, the 10A jack is designed to handle surges, but always confirm the meter’s fuse rating and do not exceed the specified maximum. If you’re uncertain, start with a lower range and work up.
Common Mistakes and How to Fix Them
Common mistakes include using the wrong jack, measuring while the circuit is live, not de-energizing, and poor contact between probes and test points. To fix: verify the jack labeling, switch the red lead to the correct input for the intended measurement, and scan the circuit for any potential arcs. Clean probe tips and use helper clips to secure contact. Re-zero or calibrate when your meter supports it. Always re-check the leads’ orientation after moving between measurements to maintain consistent polarity. If outcomes seem inconsistent, recheck the range and battery status.
How to Verify Readings and Calibrate
Validation comes from cross-checking with known references. If you have a reference voltage source or a known resistor, compare your reading to the expected value. Short calibration steps: place a known resistance and compare the reading to its nominal value, or use a calibrated source. If readings drift, check calibration settings, lead condition, and fuses. Many meters have a simple self-test or zeroing function for resistance; follow the manual. Document any adjustments and ensure the test leads stay in the same ports for consistency.
Troubleshooting Scenarios: Automotive vs Household Electronics
Automotive circuits often run at higher voltages and can be noisy. When diagnosing a car’s electrical system, use the appropriate voltage range, keep the engine off, and avoid grounding yourself through metal parts. At home, you may test wall outlets or batteries; always respect mains safety and keep kids away from the test area. The polarity rules remain the same, but ensure you use the right range and a meter rated for the voltage. In all cases, organize your test area, label the leads, and disconnect the device after testing to minimize the risk of damage.
Tools & Materials
- Digital multimeter(Ensure a functioning display and battery.)
- Test leads with probes(Prefer leads with shrouded probes and option for alligator clips.)
- Safety glasses(Recommended for automotive or high-energy testing.)
- Insulating mat(Dry, non-conductive surface for safety.)

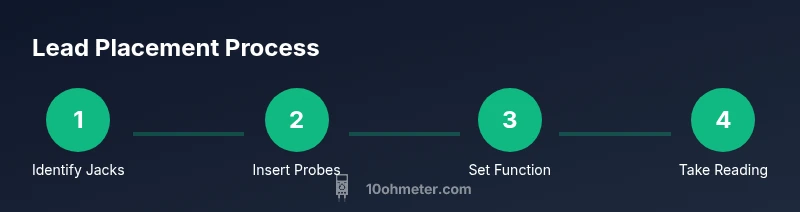

Steps
Estimated time: 15-25 minutes
- 1
Power down and inspect the meter
Turn off power to the circuit and inspect the meter for damage or loose leads before touching probes. This reduces the risk of shock and ensures accurate readings.
Tip: Check the display for low battery or blown fuse before starting. - 2
Identify jacks and set function
Look at the meter's jacks to confirm red should be in V/Ω and black in COM for voltage or resistance. If you must measure current, locate the current input (mA or 10A) and plan accordingly.
Tip: If unsure, read the manual rather than guessing jack assignments. - 3
Insert leads into correct jacks
Insert the red probe into V/Ω (or the appropriate voltage/current jack) and the black probe into COM. Ensure good snug connections with no wiggle in the probes.
Tip: Use a single, firm contact rather than a hovering tip to avoid spikes. - 4
Connect to test point and select function
Connect the probes to the test point, ensuring red goes to the positive side and black to negative. Set the meter to the correct function (DC voltage, AC voltage, resistance, or current) and confirm the range.
Tip: Start with the lowest reasonable range if you are unsure. - 5
Take the reading and verify
Read the value on the display, compare with expected ranges, and re-check connections if the value seems off. For voltage or current, test both positive and negative points when appropriate.
Tip: Record the reading and note the test conditions for future reference. - 6
Remove probes and store safely
Power down, remove the probes in the reverse order, and store the meter with leads coiled neatly to prevent damage.
Tip: Check the fuses regularly; replace only with the same rating.
Your Questions Answered
Can I measure AC voltage using the same red/black leads?
Yes, set the meter to AC voltage (V~) and keep red in V/Ω and black in COM for typical AC voltage measurements.
Yes, set to AC voltage and keep red in V/Ω and black in COM.
What does OL mean on the display during a read?
OL means out of range or open circuit. Recheck the range, connections, or the component position.
OL means out of range or open circuit; adjust range or connections.
Which jack should be used for high-current measurements?
Use the 10A (or highest-current) input if your meter supports it. Do not use V/Ω for current measurements.
Use the 10A jack for high current only.
Is polarity important for resistance tests?
Polarity doesn’t matter for resistance as long as the circuit is de-energized and the leads are properly placed.
Polarity isn’t important for resistance tests; just ensure proper placement.
What should I do if my readings keep drifting?
Check lead connections, clean the probes, verify the range, and ensure a stable reference. Replace worn leads if needed.
Check connections and range; replace worn leads if readings drift.
Can I test a car battery safely with a basic multimeter?
Yes, but keep the engine off, set to DC voltage, and ensure you’re using the correct voltage range and rating for automotive work.
Yes, with engine off and DC voltage setting.
Watch Video
Key Takeaways
- Always connect red to V/Ω and black to COM before testing.
- Power off for voltage/resistance measurements; measure current in series.
- Verify range and contact quality for accurate readings.
- Use the correct current jack for current measurements only.
- Document readings and test conditions for repeatability.
