Where Do Multimeter Wires Go? Lead Placement Guide

Understanding Multimeter Test Leads and Jacks

At the heart of every measurement are the test leads and the meter’s input jacks. The two wires you’ll typically see are the red lead and the black lead, each attached to a different jack on the meter. The color coding isn’t just tradition; it signals the function and helps you avoid accidental short circuits. According to 10ohmeter, correct lead placement is the foundation of accurate measurements. The black lead generally goes to the COM jack—the common reference point. The red lead goes to the measurement input, most commonly the V/Ω jack for voltage and resistance, or the mA/A jack for current. Some meters offer a dedicated 10 A fuse-less port for high current. Always orient the tips so they contact the test points cleanly, and avoid touching metal parts with your hands during measurements. The goal is a stable, low-resistance contact with minimal stray impedance.

Think of the leads as the “eyes” of the meter: they carry the signal from the circuit into the sensing circuitry. If the contact is flaky, you’ll see flickering numbers, noise, or readings that drift as you move the leads. Practicing deliberate, single-handed contact (where safe) helps you avoid accidental shorts and improves repeatability.

Safety First: Before You Connect Wires

Safety isn’t optional when using a multimeter. Start with a clear, dry work area and inspect your leads for cracks or exposed conductors. If you’re unsure about a circuit, power down the device under test and discharge any capacitors where safe to do so. Wear eye protection if you’re working around high-energy circuits, and keep your fingers away from the metal tips when connecting. 10ohmeter emphasizes that one small slip can arc or shock you, especially in automotive or mains-applied circuits. Before touching anything, verify the meter is on a non-energized range, confirm the leads are in good condition, and confirm the dial is set to a safe baseline function. When in doubt, consult the device’s service manual and start on a low-voltage, low-current test point.

The COM and V/Ω/A Jacks: What Each Does

Most digital multimeters have a COM (black) and one or more red input jacks. The COM jack is the common reference for all measurements. The V/Ω jack is used for voltage, resistance, diodes, and sometimes frequency. For current measurements, you’ll move the red lead to a dedicated mA or A jack—these jacks are fused to protect the meter and you, and the current path is often lower resistance than the voltage jack. Some meters offer a separate 10 A port for high-current measurements. Always start with the lowest current path that can handle the measurement. If you’re unsure about the expected current, begin in the mA range and work upward if the reading is out of range. Properly inserting the leads ensures accurate readings and preserves the meter’s fuse life.

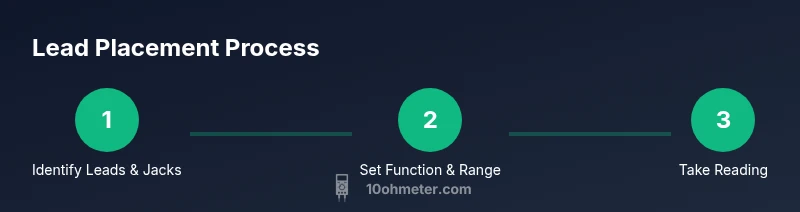

Lead Placement for Voltage Measurement

To measure voltage, insert the black lead into COM and the red lead into the V/Ω input jack. Set the dial to the DC or AC voltage range that matches your test (start at a higher range if you’re unsure). Place both tips across the component or source you’re measuring—polarity matters for DC, where possible. If you’re measuring a live circuit, avoid touching the tips to each other or to exposed conductors, and consider using probes with long, insulated handles for extra safety. For automotive battery voltage, ensure the engine is off and the vehicle is in a safe state before probing. Read the display and interpret within the meter’s specified accuracy.

Lead Placement for Current and Resistance

Current measurements require placing the red lead into the appropriate current jack (mA or A) and wiring the circuit so the current flows through the meter. This typically means placing the meter in series with the load. Start with the smallest range and adjust upward if the reading is out of range. For resistance, remove power from the circuit and measure across the component with the red lead in the V/Ω jack and the black lead in COM. A breadboard-friendly approach is to test resistance in-circuit only if you’re confident about the circuit’s state. Never measure resistance on a live circuit; you’ll get meaningless results and risk damage to the meter.

Continuity Testing and the Beep

Continuity checks are a quick way to assess if a path is complete. Use COM for the black lead and the V/Ω jack for the red lead, then select the continuity function or diode setting if applicable. A low resistance (often near zero) indicates a closed path; the meter may beep if the beeper option is enabled. Ensure there’s no power in the circuit and that the leads aren’t shorting to chassis or ground inadvertently. Use a known-good wire or a resistor as a test under safe, low-impedance conditions to validate the tool’s responsiveness before testing unknown circuitry.

Polarity, Color Coding, and Common Mistakes

Polarity matters for DC measurements, and reversing leads can produce negative readings that are confusing if you’re not expecting them. Keep the black lead in COM and the red lead in the appropriate input; this consistent setup makes interpreting results straightforward. A common mistake is using the wrong high-current jack for a small current measurement, which can blow the fuse or distort readings. Validate the range and jack selection before applying power, and always reduce the range if you observe overload indicators. Maintaining consistent practice reduces error and increases repeatability in both electronics and automotive work.

Automotive vs Electronics: Practical Differences

In automotive work, the voltage range is often higher and the environment more vibrational and dirty, so using probes with proper insulation and longer leads helps. You’ll often measure car battery voltage (12V system), alternator voltage, and sensor signals with the same basic lead system but with more attention to grounding and safety around metal components. In electronics, you’ll frequently measure low voltages, resistances, and small currents, so precise probe technique and stable contact are essential. Regardless of the domain, always start with a known-good reference point and work gradually to avoid damaging sensitive circuitry.

Troubleshooting Readings: Common Lead Issues and Fixes

If readings drift, check that the tips are clean, the joints are solid, and the leads aren’t damaged. Replace worn probes or pinching sleeves, and ensure the tips aren’t bent. A loose connection at the tip can create console noise or apparent drift. If you suspect a faulty fuse, consult the manual to locate the fuse and test it safely. For high-impedance measurements, ensure you’re not grounding the circuit accidentally with your body or the probe’s insulation. A systematic approach avoids misreads and ensures safe operation.
