What it means to handle a multimeter safely
For DIY electronics and automotive tasks, knowing how to handle multimeter properly is foundational. Learning how to handle multimeter safely reduces the risk of injury, damage to the circuit, and erroneous readings. At its core, it starts with choosing a trustworthy meter, inspecting the leads, and using correct test techniques. The 10ohmeter team emphasizes that safety begins before you touch any circuit: verify the battery, check the fuses, and confirm the dial is set to the appropriate mode. When you handle the leads, keep them out of contact with live parts and avoid touching metal tips with your skin. The difference between reading a live circuit and a powered-down one hinges on your method: where possible, de-energize, discharge stored energy, and isolate the circuit before you connect. The human factor matters too: wear eye protection when testing power electronics, and never substitute improvised probes for rated test leads. In short, safe handling combines the right tool, careful setup, and disciplined technique.
Safety first: setup and inspection
Handling a multimeter safely begins long before you touch a circuit. Start with a clean, dry workspace and a meter that is in good condition. Inspect the device for cracks, worn insulation, or damaged probes, and check the fuses inside the meter. Make sure the battery is fresh and the display is legible. Read the instruction manual to confirm the exact limits for your model, especially if you will measure high voltages or currents. Set the dial to the correct category and function so you don’t accidentally apply a dangerous range to a sensitive circuit. Keep metal parts away from exposed conductors, and never work on energized equipment with bare hands. If you are unsure about a measurement, turn off power and remove power sources before touching any test points. By establishing this disciplined setup, you minimize the chance of arcing, shorts, or misreadings that could lead to harm or damage.
Understanding measurement modes and ranges
A modern multimeter supports several measurement modes: voltage (AC and DC), current, resistance, and continuity with beep. Auto-ranging meters simplify the process, but manual ranges can offer more control for precise readings in specialized circuits. Before measuring, determine what you expect to read and choose the correct function. For voltage tests, connect the probes across the component or supply, then observe the display. For resistance, ensure the circuit is de-energized and discharged; a nearby capacitor can retain charge, skewing results. The continuity test is a quick way to verify if a path exists; a steady beep usually indicates a good connection. If you’re testing automotive circuits, take extra care around high current and heavy wiring and consider using a clamp meter for in-line current measurements. Remember that accuracy improves when you double-check with a different function or another meter if available and avoid touching metal tips during the test.
Practical testing: voltage, resistance, and continuity
This section covers practical workflows for three core measurements. First, voltage: verify the circuit power state, place the probes in the correct orientation, and read the value carefully. Second, resistance: ensure the circuit is powered off and capacitors are discharged; measure across the component and compare to expected tolerance. Third, continuity: connect the probes to the path you want to test and listen for the beep; if no beep, inspect for breaks or component faults. Automotive testing often requires caution with ground references and battery safety; in many cases, you’ll want to isolate the part of the circuit, or use a diagnostic adapter to avoid introducing faults. Practice makes perfect, so work at a comfortable pace, confirm readings with multiple points, and document your results for future troubleshooting.
Best practices for accuracy and maintenance
To keep readings trustworthy, use fresh batteries and verify the meter’s calibration periodically as part of routine maintenance. Inspect probes for cracks and worn insulation; replace damaged leads immediately. Keep the meter clean and dry, store it in its case, and avoid exposure to extreme temperatures. Regularly recalibrate or compare against a known standard if you rely on precise measurements for critical tasks. Label and organize test points in complex circuits to prevent cross-talk or misinterpretation of readings. Document your setup in a quick reference guide for future projects and maintain a log of battery changes and fuse replacements. By establishing a regimen of inspection, calibration checks, and orderly testing, you’ll extend the life of your tool and improve measurement reliability.
Troubleshooting common issues when using a multimeter
If readings are inconsistent, start by checking the leads for corrosion and verify you’re using the right ports on the meter (e.g., the 10A jack for high-current tests). Ensure your meter is in the correct function and watch for input overloads. If the display is blank, replace the battery and re-check fuses; a blown fuse is a common cause of failure in many meters. If you obtain odd readings, re-check connections, reverse probe placement to rule out polarity errors, and try a different range. For high-energy automotive or industrial circuits, consider disconnecting power and discharging capacitors before re-testing. If problems persist, consult the user manual or contact the manufacturer’s support line for model-specific guidance. Safety should be your top priority whenever measurements involve live electricity or high current.
Common mistakes to avoid
Avoid measuring resistance on a powered circuit, as this can damage the meter and give misleading data. Don’t rely on a single measurement; always cross-check by using multiple functions or a second meter when possible. Never bypass safety features—if a fuse trips or a display reads abnormally, pause and reassess before continuing. Avoid touching metal probe tips with your skin, and never perform tests near flammable materials or wet surfaces. Finally, don’t improvise improvised test setups that create short circuits or exposed conductors; use proper probes, insulated accessories, and a grounded work area.
Tools & Materials
- Digital multimeter (DVOM)(Auto-ranging preferred; verify range and function)
- Test leads and probes(Insulated, with red/black leads; intact insulation and compatible connectors)
- Replacement fuses and spare batteries(Carry spares that match your model)
- Non-conductive testing mat or bench mat( Helps isolate tests and prevent shorts)
- Safety PPE (eye protection and gloves)(Basic PPE for high-energy circuits)
- Notebook or tape for labeling results(Keep track of measurements and references)

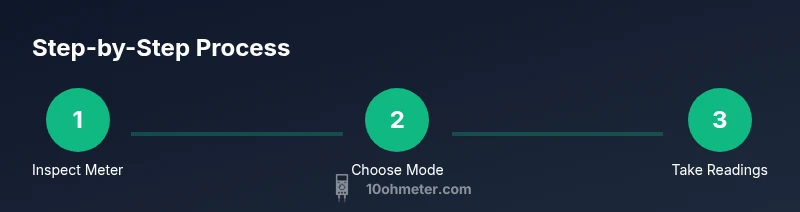

Steps
Estimated time: 25-35 minutes
- 1
Inspect the meter and leads
Power off the meter, inspect the housing for cracks, check the probes for nicks and worn insulation, and verify fuses are intact. This prevents false readings and protects you from shocks or arcing. If any damage is found, replace parts before proceeding.
Tip: Damaged leads should be replaced immediately; don’t reuse compromised probes. - 2
Select the correct mode and range
Rotate the dial to the correct function (DC voltage, AC voltage, resistance, continuity, or current). If you’re unsure of the range, start with auto-range if available, or set a higher range and then narrow down. Incorrect selection can blow fuses or give erroneous readings.
Tip: When in doubt, start with a higher range to avoid overloading the meter. - 3
Connect leads for voltage testing
With power off, connect the test leads across the component or source you’re testing. Ensure your hands are dry and the probes are kept away from your body. If the circuit is powered, only perform a voltage check in safe conditions and within rated limits.
Tip: Use one hand to hold the meter and keep the other away from the live circuit. - 4
Measure voltage safely
Power the circuit (if safe) and read the voltage value on the display. Compare with expected levels and consider tolerances. Record the result and de-energize the circuit before moving to other tests.
Tip: Do not touch exposed conductors while measuring live voltage. - 5
Power down and measure resistance
Ensure the circuit is de-energized and capacitors are discharged before measuring resistance. Place probes across the component and note the resistance. If it seems out of range, re-check connections or try another meter for confirmation.
Tip: Capacitors can retain charge; confirm there is no residual energy before testing. - 6
Test continuity
Set to continuity, place probes on either side of the suspected path, and listen for the beep. A steady beep indicates a good connection; absence of a beep may indicate a break or high resistance path.
Tip: For long wires, probe both ends to avoid contact resistance giving a false fail. - 7
Measure current carefully
Current tests usually require placing the meter in series with the circuit. If your meter has a dedicated current input, use it and never exceed the rated input. Automotive circuits may require a clamp meter for non-contact current measurements.
Tip: Do not attempt high-current tests with voltage-range jacks. - 8
Power off and store properly
After tests, power down, switch to a safe range, disconnect leads, and store the meter in its case. Keep the area clean and dry to protect the instrument from dust and moisture. Log results and note any anomalies for future reference.
Tip: Store with leads wound neatly to minimize wear on insulation.
Your Questions Answered
What is a multimeter and what is it used for?
A multimeter measures electrical parameters such as voltage, current, and resistance. It helps diagnose circuits, test components, and verify electrical behavior across electronics and automotive systems.
A multimeter measures voltage, current, and resistance to diagnose circuits and test components.
How do I measure voltage with a multimeter safely?
Set the meter to the correct voltage range, connect the probes across the test points with the circuit de-energized if possible, and observe the reading. If the circuit must be live, take extra precautions and stay within the meter's safety limits.
Use the voltage function, connect across the test points, and watch for safe, in-range readings.
What’s the difference between manual range and auto-range?
Auto-range meters select the appropriate scale automatically, making testing easier. Manual range meters require you to pick the range, which can be more precise but needs knowledge of the expected value to avoid overload.
Auto-range picks the scale for you; manual range requires you to choose the range carefully.
Can I measure current without breaking the circuit?
Current testing typically requires placing the meter in series with the load. In some cases, a clamp meter can measure current without interrupting the circuit, which is safer and faster for high-current paths.
Current usually requires breaking the circuit, but a clamp meter can do it without disruption.
How do I test a resistor with a multimeter?
Power down the circuit and discharge any capacitors. Measure across the resistor’s leads and compare with the part’s rated value, accounting for tolerance. If readings are off, re-check connections and consider the resistor’s tolerance.
Turn off power, measure across the resistor, then compare to its rated value.
What safety precautions are essential when using a multimeter?
Wear eye protection for power electronics, inspect leads for damage, keep fingers away from live conductors, and never work on energized circuits with exposed conductors. Follow the device’s manual for model-specific limits and fuse safety.
Wear eye protection, inspect leads, and avoid touching live parts.
Watch Video
Key Takeaways
- Inspect tools and leads before testing.
- Choose the correct mode, range, and connections.
- De-energize circuits before resistance or continuity tests.
- Verify readings by double-checking with multiple methods.
- Maintain the meter and store it properly for longevity.
