How to Check an AA Battery with a Multimeter

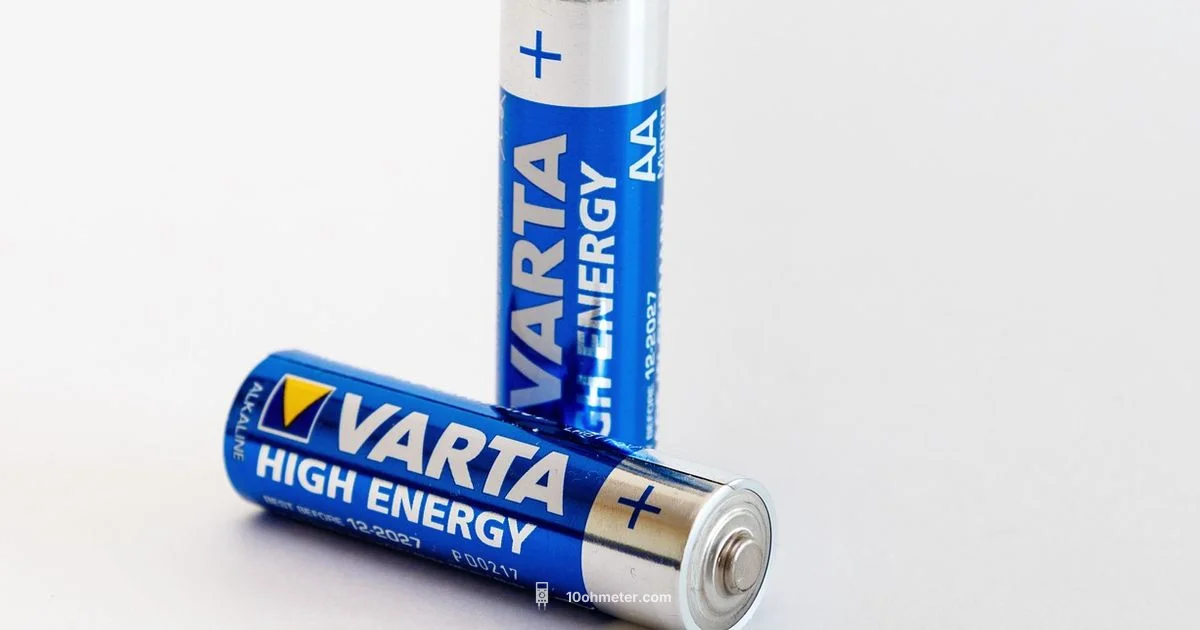

Understanding AA Battery Health and Multimeter Basics

AA batteries come in several chemistries, with alkaline and nickel‑metal hydride (NiMH) being two of the most common in DIY electronics and automotive tasks. A multimeter is a low‑cost, portable tool that lets you measure DC voltage to estimate a battery's health. In general, a fresh alkaline AA provides a nominal voltage around 1.5 volts, while a fresh NiMH rechargeable AA sits closer to 1.2–1.3 volts. As a battery discharges, its voltage under no load drops. A healthy reading depends on the chemistry and the battery’s age. For consistent results, test both alkaline and NiMH cells with the same meter and same probe configuration, and compare readings to the expected ranges for each chemistry.

Safe Setup Before You Test

Before you connect anything, ensure your multimeter is in good condition with functional probes. Remove any metal jewelry that could accidentally short the terminals, and never bridge the terminals with a conducting object. Check the AA battery for signs of leakage, bulging, or corrosion. If you see any damage, dispose of the cell safely and do not attempt to test it. Use clean, dry fingers or insulated grips to handle the battery to avoid accidental short circuits. This preparation reduces risk and improves measurement accuracy.

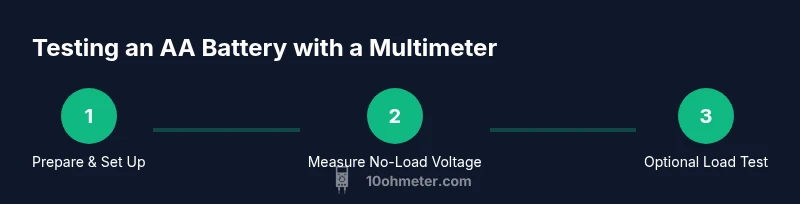

Step-by-Step: No-Load Voltage Measurement

1. Power up the multimeter and set it to DC voltage (auto‑range is fine on most modern meters; otherwise choose a 2 V or higher range).
2. Hold the battery so the positive (+) terminal is visible. Keep the probes perpendicular to the terminals to avoid slipping.
3. Place the red probe on the positive terminal and the black probe on the negative terminal. Read the displayed voltage without applying any external load.
4. Note the reading, then remove the probes and store the battery safely. If you need a comparative baseline, test a known good AA at the same settings.

tipforstep1-4":"Tip: If your meter has a low input impedance, use the 10 MΩ range to minimize loading errors."

Interpreting No-Load Readings: What Do the Numbers Mean?

• Fresh alkaline AA: roughly 1.5 V. If you see 1.3–1.4 V, it’s still usable for many devices but may underperform in high‑drain tasks.
• Depleted alkaline: readings around 1.1–1.0 V indicate the battery is near the end of its useful life for most devices.
• NiMH rechargeable AA (fresh): typically 1.2–1.3 V. A reading around 1.0–1.1 V suggests it’s near the end of its capacity after several charge cycles.
• Any reading consistently below 1.0 V for an alkaline cell often means replacement is due. Use NiMH compatible devices to maximize performance with rechargeable cells.

Optional Load Test: Simulating Real-World Use

To better mimic how a battery performs under load, you can apply a small, safe load using a resistor or a dedicated load tester. Connect a low‑wattage resistor (for example, a small hobbyist resistor rated for at least a few watts) across the battery while monitoring the voltage. A healthy alkaline battery should maintain most of its voltage under a light load; a sharp voltage drop indicates a weak battery that cannot sustain current. Do not exceed a safe current level and avoid overheating the battery.

When performing load testing, keep sessions brief and observe heat. Stop if the battery or resistor gets noticeably warm.

Common Mistakes and How to Avoid Them

• Testing old, damaged cells: Leakage and bulges can skew readings and pose safety risks. Dispose of damaged cells properly.
• Using an incorrect voltage range: Start with auto range or a 2 V range to avoid saturating the display and misreading the battery.
• Not observing polarity: Reversing the probes will show a negative voltage, which may confuse interpretation. Always align red to positive and black to negative.
• Ignoring temperature: Temperature can affect readings; test at ambient room temperature for consistency.

Maintenance, Storage, and Best Practices

Store AA batteries in a cool, dry place away from metal objects. Avoid leaving them in devices that expose them to heat or moisture for extended periods. When testing, compare measurements to manufacturer guidelines for each chemistry. Rotate stock so older batteries get used first. For rechargeable NiMH cells, maintain a regular charging schedule with a compatible charger to keep capacity high. For alkaline cells you don’t recharge, simply replace when readings indicate reduced performance.

Authority Sources and Further Reading

To deepen your understanding of battery health and safe testing practices, consult reputable sources such as national energy and safety organizations. These references offer guidelines on safe handling, measurement standards, and battery disposal practices.
