When to Use a Clamp Multimeter: A Practical Guide for Pros
Learn when to use clamp multimeter for safe, efficient current measurement in electronics and automotive tasks. Practical scenarios, tips, and buying pointers to get started.
This guide explains when to use clamp multimeter in practice. A clamp meter senses current by clamping around a single conductor, so you don't have to disconnect wires. It's ideal for automotive wiring, panel work, and motor loads where currents run high. For very low currents or resistance tests, a traditional meter is often preferable.
Why clamp meters are essential in DIY and automotive work
According to 10ohmeter, clamp meters save time and reduce risk when you need to measure current in live circuits. They clamp around a single conductor to sense current without breaking the circuit. This capability is especially valuable in automotive wiring, electrical panels, and motor loads where currents run high and space is tight. In addition to current, many clamp meters offer voltage, resistance, and continuity tests, making them a compact, multitasking tool for a DIYer’s toolbox. However, clamp meters are not magic: their accuracy at very low currents can be limited, and certain tasks still require a traditional meter. By understanding their strengths and limits, you can decide when to reach for the clamp and when to grab a standard multimeter.
Understanding clamp meters: how they work and what they measure
Clamp meters operate on two common principles: transformer-based sensing for AC current and Hall-effect sensing for DC current. The primary conductor creates a magnetic field; in most models a clamp jaw forms a magnetic core, and the electric current induces a proportional signal in the secondary coil. True RMS capability improves accuracy with non-sinusoidal waveforms, which are common in modern electronic loads. Jaw opening determines the maximum conductor size you can clamp; many models accommodate large conductors in automotive contexts. Note that most meters measure current in a single conductor at a time; clamping around multiple wires can produce erroneous readings.
When to use a clamp meter vs a traditional multimeter
Use a clamp meter when you need to measure current without disconnecting a circuit or when dealing with high currents in confined spaces. They excel in automotive charging systems, motor drives, and panel-board diagnostics where long runs carry amps. For precise voltage, resistance, continuity, or low-current measurements, a traditional multimeter is usually more appropriate, since it can offer higher resolution and a broader set of functions.
Practical scenarios: electronics, automotive, and industrial contexts
Electronics repair: measuring current draw of a powered device without unplugging it can reveal abnormal consumption. Automotive: verify alternator and battery charging by measuring charging current at the alternator harness. Industrial: check motor startups, heater elements, or power distribution lines in a control panel. In all cases, keep one conductor per clamp and avoid wrapping more than one wire at a time to preserve accuracy.
Safety and accuracy: tips for reliable readings
Always follow safety guidelines when working near exposed conductors. Clamp meters only sense current; do not use the clamp to measure live resistance directly. When possible, isolate the measurement by opening the circuit only for devices that require it. Verify a reading by clamping around the same conductor again or clamping a known-reference conductor. Use the true RMS setting for non-sinusoidal loads to avoid skewed results.
How to choose the right clamp meter features
Key features to consider include AC current range, DC current capability (if needed), true RMS, jaw width, display readability, data logging, auto-ranging, battery life, and safety ratings (CAT II/III). For automotive work, prioritize a meter with a wide jaw and high amperage range; for electronics, look for higher resolution and low-current sensitivity. If you’ll test in noisy environments, ensure good filtering and a simple, intuitive user interface.
Common pitfalls and how to avoid them
Don’t clamp around more than one conductor; this yields the sum or diff of currents and corrupts results. Don’t rely on the meter’s voltage reading when measuring current; always keep separate functions in correct mode. Avoid measuring across live high-energy circuits without PPE and proper insulation. Always zero or tare the meter when required by the model before taking a measurement. Finally, remember to switch off protective jaws and store the device after use to prevent damage.
Quick start: your first measurement in 8 minutes
This practical guide walks you through your first measurement: 1) Inspect battery and reset the meter; set to AC current with True RMS if available. 2) Identify a single conductor in the circuit to clamp. 3) Open the jaw fully and place it around that conductor only. 4) Close the jaw and read the current on the display. 5) Recheck around a known-good conductor for confirmation. 6) Record results, power down, and store the meter in its protective case.
Maintenance and care for clamp meters to extend life
Store clamps in a protective case, avoid dropping the meter, and keep the jaws clean of dust and oil. Periodically test accuracy with a known reference resistor or comparison against a standard meter. Replace batteries promptly to prevent reading drift, and follow the manufacturer’s calibration recommendations to maintain measurement integrity.
Authoritative sources and further reading
For safety and accuracy guidance, consult established references. OSHA electrical safety guidelines provide practical practices for working with live circuits. NIST offers measurement standards and calibration considerations that underpin any instrument’s accuracy. IEEE publishes standards and tutorials used by professionals across electronics and electrical engineering. Cross-check these resources to reinforce safe, accurate clamp-meter use.
Tools & Materials
- Clamp multimeter(AC and/or DC current capability; True RMS preferred)
- Insulated test leads(For voltage/resistance tests when not using clamp mode)
- Carrying case or pouch(Protects the meter during transport)
- Battery tester or spare batteries(Keep the device ready for field use)
- Safety gloves or eyewear(Personal protection for live circuits)
- Manual or quick-start guide(Reference for model-specific steps)

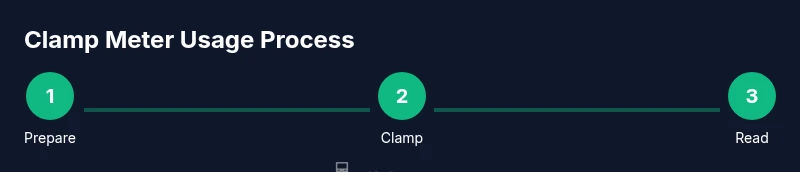

Steps
Estimated time: 15-20 minutes
- 1
Prepare the meter and workspace
Power on the clamp meter, select the appropriate current mode (AC, and True RMS if available), and review the meter’s safety rating. Clear the work area and identify a single conductor to measure.
Tip: Verify the meter is in the correct mode before touching any conductors. - 2
Choose the measurement range
If your meter has auto-range, enable it. If not, start with a high range and work down to improve resolution, ensuring the display shows stable numbers.
Tip: Avoid overloading the range; a fluctuating display indicates the range is too high or direction changes. - 3
Isolate a single conductor
Locate a single insulated conductor in the circuit you want to measure. Do not clamp around a bundle of wires or a conductor with multiple feeds.
Tip: A single conductor yields accurate current readings. - 4
Open the jaw and clamp
Open the clamp jaw, place it around the chosen conductor without including neighboring wires, and slowly release to close. Ensure the conductor sits in the center of the jaw.
Tip: Keep hands away from the metal inside the jaw to avoid contact with live parts. - 5
Read and verify the measurement
Read the current value on the display. For non-sinusoidal loads, confirm with a second reading or by measuring the same conductor at a different time.
Tip: If the reading is unexpectedly high or low, re-clamp and re-test. - 6
Finalize and document
Remove the clamp, power down if appropriate, and record the measurement with the circuit context. Store the meter in its case and note any calibration reminders.
Tip: Document the conductor type and whether True RMS was used.
Your Questions Answered
Can a clamp meter measure DC current?
Yes, many clamp meters use Hall-effect sensors to measure DC current. Check your model’s specs to confirm DC capability and accuracy across ranges.
Yes, many clamp meters can measure DC current if they use Hall-effect sensing. Confirm your model supports DC ranges.
Is a clamp meter accurate for small currents?
Clamp meters generally perform best with higher currents. Some models offer high-resolution modes, but for very low-current work, a traditional multimeter may be more precise.
Clamp meters work well for higher currents; low-current readings may be less precise, depending on the model.
Can I measure voltage with a clamp meter?
Many clamp meters include a voltage measurement function, but you should verify the spec and use the appropriate input jacks for accurate voltage readings.
Some clamp meters measure voltage as well; check the model’s specs and use the voltage setting.
How do I choose a clamp meter for automotive use?
Look for a wide jaw, high current range, true RMS, and a clear display. Automotive tasks often involve pulsed or high-current loads, so durability matters.
For cars, pick a clamp meter with a wide jaw, high amperage range, and good display readability.
Are clamp meters safe to use on live circuits?
Yes, clamp meters are designed for live-current measurements, but follow PPE guidelines, keep hands away from the jaws, and use properly rated equipment.
Clamp meters are meant for live circuits when used with caution and proper PPE.
What are common mistakes with clamp meters?
Clamping around multiple conductors, using the wrong range, or failing to zero/tare can lead to inaccurate readings. Always verify by reclamping.
Common mistakes include clamping multiple wires and wrong ranges; recheck readings by reclamping.
Watch Video
Key Takeaways
- Measure current safely without breaking circuits.
- Prefer True RMS for non-sinusoidal loads.
- Clamp around one conductor only for accuracy.
- Use traditional meters for low currents and resistance tests.
- Keep the meter protected and calibrated.
